YAMAHA KODIAK 450 2021 Owners Manual

9-31
9
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
EBU37131
To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Park the ATV on a level surface.
2. Remove the front carrier and panel F. (See page 9-10.)
3. Remove the radiator cap. 4. Remove panels D and E. (See page 9-10.)
5. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the footrest.)
1. Radiator cap
1
UBEY60E0.book Page 31 Monday, July 27, 2020 10:46 AM

9-32
96. Remove the coolant reservoir cap.
7. Disconnect the coolant reservoir hose on the
coolant reservoir side, and then drain the
coolant from the coolant reservoir. 8. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
9. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque.
10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the res- ervoir to the maximum level mark, and then
install the reservoir cap.
1. Coolant drain bolt
2. Gasket
3. Trough
2
1
3
1. Coolant reservoir hoseTightening torque:Coolant drain boltW10 N

9-33
9
12. Pour the recommended coolant into the radi-
ator until it is full, and then install the radiator
cap.
13. Start the engine, let it idle for several minutes, and then turn it off.
TIPWhile the engine is idling, check the cooling sys-
tem for leaks. 14. When the engine is cool, remove the radiatorcap to check the coolant level in the radiator.
If it is low, add sufficient coolant until it reach-
es the top of the radiator, and then install the
radiator cap.
15. Install the panels and the front carrier.EBU37113Cleaning the air filterThe main air filter element and sub air filter ele-
ment should be cleaned every 20–40 hours of en-
gine operation. When servicing the air filter
elements, check the air filter case inlet for obstruc-
tions. Check the air filter case rubber joint to the
throttle body and the rubber joint manifold fittings
for an air-tight seal. Tighten all fittings securely to
avoid the possibility of unfiltered air entering the
engine.
TIP Replace the air filter elements if damaged.
 Service the air filter more frequently if you often
ride in wet or dusty areas.
 There is a check hose at the bottom of the air fil-
ter case. If dust or water collects in this hose,
empty the hose and clean the air filter case and
air filter elements. 1. Park the ATV on a level surface.
2. Remove the seat. (See page 5-18.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders.1. Air filter case check hose
1
UBEY60E0.book Page 33 Monday, July 27, 2020 10:46 AM

9-34
94. Pull out the main air filter assembly and sub
air filter element.

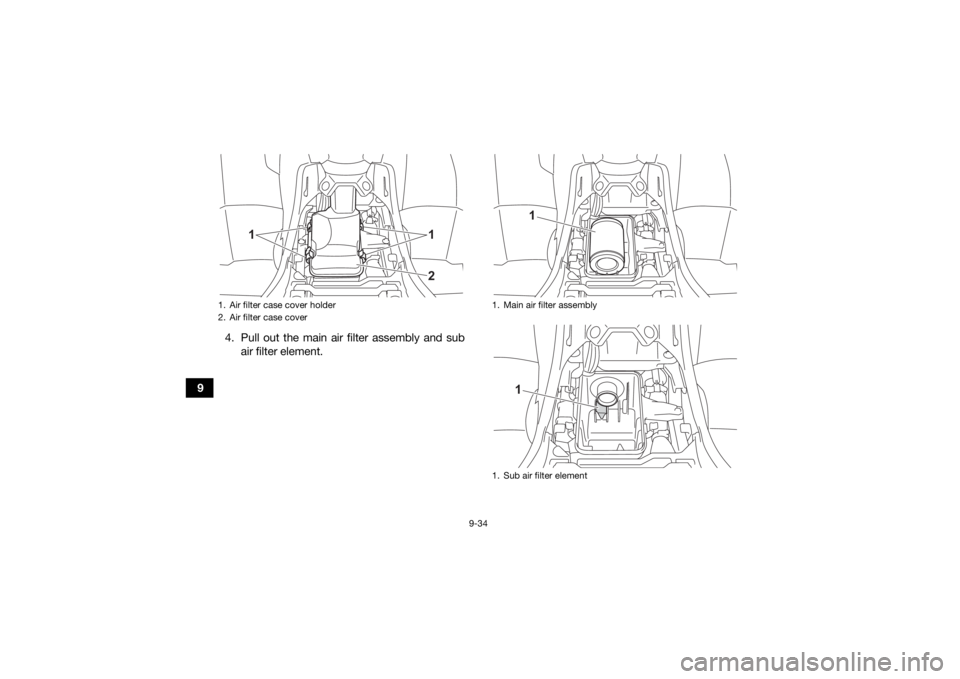

1. Air filter case cover holder
2. Air filter case cover
1
12
1. Main air filter assembly
1. Sub air filter element
1
1
UBEY60E0.book Page 34 Monday, July 27, 2020 10:46 AM

9-35
9
5. Pull off the lock plate from the main air filter
assembly, and then remove the air filter ele-
ment (sponge material) from the frame.
6. Wash the air filter elements gently but thor- oughly with YAMALUBE Air Filter Cleaner, or
a dedicated parts cleaning solvent.
WARNING! Always use parts cleaning sol- vent. Never use low-flash-point solvents
or gasoline because the engine could
catch fire or explode.
[EWB01943]
7. Squeeze out the excess moisture, and let dry. NOTICE: Do not twist the sponge material
when squeezing it.
[ECB00442]
8. Check the air filter elements (sponge material) for damage, replace if necessary.
9. Apply YAMALUBE Foam Air Filter Oil (or equivalent) to the air filter elements.TIPThe sponge material should be wet but not drip-
ping. 10. Install the sub air filter element.
11. Install the main air filter element onto its frame, then the lock plate, and then install the
main air filter assembly.
1. Frame
2. Air filter element (sponge material)
3. Lock plate
1
2
3
UBEY60E0.book Page 35 Monday, July 27, 2020 10:46 AM

9-36
912. Install the air filter case cover by hooking the
holders onto the cover. NOTICE: Make sure
that the air filter element is properly seated
in the air filter case. Never operate the en-
gine with the air filter element removed.
Doing so would allow unfiltered air to enter
the engine, causing rapid engine wear and
possible engine damage. Additionally, the
fuel injection system would be affected re-
sulting in poor engine performance and
possible overheating.
[ECB00763]
13. Install the seat.EBU28905Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
WARNING
EWB02342Always let the exhaust system cool prior to
touching exhaust components.
Do not start the engine with the spark arrester
removed. Sparks or exhaust particulate can
cause eye injury, burns, or start a fire. 1. Remove the tailpipe bolts.

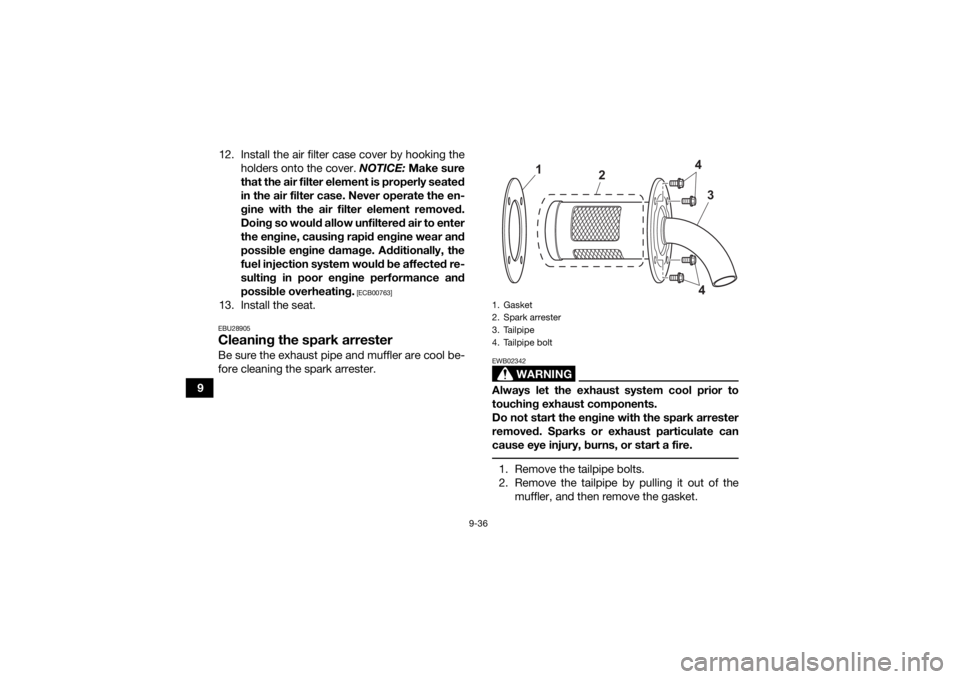

2. Remove the tailpipe by pulling it out of the muffler, and then remove the gasket.1. Gasket
2. Spark arrester
3. Tailpipe
4. Tailpipe bolt
3
2
4
1
4
UBEY60E0.book Page 36 Monday, July 27, 2020 10:46 AM

9-37
9
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.
4. Check the gasket for damage. Replace if nec- essary.
5. Install the gasket onto the tailpipe, then insert the tailpipe into the muffler and align the bolt
holes.
6. Install the bolts and tighten to the specified torque.
EBU23921V-belt cooling duct check hoseIf dust or water collects in the V-belt cooling duct
check hose, remove the hose and clean it.
EBU23932V-belt case drain plugAfter riding in water deep enough to allow it to en-
ter the V-belt case, remove the V-belt case drain
plug to drain the water from the case.TIPIf water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV as
the water may affect other engine parts.
Tightening torque:Tailpipe bolt:10 N

9-38
9
EBU29705Adjusting the throttle lever free playFor non-differential gear lock models

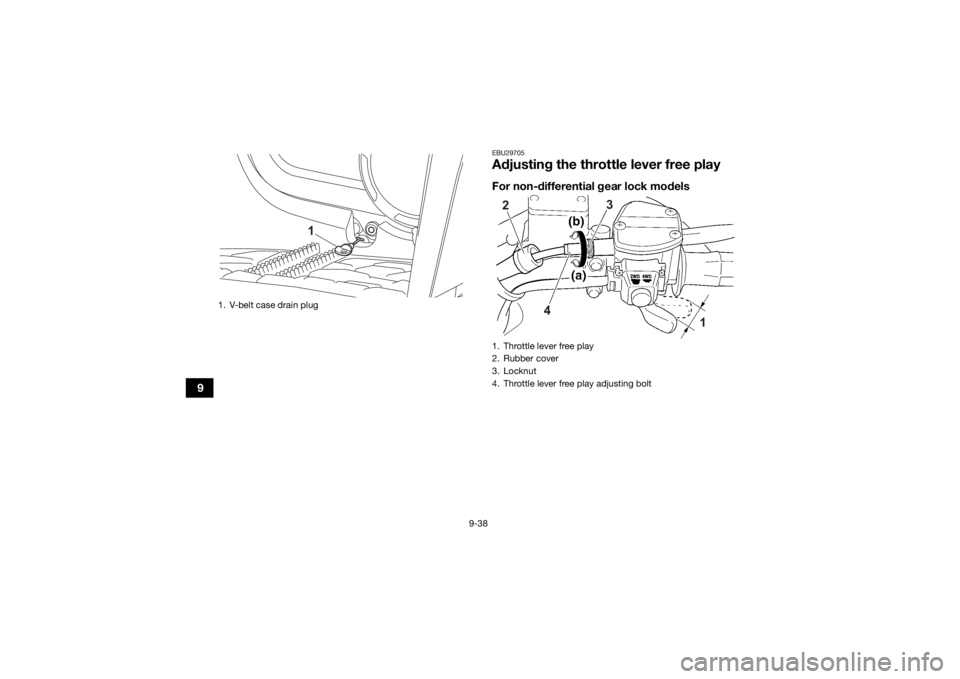

1. V-belt case drain plug
1
1. Throttle lever free play
2. Rubber cover
3. Locknut
4. Throttle lever free play adjusting bolt24 3
1
UBEY60E0.book Page 38 Monday, July 27, 2020 10:46 AM

9-39
9
For differential gear lock models
Periodically check the throttle lever free play and
adjust if necessary.
1. Slide the rubber cover back.
2. Loosen the locknut. 3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24062Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance chart.EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident.
1. Throttle lever free play
2. Rubber cover
3. Locknut
4. Throttle lever free play adjusting boltThrottle lever free play: 2.0–4.0 mm (0.08–0.16 in)
2WD
4WD
3
4
2
1
(b)
(a)
UBEY60E0.book Page 39 Monday, July 27, 2020 10:46 AM

9-40
9
EBU28415Checking the front brake pads and rear
brake friction platesThe front brake pads and the rear brake friction
plates must be checked for wear at the intervals
specified in the periodic maintenance chart.TIPThis ATV is equipped with a wet, multiple-disc
type rear brake, which is located inside of the final
gear case. EBU24174Front brake padsCheck each front brake pad for damage and mea-
sure the lining thickness. If a brake pad is dam-
aged or if the lining thickness reaches the
specified limit, have a Yamaha dealer replace the
brake pads as a set.
TIPThe wheels need to be removed to check the
brake pads. (See page 9-63.) EBU30322Rear brake friction plates
The rear brake friction plates must be checked
and, if necessary, replaced by a Yamaha dealer at
the intervals specified in the periodic maintenance
chart.EBU29845Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Replenish the brake fluid
if necessary.

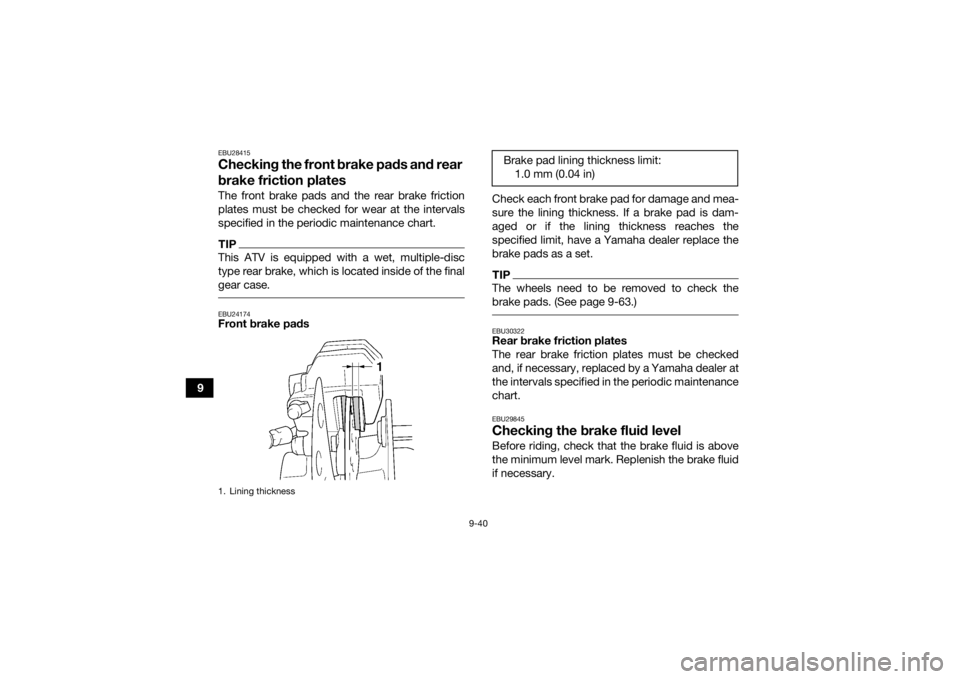

1. Lining thickness
Brake pad lining thickness limit:
1.0 mm (0.04 in)
