YAMAHA KODIAK 450 2022 Owner's Guide

5-3
5
NOTICEECB02401The engine may overheat if the ATV is over-
loaded. Reduce the load to specification.
 The engine may overheat if mud or dirt has
accumulated on the radiator. Gently clean
the radiator. (See page 10-1.)
 Continuous use while the warning light is on
will damage the engine. EBU27289Engine trouble warning light “ ”
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
vehicle.
For non-differential gear lock models
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnostic system. For differential gear lock models
This warning light comes on or flashes if a problem
is detected in the electrical circuit monitoring the
engine. When this occurs, the display will indicate
an error code (see page 5-6). Have a Yamaha
dealer check the self-diagnostic system.
EBU30572Electric Power Steering warning light “EPS”
(equipped models)
This warning light comes on when the key is
turned to “ ” (on), and then goes off once the
engine is started. If the warning light remains on or
comes on after the engine is started, the EPS sys-
tem may not be working correctly. When this oc-
curs, have a Yamaha dealer check the EPS
system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). If the
warning light does not come on, have a Yamaha
dealer check the electrical circuit.TIP
If the engine is stopped using the engine stop
switch and the key is in the “ ” (on) position,
the EPS warning light comes on to indicate that
the power assistance for the steering is not
functioning.
UBHT60E0.book Page 3 Wednesday, August 4, 2021 8:09 AM

5-4
5
If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating.
EBU17955Four-wheel drive indicator light “ ”
This indicator light comes on when the drivetrain
is set to “4WD” (four-wheel drive).TIPDue to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving. EBU38751Differential gear lock indicator light “ ”
(equipped models)
This indicator light comes on when the drivetrain
is set to “4WD” with the differential gear locked.TIPWhen using the On-Command differential gear
lock switch, the “ ” indicator light will flash until
the differential gear is completely locked or un-
locked. Turn the handlebar or start moving to help
the differential lock to engage or disengage.
EBU37054Display unit The display unit is equipped with the following:
speedometer
 fuel gauge
 multi-function display
 self-diagnostic device1. Select button “SEL”
2. Fuel gauge
3. Speedometer
4. Multi-function display1 2
4
3
DIFF.LOCK
UBHT60E0.book Page 4 Wednesday, August 4, 2021 8:09 AM

5-5
5
Speedometer
The speedometer shows the vehicle’s traveling
speed. The speedometer can be set to “MPH” or
“km/h”, and the odometer and tripmeter units will
switch to miles or kilometers accordingly.
To switch the display units: turn the key to “ ”
(off), then hold the select button “SEL” pushed
and turn the key to “ ” (on).
Fuel gauge
The fuel gauge indicates the amount of fuel in the
fuel tank. The display segments of the fuel gauge
disappear from “F” (full) towards “E” (empty) as
the fuel level decreases. When the last segment
starts flashing, refuel as soon as possible.
TIPThis fuel gauge is equipped with a self-diagnostic
system. If a problem is detected, all the display
segments will flash repeatedly. If this occurs, have
a Yamaha dealer check the vehicle. Multi-function display
Push the select button “SEL” to switch the display
between the odometer “ODO”, the tripmeter
“TRIP”, the service tripmeter “SERVICE”, and the
hour meter “HOUR” in the following order:
ODO
→ TRIP → SERVICE → HOUR → ODO
DIFF.LOCK
DIFF.LOCK
UBHT60E0.book Page 5 Wednesday, August 4, 2021 8:09 AM

5-6
5Odometer and tripmeter
The odometer shows the total distance traveled
by the vehicle.
The tripmeter shows the distance traveled since it
was last reset.
To reset the tripmeter, push the select button
“SEL” for one second.
TIP
The odometer will lock at 99999.
 The tripmeter will reset and continue counting
after 9999.9 is reached. Service tripmeter
The service tripmeter shows the distance traveled
since it was reset at the last maintenance.
To reset the service tripmeter, push the select but-
ton “SEL” for one second.TIPThe service tripmeter will reset and continue
counting after 9999.9 is reached. Hour meter
The hour meter shows the total time the engine
has been running. Self-diagnostic device
This model is equipped with a self-diagnostic de-
vice for various electrical circuits.
For non-differential gear lock models
If a problem is detected in any of those circuits,
the engine trouble warning light will come on or
flash.
If this occurs, have a Yamaha dealer check the ve-
hicle.
1. Error code display
2. Engine trouble warning light “ ”
2
DIFF.LOCK
1
UBHT60E0.book Page 6 Wednesday, August 4, 2021 8:09 AM

5-7
5
For differential gear lock models
If a problem is detected in any of those circuits,
the engine trouble warning light will come on or
flash, and the display will indicate an error code.
If the display indicates an error code, note the
code number and have a Yamaha dealer check
the vehicle.
NOTICEECB01181To prevent engine damage, be sure to consult
a Yamaha dealer as soon as possible if this oc-
curs.
EBU18068Handlebar switchesFor non-differential gear lock models1. Light switch “ / /OFF”
2. Engine stop switch “ / ”
3. Start switch “ ”
4. Horn switch “ ”
5. Winch switch “OUT/IN”
34
521
UBHT60E0.book Page 7 Wednesday, August 4, 2021 8:09 AM

5-8
5For differential gear lock models For non-differential gear lock models
1. Light switch “ / /OFF”
2. Start switch “ ”
3. Engine stop switch “ / ”
4. Override switch “OVERRIDE”
5. Horn switch “ ”
6. Winch switch “OUT/IN”
432
5
1
6
1. On-Command drive switch

5-9
5
For differential gear lock models
EBU18081Engine stop switch “ / ”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this
switch to stop the engine in an emergency situa-
tion. The engine will not start or run when this
switch is set to “ ”.
EBU18102Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 7-1 prior
to starting the engine.EBU34123Light switch “ / /OFF”
Set this switch to “ ” to turn on the left and right
headlights (low beams) and the taillight. Set the
switch to “ ” to turn on the left and right head-
lights (high beams), the handlebar-mounted light
(equipped models), and the taillight. Set the switch
to “OFF” to turn off all the lights.NOTICEECB00046Do not use the headlights with the engine
turned off for an extended period of time. The
battery may discharge to the point that the
starter will not have enough power to crank the
engine. If this should happen, remove the bat-
tery and recharge it. (See page 9-53.) EBU18171Horn switch “ ”
Press the switch to sound the horn.
1. On-Command drive switch “2WD/4WD”
2. On-Command drive switch “4WD/LOCK”
3. Drive switch lock lever
2WD
4WD
LOCK4WD
3
3
2
1
UBHT60E0.book Page 9 Wednesday, August 4, 2021 8:09 AM

5-10
5
EBU39181Winch switch “OUT/IN”
This switch is used when operating the winch
(page 5-22). Read this manual and the Winch
Owner’s Manual completely before operating the
winch switch.EBU18192Override switch “OVERRIDE” (differential gear
lock models)
Top speed is normally limited when operating in
differential gear lock. If conditions require more
engine power when riding forward, push and hold
this switch to override the differential gear lock
speed limiting function. (See page 5-11.) Releas-
ing the switch restores the speed limiting function.
While the override switch is pushed, the segments
of the speedometer digits will appear as shown in
the figure.
TIPIf the digits of the speedometer appear as shown
when the switch is NOT being pushed, this could
indicate a malfunction in the electrical system. In
this case, take the ATV to a Yamaha dealer at the
first opportunity.
WARNING
EWB00151Always ride at a slow speed when the ATV is in
four-wheel-drive differential gear lock, and al-
low extra time and distance for maneuvers.
All wheels turn at the same speed when the dif-
ferential is locked, so it takes more effort to
turn the ATV. The effort needed to turn increas-
UBHT60E0.book Page 10 Wednesday, August 4, 2021 8:09 AM

5-11
5
es with the riding speed. You may lose control
and have an accident if you cannot make a
sharp enough turn for the speed you are trav-
eling.
EBU2660AOn-Command drive switch “2WD/4WD”
Stop the ATV and push this switch to change from
two-wheel drive to four-wheel drive or vice versa.
Select the appropriate drive according to the ter-
rain and riding conditions.

“2WD” (two-wheel drive): power is supplied to
the rear wheels only, giving a smooth ride and
fuel economy.
 “4WD” (four-wheel drive): power is supplied to
the front and rear wheels, giving increased trac-
tion.
WARNING
EWB00164Always stop the ATV before changing from
two-wheel drive to four-wheel drive and vice
versa. The ATV handles differently in two-
wheel drive than in four-wheel drive in some
circumstances. Changing from two-wheel
drive to four-wheel drive or vice versa while
moving may cause the ATV to unexpectedly handle differently. This could distract the oper-
ator and increase the risk of losing control and
of causing an accident.
EBU38760On-Command drive switch “4WD/LOCK” (dif-
ferential gear lock models)
Stop the ATV and push this switch to change from
standard four-wheel drive to four-wheel drive with
the differential locked. Select the appropriate
switch position according to the terrain and the
conditions.

“4WD” (four-wheel drive): power is supplied to
the front and rear wheels, with the front differen-
tial unlocked.
 “LOCK” (four-wheel drive with the differential
gear locked): power is supplied to the front and
rear wheels and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the
same speed, giving maximum traction.
WARNING
EWB00132Always stop the ATV before changing from
four-wheel drive to four-wheel-drive differen-
tial gear lock or vice versa.
UBHT60E0.book Page 11 Wednesday, August 4, 2021 8:09 AM

5-12
5The ATV handles differently in four-wheel drive
than in differential gear lock in some circum-
stances. Changing from four-wheel drive to
differential gear lock or vice versa while mov-
ing may cause the ATV to handle differently un-
expectedly. This could distract the operator
and increase the risk of losing control and
causing an accident.
To access the “4WD/LOCK” switch, set the
“2WD/4WD” switch to “4WD”, and then move the
drive switch lock lever to the right.
TIP
When the switch is set to “LOCK”, the differen-
tial gear lock indicator light will flash until the dif-
ferential gear is completely locked or unlocked.
 When the indicator light is flashing, turning the
handlebar back and forth will help the differen-
tial gear lock to engage or disengage.
 Riding before the differential gear is properly en-
gaged or disengaged (e.g., when the indicator
light is flashing) will cause the vehicle speed to
be limited until the differential gear is completely
engaged or disengaged.
 When the ATV is in four-wheel-drive differential
gear lock, the maximum traveling speed is limit-
ed to 35 km/h (22 mi/h). However, if conditions
require full engine power to be available, push
and hold the override switch to disable the dif-
ferential gear lock speed limiter. (See page
5-10.)
WARNING
EWB00141Always ride at a slow speed when the ATV is in
differential gear lock, and allow extra time and
distance for maneuvers.

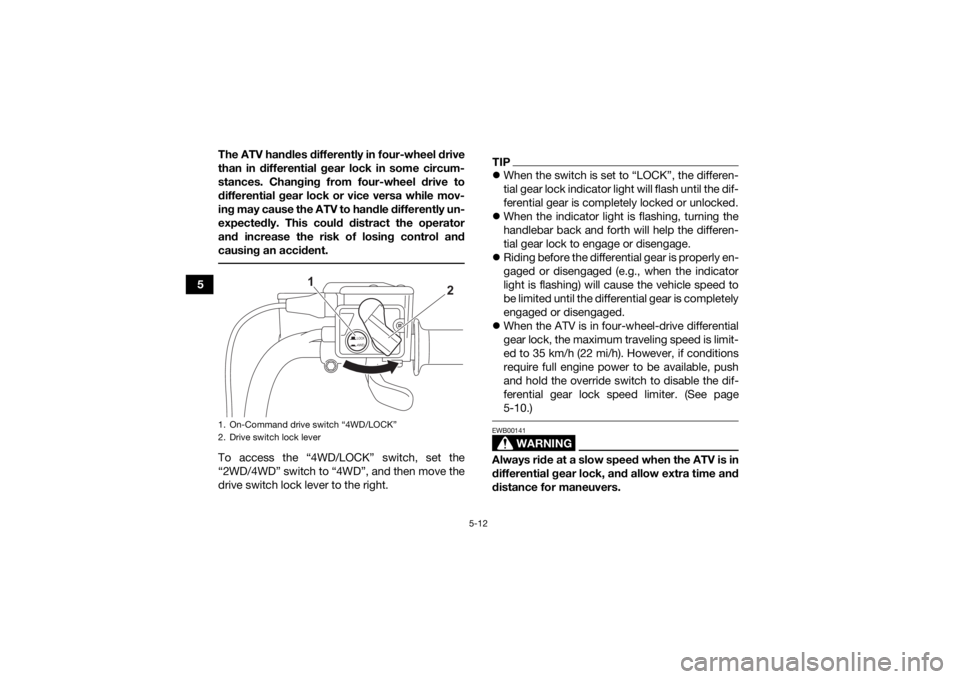

1. On-Command drive switch “4WD/LOCK”
2. Drive switch lock lever
LOCK4WD
1
2
UBHT60E0.book Page 12 Wednesday, August 4, 2021 8:09 AM
