LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU30292Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UB1660E0.book Page 1 Thursday, February 26, 2015 4:01 PM

1-2
1

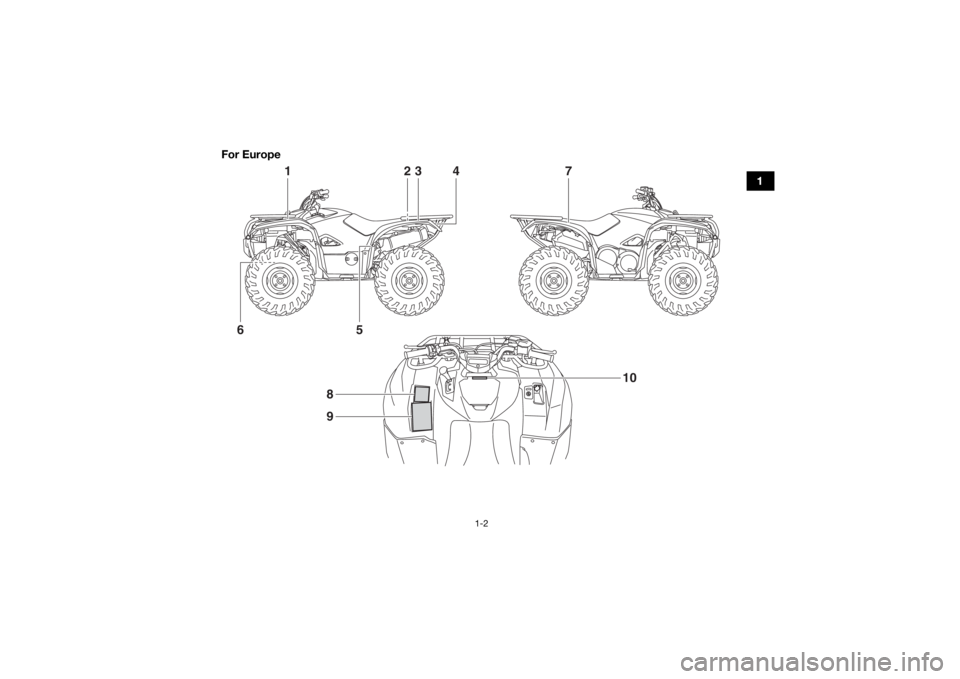

For Europe
1
23 4
5
10
8
9
7
6
UB1660E0.book Page 2 Thursday, February 26, 2015 4:01 PM

1-3
1
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
B16-F817R-10< 90 kg
( 198 lbs)
35.0 kPa
0.35 kgf/cm²
5.0 psi 30.0 kPa
0.30 kgf/cm²
4.4 psi
1HP-F816M-M0
YAMAHA
B16-F817R-00< 50 kg
( 110 lbs)
1P0-F816P-20
YA M A H A
12
3
4
5UB1660E0.book Page 3 Thursday, February 26, 2015 4:01 PM

1-4
1
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWB
36.0 kW
300 kg
2015
B16-F155A-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWBD
36.0 kW
307 kg
2015
2SM-F155A-00
YAMAHA
1HP-F811R-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWBD
36.0 kW
312 kg
2015
B32-F155A-00
6 YFM70KDXG/YFM70KDHG
6 YFM70KPXG/YFM70KPHG
6 YFM70KPSG 7
8
UB1660E0.book Page 4 Thursday, February 26, 2015 4:01 PM

1-5
1
1P0-F816R-00
YAMAHA
B16-F816N-01
<
4 kg
( 9 lb )
91 0UB1660E0.book Page 5 Thursday, February 26, 2015 4:01 PM

1-6
1
Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
For ATV Type 1 category Y12, use from 12
years old.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
UB1660E0.book Page 6 Thursday, February 26, 2015 4:01 PM

1-7
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold.
Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death. This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
UB1660E0.book Page 7 Thursday, February 26, 2015 4:01 PM

1-8
1
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
341
2
3
4
Year of construction
Model Name
Max. Power
Mass In Running Order
UB1660E0.book Page 8 Thursday, February 26, 2015 4:01 PM

1-9

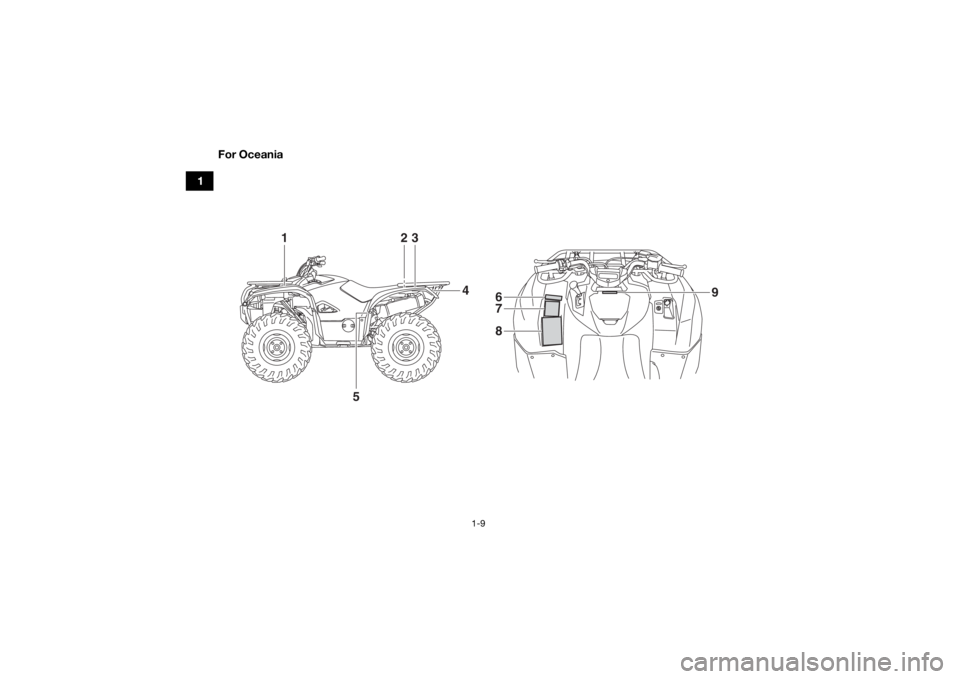

1For Oceania
3
5 4
9
6
7
8
1
2
