brake pads for wear and the brake system for
leakage. If the brake fluid level goes down sud-
denly, have a Yamaha dealer check the cause be-
fore further riding.
EBU24283Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the brake master cylinder and calipers as well
as the brake hoses replaced at the intervals listed
below or whenever they are damaged or leaking.

Oil seals: Replace every two years.
 Brake hoses: Replace every four years.EBU24395Checking the front brake lever free

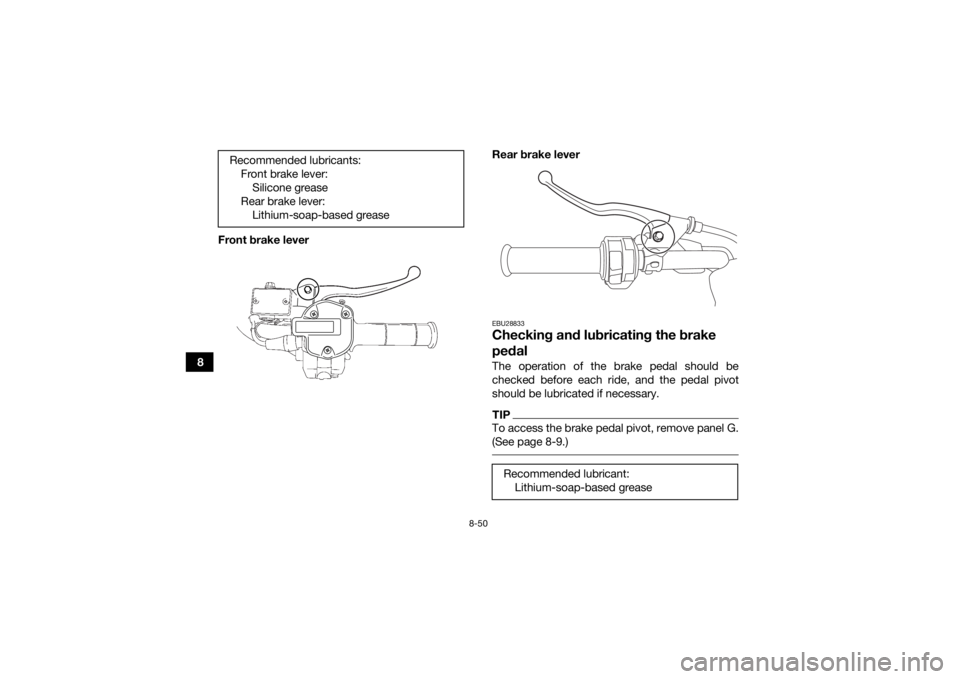

playThe brake lever free play must be checked at the
intervals specified in the periodic maintenance
and lubrication chart. The brake lever should have
no free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
EBU34242Adjusting the rear brake lever and
brake pedal free playThe rear brake lever and brake pedal free play
must be checked and, if necessary, adjusted at
the intervals specified in the periodic maintenance
and lubrication chart.
Adjusting the brake lever free play
The brake lever free play should measure 6.0–7.0
mm (0.24–0.28 in) (YFM70KDXH, YFM70KPAH,
YFM70KPHH, YFM70KPXH). If the free play is in-
correct, adjust it as follows.1. No brake lever free play
UB1661E0.book Page 45 Thursday, May 12, 2016 2:47 PM

8-46

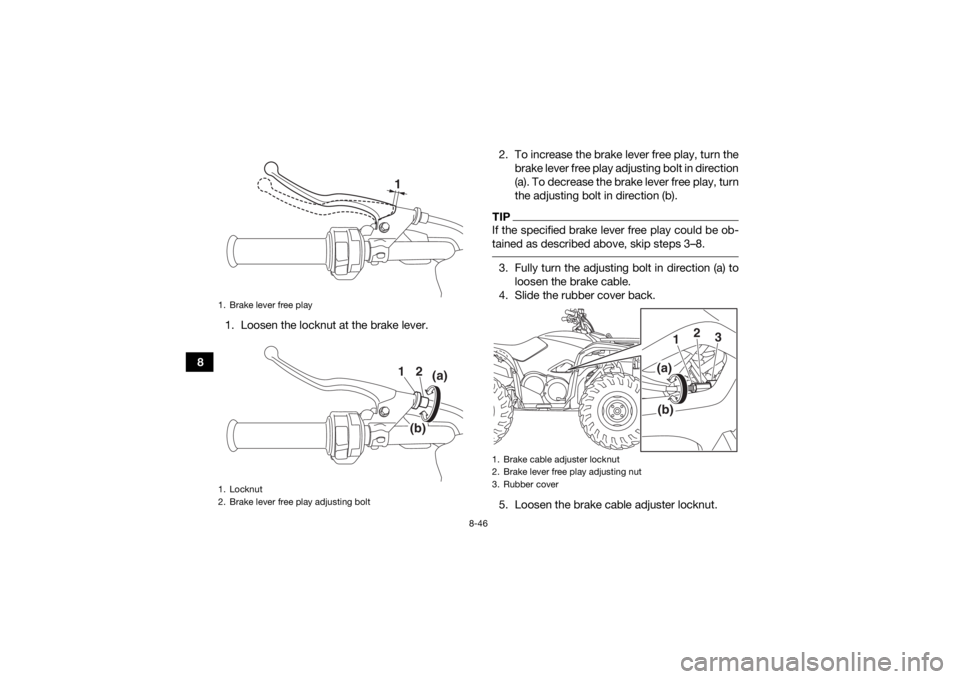

81. Loosen the locknut at the brake lever. 2. To increase the brake lever free play, turn the
brake lever free play adjusting bolt in direction
(a). To decrease the brake lever free play, turn
the adjusting bolt in direction (b).
TIPIf the specified brake lever free play could be ob-
tained as described above, skip steps 3–8. 3. Fully turn the adjusting bolt in direction (a) toloosen the brake cable.
4. Slide the rubber cover back.
5. Loosen the brake cable adjuster locknut.
1. Brake lever free play
1. Locknut
2. Brake lever free play adjusting bolt
1
(a)
(b)
12
1. Brake cable adjuster locknut
2. Brake lever free play adjusting nut
3. Rubber cover
2
3
1
(a)(b)
UB1661E0.book Page 46 Thursday, May 12, 2016 2:47 PM

8-47
8
6. To increase the brake lever free play, turn the
brake lever free play adjusting nut in direction
(a). To decrease the brake lever free play, turn
the adjusting nut in direction (b).
7. Tighten the brake cable adjuster locknut.
8. Slide the rubber cover to its original position.
9. Tighten the locknut at the brake lever.
Adjusting the brake pedal free play
The brake pedal free play should measure 12.0–
17.0 mm (0.47–0.67 in). If the free play is incorrect,
adjust it as follows.
1. Remove panel G.
2. Loosen the locknut. 3. To increase the brake pedal free play, turn the
brake pedal free play adjusting nut in direc-
tion (a). To decrease the brake pedal free
play, turn the adjusting nut in direction (b).
4. Tighten the locknut.
5. Install the panel.
1. Brake pedal free play
1
1. Brake pedal free play adjusting nut
2. Locknut
2
(a)
(b)
1
UB1661E0.book Page 47 Thursday, May 12, 2016 2:47 PM

8-48
8
EBU24231Axle bootsThe axle boots must be checked for damage at
the intervals specified in the periodic maintenance
and lubrication chart. Check the axle boots for
tears or damage. If any damage is found, have
them replaced by a Yamaha dealer.

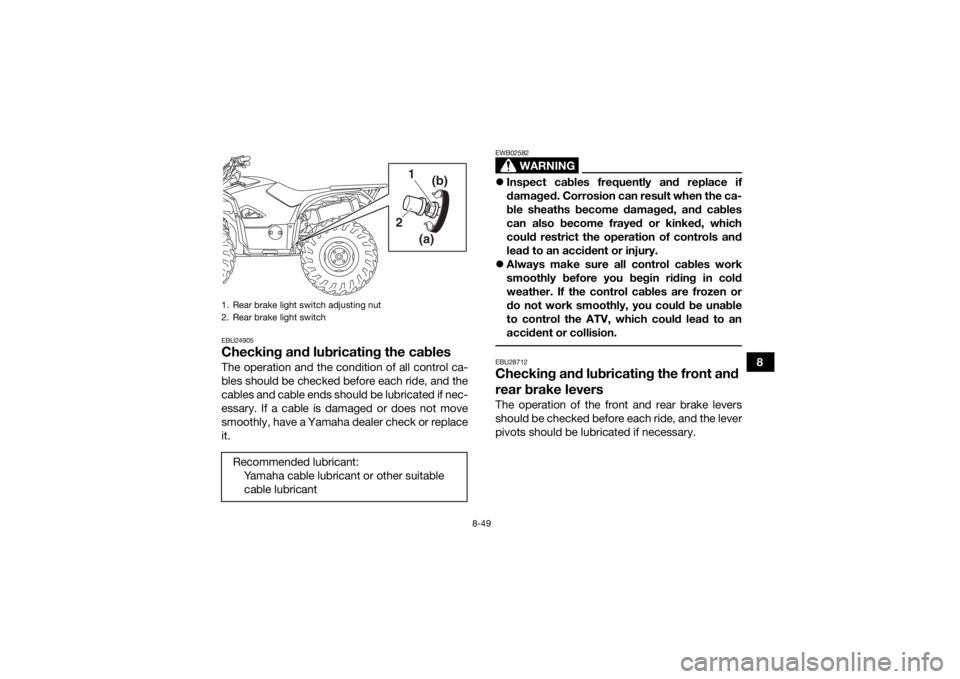

EBU34270Brake light switchesThe brake light, which is activated by the brake
pedal and brake levers, should come on just be-
fore braking takes effect.
The rear brake light switch can be adjusted as fol-
lows, but the front brake light switch should be ad-
justed by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make
the brake light come on earlier, turn the adjusting
nut in direction (a). To make the brake light come
on later, turn the adjusting nut in direction (b).

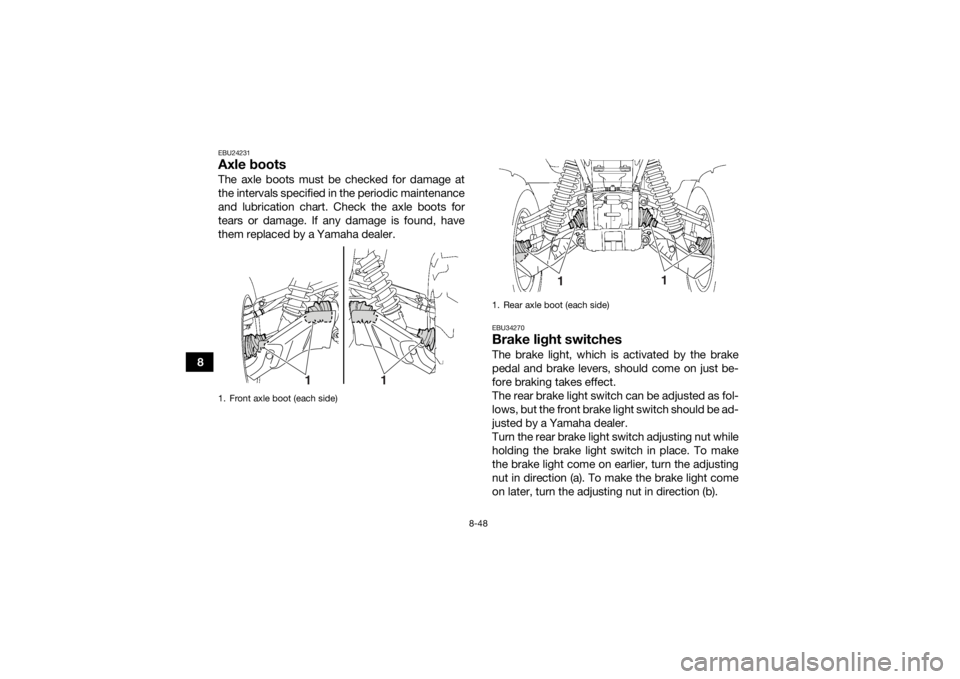

1. Front axle boot (each side)
1
1
1. Rear axle boot (each side)
1
1
UB1661E0.book Page 48 Thursday, May 12, 2016 2:47 PM

8-49
8
EBU24905Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or
do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision. EBU28712Checking and lubricating the front and
rear brake leversThe operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.

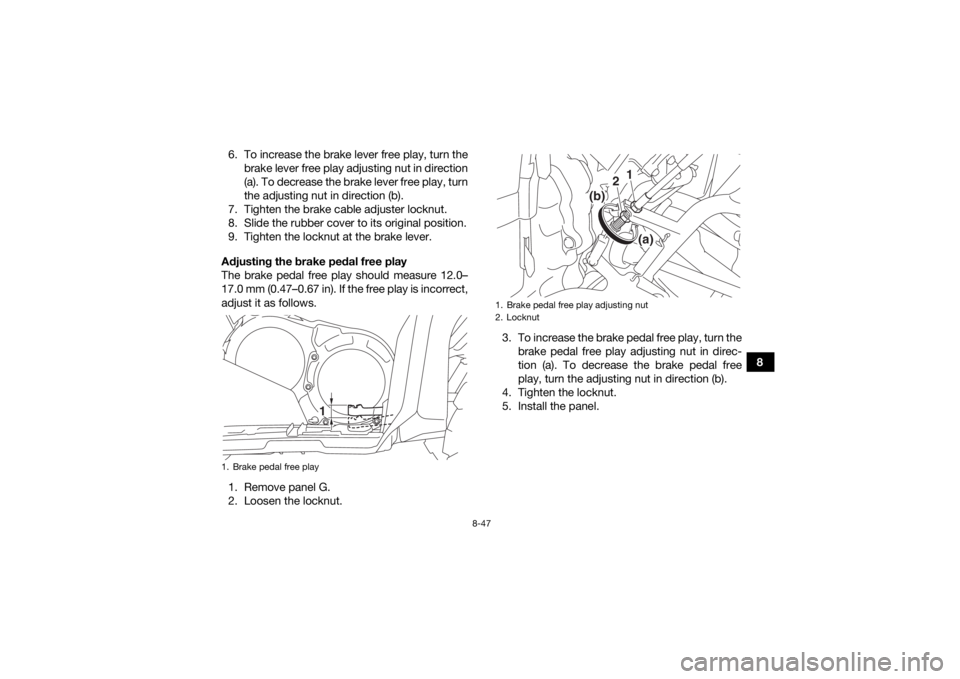

1. Rear brake light switch adjusting nut
2. Rear brake light switchRecommended lubricant:
Yamaha cable lubricant or other suitable cable lubricant
1
2 (b)
(a)
UB1661E0.book Page 49 Thursday, May 12, 2016 2:47 PM

8-50

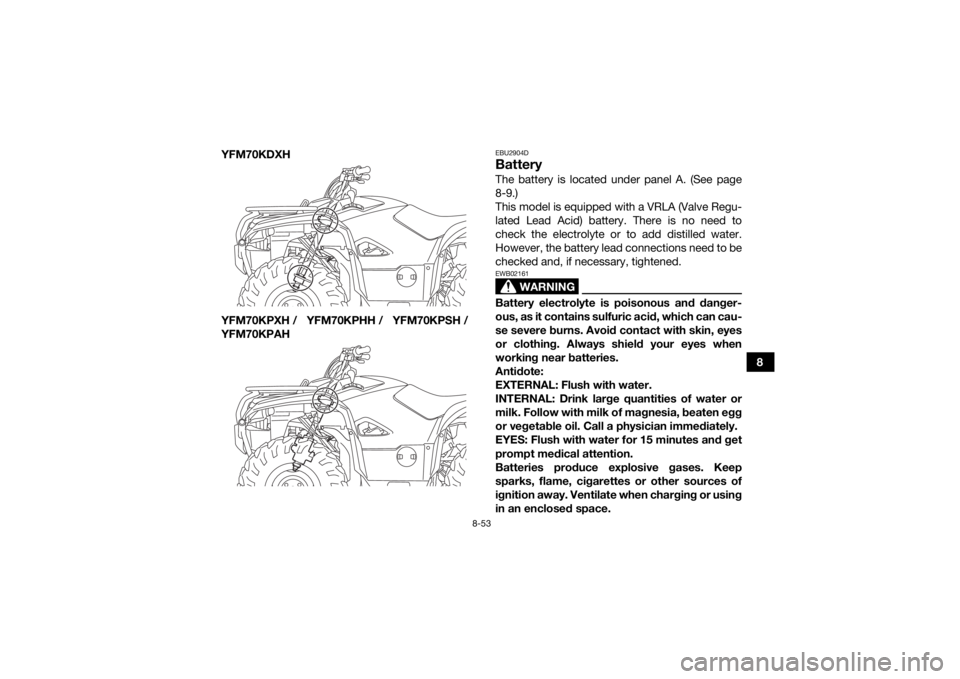

8Front brake lever
Rear brake lever
EBU28833Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel G.
(See page 8-9.)
Recommended lubricants:
Front brake lever:Silicone grease
Rear brake lever: Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
UB1661E0.book Page 50 Thursday, May 12, 2016 2:47 PM

8-51
8

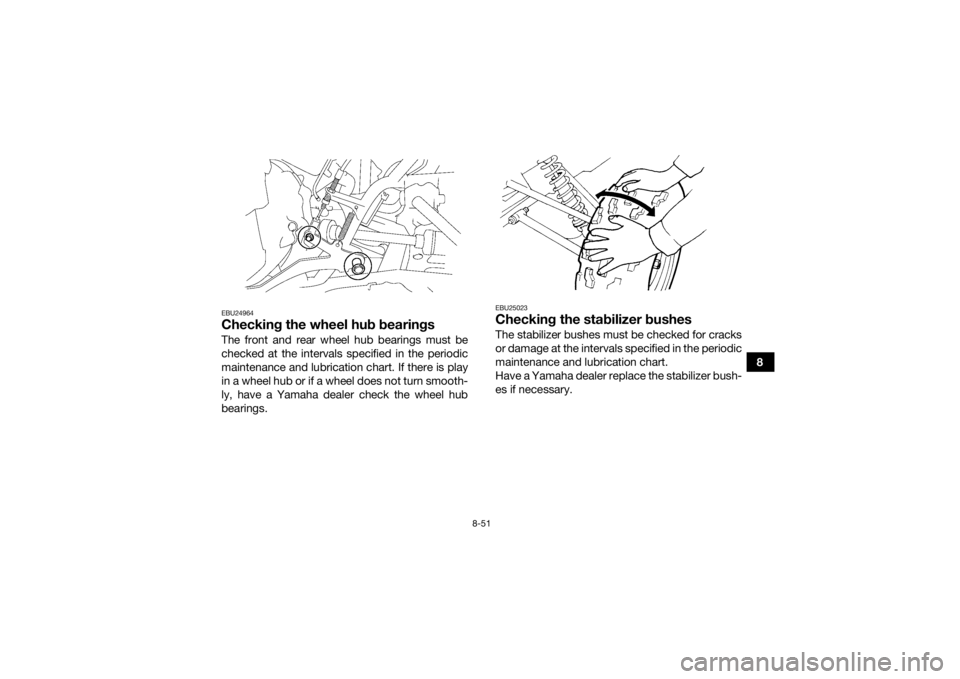

EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
EBU25023Checking the stabilizer bushesThe stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the stabilizer bush-
es if necessary.
UB1661E0.book Page 51 Thursday, May 12, 2016 2:47 PM

8-52
8
EBU25053Lubricating the rear knuckle pivotsThe rear knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance

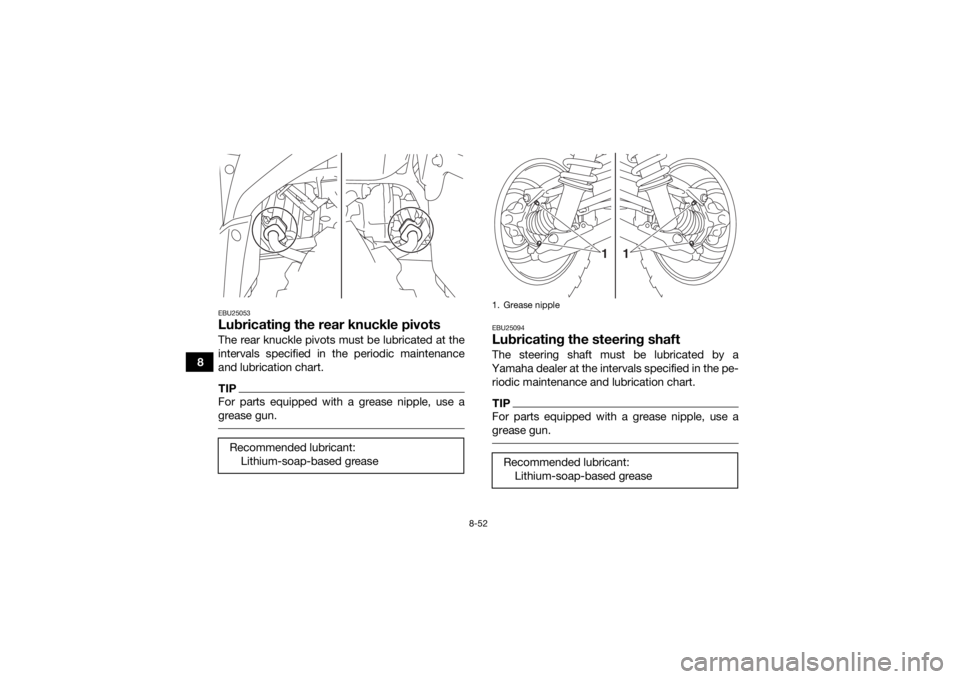

and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
EBU25094Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
Recommended lubricant: Lithium-soap-based grease
1. Grease nippleRecommended lubricant:Lithium-soap-based grease
1
1
UB1661E0.book Page 52 Thursday, May 12, 2016 2:47 PM

8-53
8
YFM70KDXH
YFM70KPXH / YFM70KPHH / YFM70KPSH /
YFM70KPAH
EBU2904DBatteryThe battery is located under panel A. (See page
8-9.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to
check the electrolyte or to add distilled water.
However, the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.
UB1661E0.book Page 53 Thursday, May 12, 2016 2:47 PM

8-54
8KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00621Never attempt to remove the battery cell seals,
as this would permanently damage the battery. To remove the battery
1. Remove panel A. (See page 8-9.)
2. Remove the front carrier by removing the bolts.
3. Remove the battery holding plate by remov-ing the nuts.
4. Disconnect the negative battery lead first, then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]

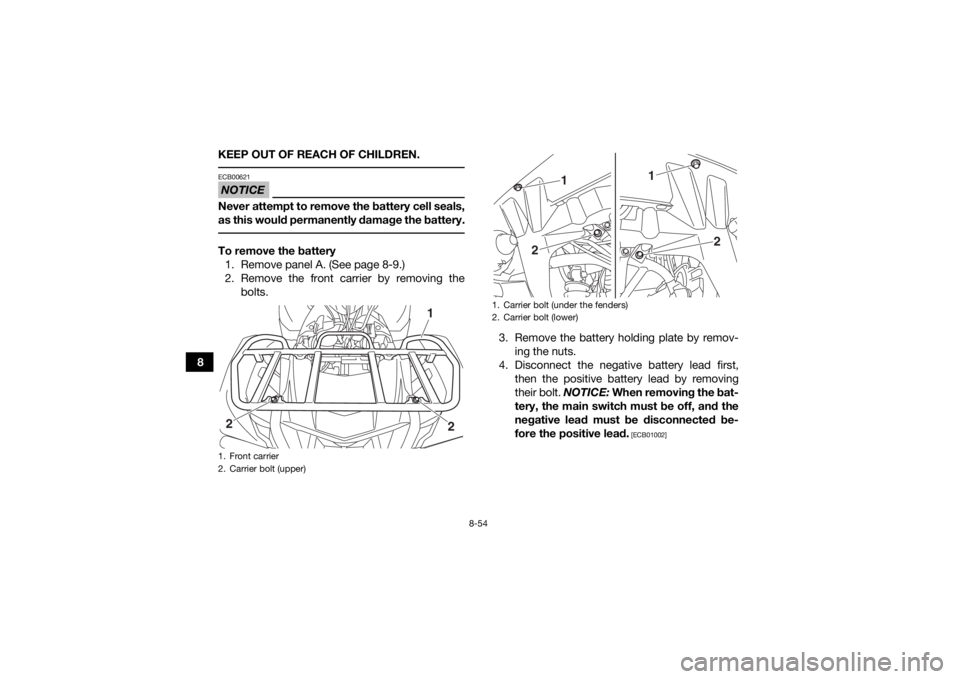

1. Front carrier
2. Carrier bolt (upper)
1
2
2
1. Carrier bolt (under the fenders)
2. Carrier bolt (lower)
1
2
2
1
