YAMAHA KODIAK 700 2018 Owners Manual

8-32
8
5. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the engine
guard.)

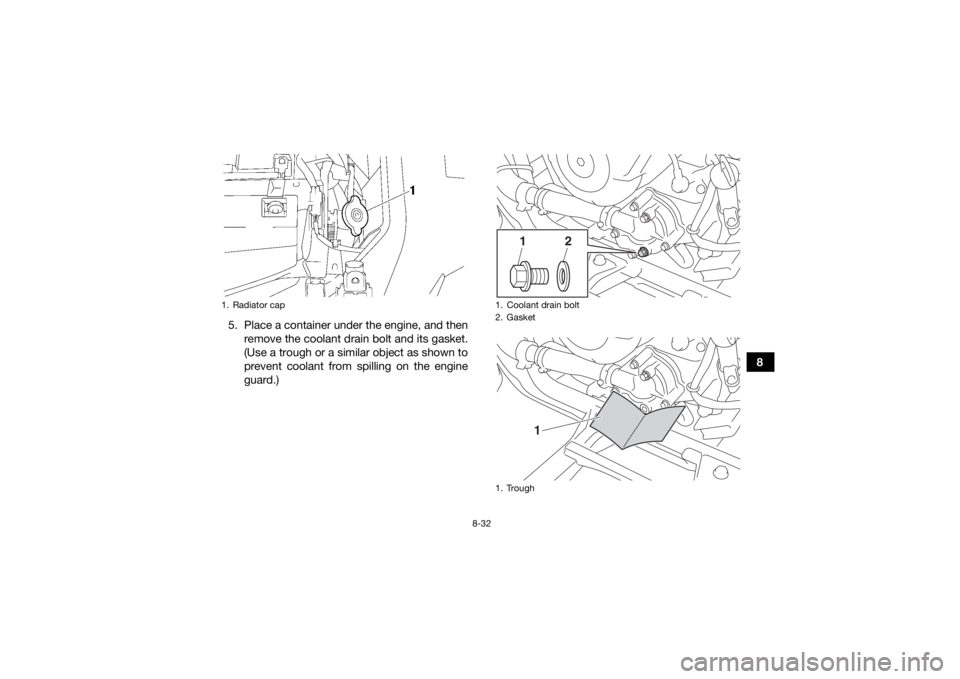

1. Radiator cap
1. Coolant drain bolt
2. Gasket
1. Trough
1
2
1
UB1662E0.book Page 32 Monday, April 17, 2017 11:39 AM

8-33
86. Place a container under the coolant reservoir
to collect the used coolant.
7. Remove the coolant reservoir cap.
8. Disconnect the coolant reservoir hose on the coolant reservoir side, and then drain the
coolant from the coolant reservoir.
9. After draining the coolant, thoroughly flush the cooling system with clean tap water.
10. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque. 11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the radi-
ator until it is full.
13. Pour the recommended coolant into the res- ervoir to the maximum level mark, and then
install the reservoir cap. NOTICE: Mix anti-
freeze with distilled water only. However, if
distilled water is not available, soft water
may be used for refilling. Do not use hard
water or salt water since they are harmful
to the engine.
[ECB00992]
1. Coolant reservoir hose
Tightening torque: Coolant drain bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
UB1662E0.book Page 33 Monday, April 17, 2017 11:39 AM

8-34
8
14. Loosen the water pump air bleed bolt, with-
out removing it, to allow all of the air to es-
cape from the air bleed bolt hole. 15. When coolant begins to flow out of the bolt
hole, tighten the water pump air bleed bolt to
the specified torque.
16. Remove panel E. (See page 8-9.)
17. Loosen the cylinder head air bleed bolt, with- out removing it, to allow all of the air to es-
cape from the air bleed bolt hole.
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze: High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum
engines
Coolant quantity: Radiator (including all routes):1.76 L (1.86 US qt, 1.55 Imp.qt)
Coolant reservoir (up to the maximum level
mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
1. Water pump air bleed boltTightening torque: Water pump air bleed bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
1
UB1662E0.book Page 34 Monday, April 17, 2017 11:39 AM

8-35
818. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt
to the specified torque.
19. Start the engine and let it idle for ten minutes.
20. Rev the engine five times.
21. Pour additional coolant into the radiator until it is full. 22. Stop the engine and allow it to cool. If the
coolant level has dropped after the engine
has cooled, add sufficient coolant until it
reaches the top of the radiator, and then in-
stall the radiator cap.
23. Start the engine, and then check for coolant leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system. 24. Install the footboard by installing the boltsand nuts, and then tighten them to the speci-
fied torques.
1. Cylinder head air bleed boltTightening torque:Cylinder head air bleed bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
UB1662E0.book Page 35 Monday, April 17, 2017 11:39 AM

8-36
8
TIPTighten footboard bolts B in the order shown.
25. Install the panels.
1. Footboard nut
2. Footboard bolt A
3. Footboard bolt B
3
1
2
1
Tightening torques:Footboard nut:4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
Footboard bolt A: 4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
Footboard bolt B: 8 N·m (0.8 kgf·m, 5.9 lb·ft)
4
1
2
3
UB1662E0.book Page 36 Monday, April 17, 2017 11:39 AM

8-37
8
EBU34232Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or replace the air filter ele-
ment more frequently if you ride in unusually wet
or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. 1. Place the ATV on a level surface.2. Remove the seat. (See page 4-19.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders.
4. Pull the air filter element out of the air filter case.1. Air filter case check hose
1
1. Air filter case cover holder
2. Air filter case cover
1 2
1
UB1662E0.book Page 37 Monday, April 17, 2017 11:39 AM

8-38
8
5. Pull off the air filter element lock plate, and
then remove the sponge material from the air
filter element frame. 6. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent. Never use low-
flash-point solvents or gasoline because
the engine could catch fire or explode.
[EWB01943]
7. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
1. Air filter element
1
1. Air filter element frame
2. Sponge material
3. Air filter element lock plate
3
2
1
UB1662E0.book Page 38 Monday, April 17, 2017 11:39 AM

8-39
88. Check the sponge material and replace it if
damaged.
9. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.
TIPThe sponge material should be wet but not drip-
ping. 10. Pull the sponge material over the air filter ele- ment frame, and then install the lock plate.
11. Insert the air filter element into the air filter case, and then install the air filter case cover
by hooking the holders onto the air filter case.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter case. Never operate the engine with the air
filter element removed. Doing so would al-
low unfiltered air to enter the engine, caus-
ing rapid engine wear and possible engine
damage. Additionally, the fuel injection
system would be affected resulting in poor
engine performance and possible over-
heating.
[ECB00763]
12. Install the seat.TIPEach time the air filter element maintenance is
performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the throttle body and the rubber joint man-
ifold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air
entering the engine. EBU28905Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
UB1662E0.book Page 39 Monday, April 17, 2017 11:39 AM

8-40
8
WARNING
EWB02342Always let the exhaust system cool prior to
touching exhaust components.
Do not start the engine with the spark arrester
removed. Sparks or exhaust particulate can
cause eye injury, burns, or start a fire. 1. Remove the tailpipe bolts.
2. Remove the tailpipe by pulling it out of themuffler, and then remove the gasket. 3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.
4. Check the gasket for damage. Replace if nec- essary.
5. Install the gasket onto the tailpipe, then insert the tailpipe into the muffler and align the bolt
holes.
6. Install the bolts and tighten to the specified torque.
EBU23932V-belt case drain plugAfter riding in water deep enough to allow it to en-
ter the V-belt case, remove the V-belt case drain
plug to drain the water from the case.TIPIf water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV as
the water may affect other engine parts.
1. Gasket
2. Spark arrester
3. Tailpipe
4. Tailpipe bolt
3
2
4
1
4
Tightening torque:
Tailpipe bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
UB1662E0.book Page 40 Monday, April 17, 2017 11:39 AM

8-41
8
EBU29704Adjusting the throttle lever free playPeriodically check the throttle lever free play and
adjust if necessary.1. Slide the rubber cover back.
2. Loosen the locknut.
1. V-belt case drain plug
1
1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free playThrottle lever free play: 3.0–5.0 mm (0.12–0.20 in)
2WD
4WD
3
2
1
4
(b)
(a)
