maintenance reset YAMAHA KODIAK 700 2019 Owners Manual

4-7
4
odometer
 tripmeters
 clock
 hour meter
 voltage display
 coolant temperature display
 fuel gauge
 brightness control mode
 error code display
Speedometer
The speedometer shows the vehicle’s traveling
speed. The speedometer can be set to “MPH” or
“km/h”. This also changes the odometer and trip-
meter units between miles and kilometers. To
change the display between “MPH” and “km/h”,
turn the key to “ ” (off), then while holding the
“SELECT” button pushed, turn the key to “ ”
(on). Odometer and tripmeters
The odometer shows the total distance traveled
by the vehicle.
The tripmeters show the distance traveled since
they were last reset. The tripmeters can be used to
record the distance traveled on a single trip, or to
estimate the distance that can be traveled with a
full tank of gas, etc. The service tripmeter shows
the distance traveled since it was reset at the last
maintenance.

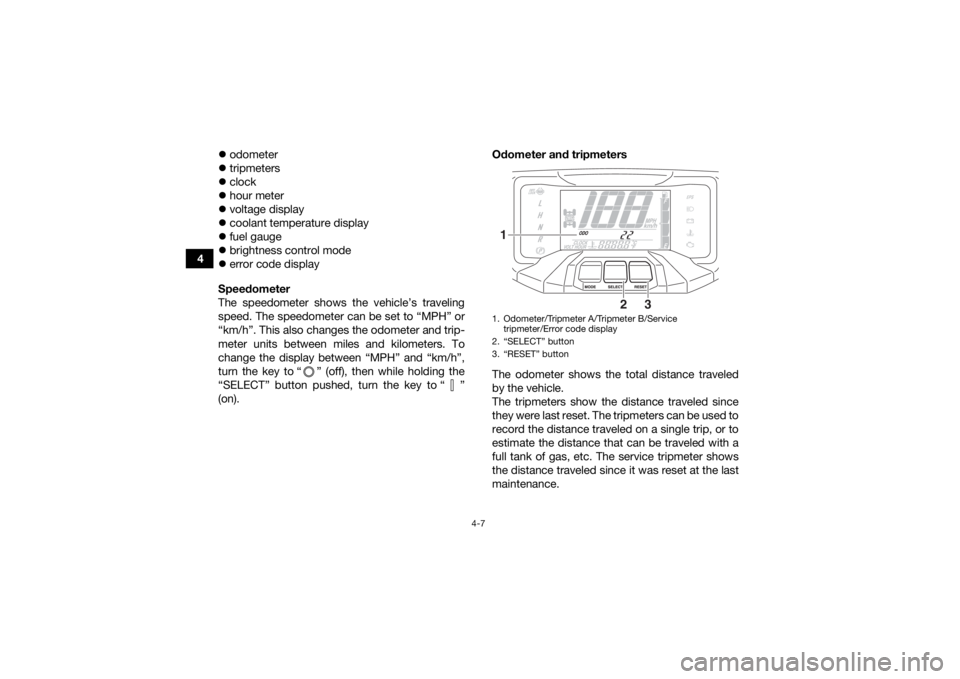

1. Odometer/Tripmeter A/Tripmeter B/Service
tripmeter/Error code display
2. “SELECT” button
3. “RESET” button1
2
3
