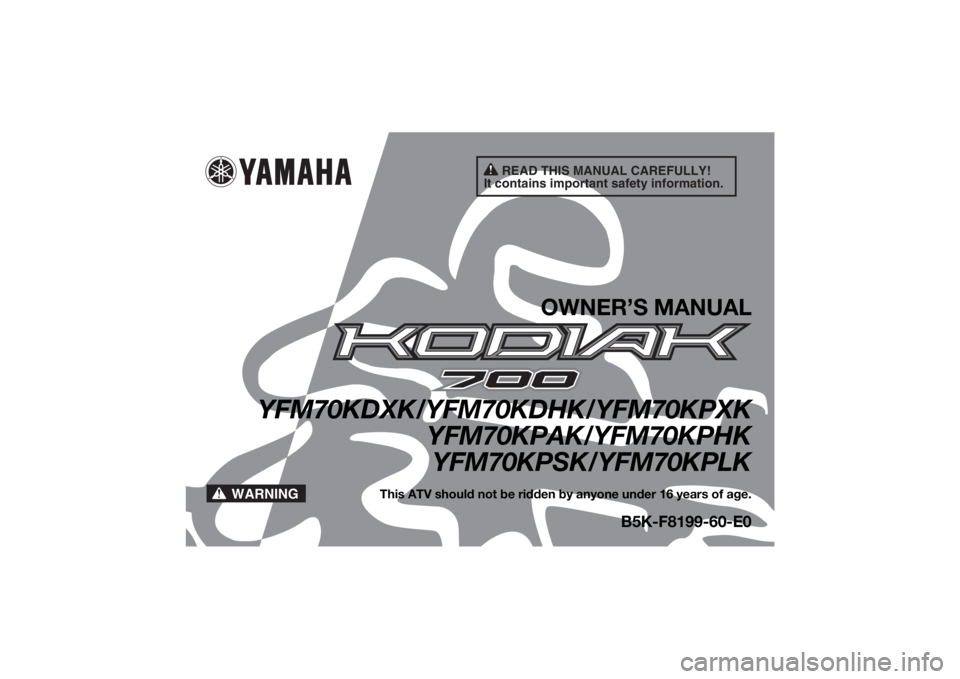

warning YAMAHA KODIAK 700 2019 Owners Manual

READ THIS MANUAL CAREFULLY!
It contains important safety information.
WARNING
OWNER’S MANUAL
YFM70KDXK/YFM70KDHK/YFM70KPXK YFM70KPAK/YFM70KPHK
YFM70KPSK/YFM70KPLK
This ATV should not be ridden by anyone under 16 years of age.
B5K-F8199-60-E0
UB5K60E0.book Page 1 Monday, May 28, 2018 11:35 AM

EBU17171
INTRODUCTION
EBU17293Congratulations on your purchase of the Yamaha YFM70KDXK / YFM70KDHK / YFM70KPXK /
YFM70KPAK / YFM70KPHK / YFM70KPSK / YFM70KPLK. This ATV represents the result of many years
of Yamaha experience in the production of fine sporting, touring, and pacesetting racing machines. With
the purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability that
have made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special tech-
niques and skills necessary to ride the ATV. It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:
 Read this manual completely before operating your ATV. Make sure you understand all instructions.
 Pay close attention to the warning and notice labels on the ATV.
 This ATV should not be ridden by anyone under 16 years of age.UB5K60E0.book Page 1 Monday, May 28, 2018 11:35 AM

EBU17331
IMPORTANT MANUAL INFORMATION
EBU17344FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:TIPProduct and specifications are subject to change without notice.
 The ATV you have purchased may differ slightl y from the figures shown in this manual.
This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
UB5K60E0.book Page 1 Monday, May 28, 2018 11:35 AM

EBU17421
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS .............................. 1-1
SAFETY INFORMATION ................................ 2-1
DESCRIPTION................................................ 3-1Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS ................................................... 4-1 Main switch ................................................. 4-1
Indicator lights and warning lights .............. 4-1
Multi-function display (YFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK) .................... 4-6
Handlebar switches .................................. 4-12
Drive lever “2WD/4WD” (YFM70KDXK / YFM70KDHK) .......................................... 4-17
Throttle lever ............................................. 4-18
Speed limiter ............................................. 4-19
Front brake lever ....................................... 4-19
Brake pedal and rear brake lever .............. 4-20 Drive select lever ...................................... 4-21
Fuel tank cap ............................................ 4-21
Fuel ........................................................... 4-22
Seat .......................................................... 4-24
Storage compartment............................... 4-25
Front carrier .............................................. 4-26
Rear carrier ............................................... 4-26
Front and rear shock absorbers
(YFM70KPXK / YFM70KPAK /
YFM70KPHK / YFM70KPSK /
YFM70KPLK) .......................................... 4-26
Trailer hitch .............................................. 4-28
Auxiliary DC jack....................................... 4-29
PRE-OPERATION CHECKS .......................... 5-1 Fuel ............................................................. 5-3
Engine oil .................................................... 5-3
Final gear oil ............................................... 5-3
Differential gear oil ...................................... 5-3
Coolant ....................................................... 5-3
Front and rear brakes ................................. 5-3
Throttle lever ............................................... 5-4
Tires ............................................................ 5-4
Chassis fasteners ....................................... 5-7UB5K60E0.book Page 1 Monday, May 28, 2018 11:35 AM

1-1
1
EBU29681
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU37231Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UB5K60E0.book Page 1 Monday, May 28, 2018 11:35 AM

1-10
1
LOAD LIMIT50 kg (110 lbs)
B16-F4877-A0
YAMAHA
LOAD LIMIT90 kg (198 lbs)
B16-F4897-30
YAMAHA
MAXIMUM LOADING LIMIT
37S-F151K-00
PULLING LOAD: 5880 N (600 kgf)
1322 lbf
TONGUE WEIGHT: 147 N ( 15 kgf)
33 lbfYAMAHA
WARNINGNEVER ride as a
passeng er.Passengers can cause
a loss of control,
resulting in SEVERE
INJURY or DEATH.
1 2
3 4
UB5K60E0.book Page 10 Monday, May 28, 2018 11:35 AM

1-11
1
Recommended
Minimum: FRONT
REAR
: FRONT
REAR: 35 kPa, (5.0 psi)
: 30 kPa, (4.4 psi)
: 32 kPa, (4.6 psi)
: 27 kPa, (4.0 psi)Never set tire pressure below minimum. It could cause
the tire to dislodge from the rim.Cargo or a trailer can affect stability and handling.
Read owner’s manual before loading or towing.
When riding with cargo or towing a trailer : Reduce speed
and allow more room to stop. Avoid hills and rough terrain.
Maximum Vehicle Load : 240 kg, (530 lbs)
Includes weight of operator, cargo and accessories
(and if applicable, trailer tongue weight).
WARNING
B16-F816M-00
YAMAHAIMPROPER TIRE PRESSURE OR OVERLOADING CAN
CAUSE LOSS OF CONTROL.
LOSS OF CONTROL CAN RESULT IN SEVERE
INJURY OR DEATH.OPERATING TIRE PRESSURE : Set with tires coldLOADING/TRAILER TOWING
WARNING
NEVER
operate this ATV if you are
under age 16.Operating this ATV if you are under
the age of 16 increases your chance
of severe injury or death.
16
UNDER
1P0-F816L-01
Wait for the engine to return to normal idle speed
before shifting.
2UD-F151E-00
56
7UB5K60E0.book Page 11 Monday, May 28, 2018 11:35 AM

1-12
1
WARNING
Improper ATV use can result in SEVERE
INJURY or DEATH.ALWAYS USE
AN APPROVED HELMET ANDPROTECTIVE GEAR NEVER USE
ON PUBLIC ROADS NEVER CARRY
PASSENGERS NEVER USE
WITH DRUGS
OR ALCOHOLNEVER operate :
ALWAYS :

conditions.

with another vehicle.

balance and steering and increase risk
of losing control.

vehicle overturns on hills and rough
terrain and in turns.

seriously affect handling and control.
LOCATE AND READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
4XE-F1568-10
YAMAHA
LOAD LIMIT4 kg (9 lbs)
B4F-F4877-A0
YAMAHA
89
UB5K60E0.book Page 12 Monday, May 28, 2018 11:35 AM

2-6
2
gerous loss of lights or engine power. Also, the
battery tends to discharge more quickly if elec-
trical accessories are added.
WARNING
EWB00073Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.

Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels. 
Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.
 Do not run engine outdoors where engine
exhaust can be drawn into a building through
openings such as windows and doors.

UB5K60E0.book Page 6 Monday, May 28, 2018 11:35 AM

3-2
3
EBU17715Controls and instrumentsYFM70KDXK / YFM70KDHKYFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Drive lever “2WD / 4WD”
6. Warning and indicator lights
7. Front brake fluid reservoir
8. Front brake lever
9. Throttle lever
10.Auxiliary DC jack
11.Main switch123
45 6 7
891011
1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Multi-function display
6. Front brake fluid reservoir
7. On-Command 4WD switches
8. Front brake lever
9. Throttle lever
10.Auxiliary DC jack
11.Main switch123 56
7891011
4
