YAMAHA KODIAK 700 2020 Workshop Manual

5-20
5
The brake pedal is located on the right side of the
ATV and the rear brake lever is located on the left
handlebar. To apply the rear brake, push down on
the brake pedal or pull the brake lever toward the
handlebar grip.
EBU18614Drive select leverThe drive select lever is used to shift the transmis-
sion into the low-range, high-range, neutral, re-
verse and park positions. See page 7-2 for drive
select lever operation.
1. Rear brake lever
1
1. Drive select lever
1
UB5K62E0.book Page 20 Thursday, May 9, 2019 2:59 PM

5-21
5
EBU37980Fuel tank capRemove the fuel tank cap by turning it counter-
clockwise.
WARNING
EWB02522Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions. 1. Before refueling, turn off the engine and besure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity of sparks, open flames, or other sources of
ignition such as the pilot lights of water heat-
ers and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel
reaches the bottom of the filler tube. Because
fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill out of
the fuel tank.1. Fuel tank cap
1
1. Fuel tank filler tube
2. Maximum fuel level
2
1
UB5K62E0.book Page 21 Thursday, May 9, 2019 2:59 PM

5-22
5
3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00982]
4. Turn the fuel tank cap fully clockwise to make sure it is securely closed.EBU38023FuelMake sure there is sufficient gasoline in the tank
before starting off. Refuel if necessary.
WARNING
EWB02532Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow some
gasoline or inhale a lot of gasoline vapor, or get
some gasoline in your eyes, see your doctor
immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills on
your clothing, change your clothes.
For EuropeTIPConfirm the gasoline pump nozzle has the same
fuel identification mark. Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity: 18 L (4.8 US gal, 4.0 Imp.gal)
Fuel reserve amount: 4.0 L (1.06 US gal, 0.88 Imp.gal)1. EN228 fuel identification mark
1
E5
E10
UB5K62E0.book Page 22 Thursday, May 9, 2019 2:59 PM

5-23
5About the recommended fuel
If knocking or pinging occurs, try a different brand
or higher octane gasoline.
For Europe, use RON 95 octane or higher.
For Oceania, use RON 91 octane or higher.
TIPGasoline containing ethanol can be used if the
ethanol content does not exceed 10% (E10). Gas-
oline containing methanol is not recommended
because it can cause damage to the fuel system
or vehicle performance problems. NOTICEECB00071Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.
EBU34141SeatTo remove the seat
Pull up the seat at the rear, and then pull the seat
rearward.1. Seat
1
UB5K62E0.book Page 23 Thursday, May 9, 2019 2:59 PM

5-24
5
To install the seat
Insert the projections on the front of the seat into
the seat holders, and then push down on the seat
at the rear to lock it in place. Make sure that the
seat is securely fitted.
EBU34152Storage compartmentNOTICEECB02320Do not store metal or sharply edged objects,
like tools, in the storage compartment. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-
age compartment. The storage compartment is located in front of the
seat. To access the storage compartment, open
the storage compartment lid.
1. Projection
2. Seat holder
1
12
2

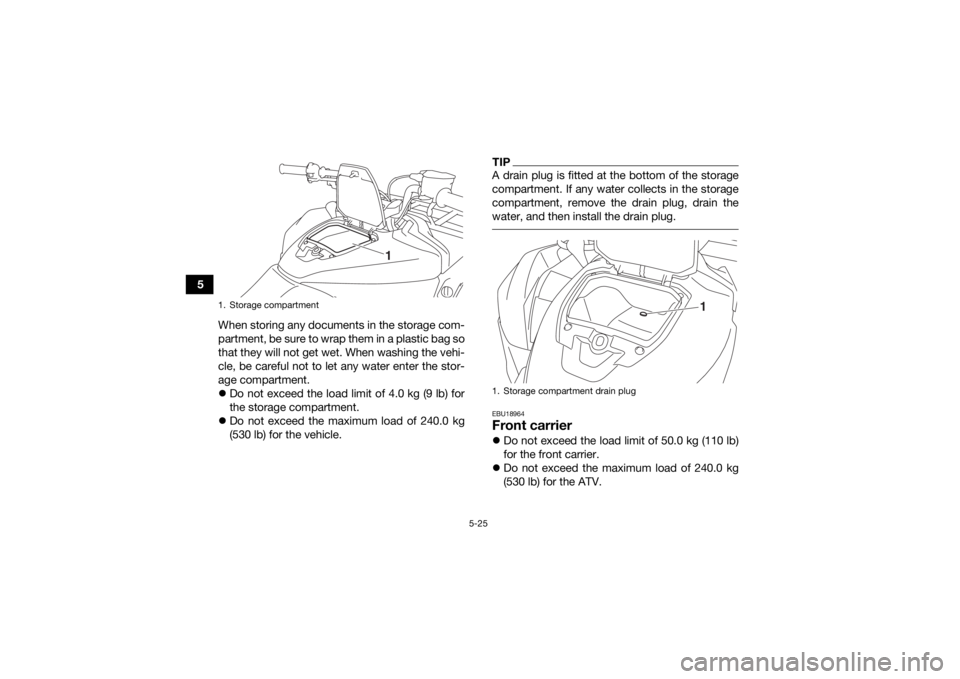

1. Storage compartment lid
1
UB5K62E0.book Page 24 Thursday, May 9, 2019 2:59 PM

5-25
5When storing any documents in the storage com-
partment, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the vehi-
cle, be careful not to let any water enter the stor-
age compartment.
Do not exceed the load limit of 4.0 kg (9 lb) for
the storage compartment.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the vehicle.
TIPA drain plug is fitted at the bottom of the storage
compartment. If any water collects in the storage
compartment, remove the drain plug, drain the
water, and then install the drain plug. EBU18964Front carrierDo not exceed the load limit of 50.0 kg (110 lb)
for the front carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.
1. Storage compartment
1
1. Storage compartment drain plug
1
UB5K62E0.book Page 25 Thursday, May 9, 2019 2:59 PM

5-26
5
EBU18974Rear carrierDo not exceed the load limit of 90.0 kg (198 lb)
for the rear carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.EBU1914AFront and rear shock absorbers
(YFM700FWBD / YFM70KPAL)The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
WARNING
EWB00401Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident. Adjust the spring preload as follows.

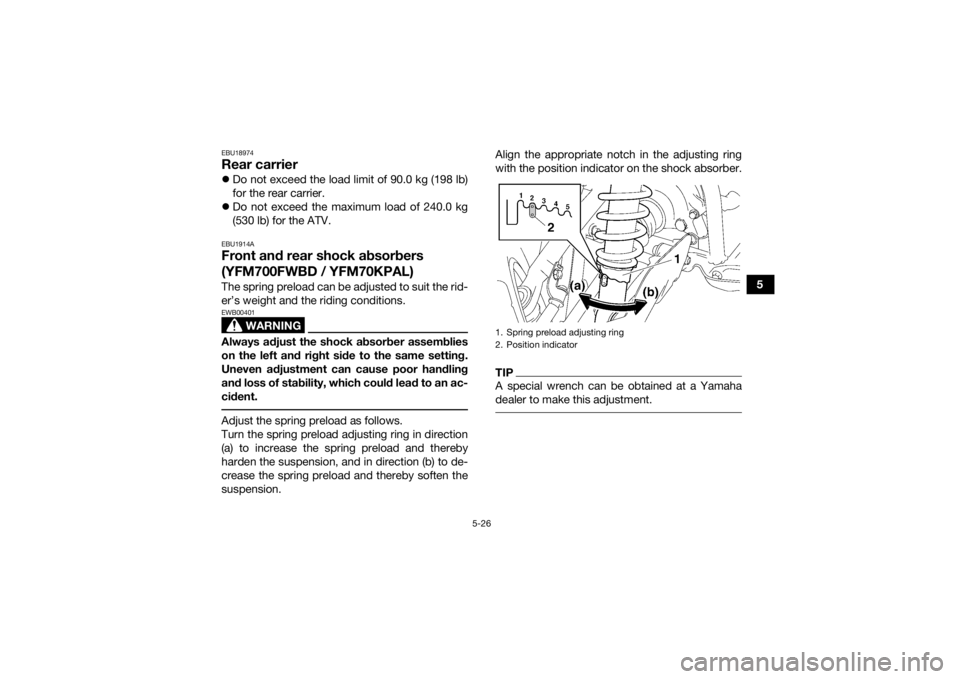

Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension. Align the appropriate notch in the adjusting ring
with the position indicator on the shock absorber.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment. 1. Spring preload adjusting ring
2. Position indicator
UB5K62E0.book Page 26 Thursday, May 9, 2019 2:59 PM

5-27
5
EBU28972Trailer hitch This ATV is equipped with a 5 cm (2 in) trailer hitch
receiver.
Trailer towing equipment can be obtained at a
Yamaha dealer. (See page 7-6 for precaution in- formation.)
1. Special wrench
Front spring preload setting: Minimum (soft):1 (YFM700FWBD, YFM70KPAL)
Standard: 2 (YFM700FWBD, YFM70KPAL)
Maximum (hard): 5 (YFM700FWBD, YFM70KPAL)
Rear spring preload setting: Minimum (soft):1 (YFM700FWBD, YFM70KPAL)
Standard: 2 (YFM700FWBD, YFM70KPAL)
Maximum (hard): 5 (YFM700FWBD, YFM70KPAL)
UB5K62E0.book Page 27 Thursday, May 9, 2019 2:59 PM

5-28
5
EBU19186Auxiliary DC jackNOTICEECB03760Do not use any single electrical accessory or
combination of accessories that require more
than the stated capacity at any one time. This
may overload the circuit and cause the fuse to
blow.
1. Trailer hitch receiver
1
1. Auxiliary DC jack cap
2. Auxiliary DC jackAuxiliary DC jack system capacity:10.0 A (120 W)
21
UB5K62E0.book Page 28 Thursday, May 9, 2019 2:59 PM

5-29
5
TIPWhen using a winch or other electrical accesso-
ries, the power taken from the DC jack must be re-
duced accordingly. A 12-V accessory, such as a work light or radio
with the proper adapter, can be used when the
main switch is turned on. However, to prevent bat-
tery drain, use when the engine is running and the
headlights are turned off.1. Start the engine.
2. Turn the headlights off.
3. Turn the accessory off.
4. Open the auxiliary DC jack cap.
5. Insert the accessory power plug into the jack.
6. Turn the accessory on.TIP When inserting or removing the accessory pow-
er plug, turn the accessory off.
 When the auxiliary DC jack is not being used,
cover it with the cap.
NOTICEECB00122If accessories are used with the engine off or
with the headlights on, the battery may dis-
charge to the point that the engine will not
start.
 Do not use an automotive cigarette lighter or
other accessory with a plug that gets hot.
The DC jack may be damaged.
