EBU19186Auxiliary DC jackNOTICEECB03760Do not use any single electrical accessory or
combination of accessories that require more
than the stated capacity at any one time. This
may overload the circuit and cause the fuse to
blow.
1. Trailer hitch receiver
1
1. Auxiliary DC jack cap
2. Auxiliary DC jackAuxiliary DC jack system capacity:10.0 A (120 W)
21
UB5K62E0.book Page 28 Thursday, May 9, 2019 2:59 PM

9-56
9
3. Install the battery holding plate by installing
the nuts.
4. Install the front carrier by installing the bolts and tightening them to the specified torques. 5. Install the panel.
TIP
Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it. EBU30525Replacing a fuse
1. Positive battery lead (red)
2. Negative battery lead (black)Tightening torques:
Carrier bolt (upper):34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (lower): 34 N·m (3.4 kgf·m, 25 lb·ft)
Carrier bolt (under the fenders): 7 N·m (0.7 kgf·m, 5.2 lb·ft)
12
1. Fuse box
2. Main fuse
3. EPS fuse (equipped models)
4. Fuel injection system spare fuse
5. Fuel injection system fuse
2345
1
UB5K62E0.book Page 56 Thursday, May 9, 2019 2:59 PM

9-57
9YFM700FWB YFM700FWBD / YFM70KPAL
If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.

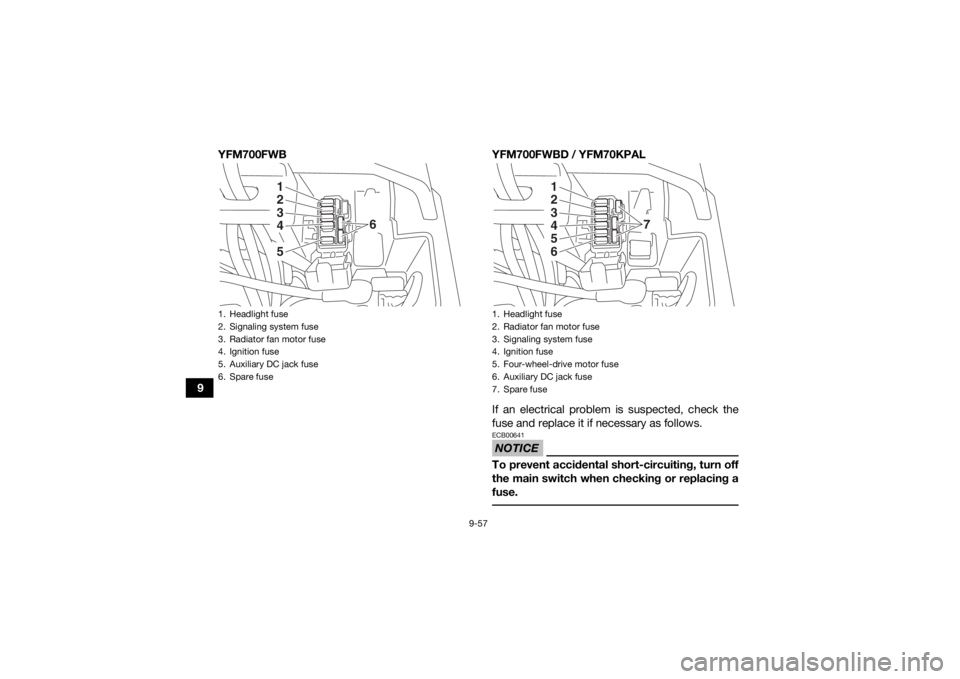

1. Headlight fuse
2. Signaling system fuse
3. Radiator fan motor fuse
4. Ignition fuse
5. Auxiliary DC jack fuse
6. Spare fuse
12345
6
1. Headlight fuse
2. Radiator fan motor fuse
3. Signaling system fuse
4. Ignition fuse
5. Four-wheel-drive motor fuse
6. Auxiliary DC jack fuse
7. Spare fuse
123456
7
UB5K62E0.book Page 57 Thursday, May 9, 2019 2:59 PM

9-58
9
1. Turn off all electrical systems. (See page 5-1.)
2. Remove panel A. (See page 9-9.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
4. Turn on the main switch and start the engine.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
6. Install the panel. Specified fuses:
Main fuse:40.0 A
Headlight fuse: 10.0 A (YFM700FWB)
15.0 A (YFM700FWBD, YFM70KPAL)
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A (YFM700FWBD, YFM70KPAL)
Signaling system fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse: 15.0 A
EPS fuse: 40.0 A (YFM700FWBD, YFM70KPAL)
UB5K62E0.book Page 58 Thursday, May 9, 2019 2:59 PM

11-5
11
Shock absorber:Hydraulic damper
Wheel travel: 230 mm (9.1 in)Electrical system:System voltage:12 V
Ignition system: TCI
Charging system:
AC magnetoBattery:Model:YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhLights:Headlight:T19L, 30.0 W/30.0 W
Handlebar-mounted light:
T15H, 35.0 W/36.5 W (YFM700FWBD, YFM70KPAL)
Brake/tail light: 21.0 W/5.0 W
Meter lighting: LED (YFM700FWBD, YFM70KPAL)
Neutral indicator light:
LED
High beam indicator light: LED (YFM700FWBD, YFM70KPAL)
Fuel level warning light: LED (YFM700FWB) Reverse indicator light:
LED
Coolant temperature warning light: LED
Park indicator light:
LED
Four-wheel-drive indicator light: 1.7 W (YFM700FWB)
Engine trouble warning light: LED
High-range indicator light:
LED (YFM700FWBD, YFM70KPAL)
Low-range indicator light: LED (YFM700FWBD, YFM70KPAL)
Differential gear lock indicator light: LED (YFM700FWBD, YFM70KPAL)
EPS warning light:
LED (YFM700FWBD, YFM70KPAL)
Battery voltage warning light: LED (YFM700FWBD, YFM70KPAL)
Fuses:Main fuse:
40.0 A
Headlight fuse: 10.0 A (YFM700FWB)
15.0 A (YFM700FWBD, YFM70KPAL)
Signaling system fuse: 10.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse:
10.0 A
UB5K62E0.book Page 5 Thursday, May 9, 2019 2:59 PM

11-6
11
Fuel injection system fuse:15.0 A
Four-wheel-drive motor fuse: 10.0 A (YFM700FWBD, YFM70KPAL)
Radiator fan motor fuse:
20.0 A
EPS fuse: 40.0 A (YFM700FWBD, YFM70KPAL)EBU30403Noise and vibration levels statement (for Eu-
