YAMAHA KODIAK 700 2022 User Guide

1-1
1
EBU38860
VEHICLE IDENTIFICATION
EBU28205Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26032Vehicle identification number
The vehicle identification number is stamped into
the frame. This 17-digit number is used to identify
your individual ATV.
EBU26053Model label
The model label is affixed at the location shown.1. Vehicle identification number (front left side)
UB5K64E0.book Page 1 Thursday, September 16, 2021 9:00 AM

1-2
1Your specific model can be identified by checking
the model type code found on the model label.
1. Model label
1. Model type code
2. Production code
3. Color code
1*
****
-
***1
3
2
UB5K64E0.book Page 2 Thursday, September 16, 2021 9:00 AM

2-1
2
EBU29681
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU38700Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UB5K64E0.book Page 1 Thursday, September 16, 2021 9:00 AM

2-2
2
1
23 4
5
11
9
10
7,8
6
1213
UB5K64E0.book Page 2 Thursday, September 16, 2021 9:00 AM

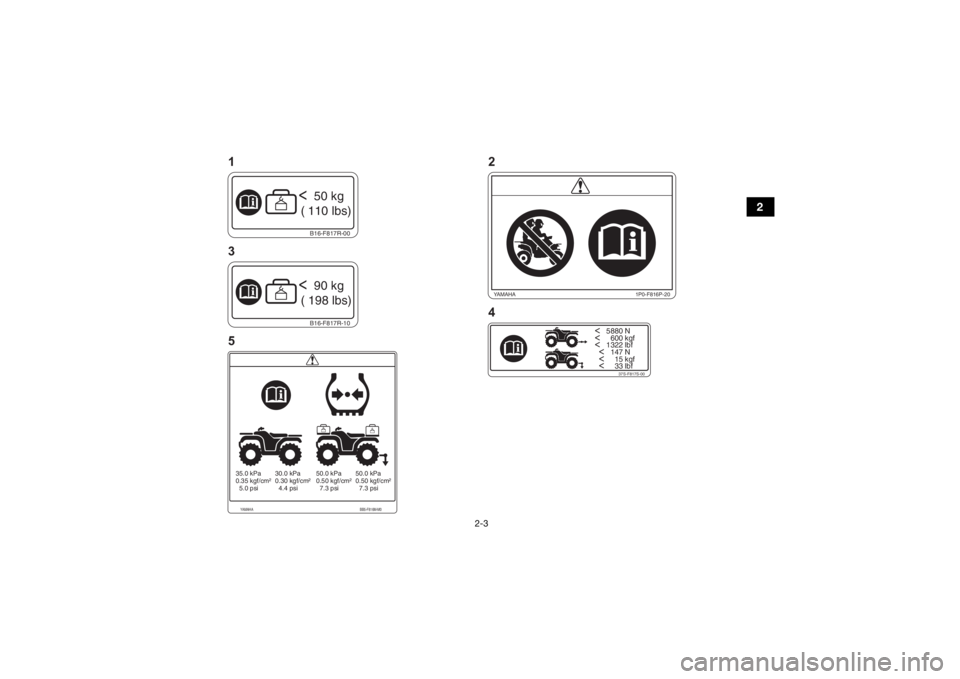

2-3
2
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
B16-F817R-10< 90 kg
( 198 lbs)B16-F817R-00< 50 kg
( 110 lbs)
1P0-F816P-20
YAMAHA
YAMAHA BB5-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi30.0 kPa
0.30 kgf/cm²
4.4 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi12
3
4
5
UB5K64E0.book Page 3 Thursday, September 16, 2021 9:00 AM

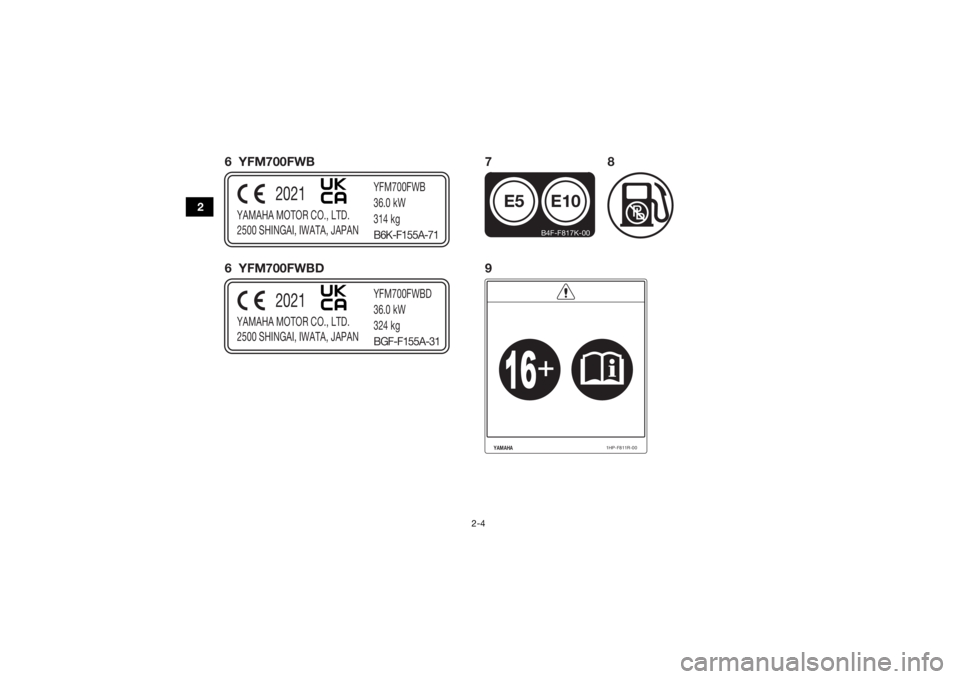

2-4
2
YAMAHA
1HP-F811R-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWB
36.0 kW
314 kg
2021
B6K-F155A-71
E10
E5
B4F-F817K-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWBD
36.0 kW
324 kg
2021
BGF-F155A-31
6 YFM700FWB
78
9
6 YFM700FWBDUB5K64E0.book Page 4 Thursday, September 16, 2021 9:00 AM

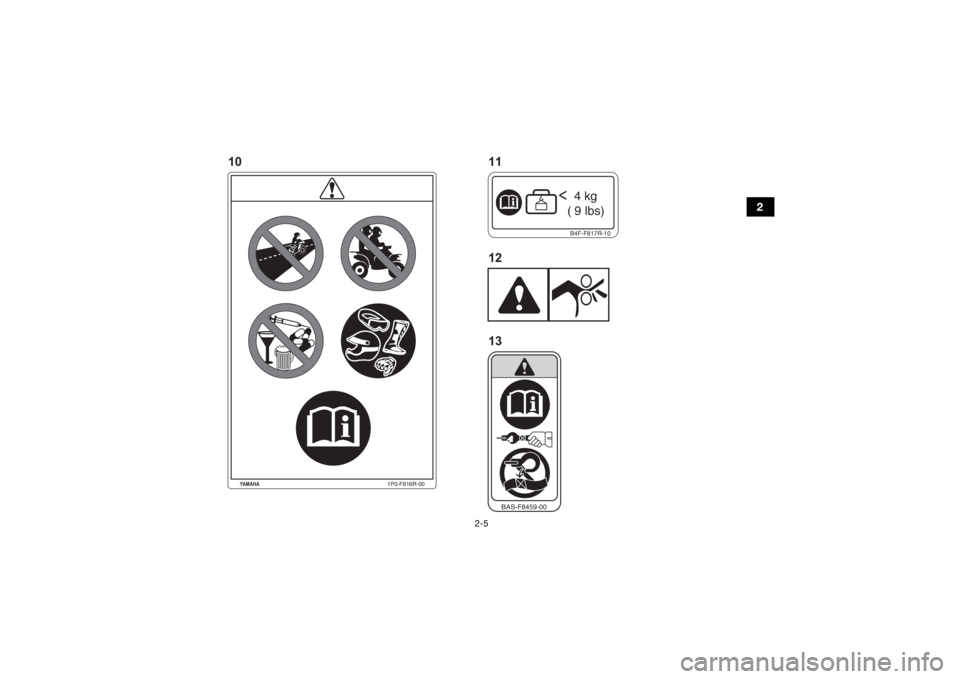

2-5
2
1P0-F816R-00
YAMAHA
B4F-F817R-10< 4 kg
( 9 lbs)
BAS-F8459-00
10 11
12
13
UB5K64E0.book Page 5 Thursday, September 16, 2021 9:00 AM

2-6

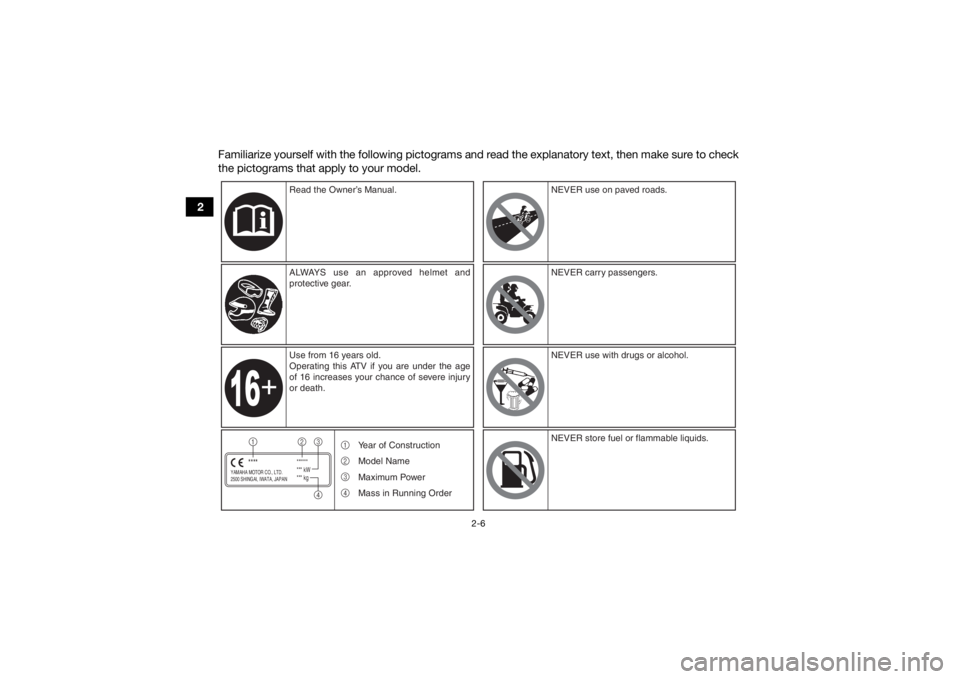

2Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
34
Read the Owner’s Manual.
ALWAYS use an approved helmet and
protective gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
1
2
3
4 Year of Construction
Model Name
Maximum Power
Mass in Running Order
UB5K64E0.book Page 6 Thursday, September 16, 2021 9:00 AM

2-7
2
E10E5
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
EN228 fuel identification mark.
Gasoline of ethanol 10% or less can be
used. EN228 fuel identification mark.
Gasoline of ethanol 5% or less can be used.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
UB5K64E0.book Page 7 Thursday, September 16, 2021 9:00 AM

3-1
3
EBU17432
SAFETY INFORMATION
SAFETY INFORMATION
EBU27255AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
 Never operate an ATV without proper training or
instruction. Take a training course. Beginners
should receive training from a certified instruc-
tor. Contact an authorized ATV dealer to find
out about the training courses nearest you.
 Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc. 
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
 Never carry a passenger on an ATV.
 This vehicle is intended for off-road use only. Do
not operate on any paved surfaces such as:
sidewalks, driveways, parking lots, paved
roads, public streets or other motorway.
 Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
 Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly.
You should also wear eye protection (goggles
or face shield), gloves, boots, a long-sleeved
shirt or a jacket, and long pants.
 Never consume alcohol or drugs before or while
operating this ATV.UB5K64E0.book Page 1 Thursday, September 16, 2021 9:00 AM
