YAMAHA KODIAK 700 2022 Workshop Manual

5-24
5

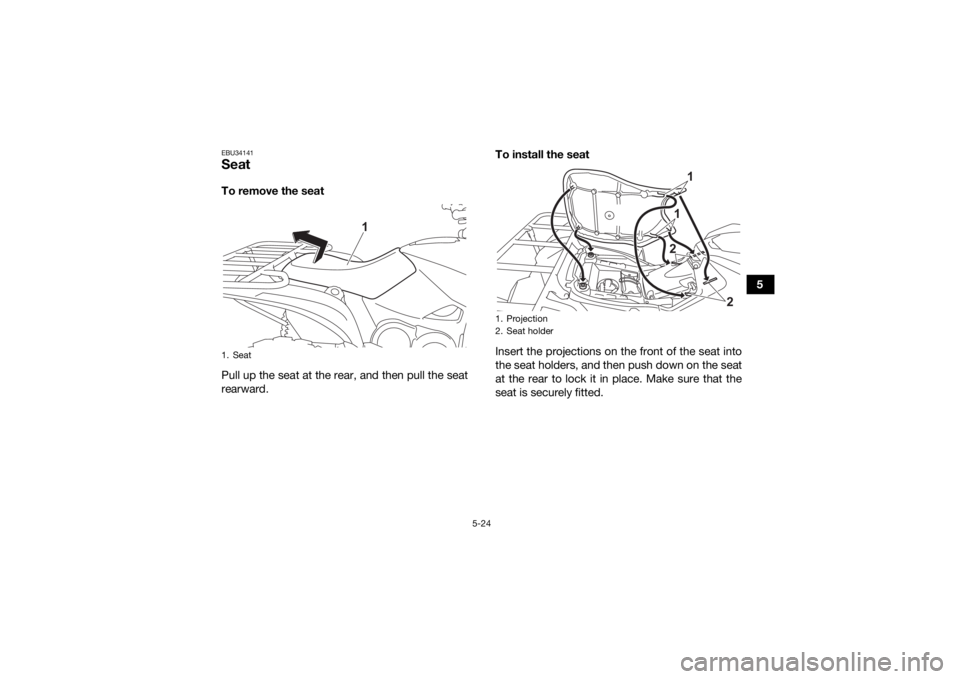

EBU34141SeatTo remove the seat
Pull up the seat at the rear, and then pull the seat
rearward.To install the seat
Insert the projections on the front of the seat into
the seat holders, and then push down on the seat
at the rear to lock it in place. Make sure that the
seat is securely fitted.1. Seat
1
1. Projection
2. Seat holder
1
12
2
UB5K64E0.book Page 24 Thursday, September 16, 2021 9:00 AM

5-25
5

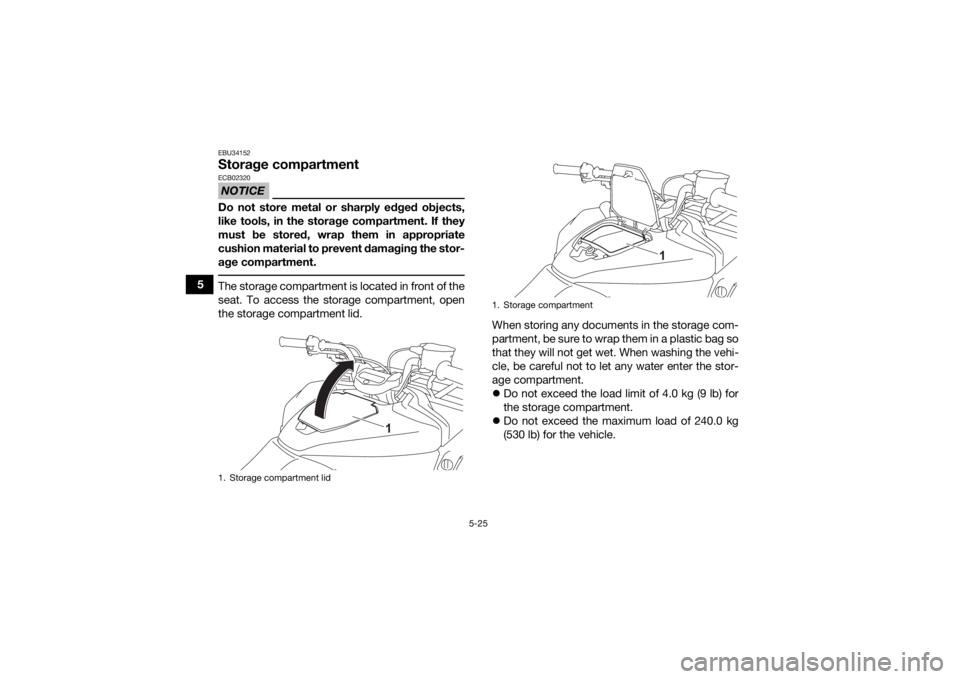

EBU34152Storage compartmentNOTICEECB02320Do not store metal or sharply edged objects,
like tools, in the storage compartment. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-
age compartment. The storage compartment is located in front of the
seat. To access the storage compartment, open
the storage compartment lid.When storing any documents in the storage com-
partment, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the vehi-
cle, be careful not to let any water enter the stor-
age compartment.
Do not exceed the load limit of 4.0 kg (9 lb) for
the storage compartment.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the vehicle.1. Storage compartment lid
1
1. Storage compartment
1
UB5K64E0.book Page 25 Thursday, September 16, 2021 9:00 AM

5-26
5
TIPA drain plug is fitted at the bottom of the storage
compartment. If any water collects in the storage
compartment, remove the drain plug, drain the
water, and then install the drain plug. EBU18964Front carrierDo not exceed the load limit of 50.0 kg (110 lb)
for the front carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.
EBU18974Rear carrierDo not exceed the load limit of 90.0 kg (198 lb)
for the rear carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.EBU1914AFront and rear shock absorbers
(YFM700FWBD)The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
WARNING
EWB00401Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-

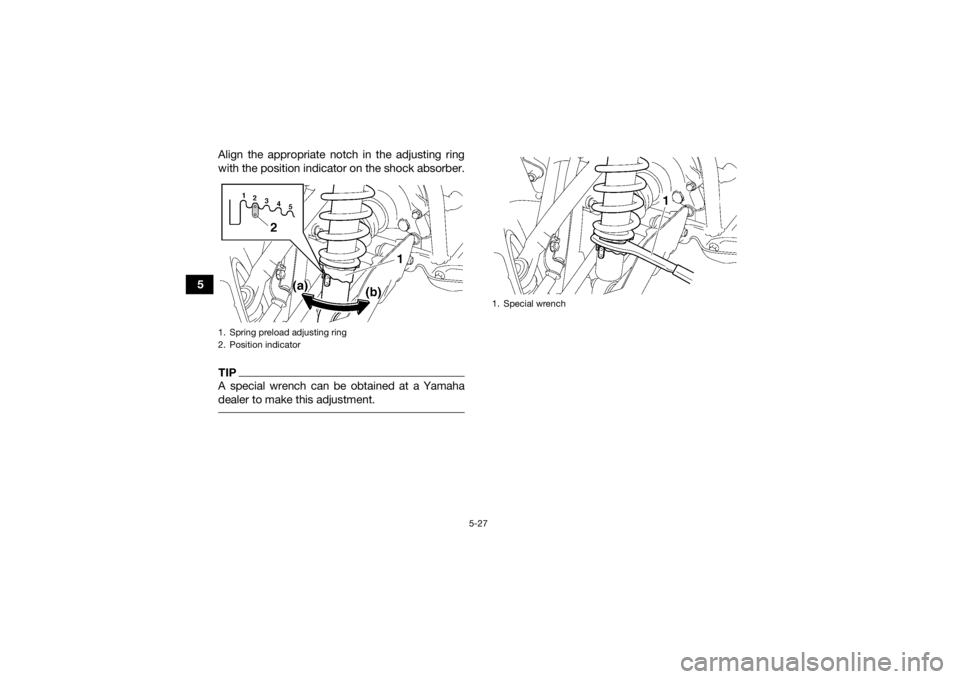

cident. Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
1. Storage compartment drain plug
1
UB5K64E0.book Page 26 Thursday, September 16, 2021 9:00 AM

5-27
5Align the appropriate notch in the adjusting ring
with the position indicator on the shock absorber.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment. 1. Spring preload adjusting ring
2. Position indicator
1. Special wrench
UB5K64E0.book Page 27 Thursday, September 16, 2021 9:00 AM

5-28
5

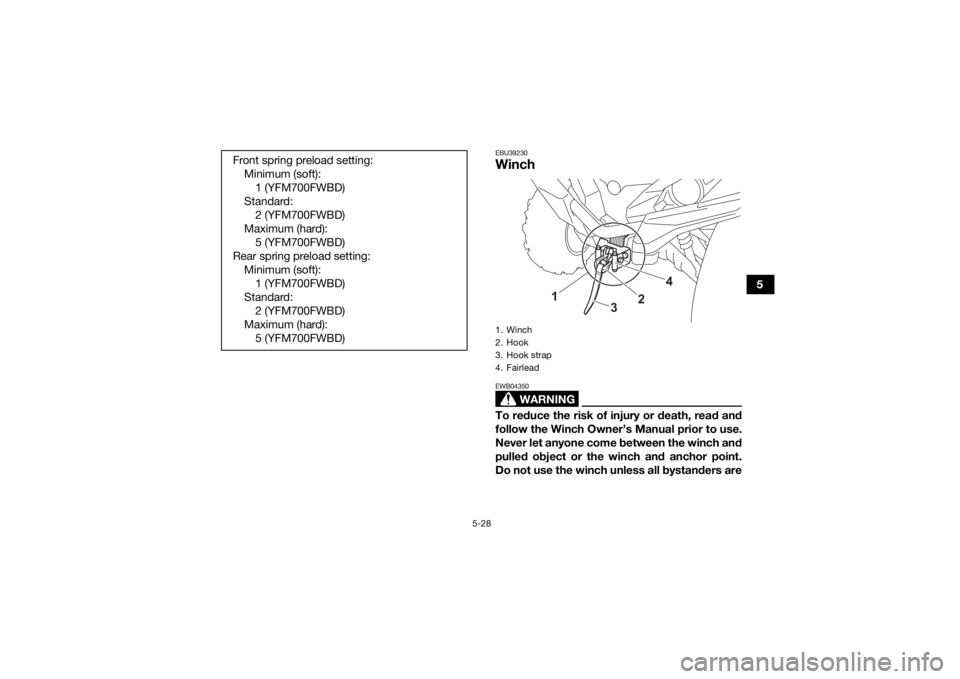

EBU39230Winch
WARNING
EWB04350To reduce the risk of injury or death, read and
follow the Winch Owner’s Manual prior to use.
Never let anyone come between the winch and
pulled object or the winch and anchor point.
Do not use the winch unless all bystanders are
Front spring preload setting:
Minimum (soft):1 (YFM700FWBD)
Standard: 2 (YFM700FWBD)
Maximum (hard): 5 (YFM700FWBD)
Rear spring preload setting: Minimum (soft):1 (YFM700FWBD)
Standard: 2 (YFM700FWBD)
Maximum (hard): 5 (YFM700FWBD)1. Winch
2. Hook
3. Hook strap
4. Fairlead
1
3
2
4
UB5K64E0.book Page 28 Thursday, September 16, 2021 9:00 AM

5-29
5a safe distance away. Use hook strap to keep
hands away from fairlead when winding the
winch rope.
NOTICEECBM0051Prolonged winching can overheat the winch
motor and can drain the vehicle’s battery, even
when the engine is idling. Allow the winch mo-
tor to cool and the battery to recharge between
uses. EBU28972Trailer hitch This ATV is equipped with a 5 cm (2 in) trailer hitch
receiver.
Trailer towing equipment can be obtained at a
Yamaha dealer. (See page 7-6 for precaution in- formation.)
1. Trailer hitch receiver
1
UB5K64E0.book Page 29 Thursday, September 16, 2021 9:00 AM

5-30
5
EBU19187Auxiliary DC jackNOTICEECB03760Do not use any single electrical accessory or
combination of accessories that require more
than the stated capacity at any one time. This
may overload the circuit and cause the fuse to
blow.
TIPWhen using a winch or other electrical accesso-
ries, the power taken from the DC jack must be re-
duced accordingly. A 12-V accessory, such as a work light or radio
with the proper adapter, can be used when the
main switch is turned on. However, to prevent bat-
tery drain, use when the engine is running and the
headlights are turned off.1. Start the engine.
2. Turn the headlights off.
3. Make sure the accessory is powered off.
4. Open the auxiliary DC jack cap.
5. Insert the accessory power plug into the jack.
6. Turn the accessory on.TIP Turn off the accessory before plugging into/un-
plugging from the jack.
 When the auxiliary DC jack is not being used,
cover it with the cap.
1. Auxiliary DC jack cap
2. Auxiliary DC jackAuxiliary DC jack system capacity:
8.0 A (96 W)
21
UB5K64E0.book Page 30 Thursday, September 16, 2021 9:00 AM

5-31
5
NOTICEECB00122If accessories are used with the engine off or
with the headlights on, the battery may dis-
charge to the point that the engine will not
start.
 Do not use an automotive cigarette lighter or
other accessory with a plug that gets hot.
The DC jack may be damaged. UB5K64E0.book Page 31 Thursday, September 16, 2021 9:00 AM

6-1
6
EBU19203
PRE-OPERATION CHECKS
EBU19227Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel • Check fuel level in fuel tank,
and add recommended fuel if neces-
sary.
• Check fuel line for leakage. Correct if necessary. 5-22, 6-3
Engine oil • Check oil level in engine, and add recommended oil to specified
level if necessary.
• Check ATV for oil leakage. Correct if necessary. 6-3, 9-19
Final gear oil • Check ATV for oil leakage. Correct if necessary. 6-3, 9-24
Differential gear oil • Check ATV for oil leakage. Correct if necessary. 6-3, 9-26
Coolant • Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
• Check cooling system for leakage. Correct if necessary. 6-3, 9-28
UB5K64E0.book Page 1 Thursday, September 16, 2021 9:00 AM

6-2
6
Front brake• Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
• Check brake pads for wear, and replace if necessary.
• Check brake fluid level in reservoir, and add specified brake fluid to specified level if necessary.
• Check hydraulic system for leakage. Correct if necessary. 6-3, 9-42, 9-43, 9-44
Rear brake • Check operation, and correct if necessary.
• Lubricate cables if necessary.
• Check lever and pedal free play, and adjust if necessary. 6-3, 9-42, 9-44
Throttle lever • Make sure that operation is smooth. Lubricate cable and lever
housing if necessary.
• Check lever free play, and adjust if necessary. 6-4, 9-41
Control cables • Make sure that operation is smooth. Lubricate if necessary. 9-48
Wheels and tires • Check wheel condition, and replace if damaged.
• Check tire condition and tread depth. Replace if necessary.
• Check air pressure. Correct if necessary. 6-4
Brake pedal • Make sure that operation is smooth. Lubricate pedal pivoting point
if necessary. 9-50
Brake levers • Make sure that operation is smooth. Lubricate lever pivoting points
if necessary. 9-49
Axle boots • Check for cracks or damage, and replace if necessary. 9-47
Chassis fasteners • Make sure that all nuts, bolts and screws are properly tightened. 6-7
Instruments, lights and
switches • Check operation, and correct if necessary. 6-7
Winch • Confirm winch hook and rope are not dangling loose.
• Confirm winch clutch is locked (positively engaged).
5-28
ITEM ROUTINE PAGEUB5K64E0.book Page 2 Thursday, September 16, 2021 9:00 AM
