turn signal YAMAHA MAJESTY 125 2007 Owners Manual

INTRODUCTION
IMPORTANT MANUAL INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator lights ..................................3-2
Speedometer unit .............................3-2
Battery voltage/fuel gauge ...............3-3
Clock .................................................3-4
Anti-theft alarm (optional) .................3-5
Handlebar switches ..........................3-5
Front brake lever...............................3-6
Rear brake lever................................3-6
Fuel tank cap ....................................3-7
Fuel ...................................................3-8
Fuel tank breather/overflow hose .....3-9
Catalytic converter............................3-9
Seat...................................................3-9
Front storage compartment............3-10Storage compartment.....................3-11
Adjusting the shock absorber
assemblies...................................3-12
Sidestand ........................................3-12
Ignition circuit cut-off system .........3-13
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing panels........6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-9
Final transmission oil ......................6-11
Coolant ...........................................6-12
Air filter and V-belt case air filter
elements ......................................6-14Adjusting the carburetor .................6-15
Adjusting the throttle cable free
play ..............................................6-15
Valve clearance ...............................6-16
Tires ................................................6-16
Cast wheels ....................................6-18
Front and rear brake lever free
play ..............................................6-19
Checking the front and rear brake
pads.............................................6-19
Checking the brake fluid level ........6-20
Changing the brake fluid ................6-21
Checking and lubricating
the cables ....................................6-21
Lubricating the front and rear brake
levers ...........................................6-22
Checking and lubricating the
centerstand and sidestand .........6-22
Checking the front fork ...................6-23
Checking the steering.....................6-23
Checking the wheel bearings .........6-24
Battery ............................................6-24
Replacing the fuses ........................6-26
Replacing a headlight bulb .............6-27
Replacing a front turn signal
light bulb......................................6-29
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-30
Replacing the license plate light
bulb .............................................6-31
Replacing the auxiliary light bulb ...6-31
TABLE OF CONTENTS
5D8-F8199-E0.qxd 1/6/07 16:20 Página 6

EAU10261

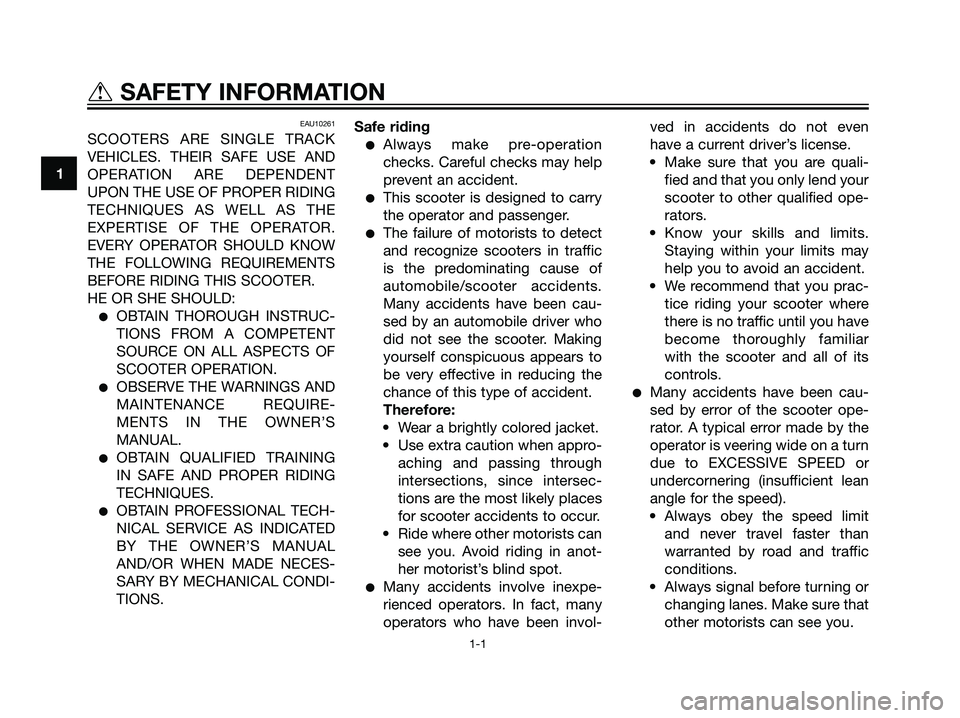

SCOOTERS ARE SINGLE TRACK
VEHICLES. THEIR SAFE USE AND
OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE
EXPERTISE OF THE OPERATOR.
EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS SCOOTER.
HE OR SHE SHOULD:
OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.
OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.
OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This scooter is designed to carry
the operator and passenger.
The failure of motorists to detect
and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau-
sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when appro-
aching and passing through
intersections, since intersec-
tions are the most likely places
for scooter accidents to occur.
• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many accidents involve inexpe-
rienced operators. In fact, many
operators who have been invol-ved in accidents do not even
have a current driver’s license.
• Make sure that you are quali-
fied and that you only lend your
scooter to other qualified ope-
rators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.
Many accidents have been cau-
sed by error of the scooter ope-
rator. A typical error made by the
operator is veering wide on a turn
due to EXCESSIVE SPEED or
undercornering (insufficient lean
angle for the speed).
• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
1
tSAFETY INFORMATION
1-1
5D8-F8199-E0.qxd 1/6/07 16:20 Página 8

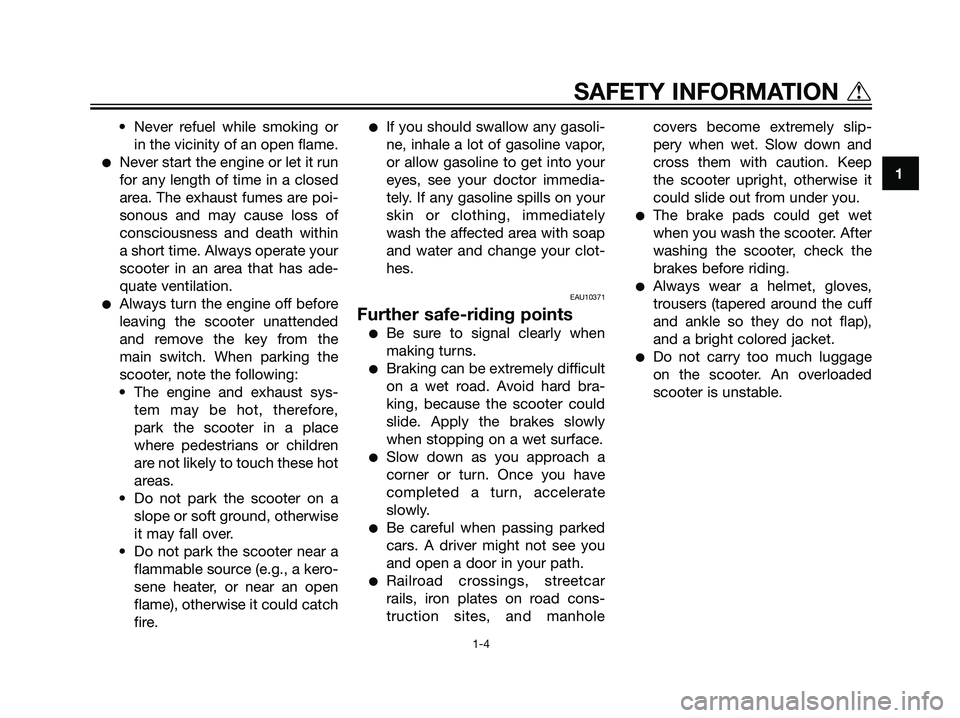

• Never refuel while smoking or
in the vicinity of an open flame.
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade-
quate ventilation.
Always turn the engine off before
leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
• Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
If you should swallow any gasoli-
ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia-
tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot-
hes.
EAU10371
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manholecovers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable.
1
SAFETY INFORMATION t
1-4
5D8-F8199-E0.qxd 1/6/07 16:20 Página 11

EAU10980
Indicator lights
1. Alarm indicator light
2. Left turn signal indicator light “c”
3. High beam indicator light “j”
4. Coolant temperature warning light “y”
5. Right turn signal indicator light “d”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAUM1070
Oil change indicator
At the initial 500 km (300 mi) and
every 3000 km (1800 mi) thereafter,
the message “CHnGE OIL” appears
in the odometer/clock display to indi-
cate that the engine oil should be
changed. (See page 6-9.)
EAUM1080
Coolant temperature warning light
“
y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “h”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAUS1361
Speedometer unit
1. "TRIP" button
2. Multi-function display
3. Speedometer
4. Red zone
The speedometer unit is equipped
with the following:
a speedometer (which shows the
riding speed)
ECAS0010
CAUTION:
Do not operate the scooter in the
speedometer red zone.Red zone:
120 km/h (75 mph) and above
an odometer (which shows the
total distance traveled)
a tripmeter (which shows the dis-
tance traveled since it was last
set to zero)
12 3
y
4
y
12345
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 16

EAU12331
Anti-theft alarm (optional)
This motorcycle can be equipped
with an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU12347
Handlebar switches
1. Dimmer switch “j/k”
2. Turn signal switch “c/d”
3. Horn switch “a”
1. Hazard switch
“”2. Start switch “g”
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAU12720
Start switch “g”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter.
1
2
1
2
3
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
5D8-F8199-E0.qxd 1/6/07 16:20 Página 19

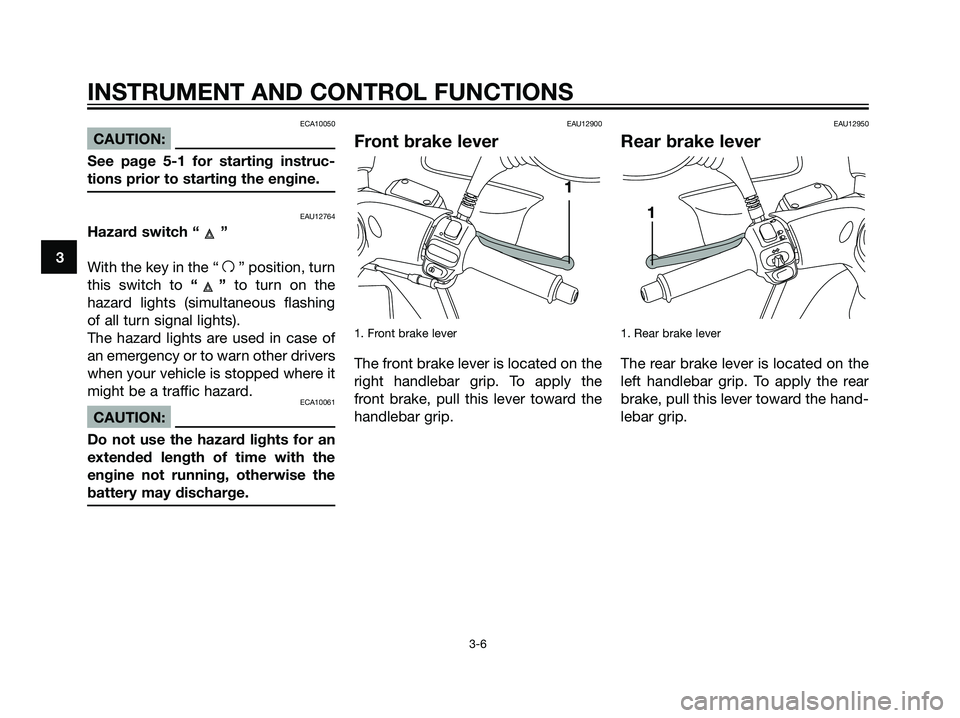

ECA10050
CAUTION:
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12764
Hazard switch “ ”
With the key in the “
f” position, turn
this switch to“” to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
CAUTION:
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
1
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-6
5D8-F8199-E0.qxd 1/6/07 16:20 Página 20

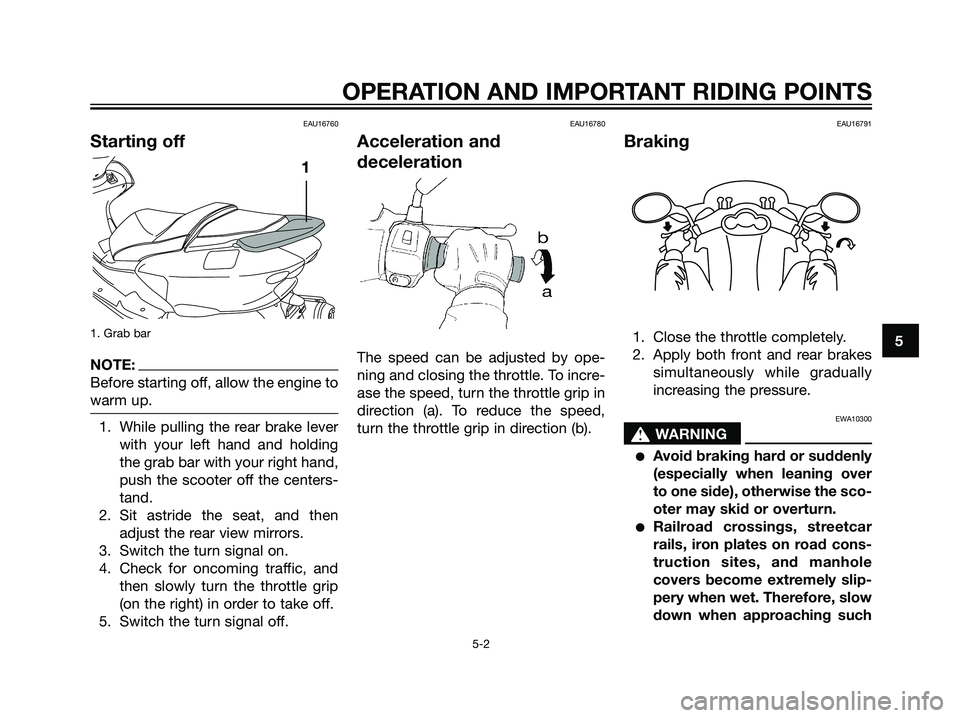

EAU16760
Starting off
1. Grab bar
NOTE:
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signal on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signal off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16791
Braking
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EWA10300
s s
WARNING
Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
1
5
OPERATION AND IMPORTANT RIDING POINTS
5-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 33

EWA10790
s s
WARNING
Headlight bulbs get very hot. The-
refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder by turning it
clockwise
ECA10650
CAUTION:
Take care not to damage the follo-
wing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it
free from oil, otherwise the
transparency of the glass, the
luminosity of the bulb, and the
bulb life will be adversely affec-
ted. Thoroughly clean off any
dirt and fingerprints on the
headlight bulb using a cloth
moistened with alcohol or thin-
ner.
Headlight lens• Do not affix any type of tinted
film or stickers to the head-
light lens.
• Do not use a headlight bulb
of a wattage higher than spe-
cified.
5. Install the headlight bulb cover
6. Install the panel.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24250
Replacing a front turn signal
light bulb
1. Screw
2. Front turn signal light lens
3. Light bulb
1. Remove the front turn signal light
lens by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
ECA11190
CAUTION:
Do not overtighten the screw,
otherwise the lens may break.
1 2
3
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
5D8-F8199-E0.qxd 1/6/07 16:20 Página 64

EAUS1130
Replacing the tail/brake light
bulb or a rear turn signal
light bulb
Tail/brake light bulb
1. Screw
2. Tail/brake light lens
3. Bulb
1. Remove the tail/brake light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.Rear turn signal light bulb
1. Turn signal light lens
2. Screw
3. Turn signal light bulb lens
4. Bulb
1. Remove the tail/brake light bulb
lens by removing the screw.
2. Remove the left or right turn sig-
nal light bulb lens by pulling it
backwards.
3. Remove the bulb cap by remo-
ving the screw.
4. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the bulb cap by installing
the screw7. Install the turn signal light bulb
lens.
8. Install the tail/brake light bulb
lens by installing the screw.
ECA10680
CAUTION:
Do not overtighten the screws,
otherwise the lens may break.
1 2
3 4
1 2 3
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
5D8-F8199-E0.qxd 1/6/07 16:20 Página 65

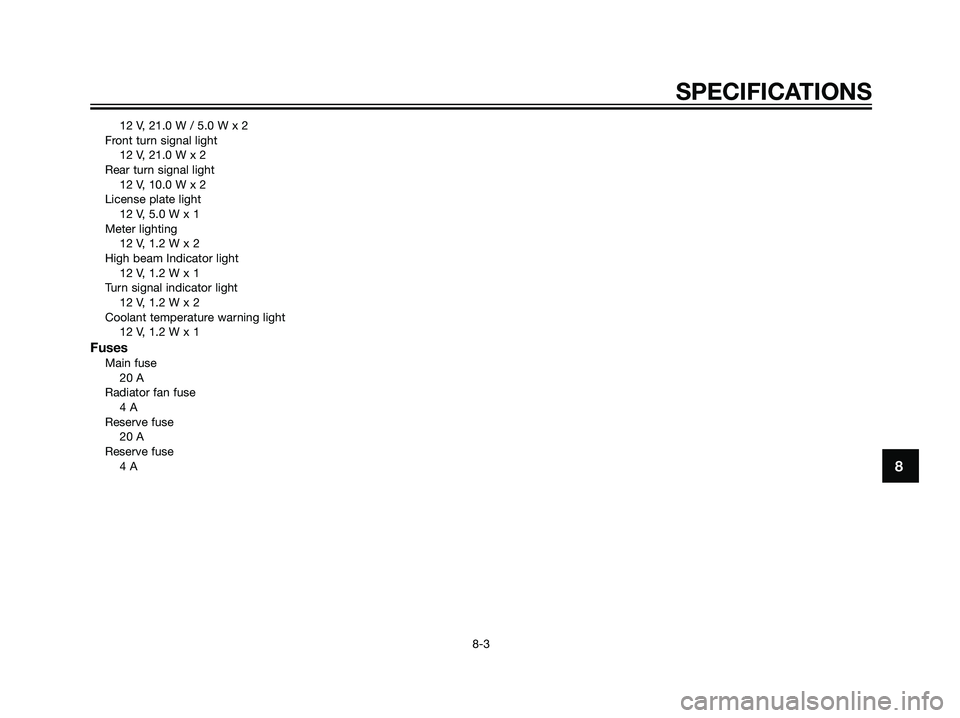

12 V, 21.0 W / 5.0 W x 2
Front turn signal light
12 V, 21.0 W x 2
Rear turn signal light
12 V, 10.0 W x 2
License plate light
12 V, 5.0 W x 1
Meter lighting
12 V, 1.2 W x 2
High beam Indicator light
12 V, 1.2 W x 1
Turn signal indicator light
12 V, 1.2 W x 2
Coolant temperature warning light
12 V, 1.2 W x 1
FusesMain fuse
20 A
Radiator fan fuse
4 A
Reserve fuse
20 A
Reserve fuse
4 A
8
SPECIFICATIONS
8-3
5D8-F8199-E0.qxd 1/6/07 16:20 Página 75
