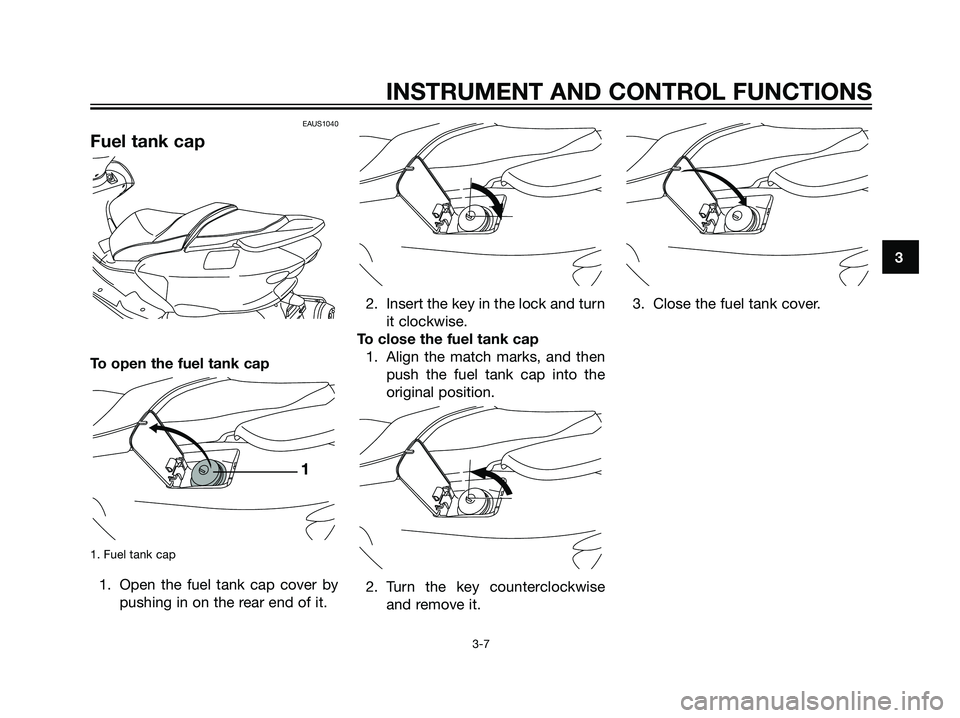

Fuel tank cap
To open the fuel tank cap
1. Fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the rear end of it.2. Insert the key in the lock and turn
it clockwise.
To close the fuel tank cap
1. Align the match marks, and then
push the fuel tank cap into the
original position.
2. Turn the key counterclockwise
and remove it.3. Close the fuel tank cover.
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-7
5D8-F819D-E0.qxd 1/6/07 17:30 Página 21

EAU13220

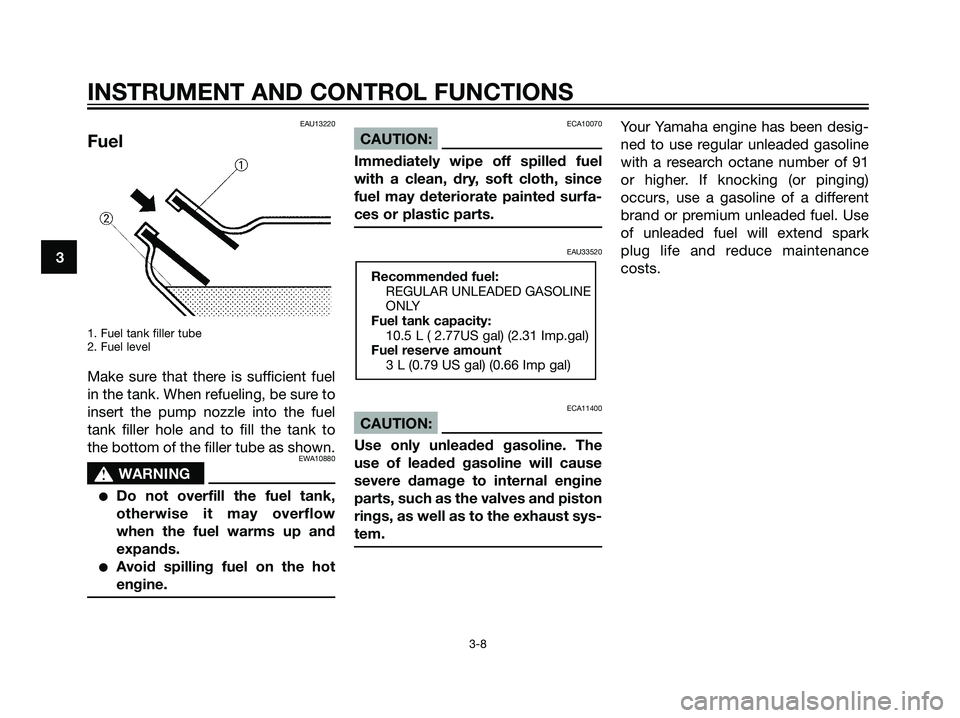

Fuel
1. Fuel tank filler tube
2. Fuel level
Make sure that there is sufficient fuel
in the tank. When refueling, be sure to
insert the pump nozzle into the fuel
tank filler hole and to fill the tank to
the bottom of the filler tube as shown.
EWA10880
s s
WARNING
Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
Avoid spilling fuel on the hot
engine.
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU33520
ECA11400
CAUTION:
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
10.5 L ( 2.77US gal) (2.31 Imp.gal)
Fuel reserve amount
3 L (0.79 US gal) (0.66 Imp gal)
3
INSTRUMENT AND CONTROL FUNCTIONS
3-8
5D8-F819D-E0.qxd 1/6/07 17:30 Página 22

EAUB1300
Fuel tank breather/overflow
hose
Before operating the motorcycle:
Check the fuel tank
breather/overflow hose connec-
tion.
Check the fuel tank
breather/overflow hose for
cracks or damage, and replace it
if damaged.
Make sure that the end of the fuel
tank breather/overflow hose is
not blocked, and clean it if
necessary.
Make sure that the end of the fuel
tank breather/overflow hose is
positioned inside of the clamp.
1. Fuel tank breather/overflow hose
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Do not allow the engine to idle
too long.
EAU13891
Seat
To open the seat
1. Open
1. Insert the key in the lock, and
then turn it as shown.
1. Rider seat
2. Fold the seat up.
1
1
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-9
5D8-F819D-E0.qxd 1/6/07 17:30 Página 23

To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU14540

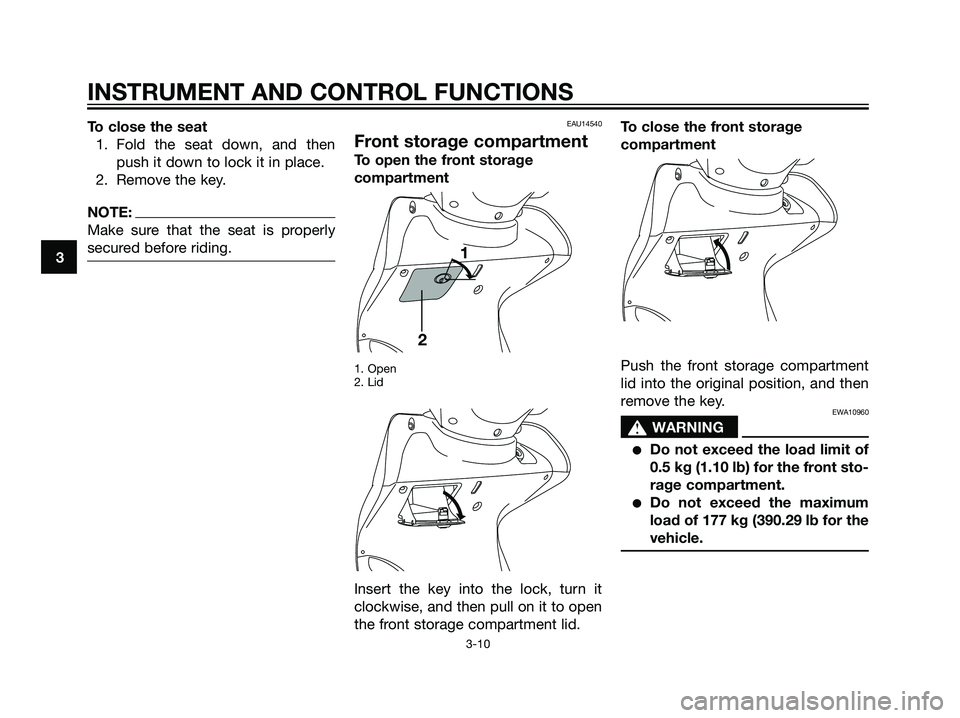

Front storage compartment
To open the front storage
compartment
1. Open
2. Lid
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the front storage compartment lid.To close the front storage
compartment
Push the front storage compartment
lid into the original position, and then
remove the key.
EWA10960
s s
WARNING
Do not exceed the load limit of
0.5 kg (1.10 lb) for the front sto-
rage compartment.
Do not exceed the maximum
load of 177 kg (390.29 lb for the
vehicle.
1
2
3
INSTRUMENT AND CONTROL FUNCTIONS
3-10
5D8-F819D-E0.qxd 1/6/07 17:30 Página 24

EAUM1190

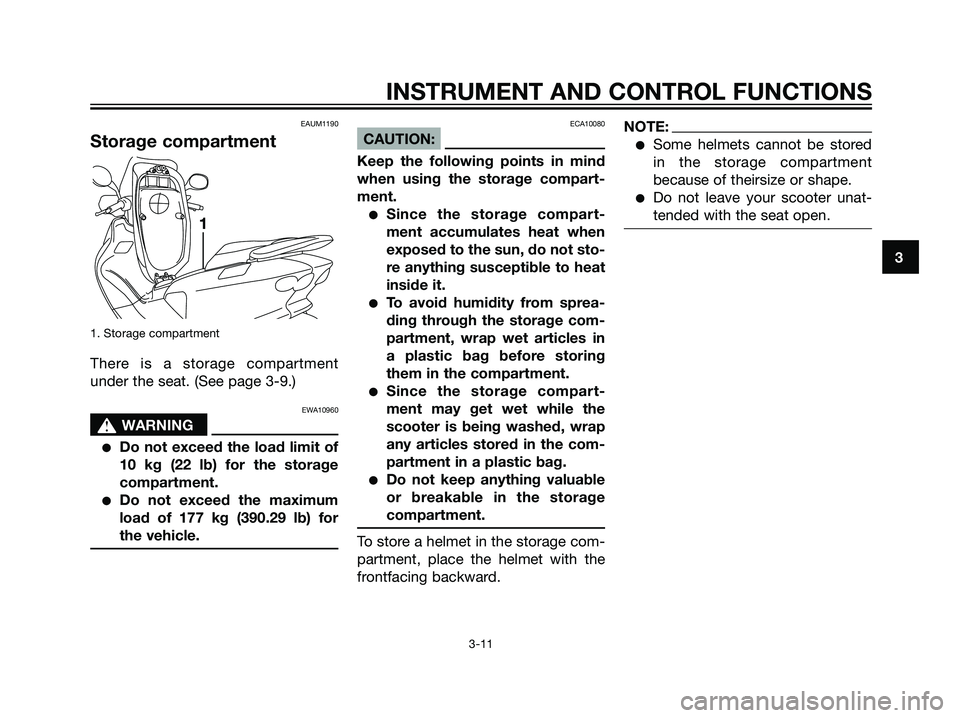

Storage compartment
1. Storage compartment
There is a storage compartment
under the seat. (See page 3-9.)
EWA10960
s s
WARNING
Do not exceed the load limit of
10 kg (22 lb) for the storage
compartment.
Do not exceed the maximum
load of 177 kg (390.29 lb) for
the vehicle.
ECA10080
CAUTION:
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compart-
ment accumulates heat when
exposed to the sun, do not sto-
re anything susceptible to heat
inside it.
To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
Do not keep anything valuable
or breakable in the storage
compartment.
To store a helmet in the storage com-
partment, place the helmet with the
frontfacing backward.
NOTE:
Some helmets cannot be stored
in the storage compartment
because of theirsize or shape.
Do not leave your scooter unat-
tended with the seat open.
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-11
5D8-F819D-E0.qxd 1/6/07 17:30 Página 25

EAU14880

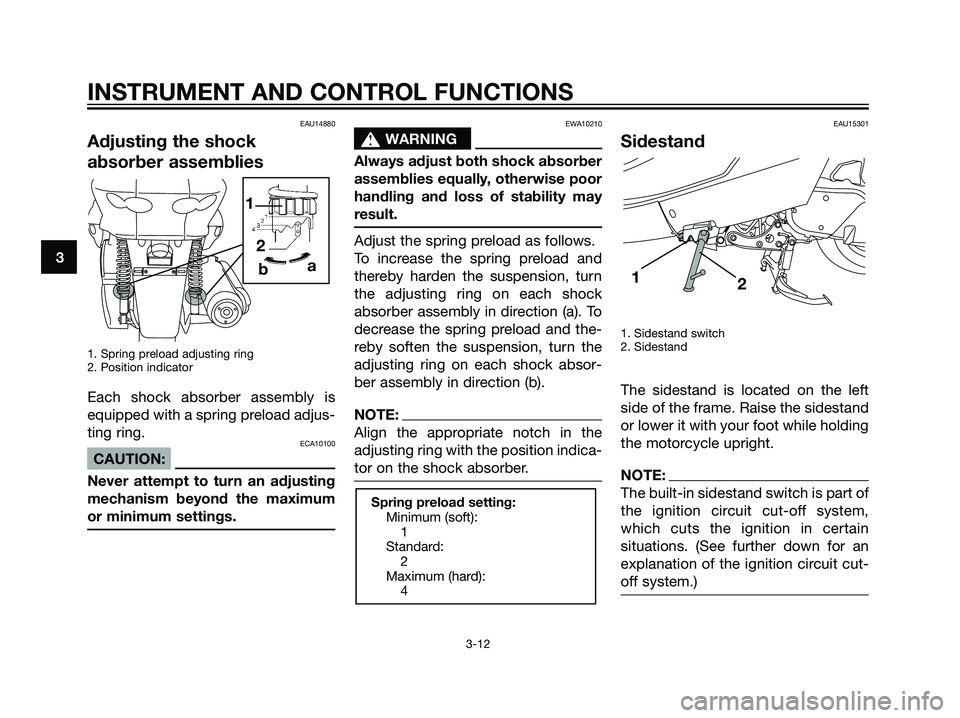

Adjusting the shock
absorber assemblies
1. Spring preload adjusting ring
2. Position indicator
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10100
CAUTION:
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
EWA10210
s s
WARNING
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
NOTE:
Align the appropriate notch in the
adjusting ring with the position indica-
tor on the shock absorber.
EAU15301
Sidestand
1. Sidestand switch
2. Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the motorcycle upright.
NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)
1
2
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
2 1
ba3
INSTRUMENT AND CONTROL FUNCTIONS
3-12
5D8-F819D-E0.qxd 1/6/07 17:30 Página 26

EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU15361

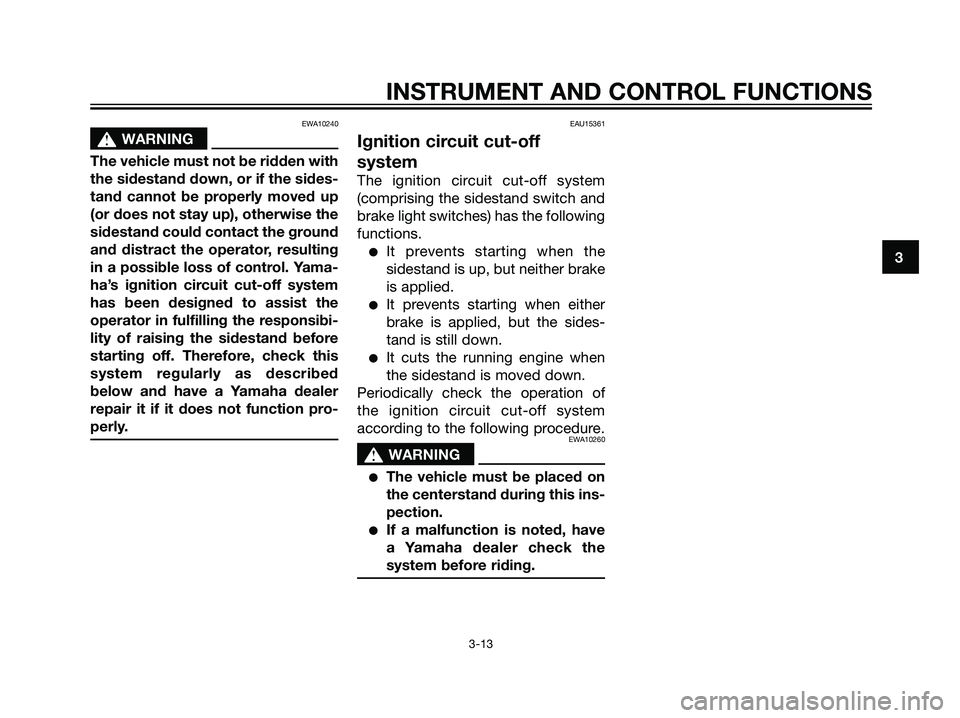

Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
It prevents starting when the
sidestand is up, but neither brake
is applied.
It prevents starting when either
brake is applied, but the sides-
tand is still down.
It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
EWA10260
s s
WARNING
The vehicle must be placed on
the centerstand during this ins-
pection.
If a malfunction is noted, have
a Yamaha dealer check the
system before riding.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-13
5D8-F819D-E0.qxd 1/6/07 17:30 Página 27

3
INSTRUMENT AND CONTROL FUNCTIONS
3-14

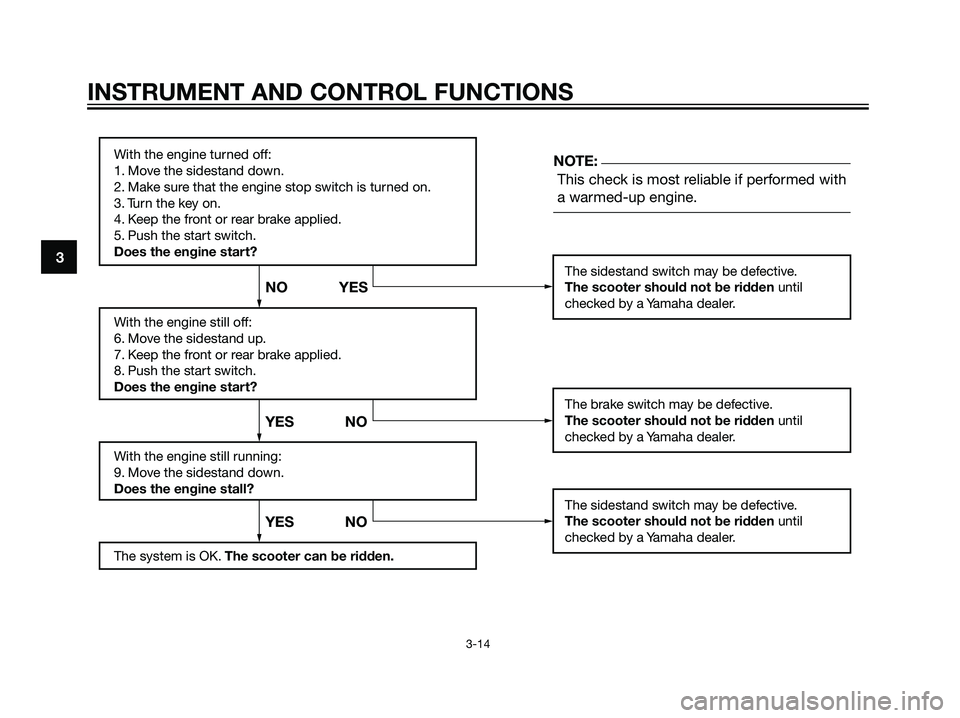

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.
This check is most reliable if performed with
a warmed-up engine.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YESNOTE:
5D8-F819D-E0.qxd 1/6/07 17:30 Página 28

EAU15591

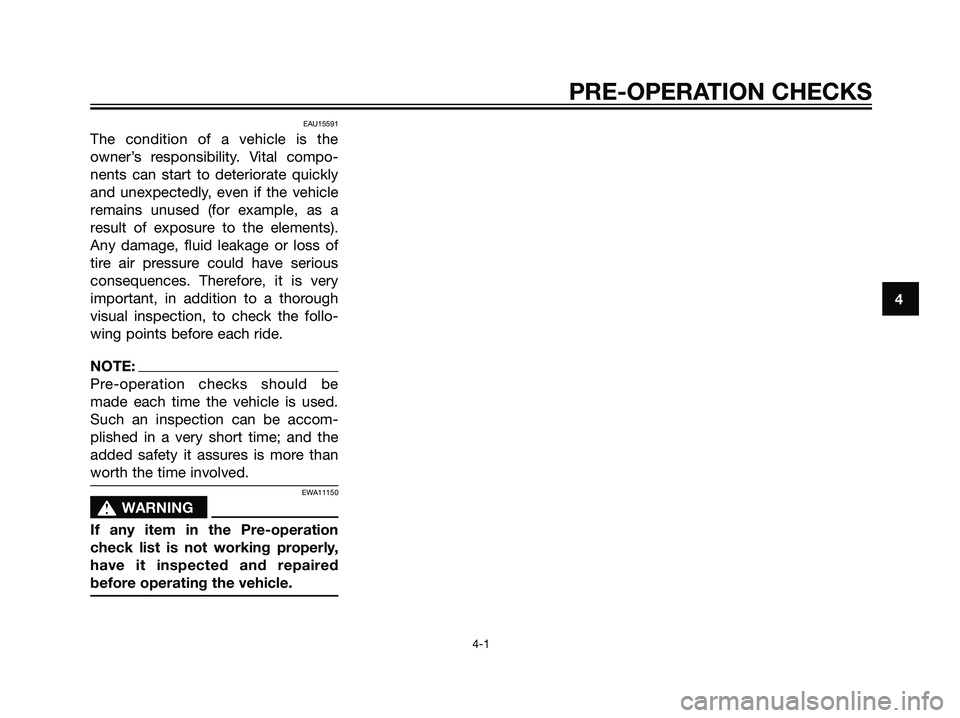

The condition of a vehicle is the
owner’s responsibility. Vital compo-
nents can start to deteriorate quickly
and unexpectedly, even if the vehicle
remains unused (for example, as a
result of exposure to the elements).
Any damage, fluid leakage or loss of
tire air pressure could have serious
consequences. Therefore, it is very
important, in addition to a thorough
visual inspection, to check the follo-
wing points before each ride.
NOTE:
Pre-operation checks should be
made each time the vehicle is used.
Such an inspection can be accom-
plished in a very short time; and the
added safety it assures is more than
worth the time involved.
EWA11150
s s
WARNING
If any item in the Pre-operation
check list is not working properly,
have it inspected and repaired
before operating the vehicle.
4
PRE-OPERATION CHECKS
4-1
5D8-F819D-E0.qxd 1/6/07 17:30 Página 29

4
PRE-OPERATION CHECKS
4-2
EAU15605

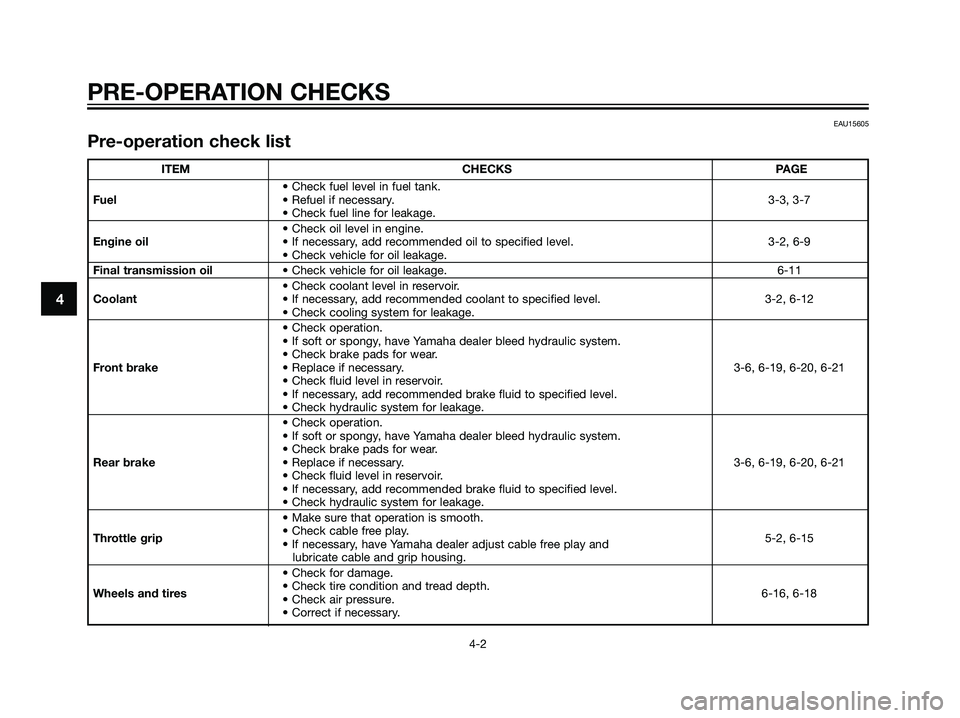

Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-3, 3-7
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 3-2, 6-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-11
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 3-2, 6-12
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 3-6, 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 3-6, 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-15
• If necessary, have Yamaha dealer adjust cable free play and
lubricate cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-16, 6-18
• Check air pressure.
• Correct if necessary.
5D8-F819D-E0.qxd 1/6/07 17:30 Página 30
