YAMAHA MAJESTY 125 2008 Owner's Guide

4
PRE-OPERATION CHECKS
4-3

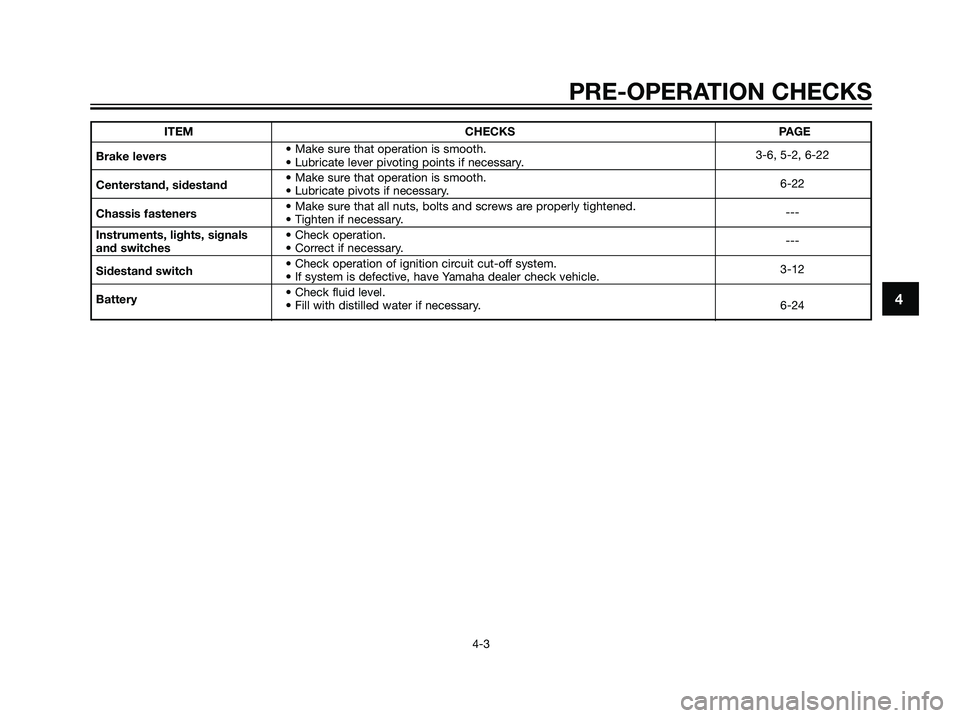

ITEM CHECKS PAGE
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.3-6, 5-2, 6-22
Centerstand, sidestand• Make sure that operation is smooth.
• Lubricate pivots if necessary.6-22
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.---
Instruments, lights, signals • Check operation.
and switches• Correct if necessary.---
Sidestand switch• Check operation of ignition circuit cut-off system.
• If system is defective, have Yamaha dealer check vehicle.3-12
Battery• Check fluid level.
• Fill with distilled water if necessary. 6-24
5D8-F819D-E0.qxd 1/6/07 17:30 Página 31

EAU15980
EWA10870
s s
WARNING
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
For safety, always start the
engine with the centerstand
down.
EAUM1210

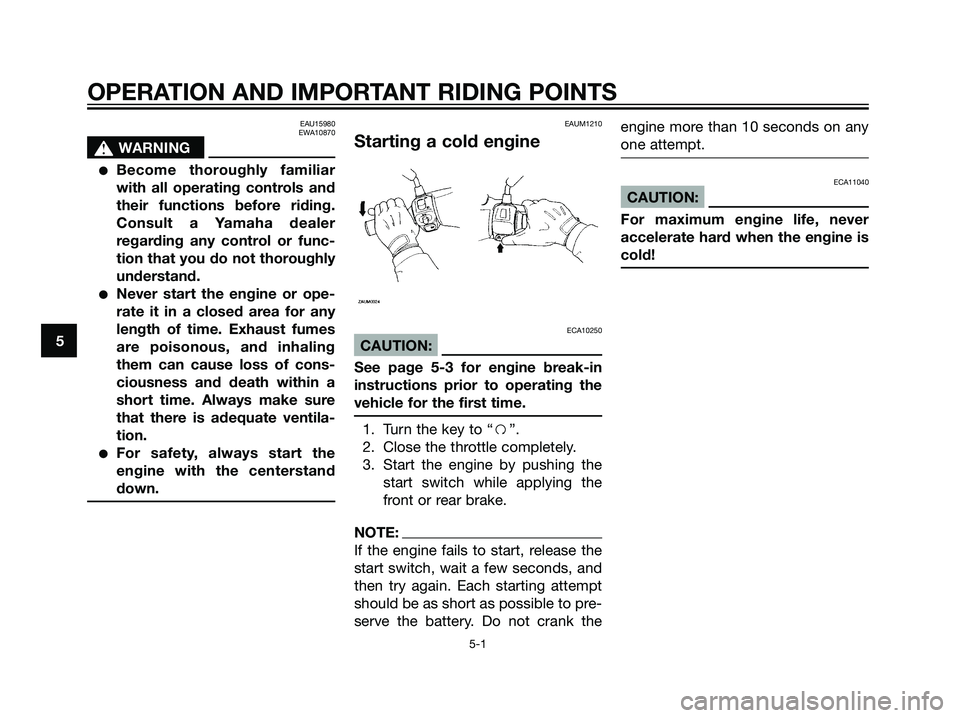

Starting a cold engine
ECA10250
CAUTION:
See page 5-3 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “f”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank theengine more than 10 seconds on any
one attempt.
ECA11040
CAUTION:
For maximum engine life, never
accelerate hard when the engine is
cold!
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
5D8-F819D-E0.qxd 1/6/07 17:30 Página 32

EAU16760

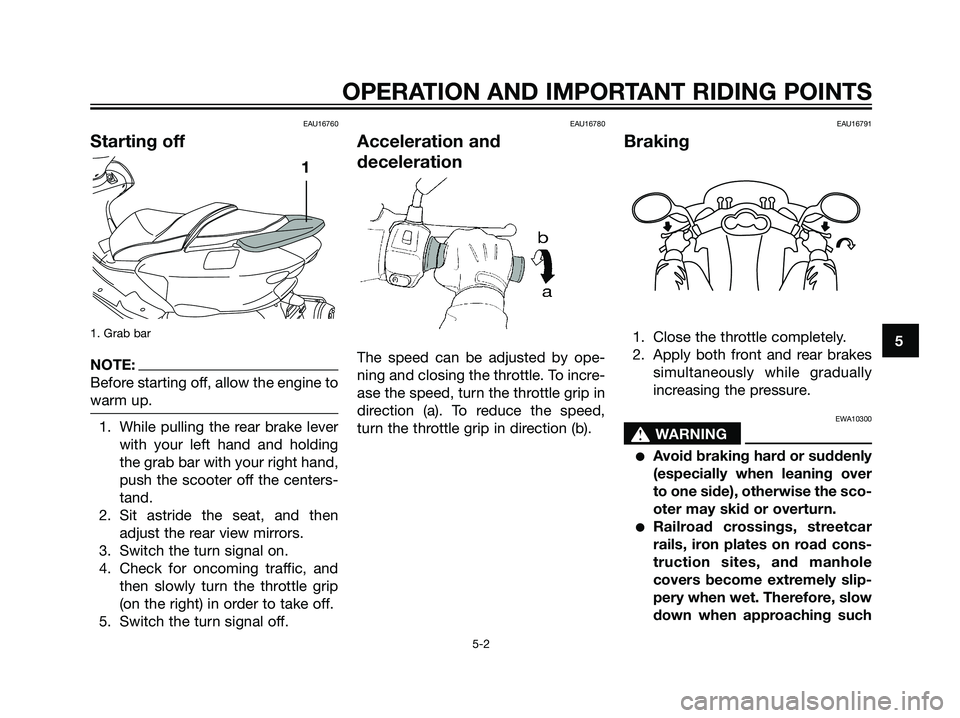

Starting off
1. Grab bar
NOTE:
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signal on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signal off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16791
Braking
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EWA10300
s s
WARNING
Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
1
5
OPERATION AND IMPORTANT RIDING POINTS
5-2
5D8-F819D-E0.qxd 1/6/07 17:30 Página 33

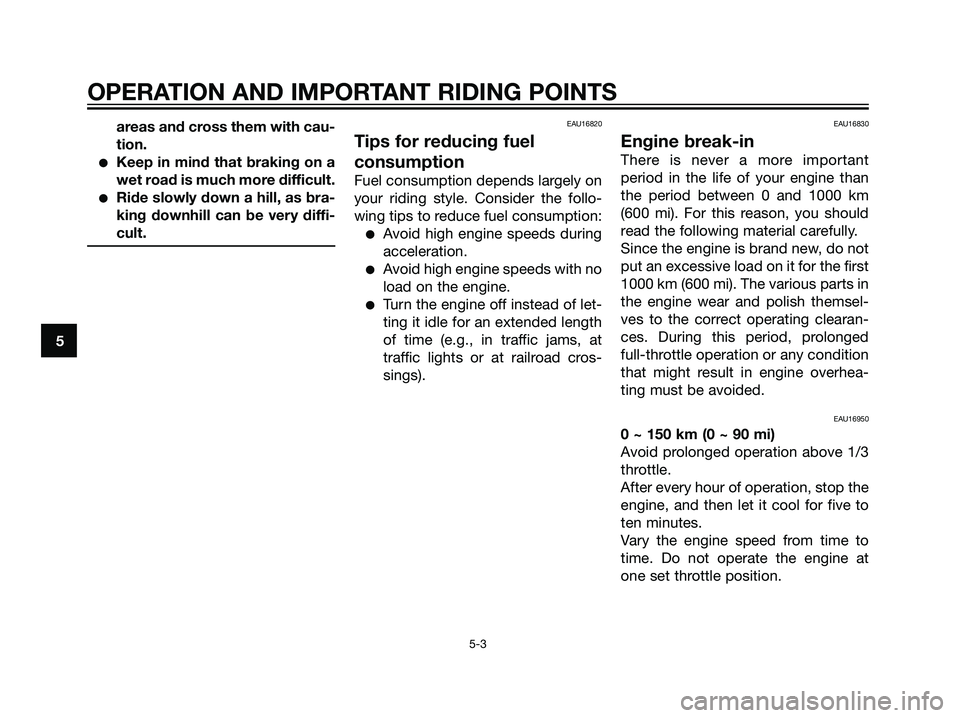

areas and cross them with cau-
tion.
Keep in mind that braking on a
wet road is much more difficult.
Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Avoid high engine speeds during
acceleration.
Avoid high engine speeds with no
load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16830
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themsel-
ves to the correct operating clearan-
ces. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAU16950
0 ~ 150 km (0 ~ 90 mi)
Avoid prolonged operation above 1/3
throttle.
After every hour of operation, stop the
engine, and then let it cool for five to
ten minutes.
Vary the engine speed from time to
time. Do not operate the engine at
one set throttle position.
5
OPERATION AND IMPORTANT RIDING POINTS
5-3
5D8-F819D-E0.qxd 1/6/07 17:30 Página 34

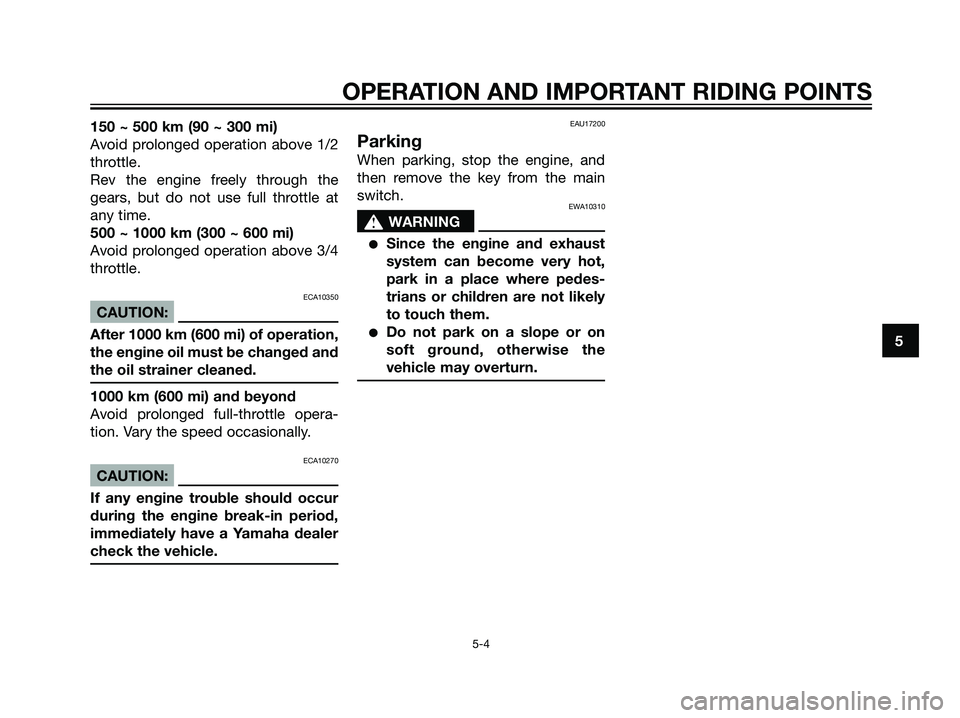

150 ~ 500 km (90 ~ 300 mi)
Avoid prolonged operation above 1/2
throttle.
Rev the engine freely through the
gears, but do not use full throttle at
any time.
500 ~ 1000 km (300 ~ 600 mi)
Avoid prolonged operation above 3/4
throttle.
ECA10350
CAUTION:
After 1000 km (600 mi) of operation,
the engine oil must be changed and
the oil strainer cleaned.
1000 km (600 mi) and beyond
Avoid prolonged full-throttle opera-
tion. Vary the speed occasionally.
ECA10270
CAUTION:
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17200
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10310
s s
WARNING
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn.5
OPERATION AND IMPORTANT RIDING POINTS
5-4
5D8-F819D-E0.qxd 1/6/07 17:30 Página 35

EAU17280

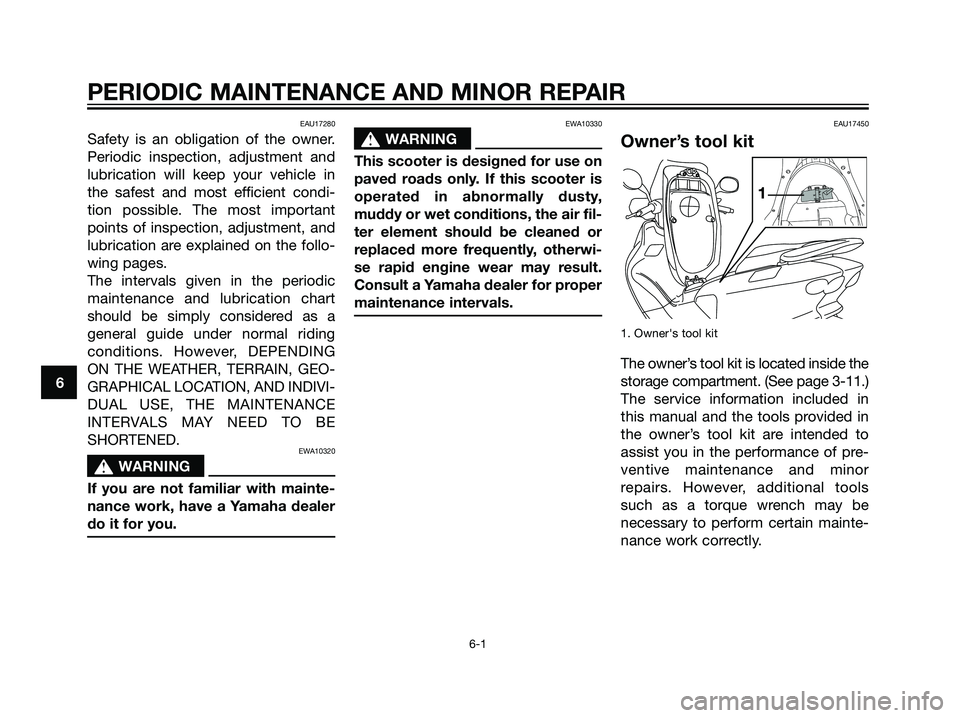

Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. The most important
points of inspection, adjustment, and
lubrication are explained on the follo-
wing pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING
ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVI-
DUAL USE, THE MAINTENANCE
INTERVALS MAY NEED TO BE
SHORTENED.
EWA10320
s s
WARNING
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
EWA10330
s s
WARNING
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EAU17450
Owner’s tool kit
1. Owner's tool kit
The owner’s tool kit is located inside the
storage compartment. (See page 3-11.)
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
5D8-F819D-E0.qxd 1/6/07 17:30 Página 36

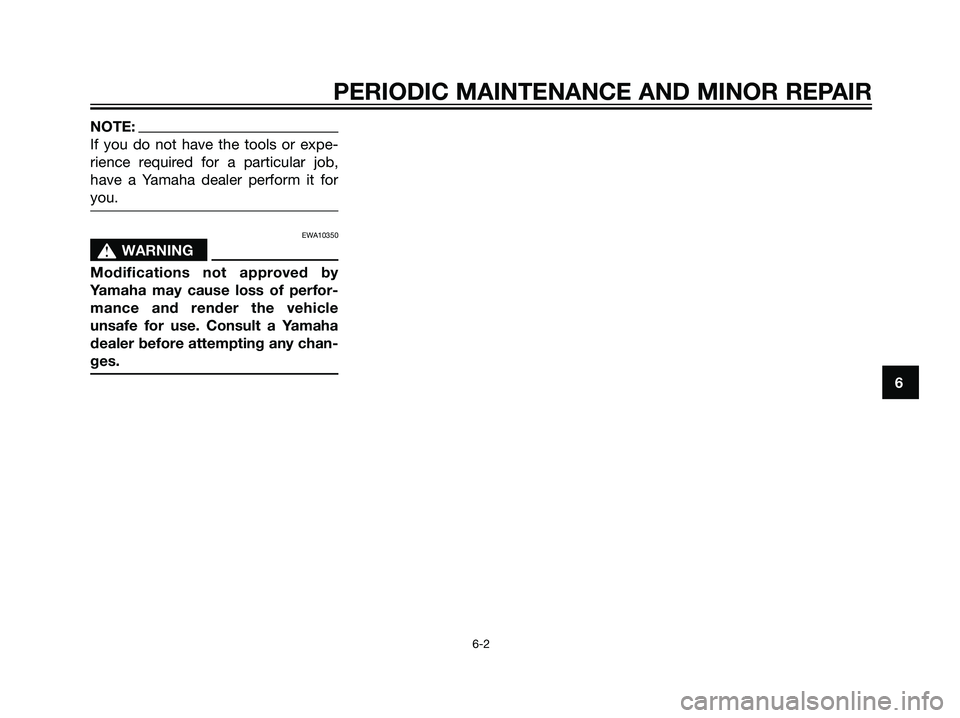

NOTE:
If you do not have the tools or expe-
rience required for a particular job,
have a Yamaha dealer perform it for
you.
EWA10350
s s
WARNING
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any chan-
ges.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
5D8-F819D-E0.qxd 1/6/07 17:30 Página 37

EAU17710

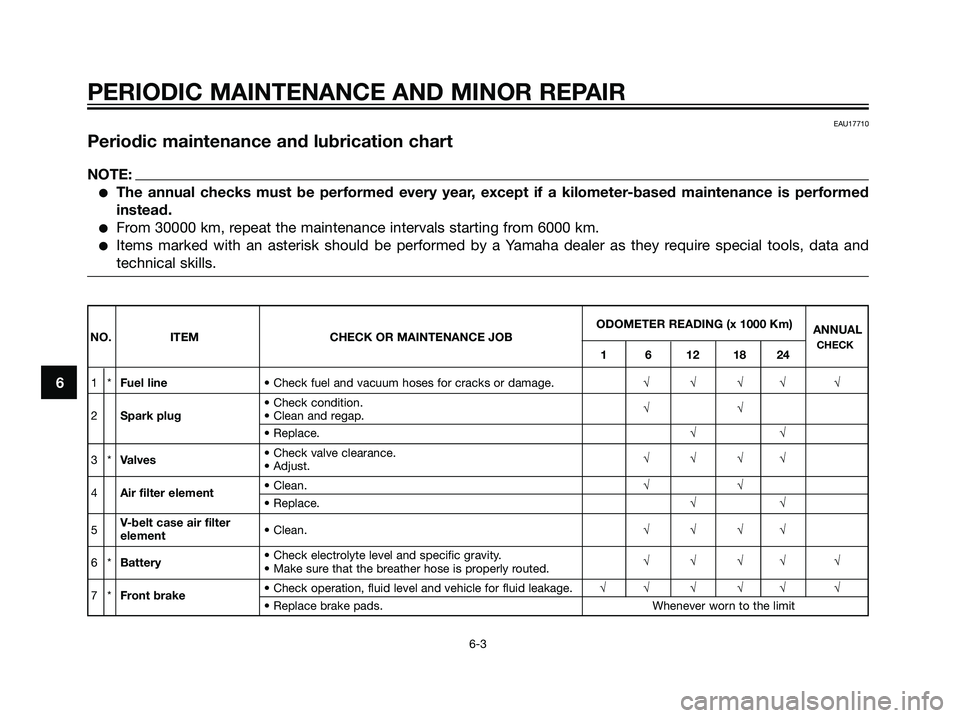

Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed
instead.
From 30000 km, repeat the maintenance intervals starting from 6000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
ODOMETER READING (x 1000 Km)
ANNUAL
NO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24CHECK
1*Fuel line• Check fuel and vacuum hoses for cracks or damage.√√√√ √
• Check condition.
2Spark plug• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√√√
4Air filter element• Clean.√√• Replace.√√
5V-belt case air filter
• Clean.√√√√
element
6*Battery• Check electrolyte level and specific gravity.
• Make sure that the breather hose is properly routed.√√√√ √
7*Front brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √
• Replace brake pads. Whenever worn to the limit
5D8-F819D-E0.qxd 1/6/07 17:30 Página 38

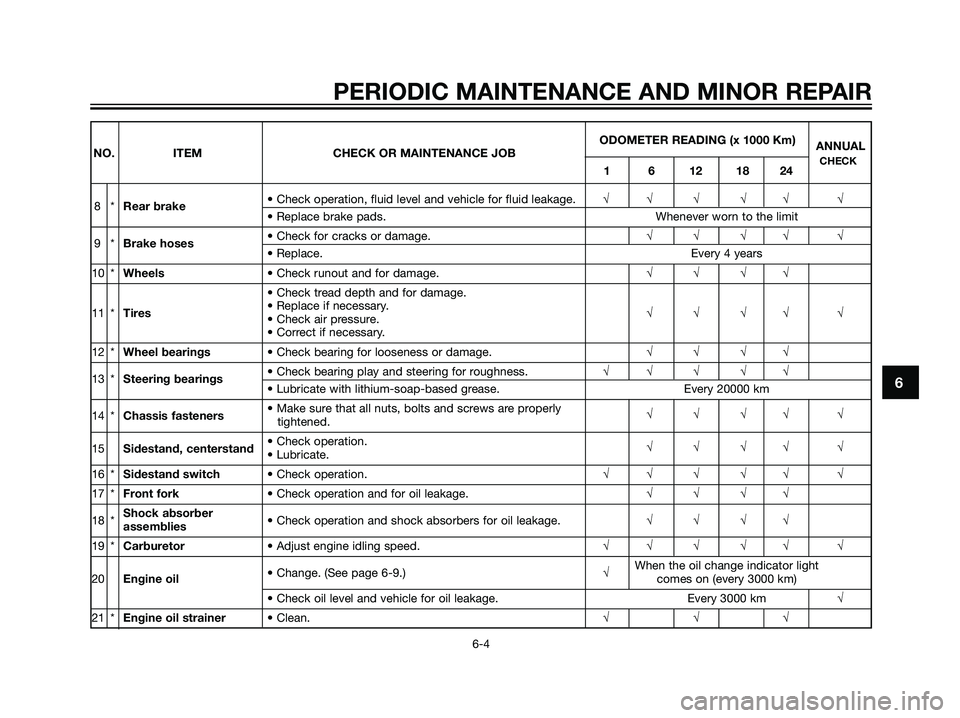

ODOMETER READING (x 1000 Km)
ANNUAL
NO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24CHECK
8*Rear brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √• Replace brake pads. Whenever worn to the limit
9*Brake hoses• Check for cracks or damage.√√√√ √• Replace. Every 4 years
10 *Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
11 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
12 *Wheel bearings• Check bearing for looseness or damage.√√√√
13 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
14 *Chassis fasteners• Make sure that all nuts, bolts and screws are properly
tightened.√√√√ √
15Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
16 *Sidestand switch• Check operation.√√ √ √√ √
17 *Front fork• Check operation and for oil leakage.√√√√
18 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
19 *Carburetor• Adjust engine idling speed.√√ √ √√ √
• Change. (See page 6-9.)√When the oil change indicator light
20Engine oilcomes on (every 3000 km)
• Check oil level and vehicle for oil leakage. Every 3000 km√
21 *Engine oil strainer• Clean.√√√
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
5D8-F819D-E0.qxd 1/6/07 17:30 Página 39

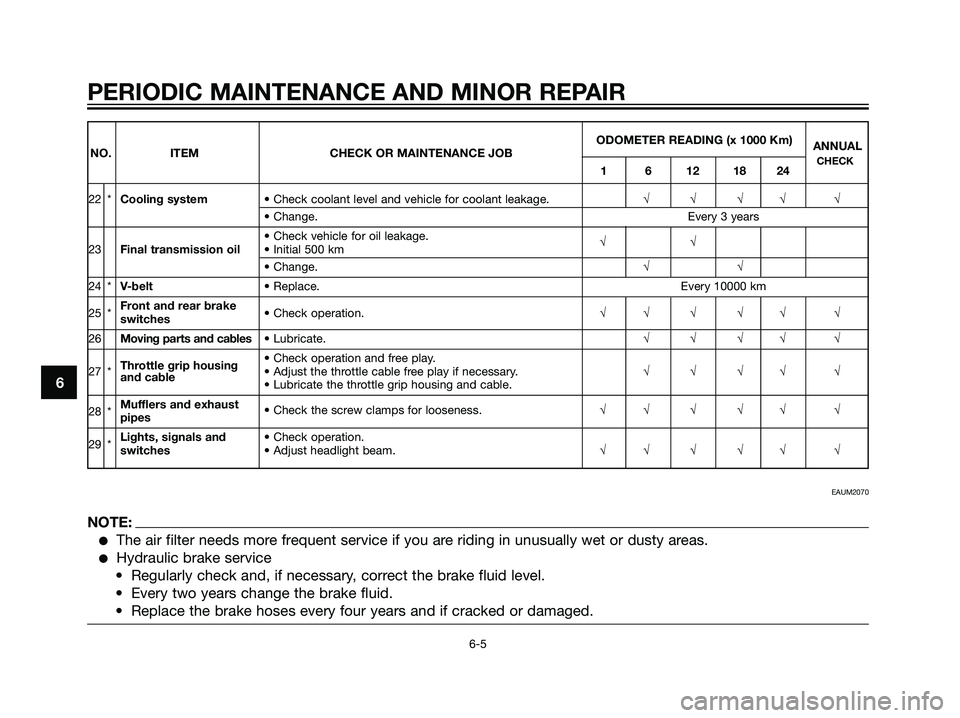

ODOMETER READING (x 1000 Km)
ANNUAL
NO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24CHECK
22 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
• Check vehicle for oil leakage.
23Final transmission oil• Initial 500 km√√
• Change.√√
24 *V-belt• Replace. Every 10000 km
25 *Front and rear brake
• Check operation.√√ √ √√ √
switches
26Moving parts and cables• Lubricate.√√√√ √
Throttle grip housing • Check operation and free play.
27 * • Adjust the throttle cable free play if necessary.√√√√ √
and cable
• Lubricate the throttle grip housing and cable.
28 *Mufflers and exhaust
pipes• Check the screw clamps for looseness.√√ √ √√ √
29 *Lights, signals and • Check operation.
switches• Adjust headlight beam.√√ √ √√ √
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
EAUM2070
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
5D8-F819D-E0.qxd 1/6/07 17:30 Página 40
