INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
NOTE:
8Align the appropriate notch in the
adjusting ring with the position
indicator on the shock absorber.
8Use the spring preload adjusting
tool included in the ownerÕs tool
kit to make this adjustment.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction a. To
decrease the spring preload and
thereby soften the suspension, turn
the adjusting ring on each shock
absorber assembly in direction b.
Setting
Minimum (soft)1
Standard4
Maximum (hard)7
a
b1
23

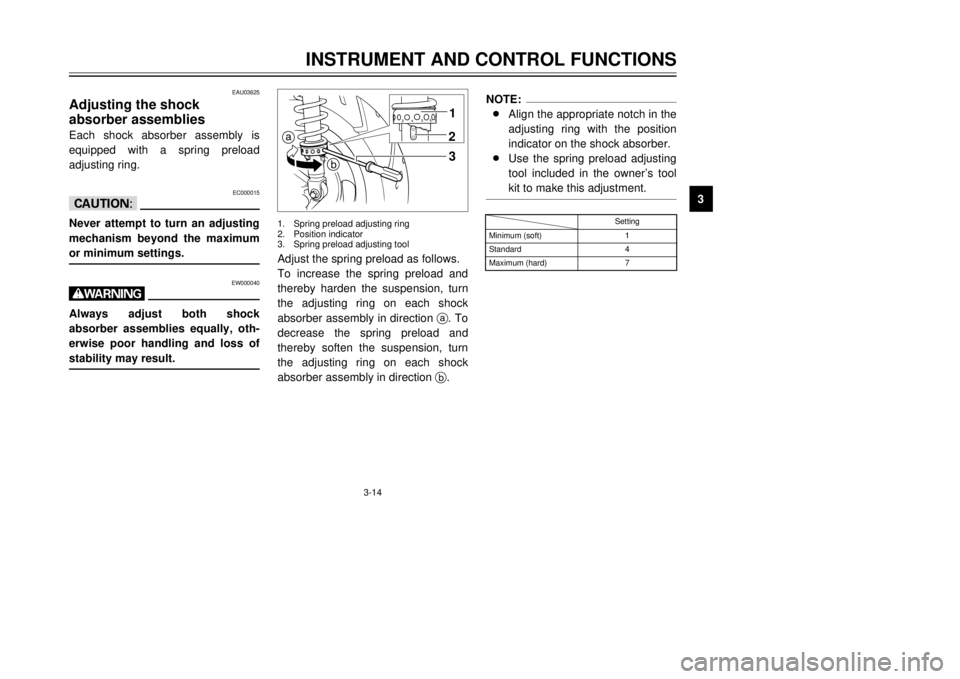

1.Spring preload adjusting ring
2.Position indicator
3.Spring preload adjusting tool
EAU03625
Adjusting the shock
absorber assembliesEach shock absorber assembly is
equipped with a spring preload
adjusting ring.
EC000015
cCNever attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
EW000040
wAlways adjust both shock
absorber assemblies equally, oth-
erwise poor handling and loss of
stability may result.
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 29

6-23
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EW000077
wBecause loading has an enormous
impact on the handling, braking,
performance and safety character-
istics of your scooter, you should
keep the following precautions in
mind.
8NEVER OVERLOAD THE
SCOOTER! Operation of an
overloaded scooter may result
in tire damage, loss of control,
or severe injury. Make sure
that the total weight of rider,
cargo, and accessories does
not exceed the specified maxi-
mum load for the vehicle.
8Do not carry along loosely
packed items, which can shift
during a ride.
8Securely pack the heaviest
items close to the center of the
scooter and distribute the
weight evenly on both sides.
8Adjust the suspension and tire
air pressure with regard to the
load.
EW000082
w8The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the tempera-
ture of the tires equals the
ambient temperature).
8The tire air pressure must be
adjusted in accordance with
the riding speed and with the
total weight of rider, passen-
ger, cargo, and accessories
approved for this model.
Tire air pressure
(measured on cold tires)
Load*FrontRear
Up to 90 kg
175 kPa
(1.75kg/cm
2,
1.75 bar)200 kPa
(2.00 kg/cm
2,
2.00 bar)
90 kgÐmaximum
200 kPa
(2.00 kg/cm
2,
2.00 bar)225 kPa
(2.25 kg/cm
2,
2.25 bar)
Maximum load*187 kg
*Total weight of rider, passenger, cargo and
accessories
EAU00675
TiresTo maximize the performance, dura-
bility, and safe operation of your
scooter, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 66

Wheels
Front
TypeCast wheel
Size12 ´MT2.75
Rear
TypeCast wheel
Size12 ´MT3.50
Brakes
Front
TypeSingle disc brake
OperationRight hand
FluidDOT 4
Rear
TypeSingle disc brake
OperationLeft hand
FluidDOT 4
Suspension
FrontTelescopic fork
RearUnit swingSpring/shock absorbers
FrontCoil spring/oil damper
RearCoil spring/oil damper
Wheel travel
Front100 mm
Rear90 mm
Electrical
Ignition systemTransistorized coil ignition
(digital)
Charging system
TypeA.C. magneto
Standard output14 V, 19.5 A @ 5,000 r/min
Battery
TypeGT7B-4
Voltage, capacity12 V, 6.5 AH
Headlight bulb typeHalogen bulb
Bulb voltage, wattage ´quantity
Headlight12 V, 60/55 W ´1
12 V, 55 W ´1
Tail/brake light12 V, 5/21 W ´2
Front turn signal light12 V, 21 W ´2
Rear turn signal light12 V, 16 W ´2
SPECIFICATIONS
1
2
3
4
5
6
78
9
8-3
