PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
2
3
4
5
67
8
9

EAU23170

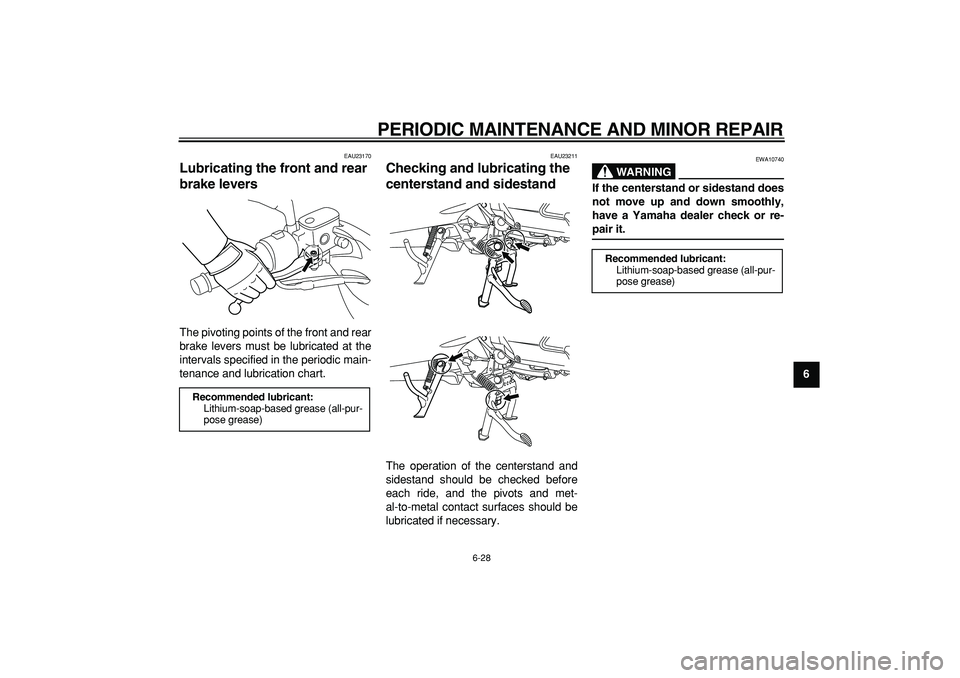

Lubricating the front and rear
brake levers
The pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main-
tenance and lubrication chart.
EAU23211
Checking and lubricating the
centerstand and sidestand
The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and met-
al-to-metal contact surfaces should be
lubricated if necessary.
WARNING

EWA10740
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it.
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
1
2
3
4
5
6
7
8
9

EAU23271

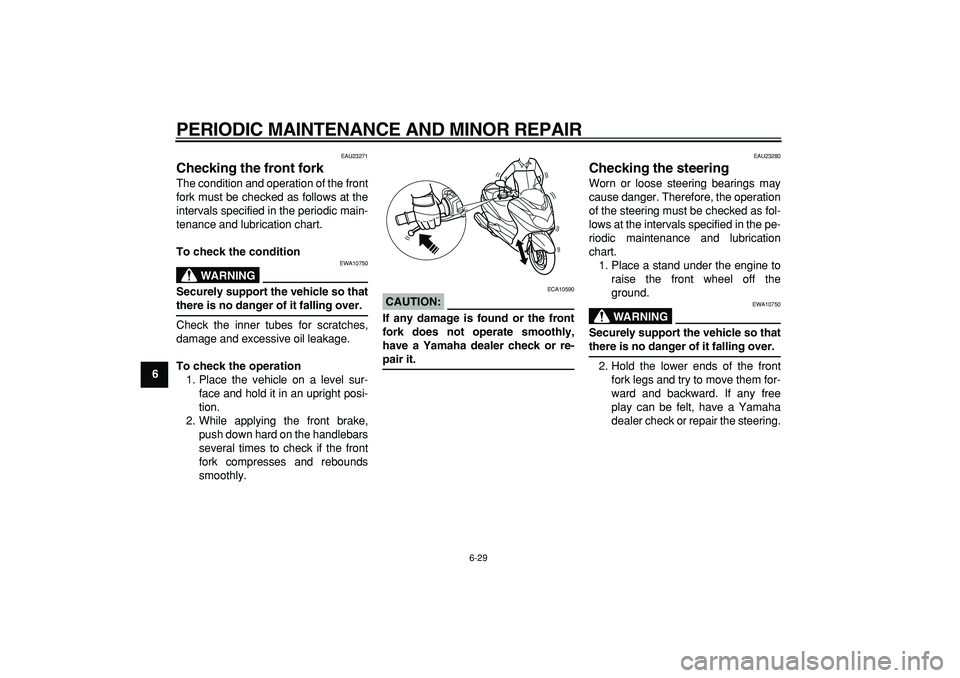

Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:

ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
2
3
4
5
67
8
9

EAU23290

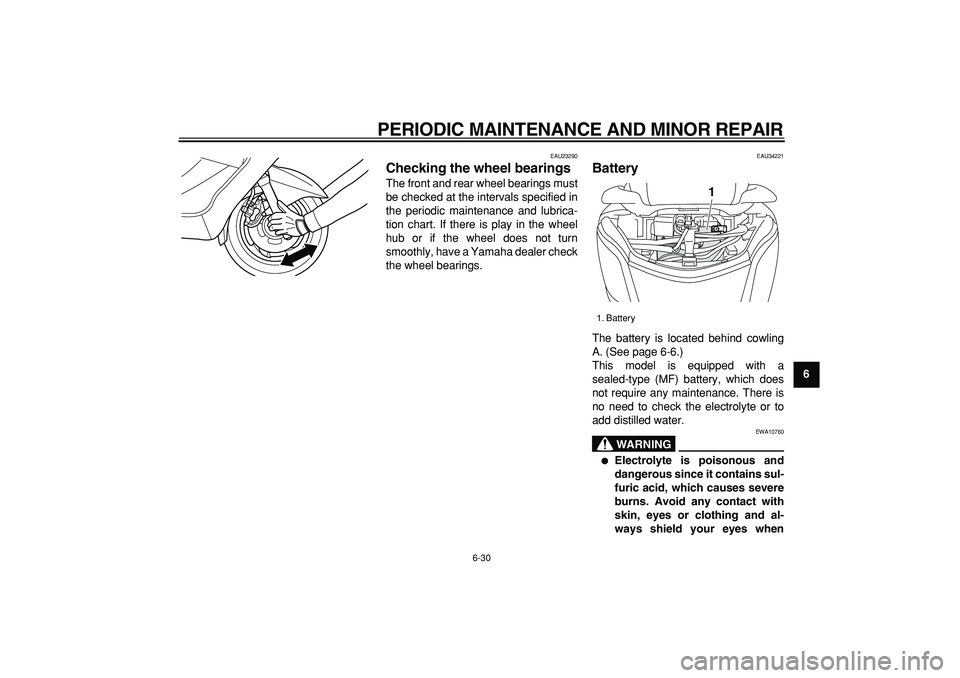

Checking the wheel bearings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU34221
Battery
The battery is located behind cowling
A. (See page 6-6.)
This model is equipped with a
sealed-type (MF) battery, which does
not require any maintenance. There is
no need to check the electrolyte or to
add distilled water.
WARNING

EWA10760

Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
1. Battery
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
1
2
3
4
5
6
7
8

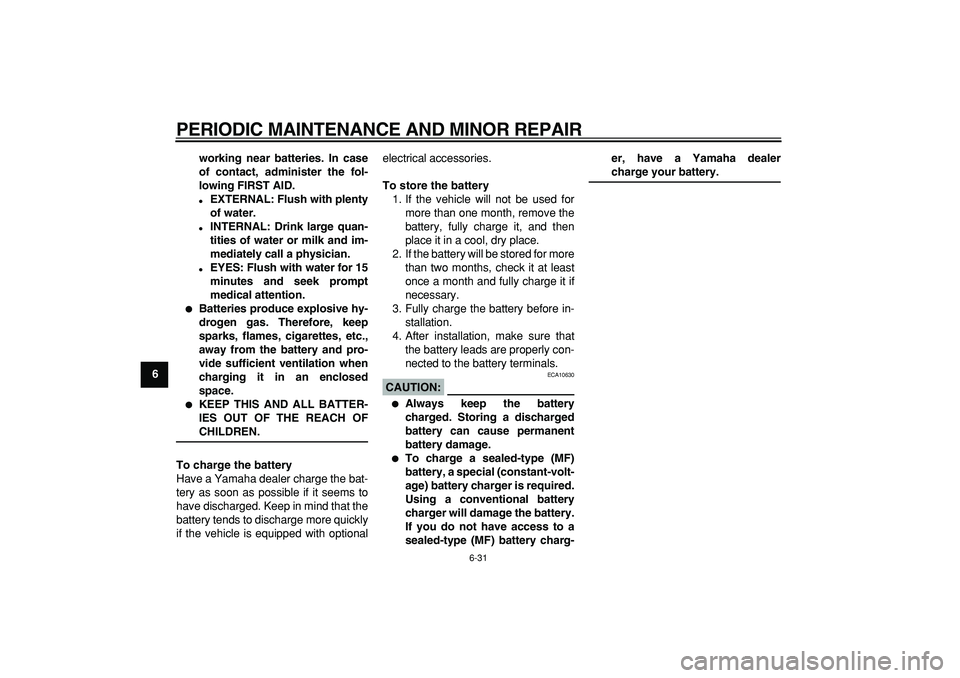

9working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.


EXTERNAL: Flush with plenty
of water.

INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.

EYES: Flush with water for 15
minutes and seek prompt
medical attention.

Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.

KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optionalelectrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:

ECA10630

Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.

To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-er, have a Yamaha dealer
charge your battery.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
2
3
4
5
67
8
9

EAU42820
Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located behind cowling A.
(See page 6-6.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
NOTE:

If the main fuse is blown, remove the
grab bar to access the main fuse. After
replacing the main fuse, install the grab
bar. (See page 6-6.)
(for non-ABS models)(for ABS models)
1. Spare main fuse
2. Main fuse
1. Fuse box
2. Hazard fuse
1
2
1
2

1. Fuse box
2. ABS motor fuse
3. ABS control unit fuse
4. Hazard fuse
1
2
4 3

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
1
2
3
4
5
6
7
8
9(for non-ABS models) (for ABS models)
CAUTION:

ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to

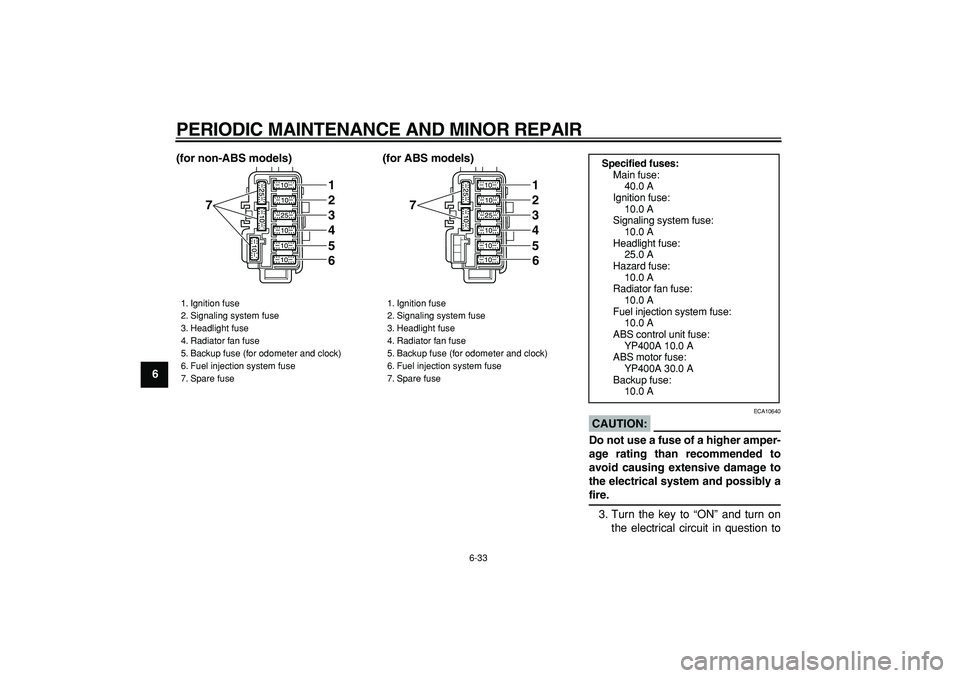

1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Radiator fan fuse
5. Backup fuse (for odometer and clock)
6. Fuel injection system fuse
7. Spare fuse
7
123456

1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Radiator fan fuse
5. Backup fuse (for odometer and clock)
6. Fuel injection system fuse
7. Spare fuse
7
123456

Specified fuses:
Main fuse:
40.0 A
Ignition fuse:
10.0 A
Signaling system fuse:
10.0 A
Headlight fuse:
25.0 A
Hazard fuse:
10.0 A
Radiator fan fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
YP400A 10.0 A
ABS motor fuse:
YP400A 30.0 A
Backup fuse:
10.0 A

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
2
3
4
5
67
8
9
check if the device operates.

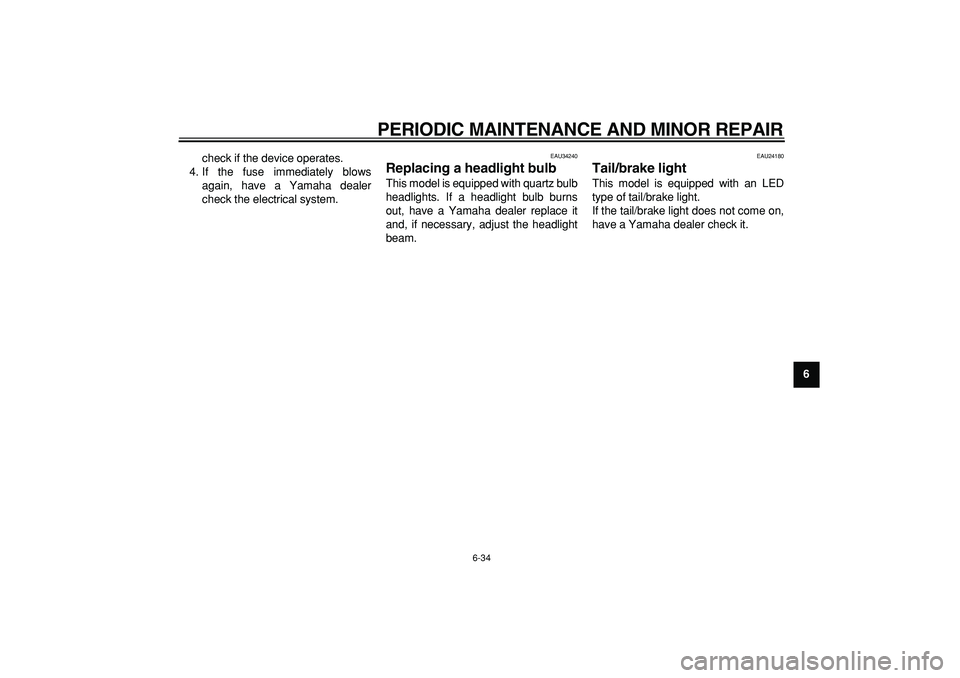

4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

EAU34240
Replacing a headlight bulb
This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, have a Yamaha dealer replace it
and, if necessary, adjust the headlight
beam.
EAU24180
Tail/brake light
This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
1
2
3
4
5
6
7
8
9

EAU36122

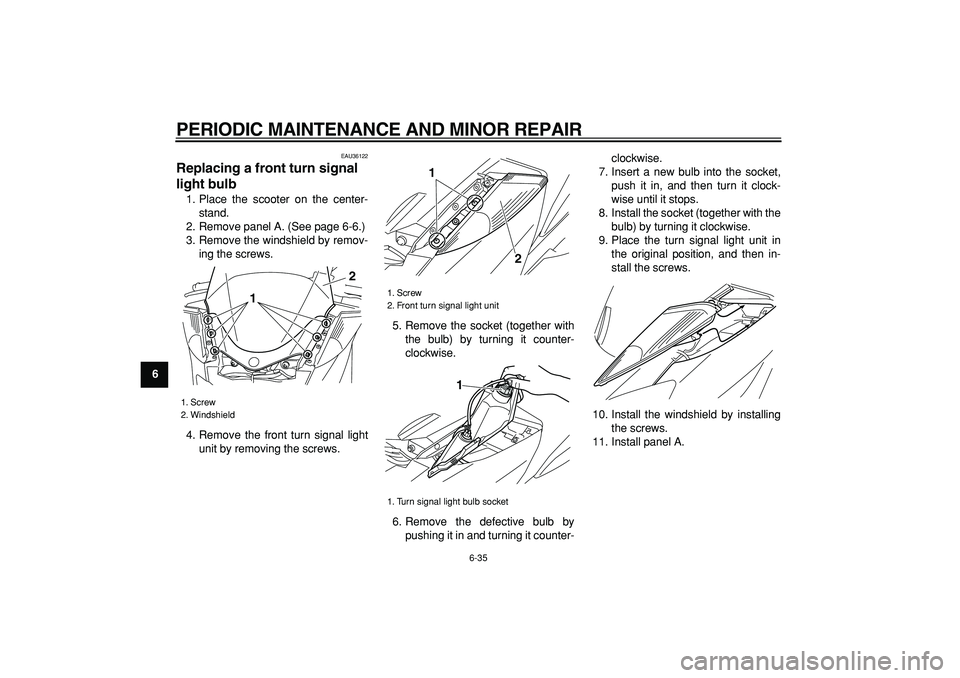

Replacing a front turn signal
light bulb
1. Place the scooter on the center-
stand.
2. Remove panel A. (See page 6-6.)
3. Remove the windshield by remov-
ing the screws.
4. Remove the front turn signal light
unit by removing the screws.5. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
6. Remove the defective bulb by
pushing it in and turning it counter-clockwise.
7. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
8. Install the socket (together with the
bulb) by turning it clockwise.
9. Place the turn signal light unit in
the original position, and then in-
stall the screws.
10. Install the windshield by installing
the screws.
11. Install panel A.
1. Screw
2. Windshield
1
2

1. Screw
2. Front turn signal light unit
1. Turn signal light bulb socket
1
2
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
2
3
4
5
67
8
9

EAU34260

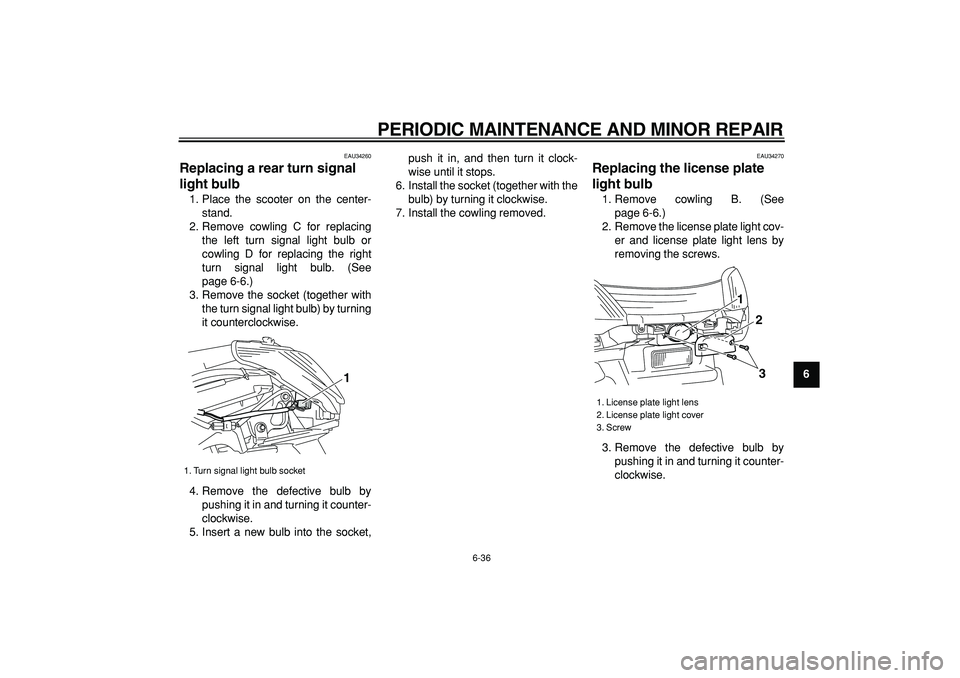

Replacing a rear turn signal
light bulb
1. Place the scooter on the center-
stand.
2. Remove cowling C for replacing
the left turn signal light bulb or
cowling D for replacing the right
turn signal light bulb. (See
page 6-6.)
3. Remove the socket (together with
the turn signal light bulb) by turning
it counterclockwise.
4. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
5. Insert a new bulb into the socket,push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the cowling removed.
EAU34270
Replacing the license plate
light bulb
1. Remove cowling B. (See
page 6-6.)
2. Remove the license plate light cov-
er and license plate light lens by
removing the screws.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
1. Turn signal light bulb socket
1

1. License plate light lens
2. License plate light cover
3. Screw
1
23

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
1
2
3
4
5
6
7
8
9
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the license plate light lens
and license plate light cover by in-
stalling the screws.
6. Install the cowling.

EAU42800

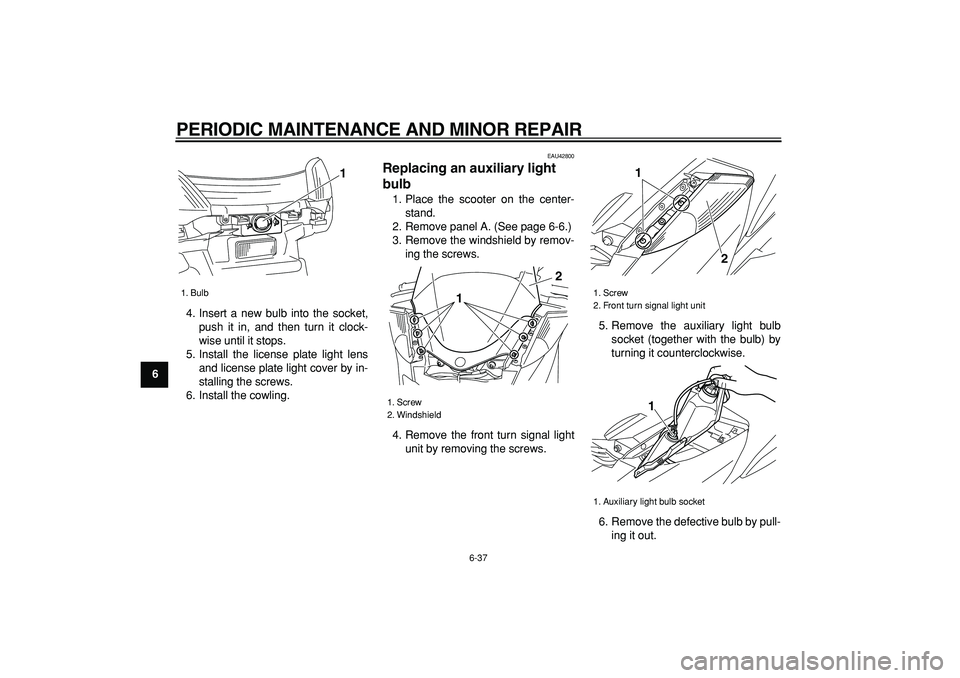

Replacing an auxiliary light
bulb
1. Place the scooter on the center-
stand.
2. Remove panel A. (See page 6-6.)
3. Remove the windshield by remov-
ing the screws.
4. Remove the front turn signal light
unit by removing the screws.5. Remove the auxiliary light bulb
socket (together with the bulb) by
turning it counterclockwise.
6. Remove the defective bulb by pull-
ing it out.
1. Bulb
1

1. Screw
2. Windshield1
2

1. Screw
2. Front turn signal light unit
1. Auxiliary light bulb socket
1
2
1
