PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
2
3
4
5
67
8
9

EAU42820
Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located behind cowling A.
(See page 6-6.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
NOTE:

If the main fuse is blown, remove the
grab bar to access the main fuse. After
replacing the main fuse, install the grab
bar. (See page 6-6.)

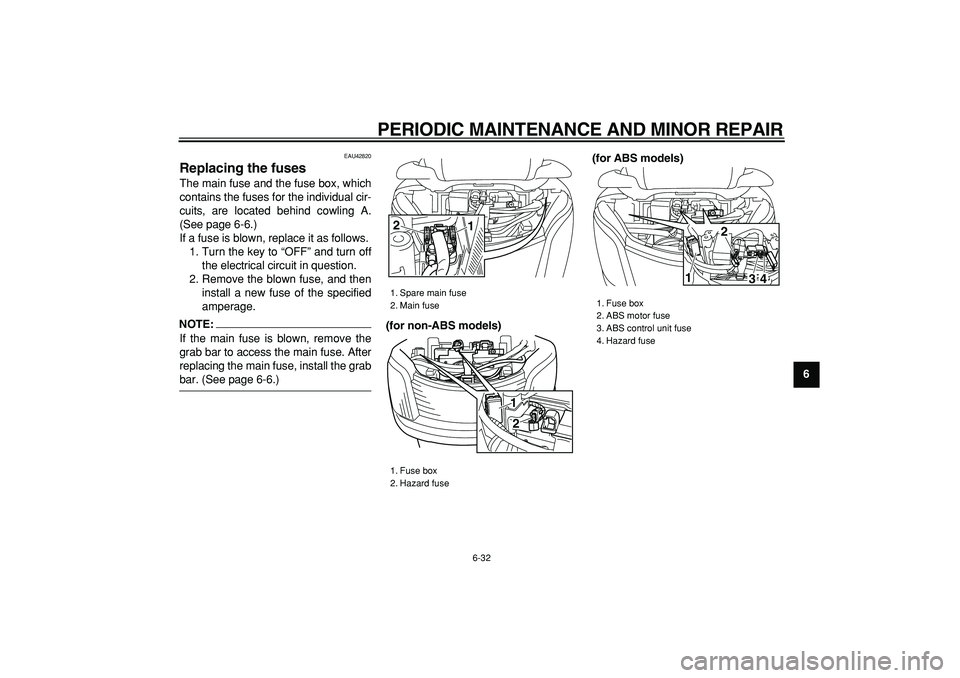

(for non-ABS models)(for ABS models)
1. Spare main fuse
2. Main fuse
1. Fuse box
2. Hazard fuse
1
2
1
2

1. Fuse box
2. ABS motor fuse
3. ABS control unit fuse
4. Hazard fuse
1
2
4 3
