INSTRUMENT AND CONTROL FUNCTIONS
3-6
234
5
6
7
8
9
TIPIf the oil change tripmeter is reset be-
fore the initial 1000 km (600 mi), the
next periodic oil change interval will beat every 3000 km (1800 mi) thereafter.
Clock
To set the clock:1. Set the display to “ODO”, thenpress the “RESET” button for at
least three seconds.
2. When the hour digits start flashing, push the “SELECT” button to set
the hours.
3. Push the “RESET” button, and the first minute digit will start flashing.
4. Push the “SELECT” button to set the first minute digit.
5. Push the “RESET” button and the second minute digit will start flash-
ing.
6. Push the “SELECT” button to set the second minute digit.
7. Push the “RESET” button to start the clock.
TIPIf you do not push the “SELECT” or the
“RESET” button within 30 seconds, the
setting of the clock will not be complet-
ed and the display will change to “ODO”mode.
EAU1234H
Handlebar switchesLeft
Right 1. Horn switch “ ”
2. Turn signal switch
3. Pass switch “PASS”
4. Dimmer switch
1. Start switch “ ”
3
21
4
1



INSTRUMENT AND CONTROL FUNCTIONS
3-7
1
23
4
5
6
7
8
9
EAU12361
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAUM1133
Start switch “ ”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU12902
Front brake leverThe front brake lever is located on the
right side of the handlebar. To apply the
front brake, pull this lever toward the
throttle grip.
EAU12952
Rear brake leverThe rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
1. Front brake lever
1
1. Rear brake lever
1



INSTRUMENT AND CONTROL FUNCTIONS
3-8
234
5
6
7
8
9
EAU13075
Fuel tank capTo open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap1. Push the fuel tank cap into position with the key inserted in the lock.
2. Turn the key counterclockwise to the original position, remove it, and
then close the lock cover.
TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly closed and locked.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly closed after filling fuel.Leaking fuel is a fire hazard.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.

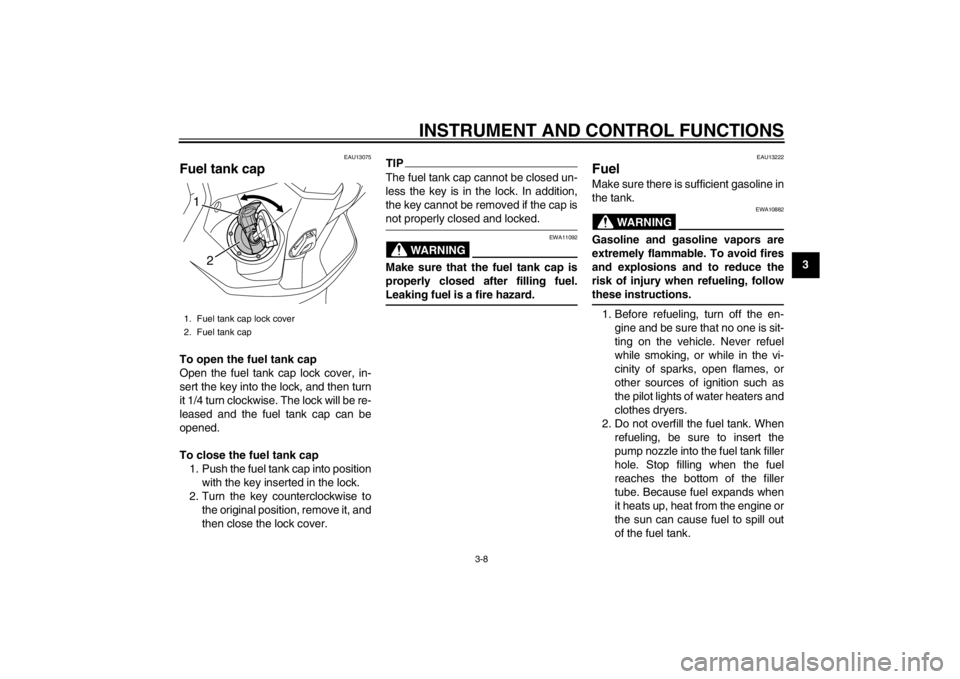

1. Fuel tank cap lock cover
2. Fuel tank cap1
2



INSTRUMENT AND CONTROL FUNCTIONS
3-9
1
23
4
5
6
7
8
93. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in your eyes, see your doctor immedi-
ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU33523
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAUT4250
Fuel tank breather hose and
overflow hoseBefore operating the vehicle:
Check each hose connection.

Check each hose for cracks or
damage, and replace if necessary.

Make sure that the end of the hose
is not blocked, and clean if neces-
sary.

Make sure that the end of the hose
is positioned into the hole of the
cowling.

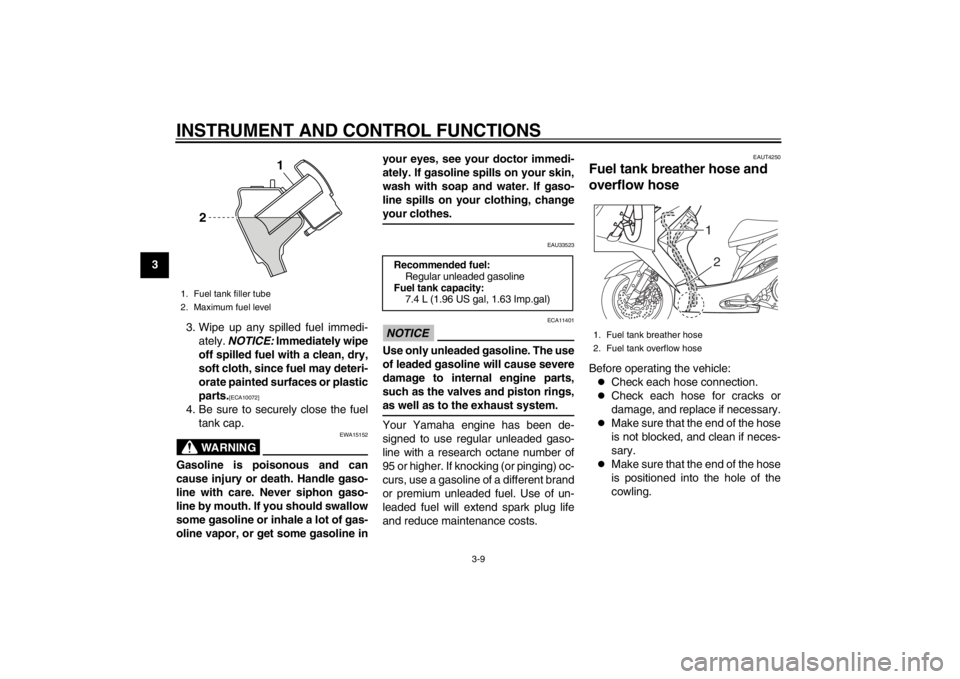

1. Fuel tank filler tube
2. Maximum fuel level
1
2
Recommended fuel:
Regular unleaded gasoline
Fuel tank capacity: 7.4 L (1.96 US gal, 1.63 Imp.gal)
1. Fuel tank breather hose
2. Fuel tank overflow hose
12



INSTRUMENT AND CONTROL FUNCTIONS
3-10
234
5
6
7
8
9
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.

Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.

Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.

Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up ofheat.
NOTICE
ECA10702
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-pairable damage to the catalytic
converter.
EAUT1504
SeatTo open the seat
1. Place the scooter on the center- stand.
2. Insert the key into the main switch, and then turn it counterclockwise
to the first “OPEN” position. If the
main switch is in the “LOCK” posi-
tion, turn the key counterclockwise
to the second “OPEN” position.TIPDo not push inward when turning the
key from “OFF” to “OPEN” or from“LOCK” to “OPEN”.

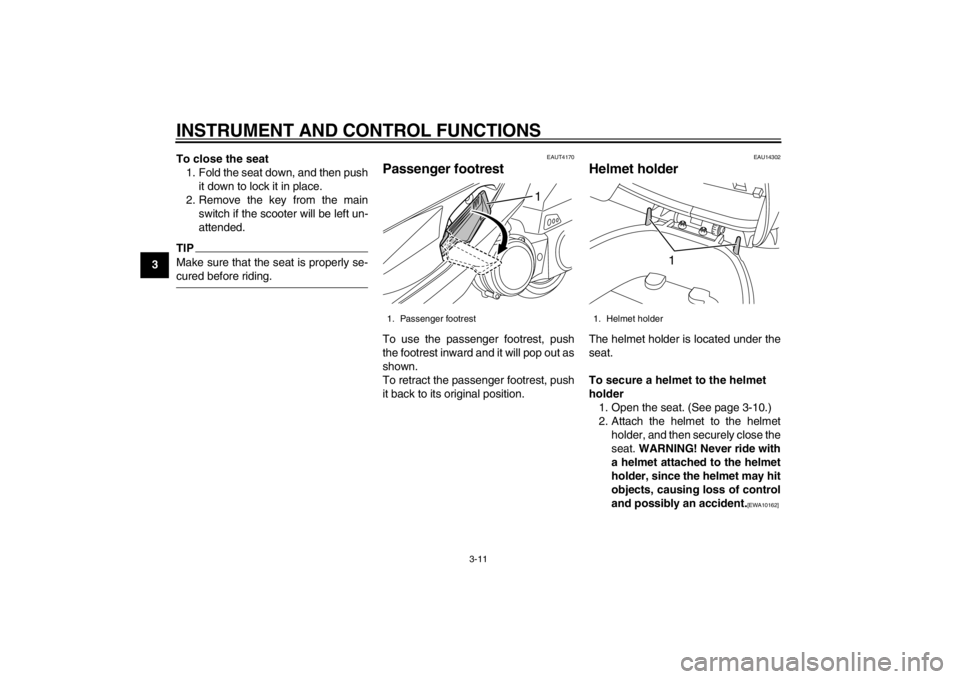

3. Fold the seat up.1. Turn.
1
1



INSTRUMENT AND CONTROL FUNCTIONS
3-11
1
23
4
5
6
7
8
9To close the seat
1. Fold the seat down, and then push it down to lock it in place.
2. Remove the key from the main switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-cured before riding.
EAUT4170
Passenger footrestTo use the passenger footrest, push
the footrest inward and it will pop out as
shown.
To retract the passenger footrest, push
it back to its original position.
EAU14302
Helmet holderThe helmet holder is located under the
seat.
To secure a helmet to the helmet
holder1. Open the seat. (See page 3-10.)
2. Attach the helmet to the helmet holder, and then securely close the
seat. WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10162]
1. Passenger footrest
1
1. Helmet holder
1



INSTRUMENT AND CONTROL FUNCTIONS
3-12
234
5
6
7
8
9
To release the helmet from the hel-
met holder
Open the seat, remove the helmet from
the helmet holder, and then close the
seat.
EAU57080
Storage compartmentsFront storage compartment
The front storage compartment is locat-
ed at the front of the vehicle. Use this
compartment for small items.
WARNING
EWA17250

Do not exceed the load limit of
1.5 kg (3.3 lb) for the front stor-
age compartment.

Do not place anything in the
front storage compartment that
will interfere with your operatingthe vehicle. Rear storage compartment
The rear storage compartment is locat-
ed under the seat. Use this compart-
ment for large items. (See page 3-10.)
WARNING
EWAT1052

Do not exceed the load limit of 5
kg (11 lb) for the rear storage
compartment.

Do not exceed the maximum
load of 160 kg (353 lb) for the ve-hicle.
NOTICE
ECA10082
Keep the following points in mind
when using the storage compart-
ment.

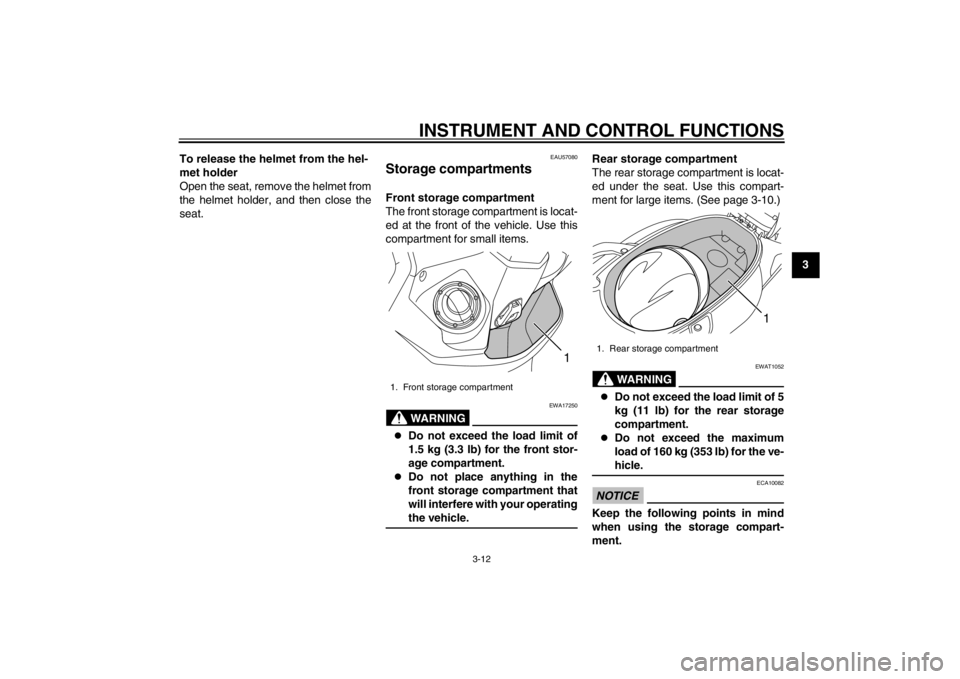

1. Front storage compartment
1
1. Rear storage compartment
1



INSTRUMENT AND CONTROL FUNCTIONS
3-13
1
23
4
5
6
7
8
9

Since the storage compartment
accumulates heat when ex-
posed to the sun and/or the en-
gine heat, do not store anything
susceptible to heat, consum-
ables or flammable items inside
it.

To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
in the compartment.

Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.

Do not keep anything valuable
or breakable in the storage com-partment.
TIPDo not leave your scooter unattendedwith the seat open.
EAU46023
Shock absorber assembly
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
Do not tamper with or attempt to
open the cylinder assembly.

Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.

Do not deform or damage thecylinder in any way. Cylinder
damage will result in poor
damping performance.

Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamahadealer for any service.

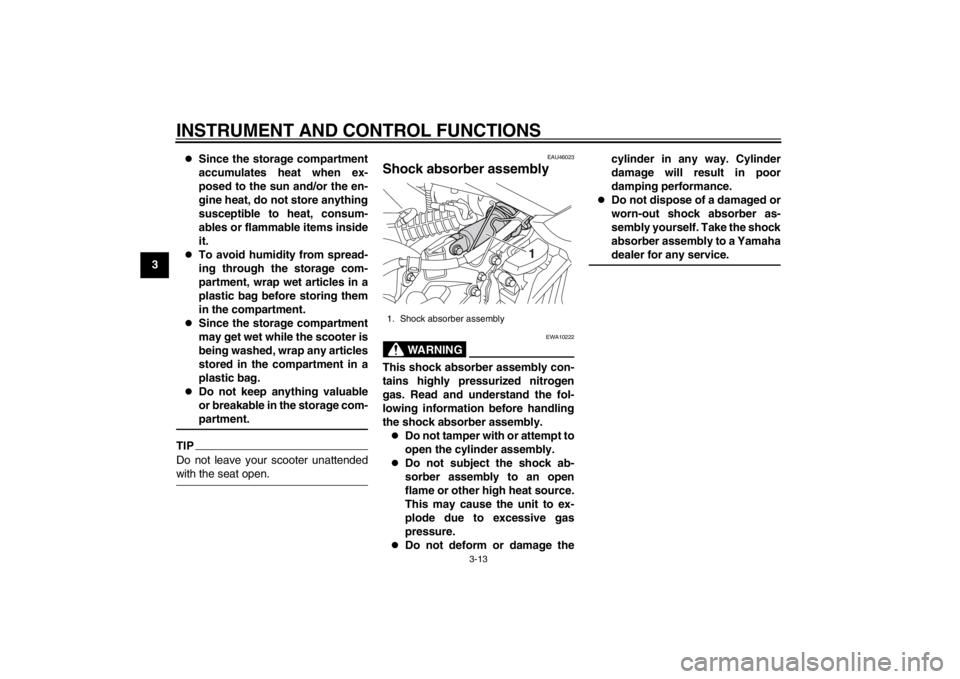

1. Shock absorber assembly
1



INSTRUMENT AND CONTROL FUNCTIONS
3-14
234
5
6
7
8
9
EAU61380

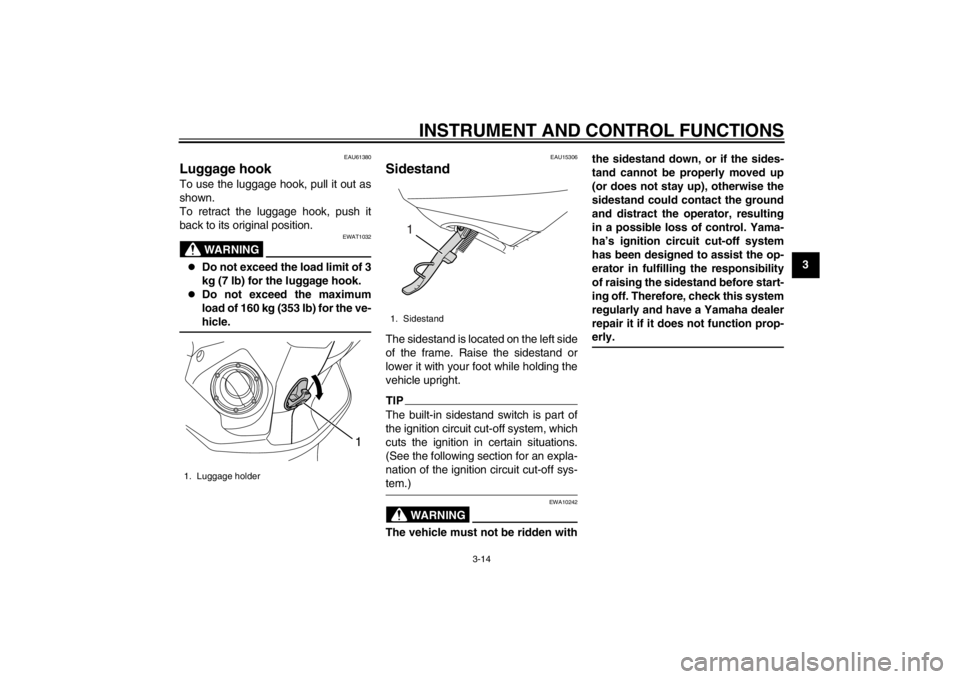

Luggage hookTo use the luggage hook, pull it out as
shown.
To retract the luggage hook, push it
back to its original position.
WARNING
EWAT1032

Do not exceed the load limit of 3
kg (7 lb) for the luggage hook.

Do not exceed the maximum
load of 160 kg (353 lb) for the ve-hicle.
EAU15306
SidestandThe sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See the following section for an expla-
nation of the ignition circuit cut-off sys-tem.)
WARNING
EWA10242
The vehicle must not be ridden withthe sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the op-
erator in fulfilling the responsibility
of raising the sidestand before start-
ing off. Therefore, check this system
regularly and have a Yamaha dealer
repair it if it does not function prop-
erly.
1. Luggage holder
1
1. Sidestand
1



INSTRUMENT AND CONTROL FUNCTIONS
3-15
1
23
4
5
6
7
8
9
EAUT1096
Ignition circuit cut-off systemCheck the operation of the sidestand
switch according to the following proce-
dure.
