Motorcycle care and storage
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU26015
CareWhile the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning 1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all el ectrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA10773

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Motorcycle care and storage
7-2
1
2
3
4
5
67
8
9
10
11
12 off any detergent residue using
plenty of water, as it is harmful
to plastic parts.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield. Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.TIPSalt sprayed on roads in the winter may
remain well into spring. 1. Clean the motorcycle with cold wa- ter and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10792]
2. Apply a corrosion protection spray on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning 1. Dry the motorcycle with a chamois or an absorbing cloth.
2. Immediately dry the drive chain and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Motorcycle care and storage
7-3
1
2
3
4
5
678
9
10
11
12
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean- er to remove any remaining dirt.
6. Touch up minor paint damage caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely before storing or covering it.
WARNING
EWA11132
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires.

If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
NOTICE
ECA10801

Apply spray oil and wax spar-
ingly and make sure to wipe off any excess.

Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wearaway the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.

Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from thelens.
EAU26183
StorageShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the motor-
cycle.NOTICE
ECA10811

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter.
B87-9-E0_1.book 3 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Motorcycle care and storage
7-4
1
2
3
4
5
67
8
9
10
11
12 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine
over.
[EWA10952]
e. Remove the spark plug capsfrom the spark plugs, and then
install the spark plugs and the spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0  C (30 F) or more than 30
 C (90 F)]. For more information
on storing the battery, see page
6-29.
TIPMake any necessary repairs beforestoring the motorcycle.
B87-9-E0_1.book 4 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

8-1
1
2
3
4
5
6
789
10
11
12
Specifications
EAU69993
Dimensions:Overall length: 2075 mm (81.7 in)
Overall width: 815 mm (32.1 in)
Overall height: 1135 mm (44.7 in)
Seat height:
815 mm (32.1 in)
Wheelbase: 1440 mm (56.7 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius:
3.0 m (9.84 ft)Weight:Curb weight:188 kg (414 lb) (MT09)
191 kg (421 lb) (MT09A)Engine:Combustion cycle:4-stroke
Cooling system: Liquid cooled
Valve train: DOHC
Cylinder arrangement:
Inline
Number of cylinders: 3-cylinder
Displacement: 847 cm
3
Bore  stroke:
78.0  59.1 mm (3.07  2.33 in) Compression ratio:
11.5 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
Engine oil:Recommended brand:
YAMALUBE
SAE viscosity grades: 10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change:2.40 L (2.54 US qt, 2.11 Imp.qt)
With oil filter removal: 2.70 L (2.85 US qt, 2.38 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.93 L (2.04 US qt, 1.70 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:Premium unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity: 14 L (3.7 US gal, 3.1 Imp.gal) Fuel reserve amount:
2.8 L (0.74 US gal, 0.62 Imp.gal)
Fuel injection:Throttle body:ID mark:
1RC1 00Spark plug(s):Manufacturer/model: NGK/CPR9EA9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, multiple-discDrivetrain:Primary reduction ratio:1.681 (79/47)
Final drive: Chain
Secondary reduction ratio:
2.813 (45/16)
Transmission type: Constant mesh 6-speed
Gear ratio: 1st:2.667 (40/15)
2nd: 2.000 (38/19)
3rd:
1.619 (34/21)
4th: 1.381 (29/21)
5th: 1.190 (25/21)
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Specifications
8-2
1
2
3
4
5
6
78
9
10
11
12
6th: 1.037 (28/27)
Chassis:Frame type: Diamond
Caster angle: 25.0 
Trail:
103 mm (4.1 in)Front tire:Type:Tubeless
Size:
120/70 ZR17 M/C (58W)
Manufacturer/model: BRIDGESTONE/S20F
Manufacturer/model: DUNLOP/D214FRear tire:Type:Tubeless
Size: 180/55 ZR17M/C (73W)
Manufacturer/model:
BRIDGESTONE/S20R
Manufacturer/model: DUNLOP/D214Loading:Maximum load:
174 kg (384 lb) (MT09A)
177 kg (390 lb) (MT09)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):Up to 90 kg (198 lb) load:Front:
250 kPa (2.50 kgf/cm
2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
90 kg (198 lb) load - maximum load: Front: 250 kPa (2.50 kgf/cm2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
Front wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT5.50Front brake:Type:Hydraulic dual disc brake
Specified brake fluid: DOT 4Rear brake:Type:Hydraulic single disc brake
Specified brake fluid: DOT 4
Front suspension:Type:Telescopic fork
Spring: Coil spring
Shock absorber: Hydraulic damper
Wheel travel:
137 mm (5.4 in)Rear suspension:Type:Swingarm (link suspension)
Spring:
Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel: 130 mm (5.1 in)Electrical system:System voltage:12 V
Ignition system: TCI
Charging system:
AC magnetoBattery:Model:YTZ10S
Voltage, capacity:
12 V, 8.6 Ah (10 HR)Headlight:Bulb type:Halogen bulb
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Specifications
8-3
1
2
3
4
5
6
789
10
11
12
Bulb wattage  quantity:Headlight:
H4, 60.0 W/55.0 W x 1
Brake/tail light: LED
Front turn signal light: 10.0 W  2
Rear turn signal light:
10.0 W  2
Auxiliary light: 5.0 W  2
License plate light: 5.0 W  1
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Oil level warning light:
LED
Turn signal indicator light: LED
Coolant temperature warning light: LED
Engine trouble warning light:
LED
ABS warning light: LED (MT09A)
Immobilizer system indicator light: LED
Traction control system indicator/warning
light:
LED (MT09A)
Fuse(s):Main fuse:50.0 A
Auxiliary fuse: 2.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
7.5 A
Ignition fuse: 15.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse:
15.0 A
Fuel injection system fuse: 10.0 A
ABS control unit fuse: 7.5 A (MT09A)
ABS motor fuse:
30.0 A (MT09A)
ABS solenoid fuse: 15.0 A (MT09A)
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
B87-9-E0_1.book 3 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

9-1
1
2
3
4
5
6
7
89
10
11
12
Consumer information
EAU53562
Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUM-
BER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26442
Engine serial number
The engine serial number is stamped
into the crankcase.

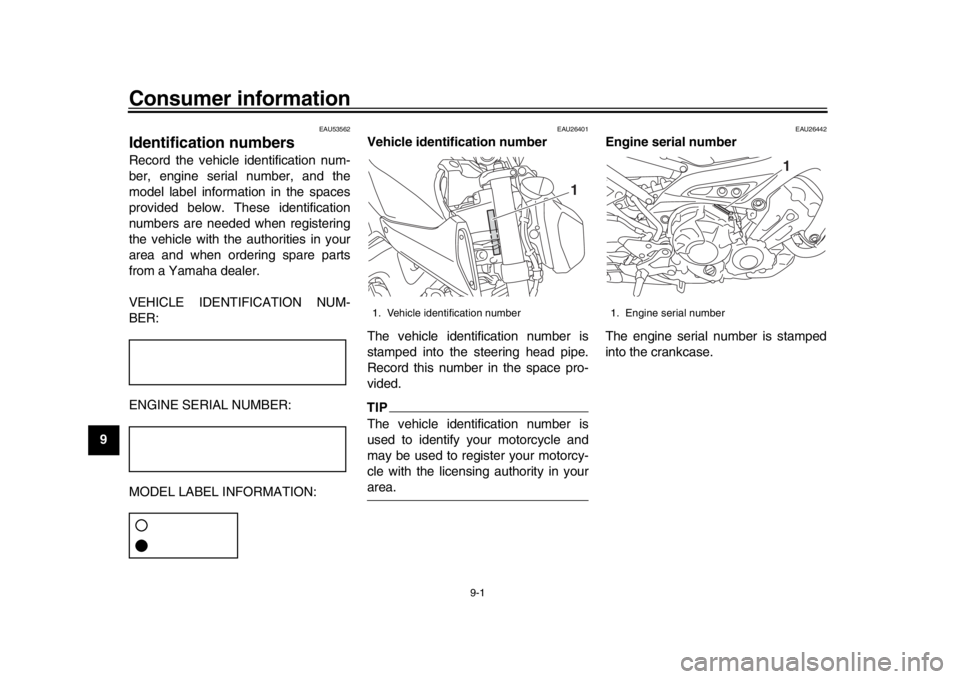

1. Vehicle identification number
1
1. Engine serial number
1
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Consumer information
9-2
1
2
3
4
5
6
7
8910
11
12
EAU26481
Model label
The model label is affixed to the frame
under the seat. (See page 3-25.) Re-
cord the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
EAU69910
Diagnostic connector
(MT09A)The diagnostic connector is located as
shown.
1. Model label

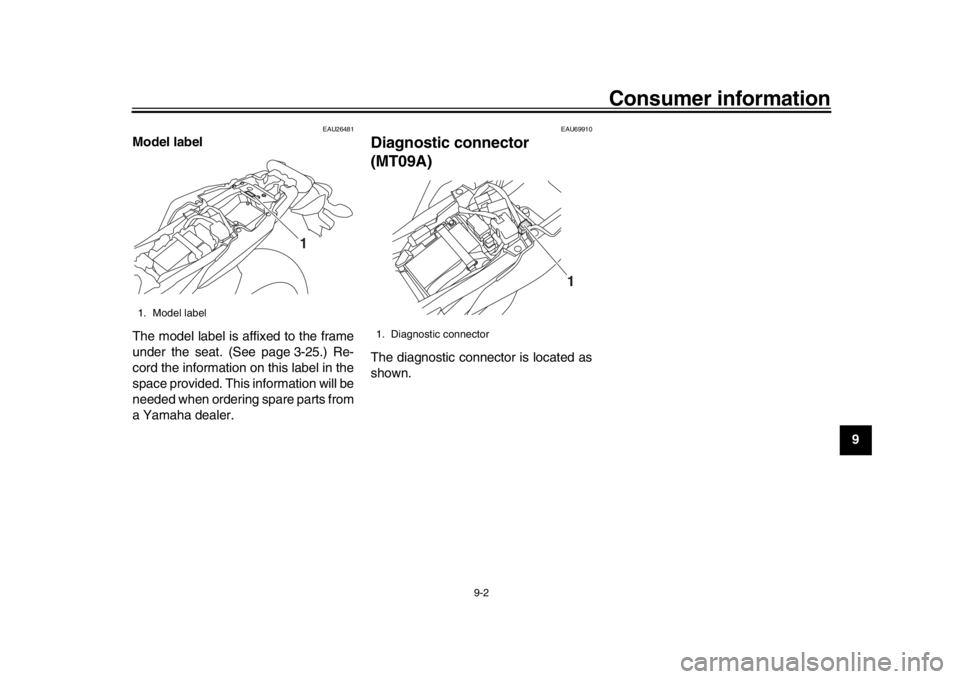

1
1. Diagnostic connector
1
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

10-1
1
2
3
4
5
6
7
8
910
11
12
IndexAABS (for ABS models) .............................3-20
ABS warning light (for ABS models) ..........3-5
Air filter element .......................................6-14
Auxiliary DC connector ............................3-32
Auxiliary light bulb, replacing ...................6-36BBattery......................................................6-29
Brake and clutch levers, checking and lubricating ..............................................6-27
Brake and shift pedals, checking and lubricating ..............................................6-26
Brake fluid, changing ...............................6-23
Brake fluid level, checking .......................6-21
Brake lever ...............................................3-19
Brake lever free play, checking ................6-19
Brake light switches .................................6-20
Brake pedal ..............................................3-19
Brake/tail light ..........................................6-37CCables, checking and lubricating .............6-25
Care ...........................................................7-1
Catalytic converter ...................................3-24
Clutch lever ..............................................3-18
Clutch lever free play, adjusting ...............6-19
Coolant.....................................................6-11
Coolant temperature warning light .............3-4DDiagnostic connector .................................9-2
Dimmer switch .........................................3-16
D-mode (drive mode) ...............................3-15
Drive chain, cleaning and lubricating .......6-25
Drive chain slack ......................................6-23
EEngine break-in ......................................... 5-5
Engine idling speed, checking ................. 6-15
Engine oil and oil filter cartridge ................ 6-9
Engine serial number................................. 9-1
Engine trouble warning light ...................... 3-5FFront and rear brake pads, checking ....... 6-21
Front fork, adjusting ................................. 3-26
Front fork, checking ................................. 6-28
Fuel.......................................................... 3-23
Fuel consumption, tips for reducing........... 5-4
Fuel tank breather hose and overflow
hose ...................................................... 3-24
Fuel tank cap ........................................... 3-22
Fuses, replacing ...................................... 6-31HHandlebar switches ................................. 3-16
Hazard switch .......................................... 3-17
Headlight bulb, replacing ......................... 6-34
High beam indicator light ........................... 3-4
Horn switch .............................................. 3-17IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-30
Immobilizer system .................................... 3-1
Immobilizer system indicator light.............. 3-6
Indicator lights and warning lights ............. 3-4LLicense plate light bulb, replacing ........... 6-38
Luggage strap holders ............................. 3-29MMain switch/steering lock........................... 3-2
Maintenance and lubrication, periodic ....... 6-4 Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function meter unit ............................ 3-7
NNeutral indicator light ................................ 3-4OOil level warning light ................................ 3-4PParking ...................................................... 5-5
Part locations ............................................ 2-1
Pass switch ............................................. 3-16SSafety information ..................................... 1-1
Seat ......................................................... 3-25
Shifting ...................................................... 5-3
Shift pedal ............................................... 3-18
Shock absorber assembly, adjusting ...... 3-28
Sidestand ................................................ 3-30
Sidestand, checking an
d lubricating........ 6-27
Spark plugs, checking ............................... 6-8
Specifications ............................................ 8-1
Starting the engine .................................... 5-2
Steering, checking................................... 6-29
Stop/Run/Start switch.............................. 3-17
Storage...................................................... 7-3
Storage compartment.............................. 3-26
Supporting the motorcycle ...................... 6-39
Swingarm pivots, lubricating ................... 6-28TThrottle grip and cable, checking and lubricating ............................................. 6-26
Throttle grip free play, checking .............. 6-15
Tires ........................................................ 6-16
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分
