YAMAHA MT-125 2021 User Guide

Safety information
1-4
1
tents, can create unstable han-
dling or a slow steering re-
sponse.
 This vehicle is not desi gne d to
pull a trailer or to be attached to
a si decar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer. Aftermarket Parts, Accessories, an
d
Mo difications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.  Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessory
before using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension travel, steering travel or control opera-
tion, or obscure lights or reflec-
tors.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become
unstable in cross winds. These
accessories may also cause in-
stability when passing or being
passed by large vehicles.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
UB6GE1E0.book Page 4 Thursday, July 30, 2020 1:08 PM

Safety information
1-5
1operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
 Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires an d Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. See page 6-17
for tire specifications and for informa-
tion on servicing and replacing your
tires.
Transportin g the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle. 
Remove all loose items from the
motorcycle.
 Check that the fuel cock (if
equipped) is in the off position and
that there are no fuel leaks.
 Shift the transmission into gear
(for models with a manual trans-
mission).
 Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
 The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce exces-
sively during transport.
UB6GE1E0.book Page 5 Thursday, July 30, 2020 1:08 PM

Description
2-1
2
EAU10411

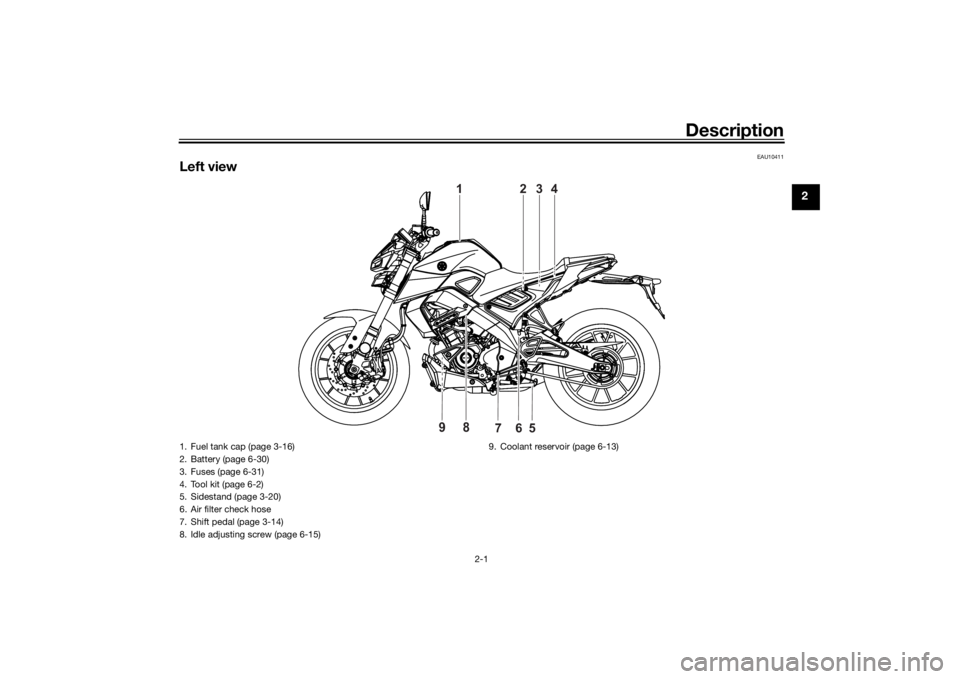

Left view
1
2
3
4
6
5
7
98
1. Fuel tank cap (page 3-16)
2. Battery (page 6-30)
3. Fuses (page 6-31)
4. Tool kit (page 6-2)
5. Sidestand (page 3-20)
6. Air filter check hose
7. Shift pedal (page 3-14)
8. Idle adjusting screw (page 6-15)9. Coolant reservoir (page 6-13)
UB6GE1E0.book Page 1 Thursday, July 30, 2020 1:08 PM

Description
2-2
2
EAU10421
Right view
1
2
3
4
5
6
7
1. Rear turn signal lights (page 6-33)
2. Seat lock (page 3-19)
3. Front turn signal light (page 6-33)
4. Engine oil filter element (page 6-10)
5. Dipstick (page 6-10)
6. Brake pedal (page 3-14)
7. Rear brake fluid reservoir (page 6-22)UB6GE1E0.book Page 2 Thursday, July 30, 2020 1:08 PM

Description
2-3
2
EAU10431

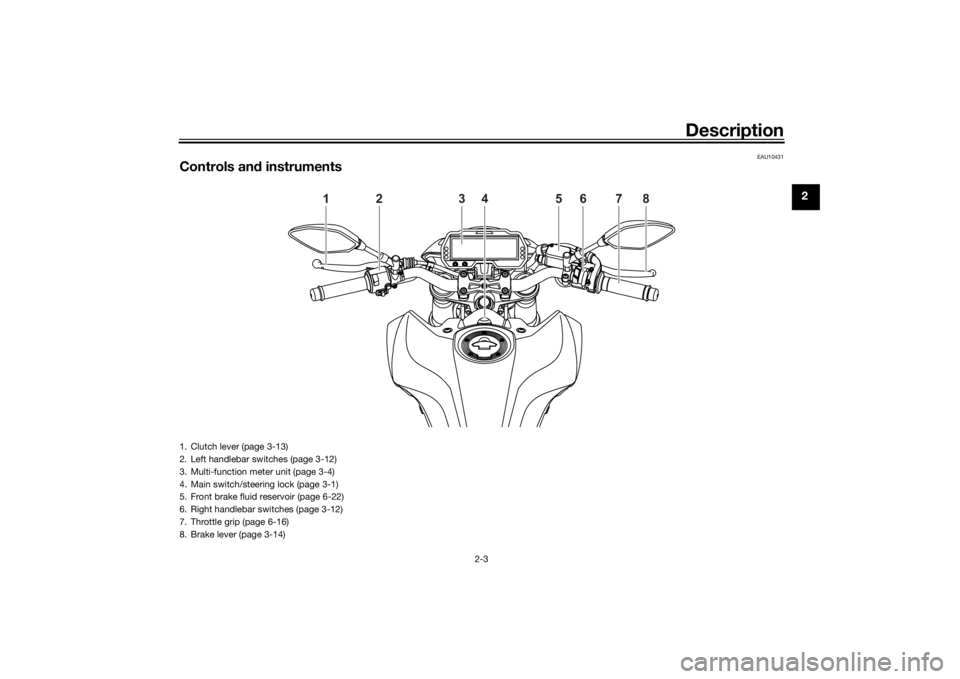

Controls and instruments
1
2
3
4
5
6
7
8
1. Clutch lever (page 3-13)
2. Left handlebar switches (page 3-12)
3. Multi-function meter unit (page 3-4)
4. Main switch/steering lock (page 3-1)
5. Front brake fluid reservoir (page 6-22)
6. Right handlebar switches (page 3-12)
7. Throttle grip (page 6-16)
8. Brake lever (page 3-14)
UB6GE1E0.book Page 3 Thursday, July 30, 2020 1:08 PM

Instrument and control functions
3-1
3
EAU10462
Main switch/steerin g lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU85050
ON
All electrical circuits are supplied with
power and the vehicle lights are turned
on. The engine can be started. The key
cannot be removed.TIP To prevent battery discharge, do
not leave the key in the on position
without the engine running.
 The headlight comes on automat-
ically when the engine is started. 
The headlight will stay on until the
key is turned to “OFF”, even if the
engine stalls.
EAU10662
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is movin g.
Otherwise the electrical systems will
b e switche d off, which may result in
loss of control or an acci dent.
EAU10696
LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved. To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turning
the handlebars back to the right or left
slightly.1. Push.
2. Turn.12
UB6GE1E0.book Page 1 Thursday, July 30, 2020 1:08 PM

Instrument and control functions
3-2
3
To unlock the steering
From the “LOCK” position, push the
key and turn it to “OFF”.
EAU4939N
In
dicator li ghts an d warnin g
lig hts
EAU11022
Turn si gnal in dicator li ght “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral in dicator li ght “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11449
Coolant temperature warnin g
li g ht “ ”
This warning light comes on when the
engine is overheating. If this occurs,
stop the engine immediately and allow
the engine to cool. (See page 6-36.)
For vehicles with a radiator fan, the ra-
diator fan(s) automatically switch on or
off according to the coolant tempera-
ture.TIPWhen the vehicle is turned on, the light
will come on for a few seconds, and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle. NOTICE
ECA10022
Do not continue to operate the en-
g ine if it is overheatin g.
1. Push.
2. Turn.12
1. Shift light
2. Turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Anti-lock Brake System (ABS) warning
light “ ”
5. Malfunction indicator light “ ”
6. Coolant temperature warning light “ ”
7. Neutral indicator light “ ”ZAUM15665 6 7
2
3
4
1
ABS
UB6GE1E0.book Page 2 Thursday, July 30, 2020 1:08 PM

Instrument and control functions
3-3
3
EAU88330
Malfunction in dicator li ght
(MIL) “ ”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electri-
cal circuit of the warning light can be
checked by vehicle power on. The light
should come on for a few seconds,
and then go off. If the light does not
come on initially when the vehicle pow-
er on, or if the light remains on, have a
Yamaha dealer check the vehicle.NOTICE
ECA26820
If the MIL starts flashin g, re duce en-
g ine speed to prevent exhaust sys-
tem damag e.TIPThe engine is sensitively controlled for
the on-board diagnostic system to de-
tect deterioration and malfunction of
the emission control system. Due to
this specification, the MIL may come
on or flash for vehicle modifications,
lack of maintenance, or excessive or improper use of the motorcycle. To
prevent this, observe these precau-
tions.
 Do not attempt to modify the soft-
ware of the engine control unit.
 Do not add any electrical acces-
sories that interfere with engine
control.
 Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
 Do not change drivetrain specifi-
cations (chain, sprockets, wheels,
tires, etc.).
 Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).
 Maintain proper drive chain.
 Maintain correct tire pressure.
 Maintain proper brake pedal
height to prevent rear brake from
dragging.
 Do not operate the vehicle in an
extreme manner. For example, re-
peated or excessive opening and closing of the throttle, racing,
burnouts, wheelies, extended
half-clutch use, etc.
EAU69895
ABS warnin
g li ght “ ”
This warning light comes on when the
vehicle is first turned on, and goes off
after starting riding. If the warning light
comes on while riding, the anti-lock
brake system may not work correctly.
WARNING
EWA16043
If the ABS warnin g li ght does not
turn off after reachin g 10 km/h (6
mi/h), or if the warnin g li ght comes
on while ri din g:
 Use extra caution to avoi d pos-
si ble wheel lock d uring emer-
g ency brakin g.
 Have a Yamaha dealer check
the vehicle as soon as possi ble.
EAU80372
Shift li ght
This light can be set to come on and go
off at select engine speeds. (See page
3-10.)
ABS
UB6GE1E0.book Page 3 Thursday, July 30, 2020 1:08 PM

Instrument and control functions
3-4
3
TIPWhen the vehicle is turned on, the light
will come on for a few seconds and
then go off. If the light does not come
on, have a Yamaha dealer check the
vehicle.
EAUM4011
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can distract the
operator an d increase the risk of an
acci dent.The multi-function meter unit is
equipped with the following:
 a speedometer
 a clock
 a fuel meter
 a VVA indicator
 a tachometer 
a transmission gear display
 a multi-function display
 a shift timing indicator light
 a self diagnostic device
TIPExcept when accessing the
brightness screen and shift timing
indicator light control mode or
when displaying the welcome
screen, the key must be turned
to “ ” before you can use the
“SELECT” and “RESET” buttons
to adjust the multi-function meter.
 For the UK: To switch between ki-
lometers and miles, press and
hold the “SELECT” button.
1. “SELECT” button
2. “RESET” buttonZAUM1567
1
2
UB6GE1E0.book Page 4 Thursday, July 30, 2020 1:08 PM

Instrument and control functions
3-5
3 Speed
ometer
The speedometer shows the vehicle’s
traveling speed.
Clock mo de
The clock uses a 12-hour time system. To set the clock
1. Push and hold the “SELECT” and
“RESET” button together.
2. When the hour digits start flash- ing, use the “RESET” button to set
the hours.
3. Push the “SELECT” button and the minutes will start flashing.
4. Use the “RESET” button to set the minutes.
5. Push the “SELECT” button to start the clock.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (empty) as the fuel level decreases. When the last segment
start flashing, refuel as soon as possi-
ble.
When the key is turned to “ ”, the dis-
play segments of the fuel meter will
sweep once across the fuel level range
and then return to the current amount
in order to test the electrical circuit.
TIPThe fuel meter is equipped with a self-
diagnostic function. If a problem is de-
tected in the fuel meter electrical cir-
cuit, the fuel meter will flash
repeatedly. If this occurs, have a
Yamaha dealer check the vehicle.VVA in dicator
1. Speedometer
1. ClockZAUM1568
1
ZAUM1569
1
1. Fuel meterZAUM1570
1
1. VVA (variable valve actuation) indicatorZAUM1571
1
UB6GE1E0.book Page 5 Thursday, July 30, 2020 1:08 PM
