YAMAHA MT09 TRACER 2017 Owners Manual
Manufacturer: YAMAHA, Model Year: 2017, Model line: MT09 TRACER, Model: YAMAHA MT09 TRACER 2017Pages: 114, PDF Size: 5.27 MB
Page 91 of 114

Periodic maintenance and adjustment6-30
1
2
3
4
567
8
9
10
11
12
EAUM1653
Lubricating the swingarm
pivotsThe swingarm pivots must be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU23273
Checking the front forkThe condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. While applying the front brake, push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10591
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
Recommended lubricant:Lithium-soap-based grease
2PP-9-E3.book 30 ページ 2016年9月13日 火曜日 午前9時7分
Page 92 of 114

Periodic maintenance and adjustment
6-31
1
2
3
4
56
7
8
9
10
11
12
EAU45512
Checking the steeringWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart. 1. Place the vehicle on the center- stand. WARNING! To avoid inju-
ry, securely support the vehicle
so there is no danger of it falling
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23292
Checking the w heel bearingsThe front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU50211
BatteryThe battery is located under the rider
seat. (See page 3-28.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10761
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
1. Battery
2. Positive battery lead (red)
3. Negative battery lead (black)
1
3
2
2PP-9-E3.book 31 ページ 2016年9月13日 火曜日 午前9時7分
Page 93 of 114

Periodic maintenance and adjustment6-32
1
2
3
4
567
8
9
10
11
12
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan- tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15 minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AN D ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16522
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional batterycharger will damage the battery.
To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive
lead.
[ECA16303]
2. If the battery will be stored for more than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install- ing the battery, be sure the key
is turned to “OFF”, then con-
nect the positive lead before
connecting the negative
lead.
[ECA16841]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
2PP-9-E3.book 32 ページ 2016年9月13日 火曜日 午前9時7分
Page 94 of 114

Periodic maintenance and adjustment
6-33
1
2
3
4
56
7
8
9
10
11
12
EAU63131
Replacing the fusesThe fuse boxes and individual fuses are
located under the rider seat (See
page 3-28.) and behind panel A (See
page 6-9.).
To access fuse box 1, the main fuse,
and the fuel injection system fuse, re-
move the rider seat. (See page 3-28.)
TIPTo access the fuel injection system
fuse, remove the starter relay cover bypulling it upward. To access fuse box 2 and fuse box 3,
remove panel A. (See page 6-9.)
1. Fuse box 1
2. Main fuse
3. Fuel injection system fuse
4. Fuel injection system spare fuse1
3
4
2
1. Radiator fan motor fuse
2. Backup fuse (for clock and immobilizer system)
3. Electronic throttle valve fuse
4. ABS solenoid fuse
5. ABS motor fuse
6. Spare fuse
1
2
345
6
1. Starter relay cover
2. Fuel injection system fuse
3. Fuel injection system spare fuse
1. Fuse box 2
2. Fuse box 3
3
2
1
1
2
2PP-9-E3.book 33 ページ 2016年9月13日 火曜日 午前9時7分
Page 95 of 114

Periodic maintenance and adjustment6-34
1
2
3
4
567
8
9
10
11
12
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam- age to the electrical system and
possibly a fire.
[EWA15132]
1. Parking lighting fuse
2. Headlight fuse
3. Terminal fuse 2
4. Terminal fuse 1
5. Signaling system fuse
6. Auxiliary fuse 1
7. ABS control unit fuse
8. Auxiliary fuse 2
9. Spare fuse
10.Ignition fuse
1234
1098765
Specified fuses:
Main fuse:50.0 A
Auxiliary fuse 1:
2.0 A
Auxiliary fuse 2: 2.0 A
Terminal fuse 1: 2.0 A
Terminal fuse 2:
2.0 A
Headlight fuse: 7.5 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse: 15.0 A
ABS motor fuse:
30.0 A
Fuel injection system fuse: 20.0 A
ABS solenoid fuse: 15.0 A
ABS control unit fuse: 7.5 A
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
2PP-9-E3.book 34 ページ 2016年9月13日 火曜日 午前9時7分
Page 96 of 114

Periodic maintenance and adjustment
6-35
1
2
3
4
56
7
8
9
10
11
12 3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU77470
HeadlightsThis model is equipped with LED-type
headlights.
If a headlight does not come on, check
the fuses and then have a Yamaha
dealer check the vehicle.TIPWhen the headlights are set to low
beam, one headlight will come on.
When the headlights are set to high
beam or the passing switch is pushed,both headlights should come on.NOTICE
ECA16581
Do not affix any type of tinted film orstickers to the headlight lens.
EAU54502
Auxiliary lightsThis model is equipped with LED-type
auxiliary lights.
If an auxiliary light does not come on,
have a Yamaha dealer check it.1. Auxiliary light
1
1
2PP-9-E3.book 35 ページ 2016年9月13日 火曜日 午前9時7分
Page 97 of 114

Periodic maintenance and adjustment6-36
1
2
3
4
567
8
9
10
11
12
EAU70540
Brake/tail lightThis model is equipped with an
LED-type brake/tail light.
If the brake/tail light does not come on,
have a Yamaha dealer check it.
EAU24205

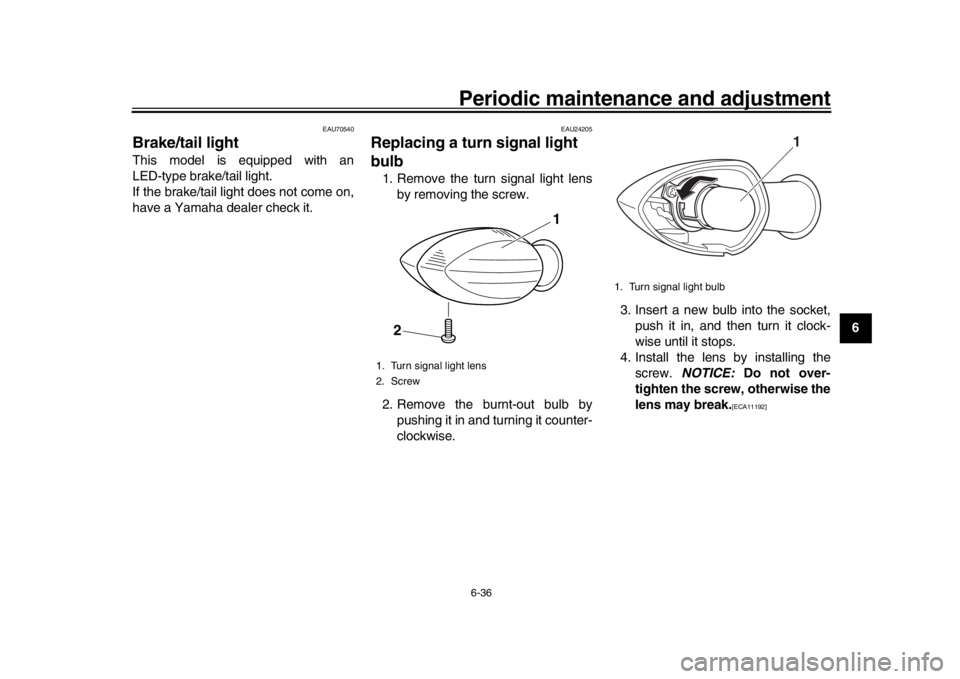

Replacing a turn signal light
bulb1. Remove the turn signal light lens by removing the screw.
2. Remove the burnt-out bulb by pushing it in and turning it counter-
clockwise. 3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11192]
1. Turn signal light lens
2. Screw
1
2
1. Turn signal light bulb
1
2PP-9-E3.book 36 ページ 2016年9月13日 火曜日 午前9時7分
Page 98 of 114

Periodic maintenance and adjustment
6-37
1
2
3
4
56
7
8
9
10
11
12
EAU58010
Replacing the license plate
light bulb1. Remove the license plate light unit
by removing the nuts and collars,
and then remove the license plate
light bulb socket (together with the
bulb) by pulling it out.
2. Remove the burnt-out bulb by pull- ing it out. 3. Insert a new bulb into the socket.
4. Install the socket (together with the
bulb) by pushing it in, and then in-
stall the license plate light unit by
installing the collars and nuts.
EAU25872
TroubleshootingAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15142
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water
1. License plate light unit
2. Collar
3. Nut
4. License plate light bulb socket
1
22
4
3
3
1. License plate light bulb
1
2PP-9-E3.book 37 ページ 2016年9月13日 火曜日 午前9時7分
Page 99 of 114

Periodic maintenance and adjustment6-38
1
2
3
4
567
8
9
10
11
12
heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
2PP-9-E3.book 38 ページ 2016年9月13日 火曜日 午前9時7分
Page 100 of 114

Periodic maintenance and adjustment
6-39
1
2
3
4
56
7
8
9
10
11
12
EAU42365
Troubleshooting chartsStarting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The engine does not start.
Check the ignition.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the electric starter.
2PP-9-E3.book 39 ページ 2016年9月13日 火曜日 午前9時7分
