YAMAHA NEO115 2002 Owners Manual
Manufacturer: YAMAHA, Model Year: 2002, Model line: NEO115, Model: YAMAHA NEO115 2002Pages: 72, PDF Size: 4.08 MB
Page 1 of 72
5MX-F8199-E0
AT115
PRINTED IN INDONESIA
YAMAHA MOTOR CO., LTD.
OWNER’S MANUAL
Page 2 of 72

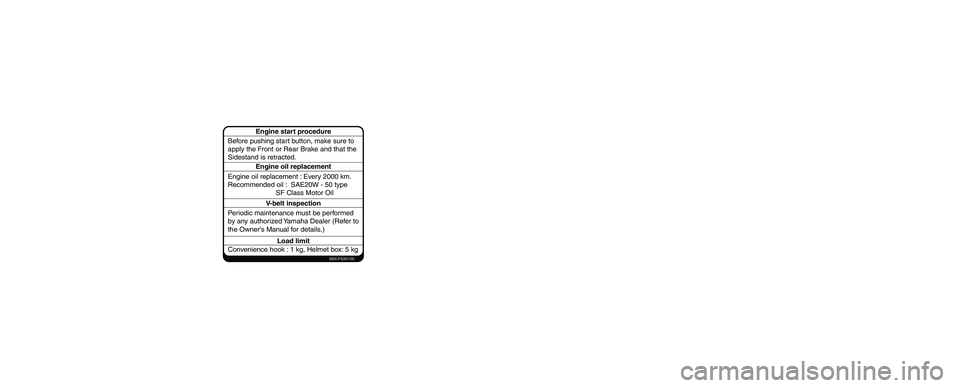

Engine start procedure
Engine oil replacement
V-belt inspection
Load limit Before pushing start button, make sure to
apply the Front or Rear Brake and that the
Sidestand is retracted.
Engine oil replacement : Every 2000 km.
Recommended oil : SAE20W - 50 type
SF Class Motor Oil
Convenience hook : 1 kg, Helmet box: 5 kg
5MX-F835Y-00
Periodic maintenance must be performed
by any authorized Yamaha Dealer (Refer to
the Owner's Manual for details.)
Page 3 of 72
EAU00000

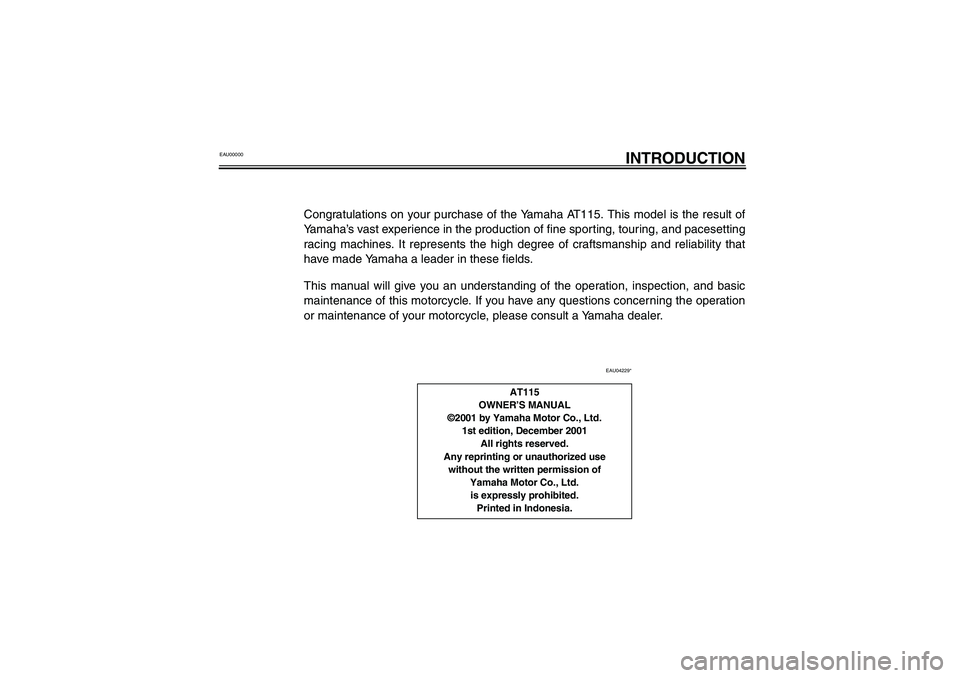

INTRODUCTION
Congratulations on your purchase of the Yamaha AT115. This model is the result of
Yamaha’s vast experience in the production of fine sporting, touring, and pacesetting
racing machines. It represents the high degree of craftsmanship and reliability that
have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic
maintenance of this motorcycle. If you have any questions concerning the operation
or maintenance of your motorcycle, please consult a Yamaha dealer.
EAU04229*
AT115
OWNER’S MANUAL
©2001 by Yamaha Motor Co., Ltd.
1st edition, December 2001
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Indonesia.
U5MXE0.book Page 1 Thursday, December 20, 2001 2:08 PM
Page 4 of 72
EAU00005

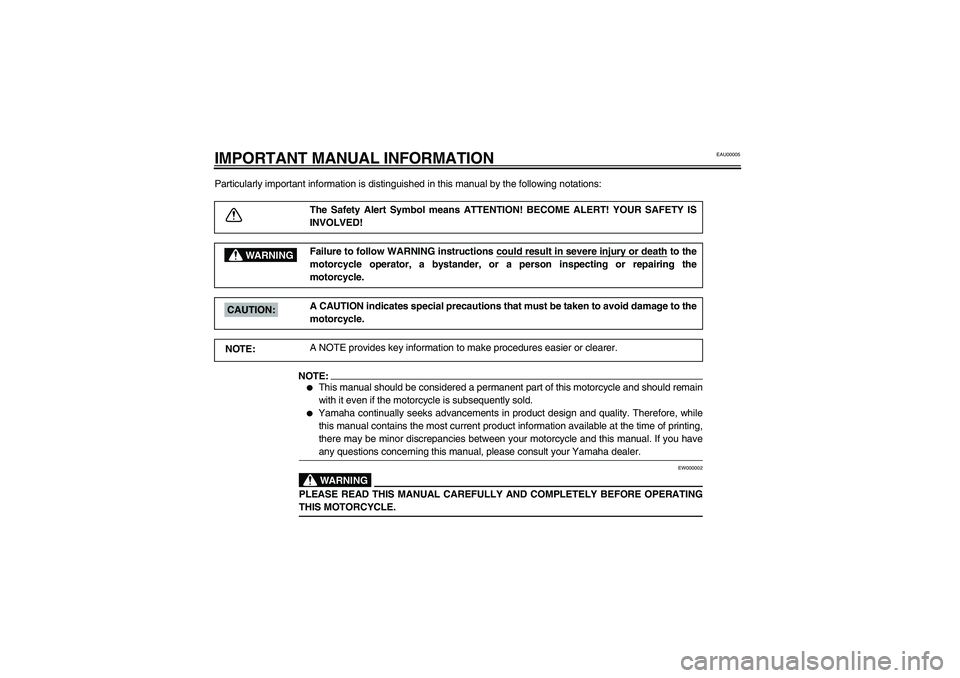

IMPORTANT MANUAL INFORMATIONParticularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING
Failure to follow WARNING instructions could result in severe injury or death
to the
motorcycle operator, a bystander, or a person inspecting or repairing the
motorcycle.
CAUTION:
A CAUTION indicates special precautions that must be taken to avoid damage to the
motorcycle.
NOTE:
A NOTE provides key information to make procedures easier or clearer.NOTE:_
This manual should be considered a permanent part of this motorcycle and should remain
with it even if the motorcycle is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your motorcycle and this manual. If you have
any questions concerning this manual, please consult your Yamaha dealer.
_
EW000002
WARNING
_ PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING
THIS MOTORCYCLE. _
U5MXE0.book Page 1 Thursday, December 20, 2001 2:08 PM
Page 5 of 72
EAU00009

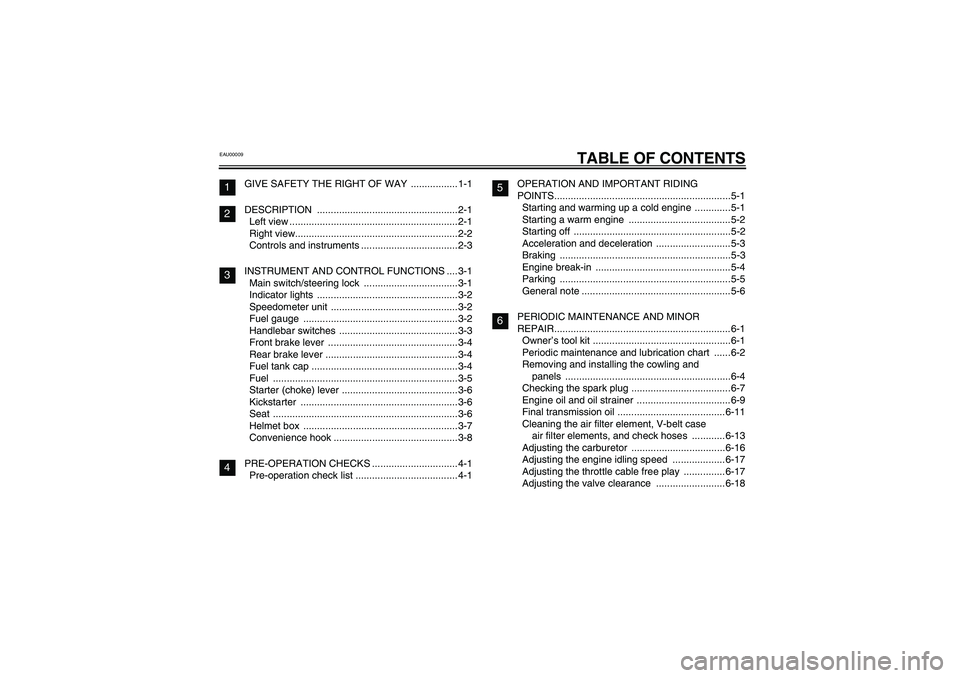

TABLE OF CONTENTS
GIVE SAFETY THE RIGHT OF WAY .................1-1
DESCRIPTION ...................................................2-1
Left view .............................................................2-1
Right view...........................................................2-2
Controls and instruments ...................................2-3
INSTRUMENT AND CONTROL FUNCTIONS ....3-1
Main switch/steering lock ..................................3-1
Indicator lights ...................................................3-2
Speedometer unit ..............................................3-2
Fuel gauge ........................................................3-2
Handlebar switches ...........................................3-3
Front brake lever ...............................................3-4
Rear brake lever ................................................3-4
Fuel tank cap .....................................................3-4
Fuel ...................................................................3-5
Starter (choke) lever ..........................................3-6
Kickstarter .........................................................3-6
Seat ...................................................................3-6
Helmet box ........................................................3-7
Convenience hook .............................................3-8
PRE-OPERATION CHECKS ...............................4-1
Pre-operation check list .....................................4-1OPERATION AND IMPORTANT RIDING
POINTS................................................................5-1
Starting and warming up a cold engine .............5-1
Starting a warm engine .....................................5-2
Starting off .........................................................5-2
Acceleration and deceleration ...........................5-3
Braking ..............................................................5-3
Engine break-in .................................................5-4
Parking ..............................................................5-5
General note ......................................................5-6
PERIODIC MAINTENANCE AND MINOR
REPAIR................................................................6-1
Owner’s tool kit ..................................................6-1
Periodic maintenance and lubrication chart ......6-2
Removing and installing the cowling and
panels ............................................................6-4
Checking the spark plug ....................................6-7
Engine oil and oil strainer ..................................6-9
Final transmission oil .......................................6-11
Cleaning the air filter element, V-belt case
air filter elements, and check hoses ............6-13
Adjusting the carburetor ..................................6-16
Adjusting the engine idling speed ...................6-17
Adjusting the throttle cable free play ...............6-17
Adjusting the valve clearance .........................6-18
1234
56
U5MXE0.book Page 1 Thursday, December 20, 2001 2:08 PM
Page 6 of 72

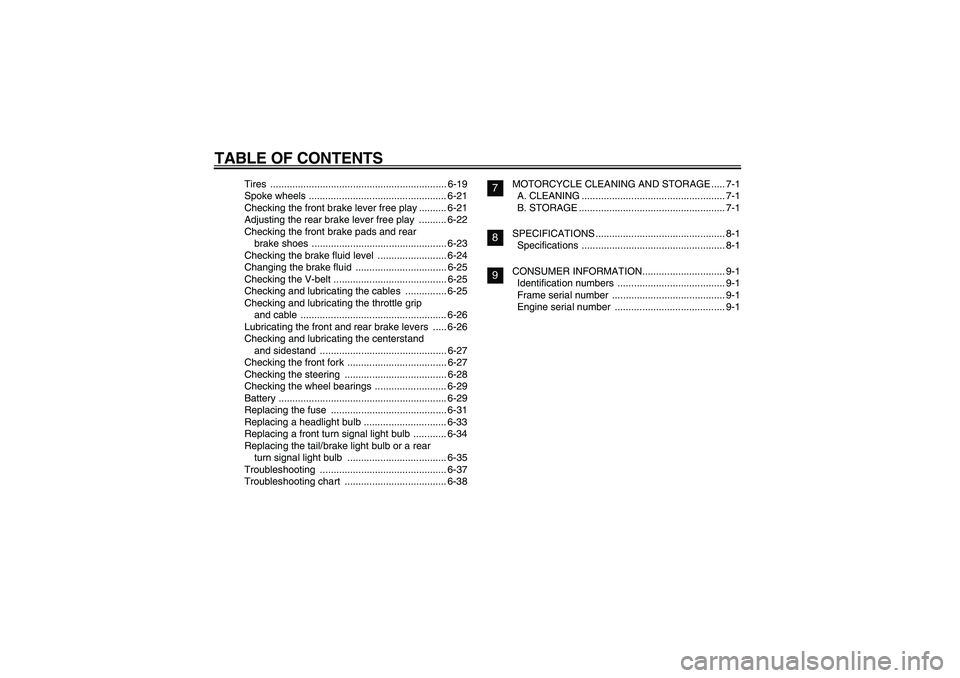

TABLE OF CONTENTS
Tires ................................................................ 6-19
Spoke wheels .................................................. 6-21
Checking the front brake lever free play .......... 6-21
Adjusting the rear brake lever free play .......... 6-22
Checking the front brake pads and rear
brake shoes ................................................. 6-23
Checking the brake fluid level ......................... 6-24
Changing the brake fluid ................................. 6-25
Checking the V-belt ......................................... 6-25
Checking and lubricating the cables ............... 6-25
Checking and lubricating the throttle grip
and cable ..................................................... 6-26
Lubricating the front and rear brake levers ..... 6-26
Checking and lubricating the centerstand
and sidestand .............................................. 6-27
Checking the front fork .................................... 6-27
Checking the steering ..................................... 6-28
Checking the wheel bearings .......................... 6-29
Battery ............................................................. 6-29
Replacing the fuse .......................................... 6-31
Replacing a headlight bulb .............................. 6-33
Replacing a front turn signal light bulb ............ 6-34
Replacing the tail/brake light bulb or a rear
turn signal light bulb .................................... 6-35
Troubleshooting .............................................. 6-37
Troubleshooting chart ..................................... 6-38MOTORCYCLE CLEANING AND STORAGE ..... 7-1
A. CLEANING .................................................... 7-1
B. STORAGE ..................................................... 7-1
SPECIFICATIONS ............................................... 8-1
Specifications .................................................... 8-1
CONSUMER INFORMATION.............................. 9-1
Identification numbers ....................................... 9-1
Frame serial number ......................................... 9-1
Engine serial number ........................................ 9-1
789
U5MXE0.book Page 2 Thursday, December 20, 2001 2:08 PM
Page 7 of 72
1
2
3
4
56
7
8
9
1-1
EAU00021
1-

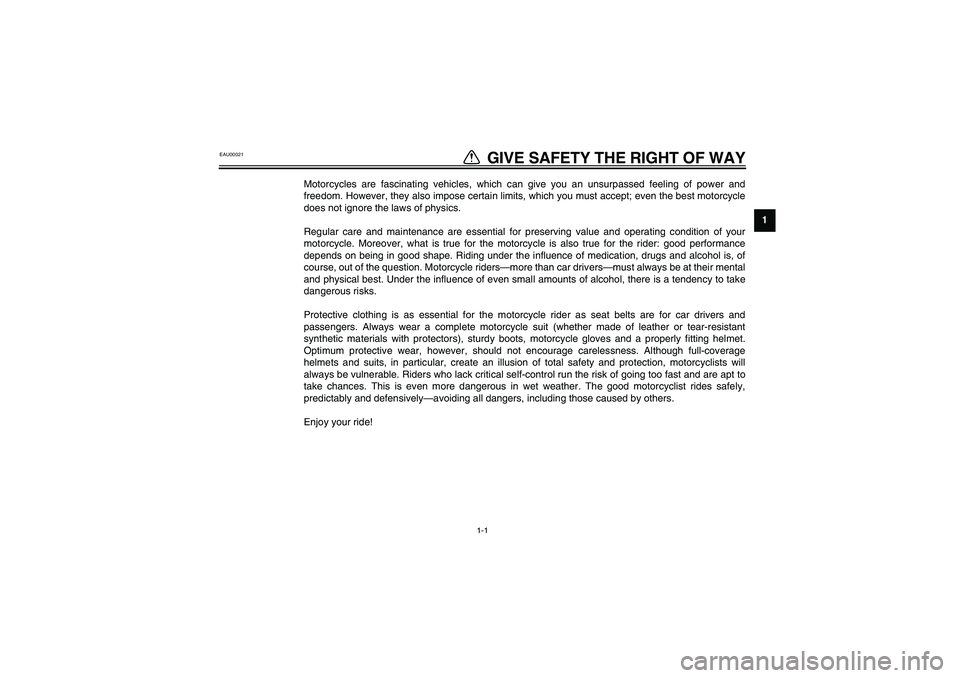

GIVE SAFETY THE RIGHT OF WAY
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and
freedom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your
motorcycle. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders—more than car drivers—must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and
passengers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant
synthetic materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet.
Optimum protective wear, however, should not encourage carelessness. Although full-coverage
helmets and suits, in particular, create an illusion of total safety and protection, motorcyclists will
always be vulnerable. Riders who lack critical self-control run the risk of going too fast and are apt to
take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively—avoiding all dangers, including those caused by others.
Enjoy your ride!
U5MXE0.book Page 1 Thursday, December 20, 2001 2:08 PM
Page 8 of 72
2-1
2
EAU00026

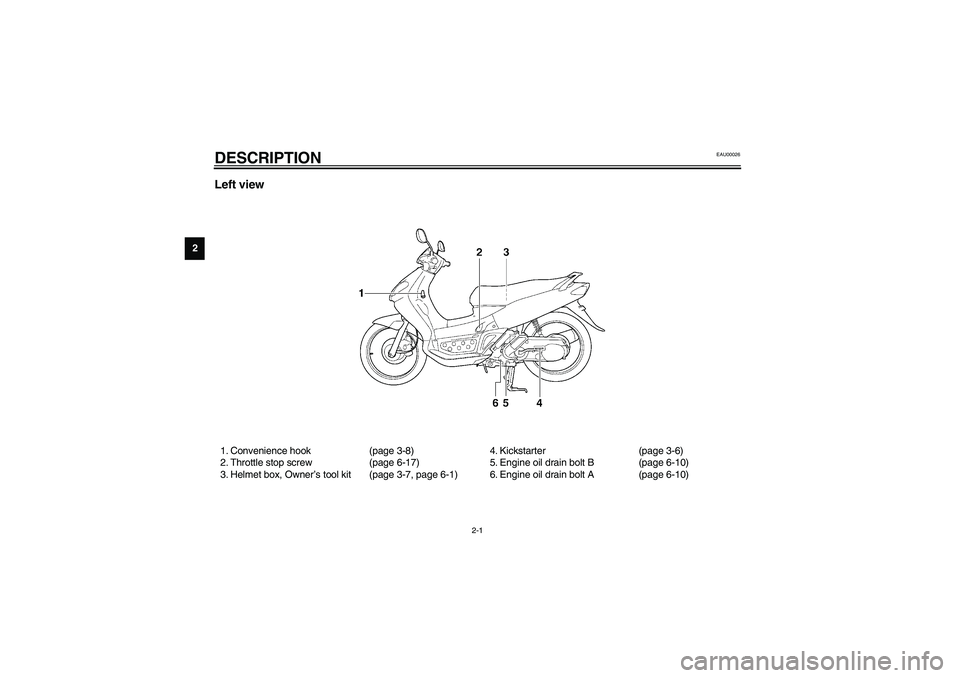

2-DESCRIPTION Left view1. Convenience hook (page 3-8)
2. Throttle stop screw (page 6-17)
3. Helmet box, Owner’s tool kit (page 3-7, page 6-1)4. Kickstarter (page 3-6)
5. Engine oil drain bolt B (page 6-10)
6. Engine oil drain bolt A (page 6-10)
U5MXE0.book Page 1 Thursday, December 20, 2001 2:08 PM
Page 9 of 72
DESCRIPTION
2-2
2
Right view7. Engine oil filler cap (page 6-9)
8. Air filter element (page 6-13)
9. Battery (page 6-29)
10. Fuses (page 6-31)
U5MXE0.book Page 2 Thursday, December 20, 2001 2:08 PM
Page 10 of 72
DESCRIPTION
2-3
2

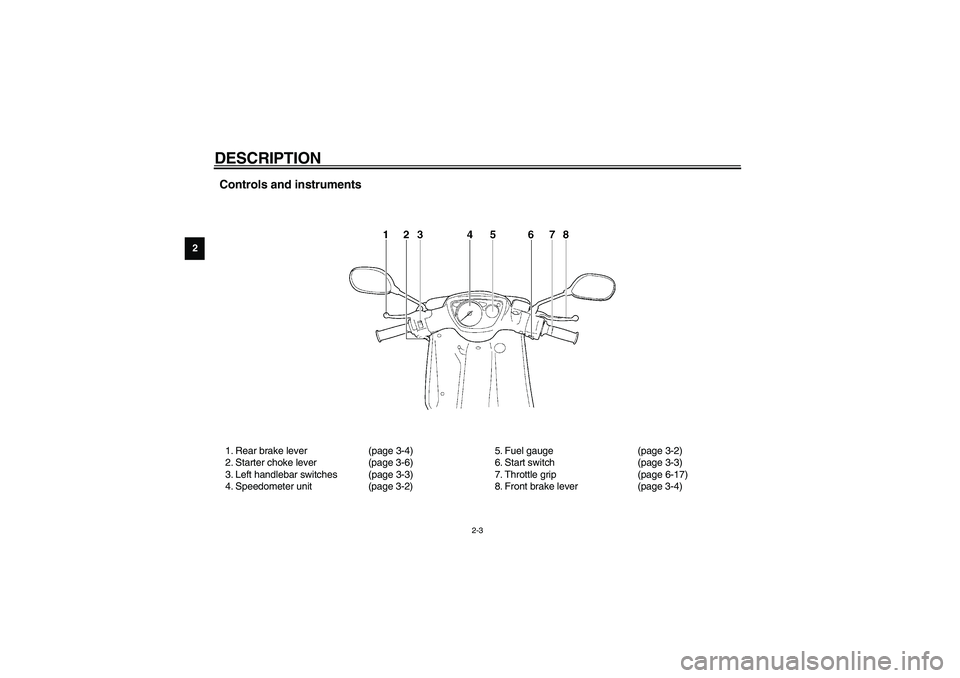

Controls and instruments1. Rear brake lever (page 3-4)
2. Starter choke lever (page 3-6)
3. Left handlebar switches (page 3-3)
4. Speedometer unit (page 3-2)5. Fuel gauge (page 3-2)
6. Start switch (page 3-3)
7. Throttle grip (page 6-17)
8. Front brake lever (page 3-4)
U5MXE0.book Page 3 Thursday, December 20, 2001 2:08 PM
