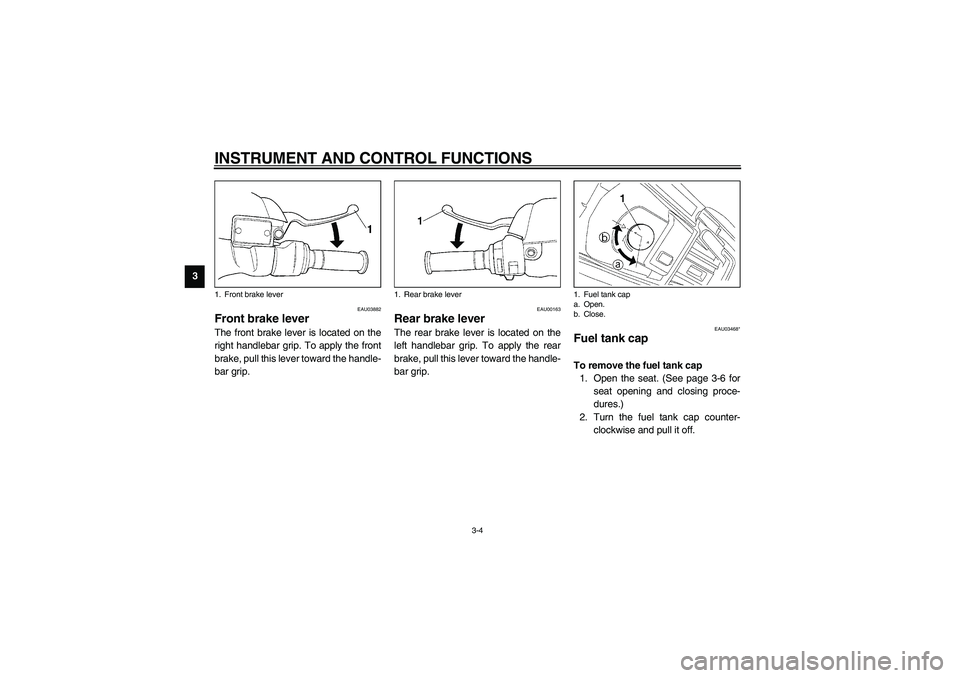

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU03882
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU00163
Rear brake lever The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAU03468*
Fuel tank cap To remove the fuel tank cap
1. Open the seat. (See page 3-6 for
seat opening and closing proce-
dures.)
2. Turn the fuel tank cap counter-
clockwise and pull it off.
1. Front brake lever
1. Rear brake lever
1. Fuel tank cap
a. Open.
b. Close.
