Instrument and control functions
6-6
6
EAUN2800
Multi-function display
The multi-function display is equipped
with the following:
an odometer (ODO)
two tripmeters (TRIP 1 and TRIP 2)
a fuel reserve tripmeter (TRIP F)
an oil change tripmeter (OIL TRIP)
an oil change indicator
a V-belt replacement tripmeter (V-
BELT TRIP)
a V-belt replacement indicator
an instantaneous fuel consump-
tion display (F/ECO)
an average fuel consumption dis-
play (AVE F/ECO)
a battery voltage display (BATT)a traction control system display
(TCS)
Push the “MENU” switch to change
the display in the following order:
ODO and F/ECO → TRIP 1 and AVE
F/ECO → TRIP 2 and AVE F/ECO →
TRIP F → BATT → TCS → OIL TRIP →
V-BELT TRIP → ODO and F/ECO
TIPThe fuel reserve tripmeter appears
only when you are low on fuel.
The oil change tripmeter and V-
belt replacement tripmeter are not
displayed while the vehicle is
moving.
There is an average fuel consump-
tion display for each tripmeter
(TRIP 1 and TRIP 2). When a trip-
meter is reset, the average fuel
consumption display for that trip-
meter will also be reset.
EAU86890
Odometer
The odometer shows the total distance
traveled by the vehicle.TIPThe odometer will lock at 999999 and
cannot be reset.
1. Multi-function display
1
1. Odometer
1
UBALE0E0.book Page 6 Wednesday, September 30, 2020 1:37 PM
Page 65 of 114

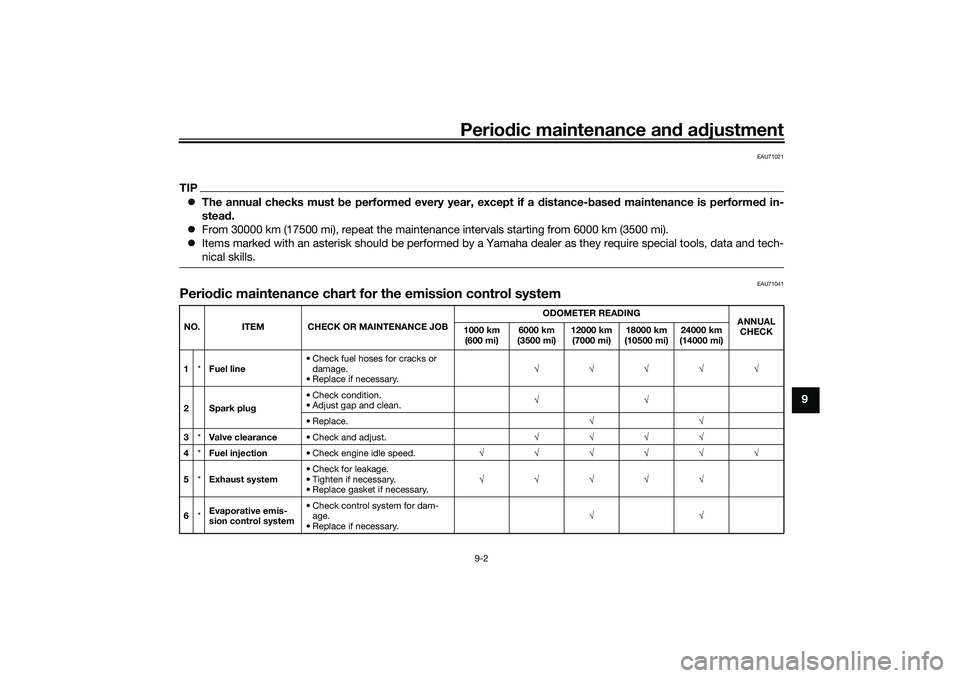

Periodic maintenance and adjustment
9-2
9
EAU71021
TIPThe annual checks must be performed every year, except if a distance-based maintenance is performed in-
stead.
From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and tech-
nical skills.
EAU71041
Periodic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Fuel line• Check fuel hoses for cracks or
damage.
• Replace if necessary.√√√√√
2 Spark plug• Check condition.
• Adjust gap and clean.√√
•Replace.√√
3*Valve clearance• Check and adjust.√√√√
4*Fuel injection• Check engine idle speed.√√√√√√
5*Exhaust system• Check for leakage.
• Tighten if necessary.
• Replace gasket if necessary.√√√√√
6*Evaporative emis-
sion control system• Check control system for dam-
age.
• Replace if necessary.√√
UBALE0E0.book Page 2 Wednesday, September 30, 2020 1:37 PM
Page 66 of 114
Periodic maintenance and adjustment
9-3
9
EAU71342
General maintenance and lubrication chartNO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Diagnostic system
check• Perform dynamic inspection us-
ing Yamaha diagnostic tool.
• Check the error codes.√√√√√√
2*Air filter element• Replace. Every 18000 km (10500 mi)
3Air filter case check
hose• Clean.√√√√√
4*V-belt case air filter
element• Clean.
• Replace if necessary.√√√√√
5*Battery• Check voltage.
• Charge if necessary.√√√√√√
6*Front brake• Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary.√√√√√√
7*Rear brake• Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary.√√√√√√
8*Brake hose• Check for cracks or damage.√√√√√
• Replace. Every 4 years
9*Brake fluid• Change. Every 2 years
10*Wheels• Check runout and for damage.
• Replace if necessary.√√√√
UBALE0E0.book Page 3 Wednesday, September 30, 2020 1:37 PM
Page 67 of 114
Periodic maintenance and adjustment
9-4
9
11*Tires• Check tread depth and for dam-
age.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.√√√√√
12*Wheel bearings• Check bearing for looseness or
damage.√√√√
13*Steering bearings• Check bearing assemblies for
looseness.√√√√
• Moderately repack with lithium-
soap-based grease.√
14*Chassis fasteners• Make sure that all nuts, bolts and
screws are properly tightened.√√√√√
15Front and rear
brake lever pivot
shaft• Lubricate with silicone grease.√√√√√
16Sidestand, center-
stand• Check operation.
• Lubricate with lithium-soap-
based grease.√√√√√
17*Sidestand switch• Check operation and replace if
necessary.√√√√√√
18*Front fork• Check operation and for oil leak-
age.
• Replace if necessary.√√√√
19*Shock absorber as-
semblies• Check operation and for oil leak-
age.
• Replace if necessary.√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
UBALE0E0.book Page 4 Wednesday, September 30, 2020 1:37 PM
Page 68 of 114
Periodic maintenance and adjustment
9-5
9
20 Engine oil• Change (warm engine before
draining).
• Check oil level and vehicle for oil
leakage.At the initial interval and when the oil change indicator flashes or
comes on.√
21*Engine oil strainer• Clean.√
22*Final transmission
oil• Check vehicle for oil leakage.√√√√√
• Change.√√√
23*Cooling system• Check coolant level and vehicle
for coolant leakage.√√√√√
• Change. Every 3 years
24*V-belt• Replace. When the V-belt replacement indicator flashes or comes on
25*Front and rear
brake switches• Check operation.√√√√√√
26*Moving parts and
cables• Lubricate.√√√√√
27*Throttle grip hous-
ing and cable• Check operation and free play.
• Adjust the throttle cable free play
if necessary.
• Lubricate the throttle grip housing
and cable.√√√√√
28*Lights, signals and
switches• Check operation.
• Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
