Instrument and control functions
3-17
3
WARNING
EWAT1052
 Do not exceed the load limit of 5
k g (11 l b) for the rear stora ge
compartment.
 Do not excee d the maximum
loa d of 168 k g (370 l b) for the ve-
hicle.
NOTICE
ECA21150
Keep the followin g points in min d
when usin g the stora ge compart-
ment.  Since the storag e compartment
accumulates heat when ex-
posed to the sun an d/or the en-
g ine heat, do not store anythin g
suscepti ble to heat, consum-
a b les or flammab le items inside
it.
 To avoi d humi dity from sprea d-
in g throu gh the stora ge com-
partment, wrap wet articles in a
plastic bag b efore storin g them
in the compartment.
 Since the storag e compartment
may get wet while the vehicle is
b ein g washe d, wrap any articles
store d in the compartment in a
plastic bag .
 Do not keep anythin g valua ble
or breakab le in the stora ge
compartment.
TIP
Do not leave your vehicle unattended
with the seat open.
EAU15306
Si destan d
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situa-
tions. (See the following section for an
explanation of the ignition circuit cut-
off system.)
WARNING
EWA10242
The vehicle must not be ri dden with
the si destan d d own, or if the si de-
stan d cannot b e properly move d up
(or does not stay up), otherwise the
si destan d coul d contact the groun d
an d d istract the operator, resultin g
in a possi ble loss of control.
Yamaha’s i gnition circuit cut-off
system has been desi gne d to assist
the operator in fulfillin g the respon-
si bility of raisin g the si destan d b e-
fore startin g off. Therefore, check
this system re gularly an d have a
Yamaha dealer repair it if it does not
function properly.
UBV3E0E0.book Page 17 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-18
3
EAU66800
Ig nition circuit cut-off system
Check the operation of the sidestand
switch according to the following pro-
cedure.
UBV3E0E0.book Page 18 Monday, September 26, 2016 3:42 PM

Instrument and control functions
3-19
3

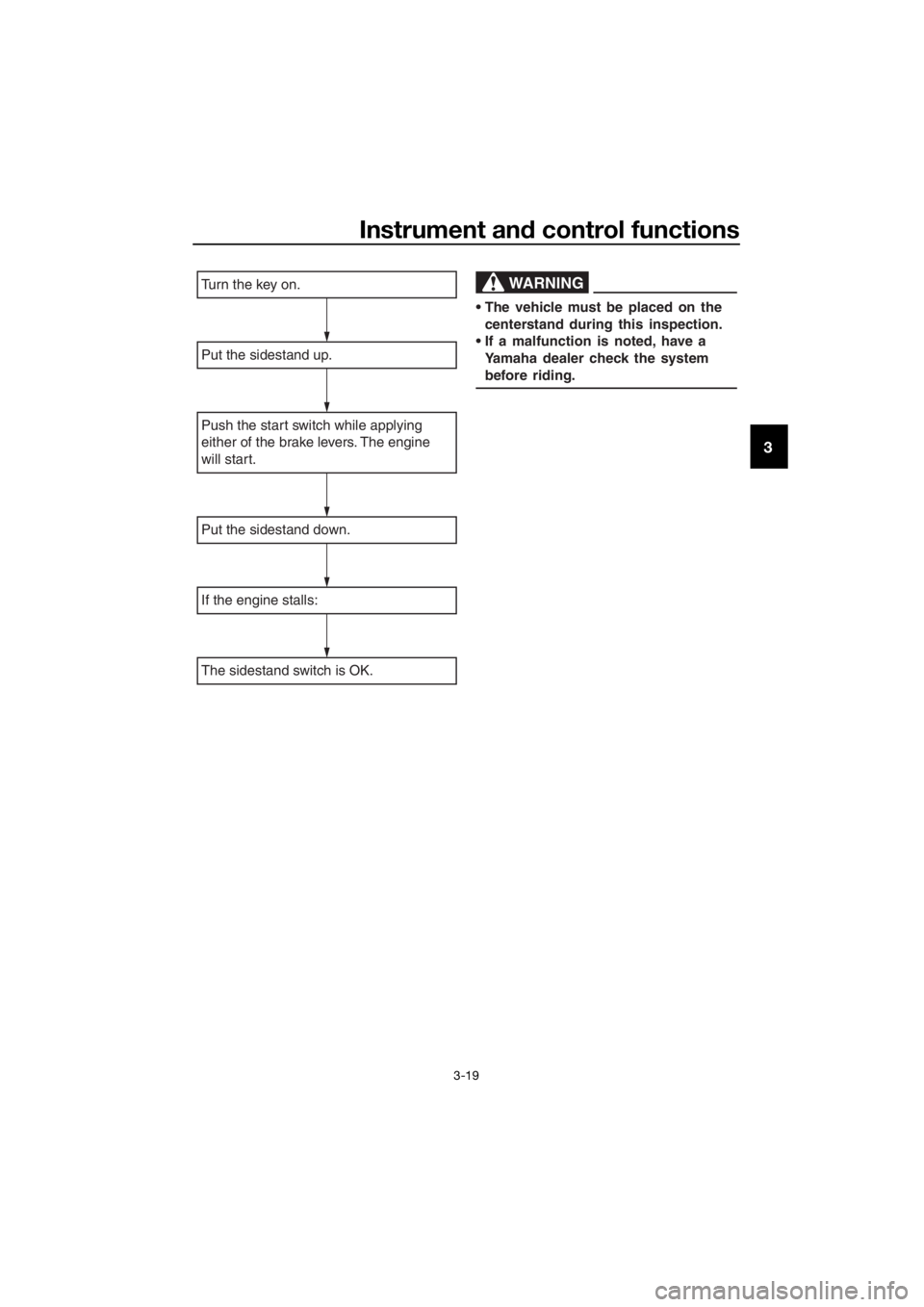

Turn the key on.
Put the sidestand up.
Push the start switch while applying
either of the brake levers. The engine
will start.
Put the sidestand down.
If the engine stalls:
The sidestand switch is OK.
WARNING
The vehicle must be placed on the
centerstand during this inspection.
If a malfunction is noted, have a Yamaha dealer check the system
before riding.
UBV3E0E0.book Page 19 Monday, September 26, 2016 3:42 PM

For your safety – pre-operation checks
4-1
4
EAU63440
Inspect your vehicle each time you use it to make sure the vehicle is in safe oper-
ating condition. Always follow the inspection and maintenance procedures and
schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility
of an acci dent or equipment d amage. Do not operate the vehicle if you fin d
any pro blem. If a pro blem cannot be correcte d b y the proce dures provi ded
in this manual, have the vehicle inspecte d b y a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKSPAGE
Fuel • Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank overflow hose for obstructions, cracks
or damage, and check hose connection. 3-13,
3-15
En gine oil • Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage. 6-10
Final transmission oil • Check vehicle for oil leakage. 6-12
Coolant • Check coolant level in reservoir.
• If necessary, add recommended coolant to specified
level.
• Check cooling system for leakage. 6-13
Front brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic
system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-23,
6-24, 6-25
Rear brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic
system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-23,
6-24, 6-25
Throttle grip • Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip
free play and lubricate cable and grip housing. 6-19,
6-27
UBV3E0E0.book Page 1 Monday, September 26, 2016 3:42 PM

For your safety – pre-operation checks
4-2
4
Control cables • Make sure that operation is smooth.
• Lubricate if necessary. 6-27
Wheels an d tires •Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary. 6-20,
6-22
Brake levers • Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.
6-28
Centerstan d, si de-
stan d • Make sure that operation is smooth.
• Lubricate pivots if necessary.
6-28
Chassis fasteners • Make sure that all nuts, bolts and screws are properly
tightened.
• Tighten if necessary. —
Instruments, li ghts,
si gnals an d switches • Check operation.
• Correct if necessary.
—
Si destan d switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer
check vehicle. 3-17
ITEM CHECKS PAGE
UBV3E0E0.book Page 2 Monday, September 26, 2016 3:42 PM

Operation and important rid ing points
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lea d to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU66721
Startin g the eng ine
NOTICE
ECA10251
See pag e 5-4 for en gine break-in in-
structions prior to operatin g the ve-
hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up. See page 3-18 for more information. 1. Turn the main switch on. The engine trouble warning
light and the coolant temper-
ature warning light should
come on for a few seconds,
then go off.
 The ABS warning light should
come on and stay on until the
vehicle reaches a traveling
speed of 10 km/h (6 mi/h).
NOTICE
ECA15486
If a warnin g li ght does not come on
initially when the main switch is
turne d on, or if a warnin g li ght re-
mains on, see pa ge 3-3 for the corre-
spon din g warnin g li ght circuit
check.
2. Close the throttle completely.
3. While applying the front or rear brake, push the start switch.
If the engine does not start, re-
lease the start switch, wait a few
seconds, and then try again. Each
starting attempt should be as
short as possible to preserve the
battery. Do not crank the engine
more than 10 seconds on any one
attempt.
UBV3E0E0.book Page 1 Monday, September 26, 2016 3:42 PM

Operation and important ri din g points
5-2
5
NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
EAU45093
Startin g off
1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand,
push the scooter off the center-
stand.
2. Sit astride the seat, and then ad- just the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.
1. Grab bar
1
UBV3E0E0.book Page 2 Monday, September 26, 2016 3:42 PM

Operation and important rid ing points
5-3
5
EAU16782
Acceleration an d d eceleration
The speed can be adjusted by opening
and closing the throttle. To increase
the speed, turn the throttle grip in di-
rection (a). To reduce the speed, turn
the throttle grip in direction (b).
EAU16794
Brakin g
WARNING
EWA10301
Avoi d b rakin g har d or su ddenly
(especially when leanin g over to
one si de), otherwise the scooter
may ski d or overturn.
 Railroa d crossin gs, streetcar
rails, iron plates on roa d con-
struction sites, an d manhole
covers become extremely slip-
pery when wet. Therefore, slow
d own when approachin g such
areas an d cross them with cau-
tion.
 Keep in min d that b raking on a
wet roa d is much more difficult.
 Ride slowly d own a hill, as b rak-
in g d ownhill can be very d iffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes simultaneously while gradually in-
creasing the pressure.
(b)
(a)
ZAUM0199
UBV3E0E0.book Page 3 Monday, September 26, 2016 3:42 PM

Operation and important ri din g points
5-4
5
EAU16821
Tips for re ducin g fuel con-
sumption
Fuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
 Avoid high engine speeds during
acceleration.
 Avoid high engine speeds with no
load on the engine.
 Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU16842
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the fol-
lowing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that
might result in engine overheating
must be avoided.
EAUM2012
0–1000 km (0–600 mi)
Avoid prolonged operation above 1/3
throttle. NOTICE: After 1000 km (600
mi) of operation, be sure to replace
the en gine oil an d final transmission
oil.
[ECA11662]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 1/2
throttle.
1600 km (1000 mi) an d b eyon d
The vehicle can now be operated nor-
mally.
NOTICE
ECA10271
If any en gine trou ble shoul d occur
d urin g the en gine break-in perio d,
imme diately have a Yamaha dealer
check the vehicle.
UBV3E0E0.book Page 4 Monday, September 26, 2016 3:42 PM

Operation and important rid ing points
5-5
5
EAU17214
Parkin g
When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10312
Since the en gine an d exhaust
system can become very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them an d b e burne d.
 Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flamma ble materials which
mi ght catch fire.
UBV3E0E0.book Page 5 Monday, September 26, 2016 3:42 PM
