Periodic maintenance an d a djustment
6-31
6

Batteries prod uce explosive hy-
d ro gen gas. Therefore, keep
sparks, flames, ci garettes, etc.,
away from the battery an d pro-
vi de sufficient ventilation when
char gin g it in an enclose d
space.
 KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To char ge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quick-
ly if the vehicle is equipped with op-
tional electrical accessories.
NOTICE
ECA16522
To char ge a VRLA (Valve Re gulate d
Lea d Aci d) battery, a special (con-
stant-volta ge) battery char ger is re-
quire d. Usin g a conventional battery
char ger will d amage the b attery.
To store the b attery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removin g the
b attery, be sure to turn the main
switch off, then disconnect the
ne gative lea d before discon-
nectin g the positive lea d.
[ECA16304]
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary. 3. Fully charge the battery before in-
stallation. NOTICE: When install-
in g the b attery, be sure to turn
the main switch off, then con-
nect the positive lea d before
connectin g the ne gative lea d.
[ECA16842]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16531
Always keep the b attery charged .
Storin g a dischar ged battery can
cause permanent battery damag e.
UBV3E0E0.book Page 31 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-32
6
EAU66793
Replacin g the fuses
The fuse boxes, which contain the fus-
es for the individual circuits, are locat-
ed under the seat. (See page 3-16.)
If a fuse is blown, replace it as follows.
1. Turn off the electrical circuit in question, and then turn off the
main switch.
2. Open the seat. (See page 3-16.)
3. Remove the battery cover by re- moving the screws. 4. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive dam-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
5. Turn the main switch on, and then
turn on the electrical circuit in
question to check if the device op-
erates.
1. Fuse box
1. Main fuse 1
2. ABS solenoid fuse
3. Main fuse 2
4. Taillight fuse
5. Signaling system fuse
6. ABS control unit fuse
7. ABS motor fuse
8. Spare fuse
1
123456
78
1. Battery cover
2. Screw
Specified fuses:
Main fuse: 15.0 A
Main fuse 2:
7.5 A
Taillight fuse: 7.5 A
Signaling system fuse: 7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse: 15.0 A
ABS control unit fuse: 7.5 A
1
2
UBV3E0E0.book Page 32 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-33
6
TIP
If the fuse immediately blows again,
have a Yamaha dealer check the elec-
trical system.
6. Install the battery cover by install-
ing the screws.
7. Close the seat.
EAU62850
Hea dlig ht
This model is equipped with an LED-
type headlight.
If a headlight does not come on, have
a Yamaha dealer check its electrical
circuit.
NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the head lig ht lens.
UBV3E0E0.book Page 33 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-34
6
EAU67290
Replacin g an auxiliary lig ht
b ul b
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the windshield by remov- ing the screws.
2. Remove the headlight cover by re- moving the bolts.
3. Remove the auxiliary light bulb socket (together with the bulb) by
turning the socket counterclock-
wise. 4. Remove the burnt-out bulb by
pulling it out.
5. Insert a new bulb into the socket.
6. Install the socket (together with the bulb) by turning it clockwise.
7. Install the headlight cover by in- stalling the bolts.
8. Install the windshield by installing the screws.
1. Windshield
2. Screw
1. Headlight cover
2. Bolt
22
1
2
1
1. Auxiliary light bulb socket
1. Auxiliary light bulb
1
1
UBV3E0E0.book Page 34 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-35
6
EAU67300
Brake li ght
This model is equipped with an LED-
type brake light.
If the brake light does not come on,
have a Yamaha dealer check it.
EAU67310
Replacin g the tailli ght bul b
1. Open the seat. (See page 3-16.)
2. Remove the grab bar by removing
the bolts.
3. Remove the taillight cover by re- moving the screws.
4. Remove the quick fasteners and screws.
1. Grab bar
2. Bolt
1. Taillight cover
2. Screw
1
2
12
UBV3E0E0.book Page 35 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-36
6
5. Pull the left and right side coversslightly outward and pull the tail-
light unit rearward. 6. Remove the taillight bulb socket
(together with the bulb) by turning
it counterclockwise.
7. Remove the burnt-out bulb by pulling it out.
8. Insert a new bulb into the socket.
9. Install the socket (together with the bulb) by turning it clockwise.
1. Quick fastener
1. Screw
2. Quick fastener
1. Screw
2. Quick fastener
1
2 1
1
2
1. Taillight unit
2. Side cover
1. Taillight bulb socket
1. Taillight bulb
1
2
1
1
UBV3E0E0.book Page 36 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-37
6
10. Place the taillight unit in the origi-
nal position, and then install the
screws and quick fasteners.
11. Install the taillight cover by install- ing the screws.
12. Install the grab bar by installing the bolts, and then tightening them to
the specified torque.
13. Close the seat.
EAU43054
Replacin g a front turn si gnal
lig ht bul b
1. Place the vehicle on the center-
stand.
2. Remove the turn signal light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by turning it clockwise.
Tightening torque:
Grab bar bolt: 17 N·m (1.7 kgf·m, 12 lb·ft)
1. Turn signal light bulb socket
1. Turn signal light bulb
1
1
UBV3E0E0.book Page 37 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-38
6
EAU67320
Replacin g a rear turn si gnal
li g ht bul b
1. Open the seat. (See page 3-16.)
2. Remove the grab bar by removing
the bolts.
3. Remove the taillight cover by re- moving the screws.
4. Remove the turn signal light bulb socket (together with the bulb) by
turning it counterclockwise. 5. Remove the burnt-out bulb by
pulling it out.
6. Insert a new bulb into the socket.
7. Install the socket (together with the bulb) by turning it clockwise.
8. Install the taillight cover by install- ing the screws.
9. Install the grab bar by installing the bolts, and then tightening them to
the specified torque.
1. Grab bar
2. Bolt
1. Taillight cover
2. Screw
1
2
12
1. Turn signal light bulb socket
1. Turn signal light bulb
1
1
UBV3E0E0.book Page 38 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-39
6
10. Close the seat.
EAU25883
Trou
bleshootin g
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot li ghts from water
heaters or furnaces. Gasoline or
g asoline vapors can i gnite or ex-
plo de, causin g severe injury or prop-
erty damag e.
Tightening torque:
Grab bar bolt: 17 N·m (1.7 kgf·m, 12 lb·ft)
UBV3E0E0.book Page 39 Monday, September 26, 2016 3:42 PM

Periodic maintenance an d a djustment
6-40
6
EAU68020

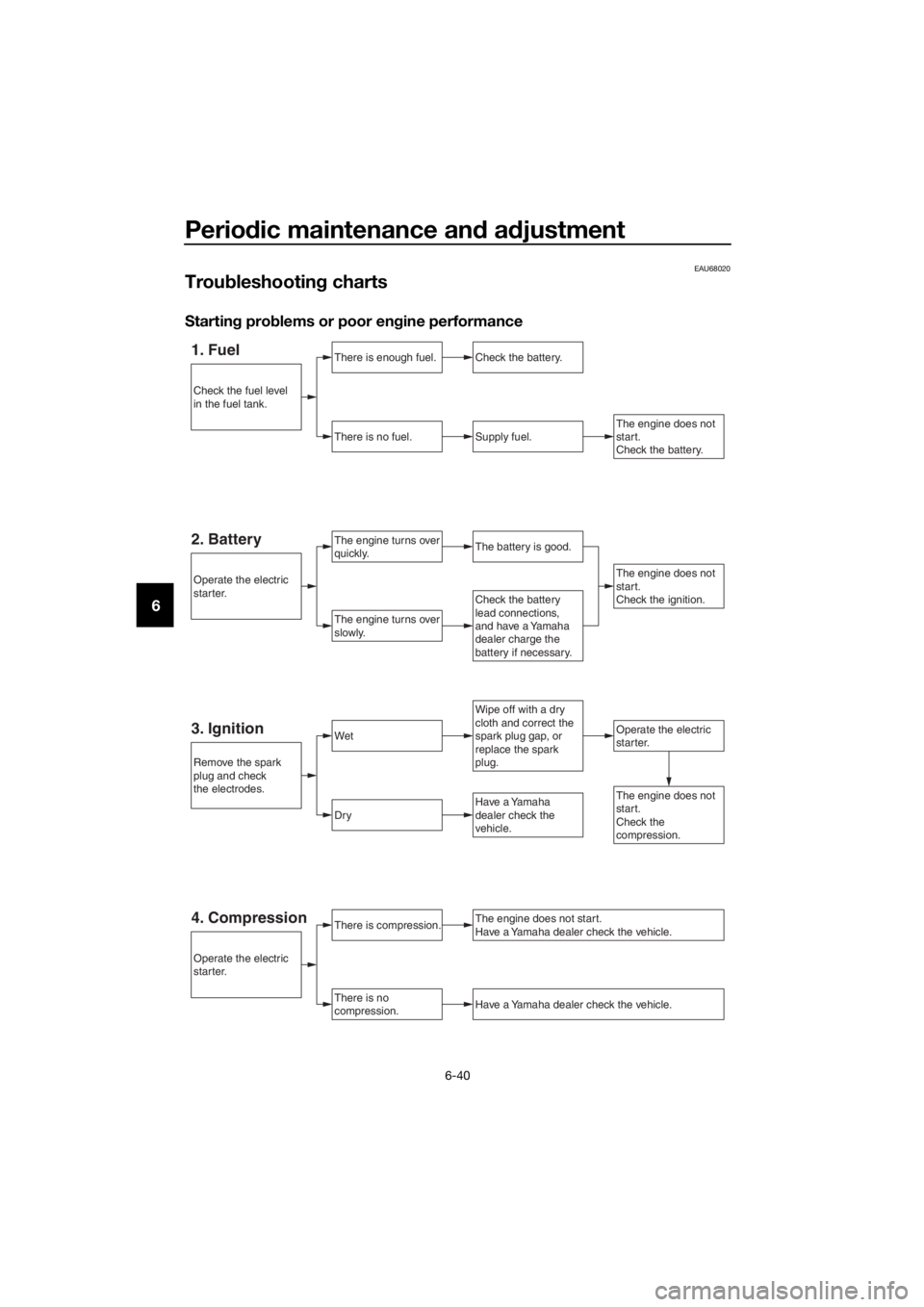

Trou bleshootin g charts
Startin g pro blems or poor en gine performance
1. FuelThere is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine turns over
quickly.
The engine turns over
slowly.
Operate the electric
starter.
The engine does not
start.
Check the battery.
Wipe off with a dry
cloth and correct the
spark plug gap, or
replace the spark
plug.
Check the battery
lead connections,
and have a Yamaha
dealer charge the
battery if necessary.
2. BatteryThe battery is good.
The engine does not
start.
Check the ignition.
3. IgnitionWet
Dry
There is compression.
There is no
compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.
Have a Yamaha dealer check the vehicle.
The engine does not
start.
Check the
compression.Have a Yamaha
dealer check the
vehicle.
Remove the spark
plug and check
the electrodes.
Operate the electric
starter.
Operate the electric
starter.
Check the fuel level
in the fuel tank.
4. Compression
