Page 10 of 70
TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Safe riding ........................................1-1
Location of important labels .............1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Handlebar switch .............................3-1
Speed limiter and power reduction
plate .............................................3-1
Front brake lever .............................3-2
Rear brake lever ..............................3-3
Fuel tank cap ...................................3-3
Fuel ..................................................3-3
Fuel tank breather hose ...................3-5
2-stroke engine oil ...........................3-5
Fuel cock .........................................3-5
Starter (choke) lever “
1
” .................3-6
Kickstarter ........................................3-6
Seat .................................................3-7
PRE-OPERATION CHECKS
...............4-1
Pre-operation check list ...................4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting and warming up a cold
engine .......................................... 5-1
Starting a warm engine ................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance chart for the
emission control system .............. 6-2
General maintenance and lubrication
chart ............................................. 6-3
Checking the spark plug .................. 6-5
Removing the power reduction
plate ............................................. 6-6
Transmission oil .............................. 6-7
Middle and final gear cases ............ 6-8
Cleaning the air filter element ......... 6-8
Cleaning the spark arrester ............. 6-9
Adjusting the carburetor ................ 6-10
Adjusting the engine idling
speed ......................................... 6-10
Checking the throttle cable free
play ............................................ 6-11
Tires .............................................. 6-11Panel wheels ................................. 6-13
Accessories and replacement
parts ........................................... 6-13
Adjusting the front and rear brake
lever free play ............................ 6-14

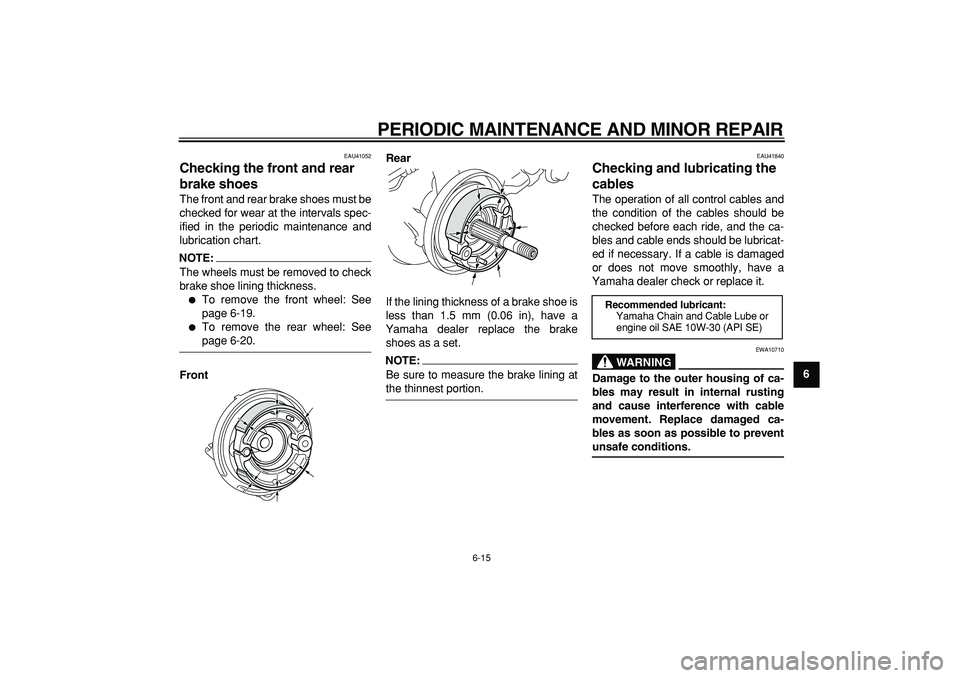

Checking the front and rear brake
shoes ......................................... 6-15
Checking and lubricating the
cables ........................................ 6-15
Checking and lubricating the throttle
grip and cable ............................ 6-16
Adjusting the Autolube pump ........ 6-16
Lubricating the front and rear brake
levers ......................................... 6-16
Checking and lubricating the
centerstand ................................ 6-17
Checking the front fork .................. 6-17
Checking the steering ................... 6-18
Checking the wheel bearings ........ 6-18

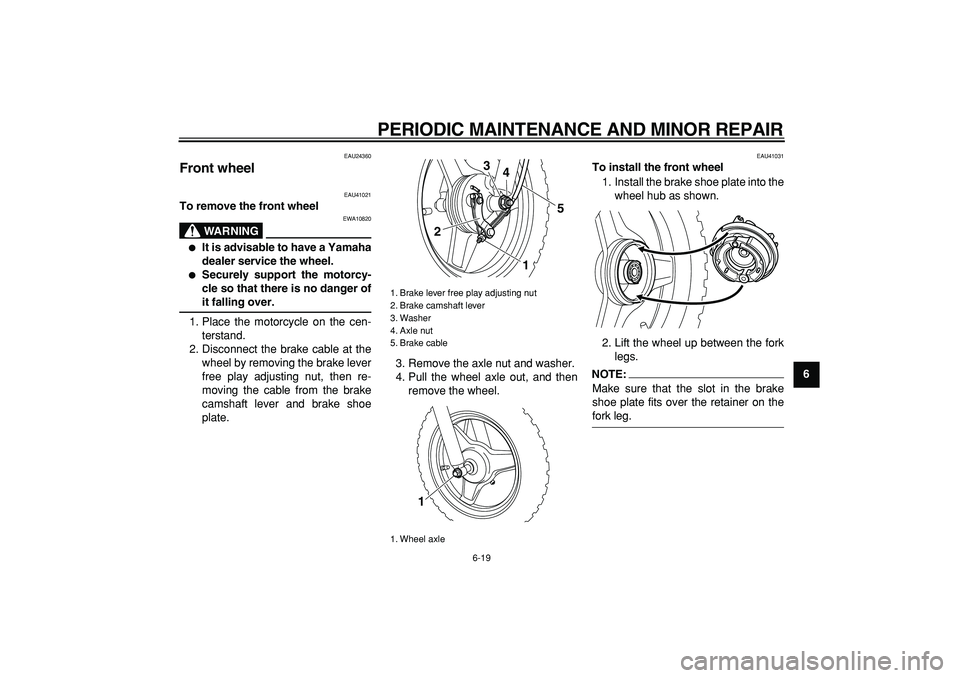

Front wheel ................................... 6-19

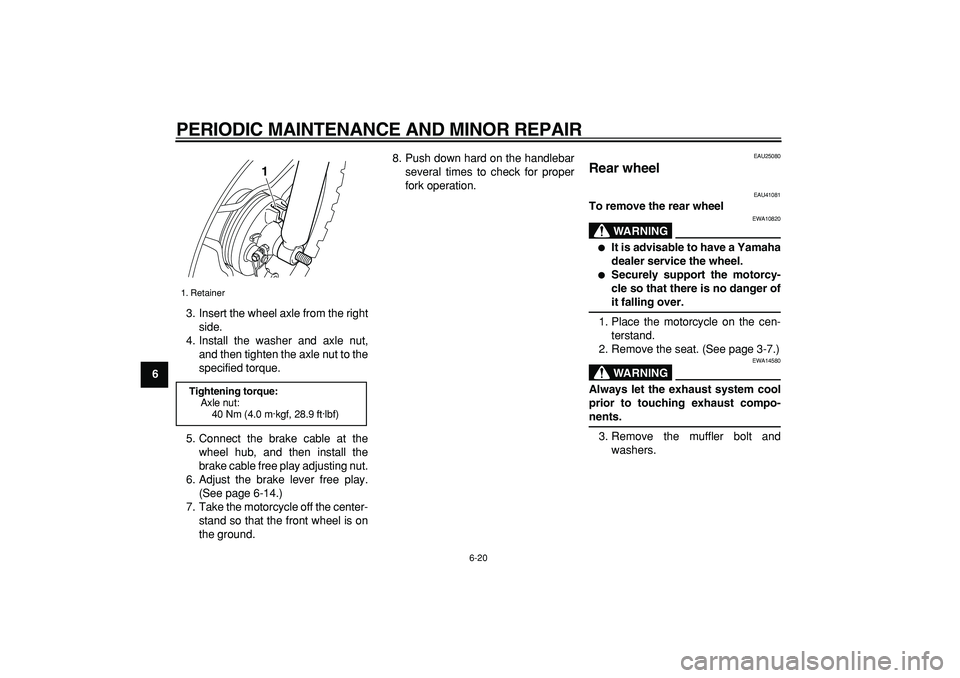

Rear wheel .................................... 6-20
Troubleshooting ............................ 6-23
Troubleshooting chart ................... 6-24
MOTORCYCLE CARE AND
STORAGE
........................................... 7-1
Matte color caution .......................... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
SPECIFICATIONS
............................. 8-1
Page 12 of 70
1-1
1
SAFETY INFORMATION
EAU40931
Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This motorcycle is designed for
off-road use only, therefore, it is il-
legal to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.
This motorcycle is designed to car-
ry the operator only. No passen-
gers.
Many accidents involve inexperi-
enced operators.
Make sure that the operator is
qualified and that you only lend
your motorcycle to other quali-
fied operators.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to EXCESSIVE SPEED or un-dercornering (insufficient lean an-
gle for the speed). Never travel
faster than warranted by condi-
tions.
Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.
The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during operation
to maintain control of the motorcy-
cle.
Never ride under the influence of
alcohol or other drugs.
Protective apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.
Always wear an approved helmet.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairmentof vision that could delay seeing a
hazard.
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your mo-
torcycle illegal to use.
Loading and accessories
Adding accessories to your motorcycle
Page 31 of 70
PRE-OPERATION CHECKS
4-2
2
3
45
6
7
8
9
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
Fuel
Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-3
2-stroke engine oil
Check oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.3-5
Middle and final gear cases
Check vehicle for grease leakage. 6-8
Front brake
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-14, 6-15
Rear brake
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-14, 6-15
Throttle grip
Make sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-11, 6-16
Control cables
Make sure that operation is smooth.
Lubricate if necessary.6-15
Wheels and tires
Check for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-11, 6-13
Brake levers
Make sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-16
Centerstand
Make sure that operation is smooth.
Lubricate pivot if necessary.6-17
Page 39 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
2
3
4
5
67
8
9
EAU41752
General maintenance and lubrication chart
NO. ITEM CHECK OR MAINTENANCE JOBINITIALTHEREAFTER
EVERY
1
month3
months6
months6
months12
months
1*Front brake
Check operation.Adjust brake lever free play.Replace brake shoes. Whenever worn to the limit
2*Rear brakeCheck operation.Adjust brake lever free play.Replace brake shoes. Whenever worn to the limit
3*WheelsCheck runout and for damage.Replace if necessary.
4*TiresCheck tread depth and for damage.Replace if necessary.Check air pressure.Correct if necessary.
5*Wheel bearingsCheck bearings for smooth operation.Replace if necessary.
6*Steering bearingsCheck bearing assemblies for looseness.Moderately repack with lithium-soap-based
grease every 2 years.
7*Middle and final gear
casesCheck for grease leakage.Check gears for damage and wear.Lubricate gears with lithium-soap-based grease.Every 2 years
8*Chassis fastenersCheck all chassis fitting and fasteners.Correct if necessary.
9*Autolube pumpCheck operation.Correct if necessary.Bleed.
Page 48 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
1
2
3
4
5
6
7
8
9Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
Tire information
This motorcycle is equipped with panel
wheels and tube tires.
WARNING
EWA10460
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
WARNING
EWA14390
Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-sively worn tires decreases
riding stability and can lead to
loss of control.
The replacement of all
wheel-and brake-related parts,
including the tires, should be
left to a Yamaha dealer, who has
the necessary professional
knowledge and experience.
It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a
high-quality product.
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
12
Front tire:
Size:
2.50-10 4PR
Manufacturer/model:
BRIDGESTONE/KNOBBY
IRC/KNOBBY
Rear tire:
Size:
2.50-10 4PR
Manufacturer/model:
BRIDGESTONE/KNOBBY
IRC/KNOBBY
Page 49 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
2
3
4
5
67
8
9
EAU40780
Panel wheels
WARNING
EWA10610
The wheels on this model are not de-
signed for use with tubeless tires.
Do not attempt to use tubeless tires
on this model.
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or
damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride conservatively after changinga tire since the tire must seat itself
on the rim properly. Failure to al-
low proper seating may cause tire
failure, which may result in dam-
age to the motorcycle and injury to
the rider.
EAU40431
Accessories and replacement
parts
WARNING
EWA14481
The accessories or replacement
parts you choose for your vehicle
should be designed specifically for
this model, and they must be se-
curely mounted to maintain the in-
herent stability of the original
design. Genuine Yamaha Parts and
Accessories are designed and test-
ed to be compatible with your vehi-
cle. Yamaha recommends the use of
Genuine Yamaha Parts and Acces-
sories before making a purchase.
Use of non-Yamaha-approved ac-
cessories or replacement parts may
cause loss of handling stability and
riding safety. Since Yamaha cannot
control the quality of accessories or
parts manufactured by other compa-
nies, Yamaha cannot be held liable
for any consequences caused by
the use of items which have not
been approved by Yamaha.
Page 51 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
2
3
4
5
67
8
9
EAU41052
Checking the front and rear
brake shoes
The front and rear brake shoes must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
NOTE:
The wheels must be removed to check
brake shoe lining thickness.
To remove the front wheel: See
page 6-19.
To remove the rear wheel: See
page 6-20.
FrontRear
If the lining thickness of a brake shoe is
less than 1.5 mm (0.06 in), have a
Yamaha dealer replace the brake
shoes as a set.
NOTE:
Be sure to measure the brake lining at
the thinnest portion.
EAU41840
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10710
Damage to the outer housing of ca-
bles may result in internal rusting
and cause interference with cable
movement. Replace damaged ca-
bles as soon as possible to prevent
unsafe conditions.
Recommended lubricant:
Yamaha Chain and Cable Lube or
engine oil SAE 10W-30 (API SE)
Page 54 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
1
2
3
4
5
6
7
8
9
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
Page 55 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
2
3
4
5
67
8
9
EAU24360
Front wheel
EAU41021
To remove the front wheel
WARNING
EWA10820
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Disconnect the brake cable at the
wheel by removing the brake lever
free play adjusting nut, then re-
moving the cable from the brake
camshaft lever and brake shoe
plate.3. Remove the axle nut and washer.
4. Pull the wheel axle out, and then
remove the wheel.
EAU41031
To install the front wheel
1. Install the brake shoe plate into the
wheel hub as shown.
2. Lift the wheel up between the fork
legs.
NOTE:
Make sure that the slot in the brake
shoe plate fits over the retainer on the
fork leg.
1. Brake lever free play adjusting nut
2. Brake camshaft lever
3. Washer
4. Axle nut
5. Brake cable
1. Wheel axle
5
1 23
4
1
Page 56 of 70
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
1
2
3
4
5
6
7
8
9
3. Insert the wheel axle from the right
side.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.
5. Connect the brake cable at the
wheel hub, and then install the
brake cable free play adjusting nut.
6. Adjust the brake lever free play.
(See page 6-14.)
7. Take the motorcycle off the center-
stand so that the front wheel is on
the ground.8. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU41081
To remove the rear wheel
WARNING
EWA10820
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Remove the seat. (See page 3-7.)
WARNING
EWA14580
Always let the exhaust system cool
prior to touching exhaust compo-
nents.
3. Remove the muffler bolt and
washers.
1. Retainer
Tightening torque:
Axle nut:
40 Nm (4.0 m·kgf, 28.9 ft·lbf)
1
