Location of important labels
1-3
1

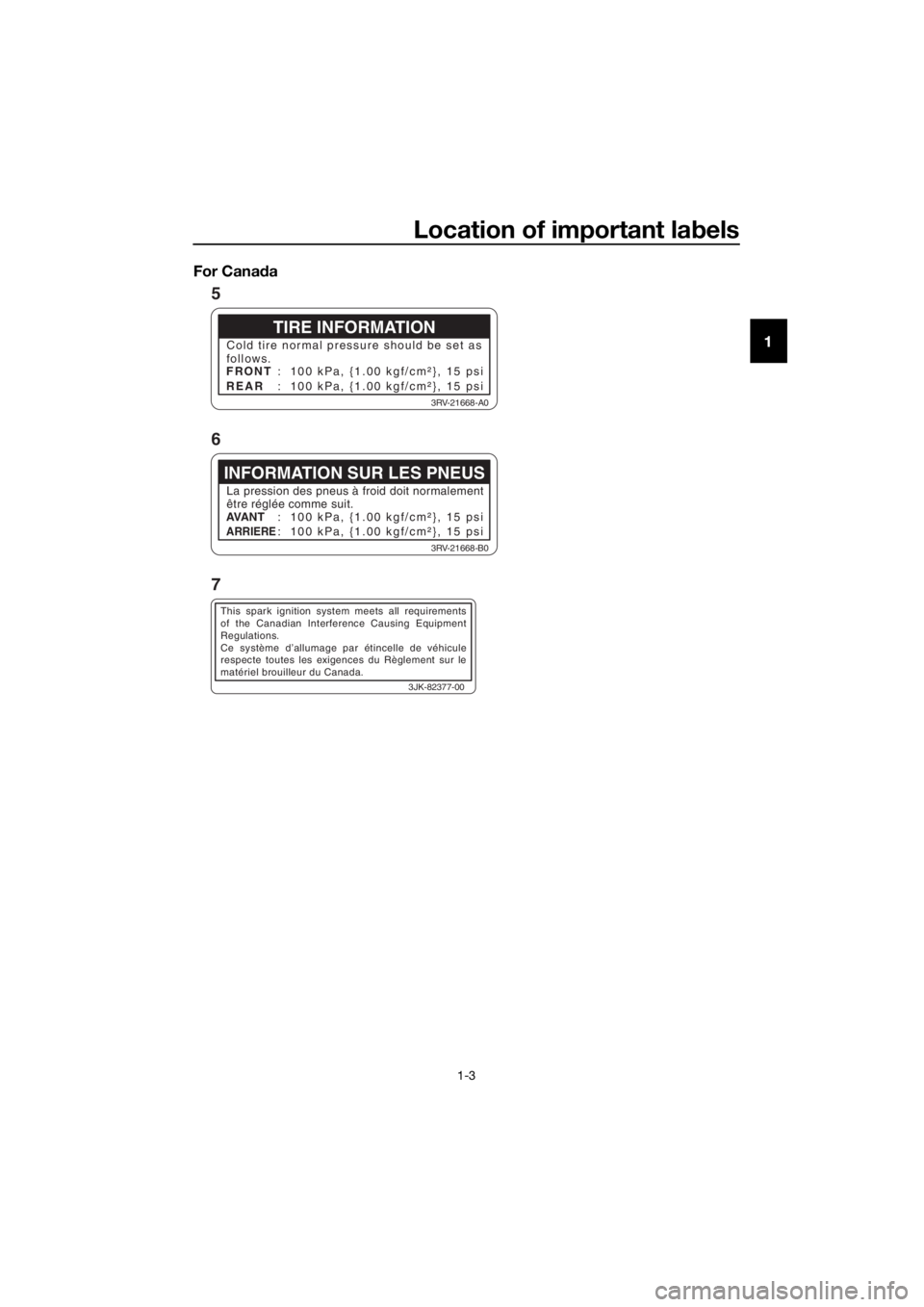

For Cana
daTIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT
REAR : 100 kPa, {1.00 kgf/cm²}, 15 psi
: 100 kPa, {1.00 kgf/cm²}, 15 psi
3RV-21668-A0
INFORMATION SUR LES PNEUS
La pression des pneus à froid doit normalement
être réglée comme suit.
AVANT
ARRIERE: 100 kPa, {1.00 kgf/cm²}, 15 psi
: 100 kPa, {1.00 kgf/cm²}, 15 psi
3RV-21668-B0
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
5
7 6
U2SA82E0.book Page 3 Monday, June 8, 2015 1:09 PM

Location of important labels
1-4

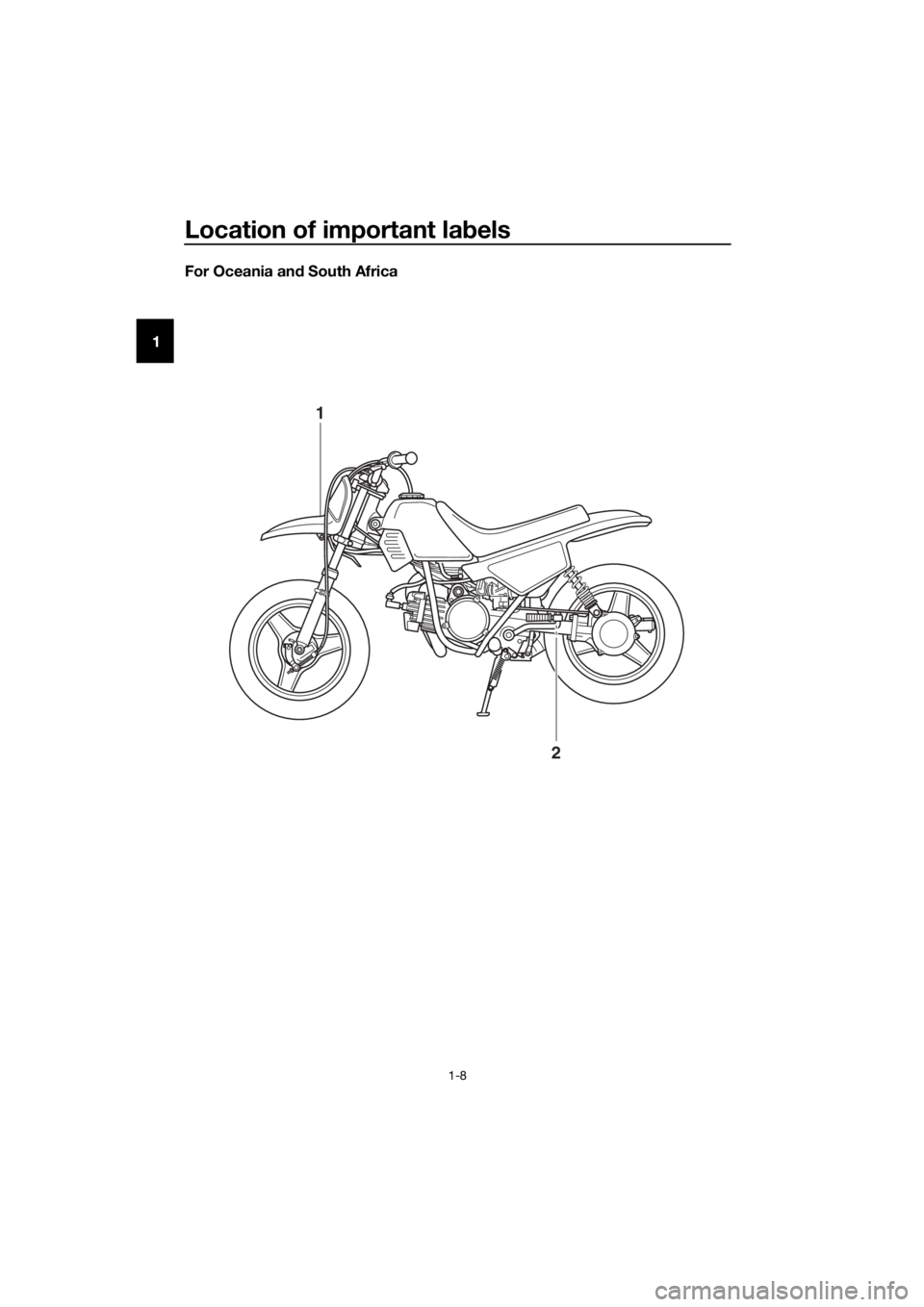

1 For Europe
4321
U2SA82E0.book Page 4 Monday, June 8, 2015 1:09 PM

Location of important labels
1-5
1

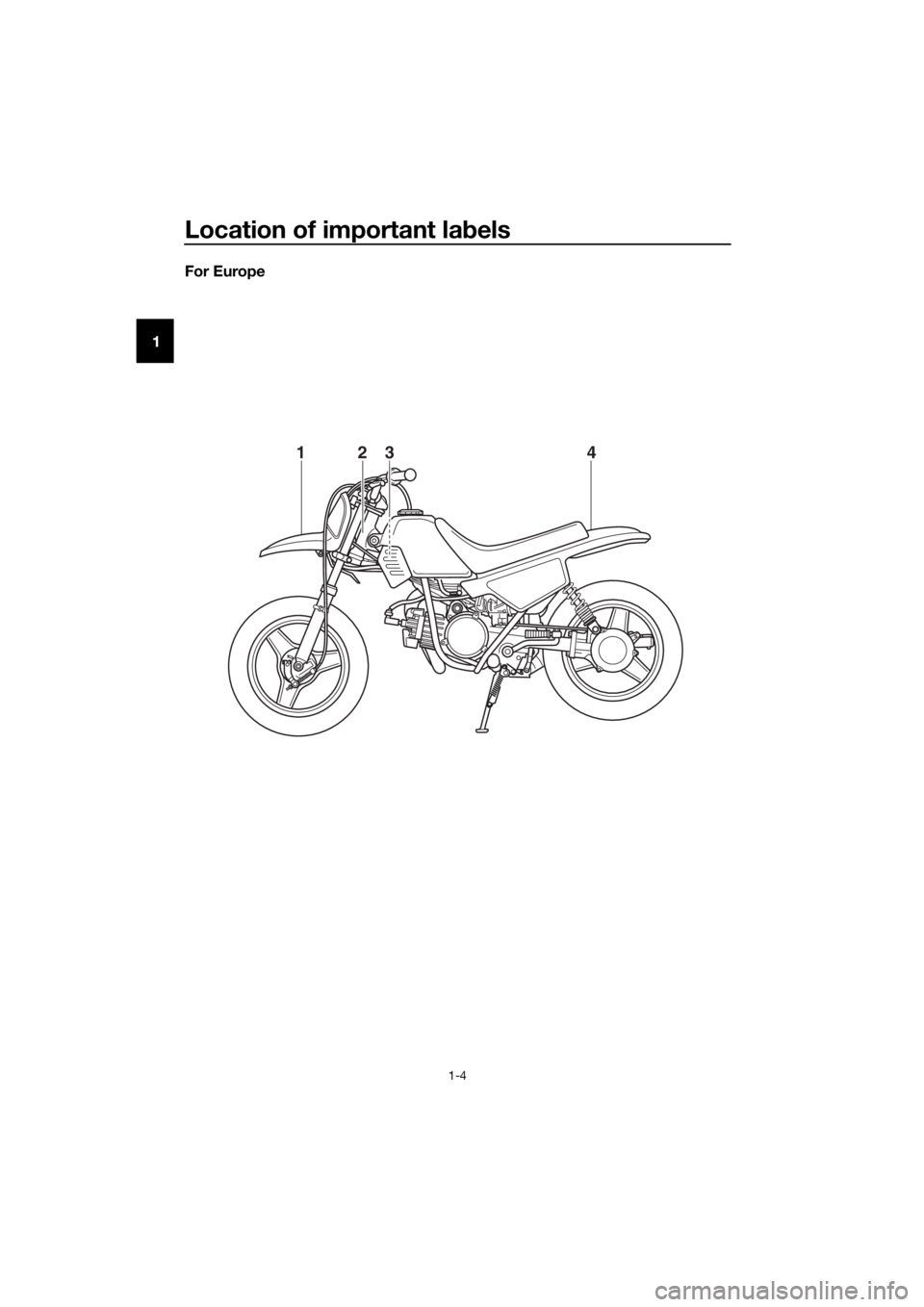

For Europe
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi
100 kPa
1.00 kgf/cm²
15 psi

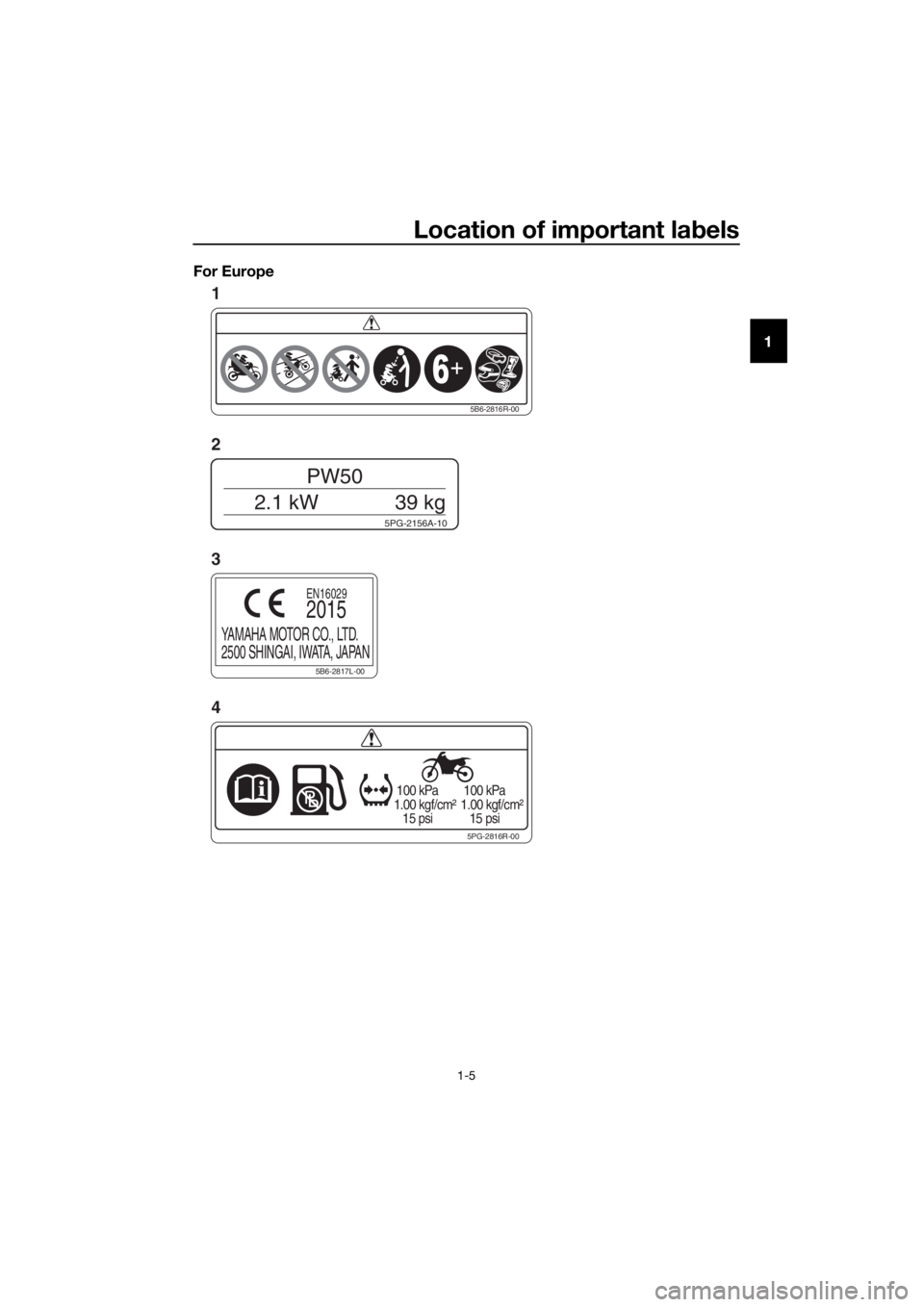

5PG-2156A-10
PW50
2.1 kW 39 kg
5B6-2816R-00
5B6-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2015
EN16029
1
3
4 2
U2SA82E0.book Page 5 Monday, June 8, 2015 1:09 PM

Location of important labels
1-6

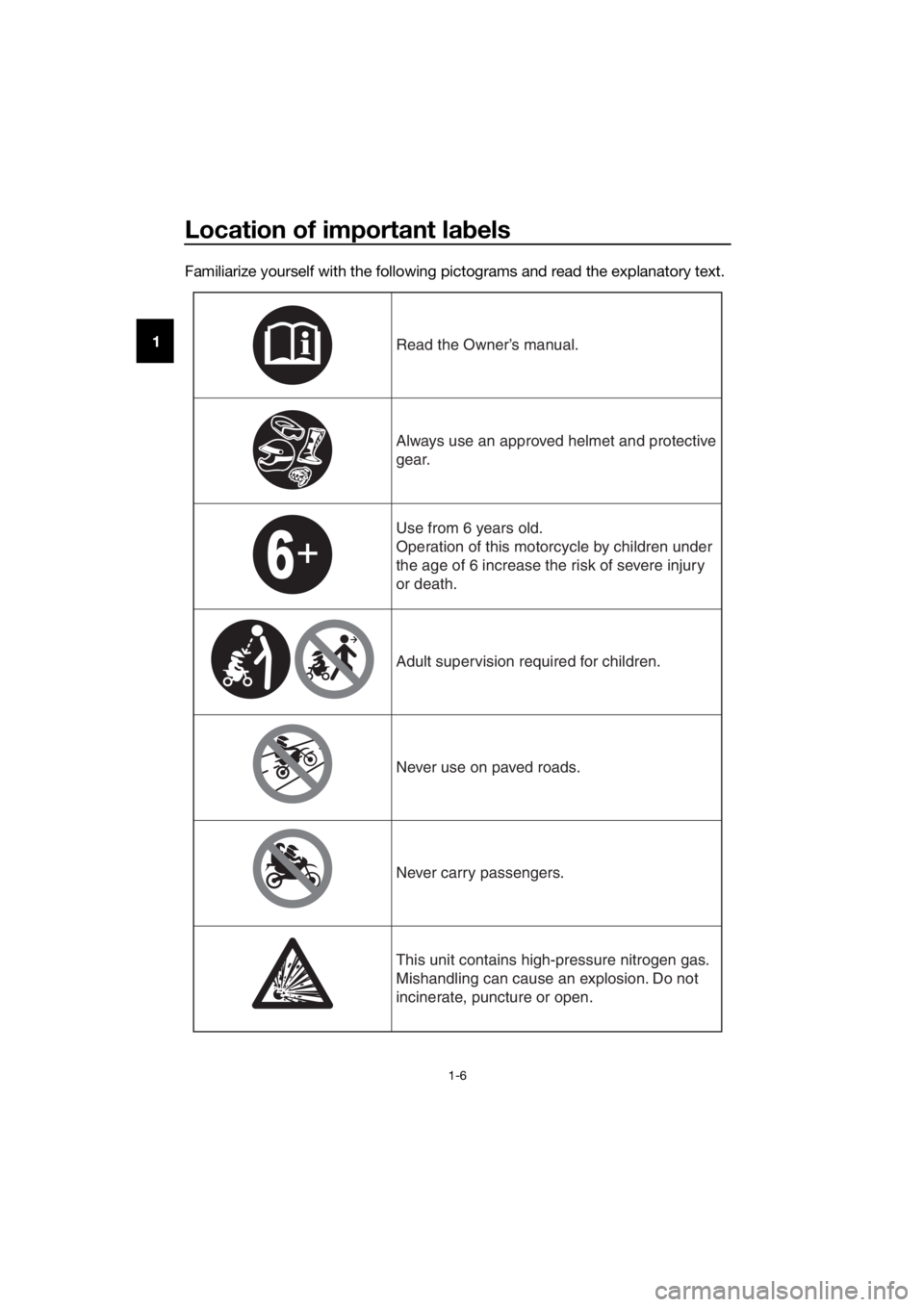

1 Familiarize yourself with the following pictograms and read the explanatory text.Read the Owner’s manual.
Always use an approved helmet and protective
gear.
Use from 6 years old.
Operation of this motorcycle by children under
the age of 6 increase the risk of severe injury
or death.
Adult supervision required for children.
Never use on paved roads.
Never carry passengers.
This unit contains high-pressure nitrogen gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
U2SA82E0.book Page 6 Monday, June 8, 2015 1:09 PM

Location of important labels
1-7
1
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
******
*** kW *** kg
1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN****
1

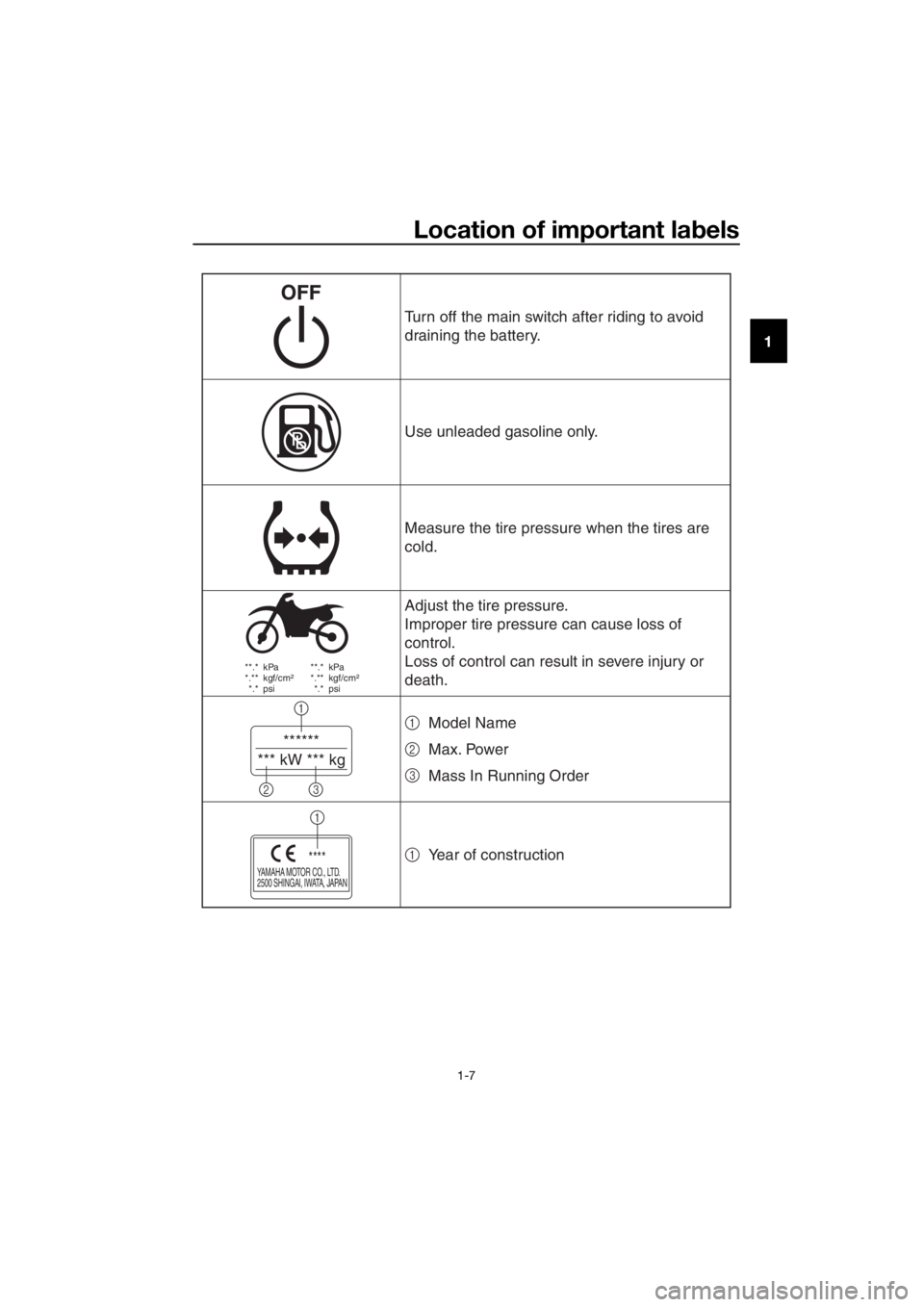

Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold.
Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
1
2
3 Model Name
Max. Power
Mass In Running Order
1 Year of construction
Turn off the main switch after riding to avoid
draining the battery.
U2SA82E0.book Page 7 Monday, June 8, 2015 1:09 PM

Location of important labels
1-8
1 For Oceania an
d South Africa
1
2
U2SA82E0.book Page 8 Monday, June 8, 2015 1:09 PM

Location of important labels
1-9
1
For Oceania an
d South Africa
TIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT
REAR : 100 kPa, {1.00 kgf/cm²}, 15 psi
: 100 kPa, {1.00 kgf/cm²}, 15 psi
3RV-21668-A0

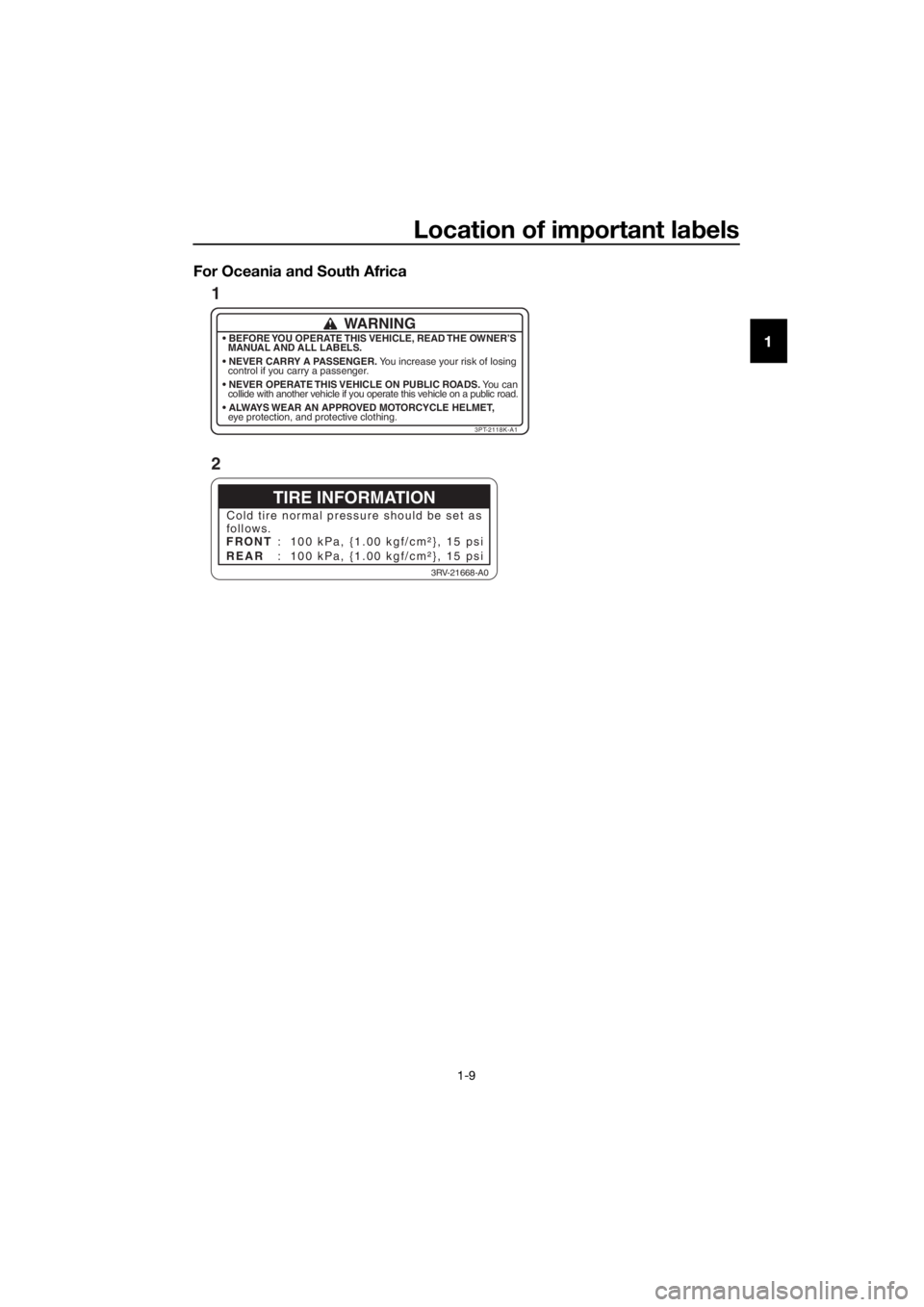

WARNING
3PT-2118K-A1

MANUAL AND ALL LABELS.
You increase your risk of losing
control if you carry a passenger.

You can
collide with another vehicle if you operate this vehicle on a public road.

eye protection, and protective clothing.
1
2
U2SA82E0.book Page 9 Monday, June 8, 2015 1:09 PM

2-1
2
Safety information
EAU4093C
Be a Responsible Owner
As the vehicle’s owner, you are re-
sponsible for the safe and proper oper-
ation of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements be-
fore riding this motorcycle.
He or she should:  Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.
 Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
 Obtain qualified training in safe
and proper riding techniques.
 Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
 Never operate a motorcycle with-
out proper training or instruction.
Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Ri din g
Perform the pre-operation checks
each time you use the vehicle to make
sure it is in safe operating condition.
Failure to inspect or maintain the vehi-
cle properly increases the possibility of an accident or equipment damage.
See page 5-1 for a list of pre-operation
checks.
 This motorcycle is designed for
off-road use only, therefore, it is il-
legal to operate it on public
streets, roads, or highways, even
a dirt or gravel one. Off-road use
on public lands may be illegal.
Please check local regulations be-
fore riding.
 This motorcycle is designed to
carry the operator only. No pas-
sengers.
 The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been
caused by an automobile driver
who did not see the motorcycle.
Making yourself conspicuous ap-
pears to be very effective in reduc-
ing the chance of this type of
accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you are approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
• Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
• Never maintain a motorcycle without proper knowledge.
Contact an authorized motorcy-
cle dealer to inform you on ba-
U2SA82E0.book Page 1 Monday, June 8, 2015 1:09 PM

Safety information
2-2
2
sic motorcycle maintenance.
Certain maintenance can only
be carried out by certified staff.
 Many accidents involve inexperi-
enced operators.
• Make sure that you are qualified and that you only lend your mo-
torcycle to other qualified oper-
ators.
• Know your skills and limits. Staying within your limits may
help you to avoid an accident.
• We recommend that you prac- tice riding your motorcycle until
you have become thoroughly
familiar with the motorcycle and
all of its controls.
 Many accidents have been
caused by error of the motorcycle
operator. A typical error made by
the operator is veering wide on a
turn due to excessive speed or un-
dercornering (insufficient lean an-
gle for the speed). Never travel
faster than warranted by condi-
tions.
 Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.
 The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during opera-
tion to maintain control of the mo-
torcycle.
 Never ride under the influence of
alcohol or other drugs. Protective Apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
 Always wear an approved helmet.
 Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
 The use of a jacket, heavy boots,
trousers, gloves, etc., is effective
in preventing or reducing abra-
sions or lacerations.
 Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
 Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause
burns.
Avoi d Car bon Monoxi de Poisonin g
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing
carbon monoxide can cause head-
aches, dizziness, drowsiness, nausea,
confusion, and eventually death.
Carbon Monoxide is a colorless, odor-
less, tasteless gas which may be pres-
ent even if you do not see or smell any
engine exhaust. Deadly levels of car-
bon monoxide can collect rapidly and
you can quickly be overcome and un-
able to save yourself. Also, deadly lev-
els of carbon monoxide can linger for
hours or days in enclosed or poorly
U2SA82E0.book Page 2 Monday, June 8, 2015 1:09 PM

Safety information
2-3
2ventilated areas. If you experience any
symptoms of carbon monoxide poi-
soning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
MENT.
 Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.
 Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
 Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loa din g
Adding accessories to your motorcycle
can adversely affect stability and han-
dling if the weight distribution of the
motorcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Operation of an overloa ded vehicle
coul d cause an acci dent.
 The weight of the operator must
not exceed 25 kg (55 lb).
 Accessory weight should be kept
as low and close to the motorcy-
cle as possible. Securely pack
your heaviest items as close to the
center of the vehicle as possible
and make sure to distribute the weight as evenly as possible on
both sides of the motorcycle to
minimize imbalance or instability.
 Shifting weights can create a sud-
den imbalance. Make sure that
accessories are securely attached
to the motorcycle before riding.
Check accessory mounts fre-
quently.
• Properly adjust the suspension for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.
• Never attach any large or heavy items to the handlebar, front
fork, or front fender.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
U2SA82E0.book Page 3 Monday, June 8, 2015 1:09 PM
