Operation and important ri din g points
6-4
6
EAU42031
En gine break-in
There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to
accustom the rider to the motorcycle
during this time. Please read the fol-
lowing information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
5 hours of operation. The various parts
in the engine wear and polish them-
selves to the correct operating clear-
ances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overheating
must be avoided. However, momen-
tary full-throttle operation under load
(i.e., two to three seconds maximum)
does not harm the engine. Each full-
throttle acceleration should be fol-
lowed with a substantial rest period for
the engine. To allow the engine to cool
down from the temporary buildup of
heat, cruise at a lower engine speed.
After the first 5 hours of operation,
thoroughly check the motorcycle for
loose parts, oil leakage and any other
problems. Be sure to inspect and make
adjustments thoroughly, especially ca-
bles. In addition, check all fittings and
fasteners for looseness, and tighten if
necessary.
NOTICE
ECA10271
If any en gine trou ble shoul d occur
d uring the en gine break-in perio d,
imme diately have a Yamaha d ealer
check the vehicle.
EAU40723
Parkin g
When parking, stop the engine, and
then turn the fuel cock lever to “S”
(stop).
WARNING
EWA10312
Since the en gine an d exhaust
system can become very hot,
park in a place where ped estri-
ans or chil dren are not likely to
touch them and b e burne d.
Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
Do not park near grass or other
flammab le materials which
mi ght catch fire.
U2SA83E0.book Page 4 Monday, July 11, 2016 2:35 PM
Page 42 of 80

Periodic maintenance an d a djustment
7-1
7
EAU17246
Periodic inspection, adjustment, and
lubrication will keep your vehicle in the
safest and most efficient condition
possible. Safety is an obligation of the
vehicle owner/operator. The most im-
portant points of vehicle inspection,
adjustment, and lubrication are ex-
plained on the following pages.
The intervals given in the periodic
maintenance charts should be simply
considered as a general guide under
normal riding conditions. However, de-
pending on the weather, terrain, geo-
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
WARNING
EWA10322
Failure to properly maintain the vehi-
cle or performin g maintenance ac-
tivities incorrectly may increase
your risk of injury or d eath durin g
service or while usin g the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha d ealer perform
service.
WARNING
EWA15123
Turn off the en gine when performin g
maintenance unless otherwise
specified .
A runnin g en gine has movin g
parts that can catch on body
parts or clothin g an d electrical
parts that can cause shocks or
fires.
Runnin g the en gine while ser-
vicin g can lead to eye injury,
b urns, fire, or car bon monoxi de
poisonin g – possi bly lea din g to d
eath. See pag e 2-2 for more in-
formation a bout car bon monox-
i d e.
WARNING
EWA15461
Brake discs, calipers, drums, an d
linin gs can b ecome very hot during
use. To avoi d possi ble burns, let
b rake components cool before
touchin g them.
U2SA83E0.book Page 1 Monday, July 11, 2016 2:35 PM
Page 43 of 80

Periodic maintenance an d a djustment
7-2
7
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services relat-
ed to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replace-
ment, or repair of the emission control
devices and systems may be per-
formed by any repair establishment or
individual that is certified (if applicable).
Yamaha dealers are trained and equipped to perform these particular
services.
EAU17312
Owner’s tool kit
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
TIP
If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
U2SA83E0.book Page 2 Monday, July 11, 2016 2:35 PM
Page 44 of 80

Periodic maintenance an d a djustment
7-3
7
EAU69180

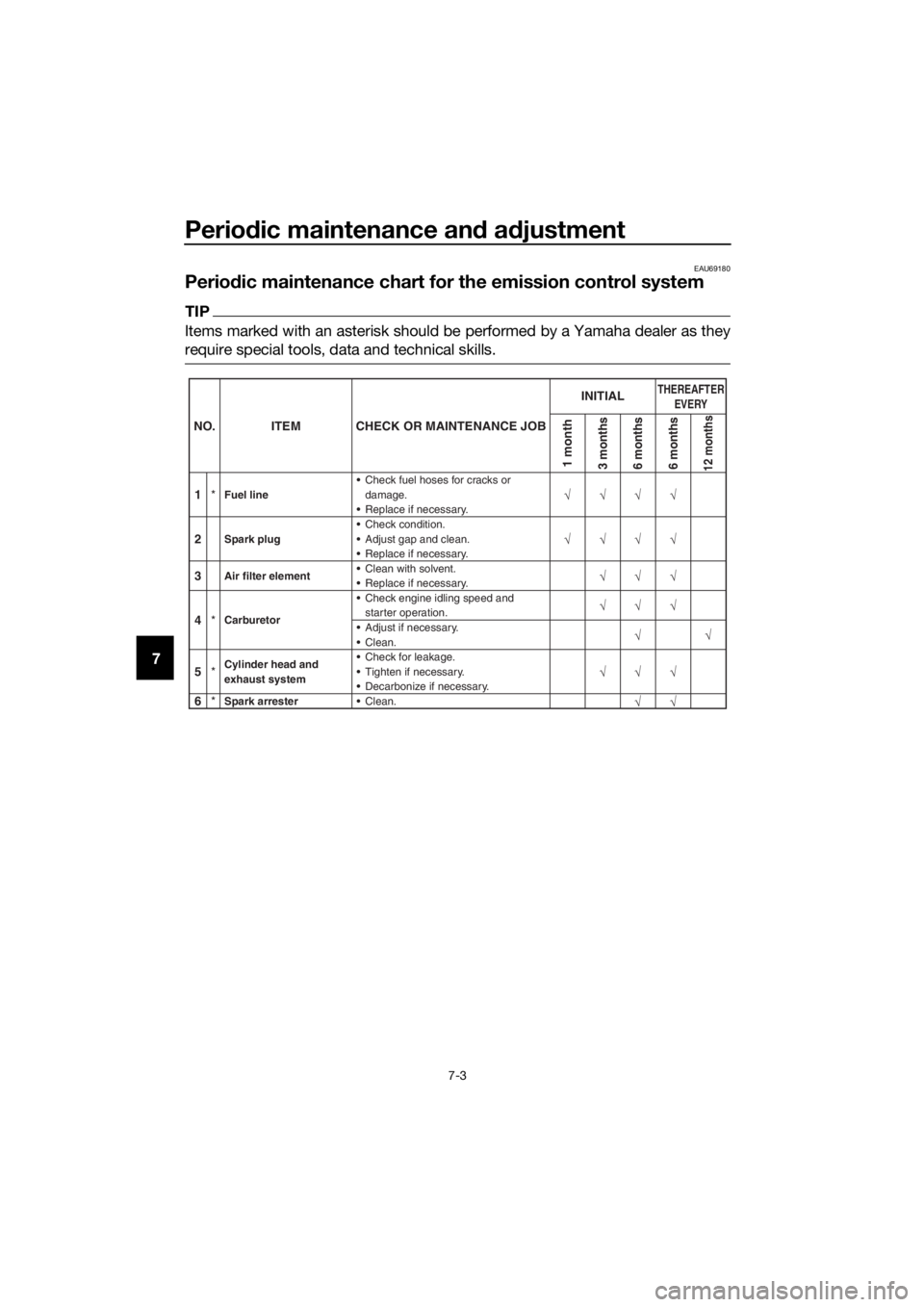

Perio dic maintenance chart for the emission control system
TIP
Items marked with an asterisk should be performed by a Yamaha dealer as they
require special tools, data and technical skills.
4 *Carburetor Check engine idling speed and
starter operation.
Adjust if necessary.
Clean.
5 *Cylinder head and
exhaust system Check for leakage.
√
Tighten if necessary.
Decarbonize if necessary.
6
*Spark arrester Clean.√
NO. ITEM CHECK OR MAINTENANCE JOB
1 month3 months
6 months
6 months12 months
1
*Fuel line Check fuel hoses for cracks or
damage.√√√ √
√√√ √
√√
√
√
√√
√
√
√√
√ Replace if necessary.
2Spark plug Check condition.
Adjust gap and clean.
Replace if necessary.
3Air filter element
Clean with solvent.
Replace if necessary.
THEREAFTER
EVERYINITIAL
U2SA83E0.book Page 3 Monday, July 11, 2016 2:35 PM
Page 45 of 80

Periodic maintenance an d a djustment
7-4
7
EAU69202

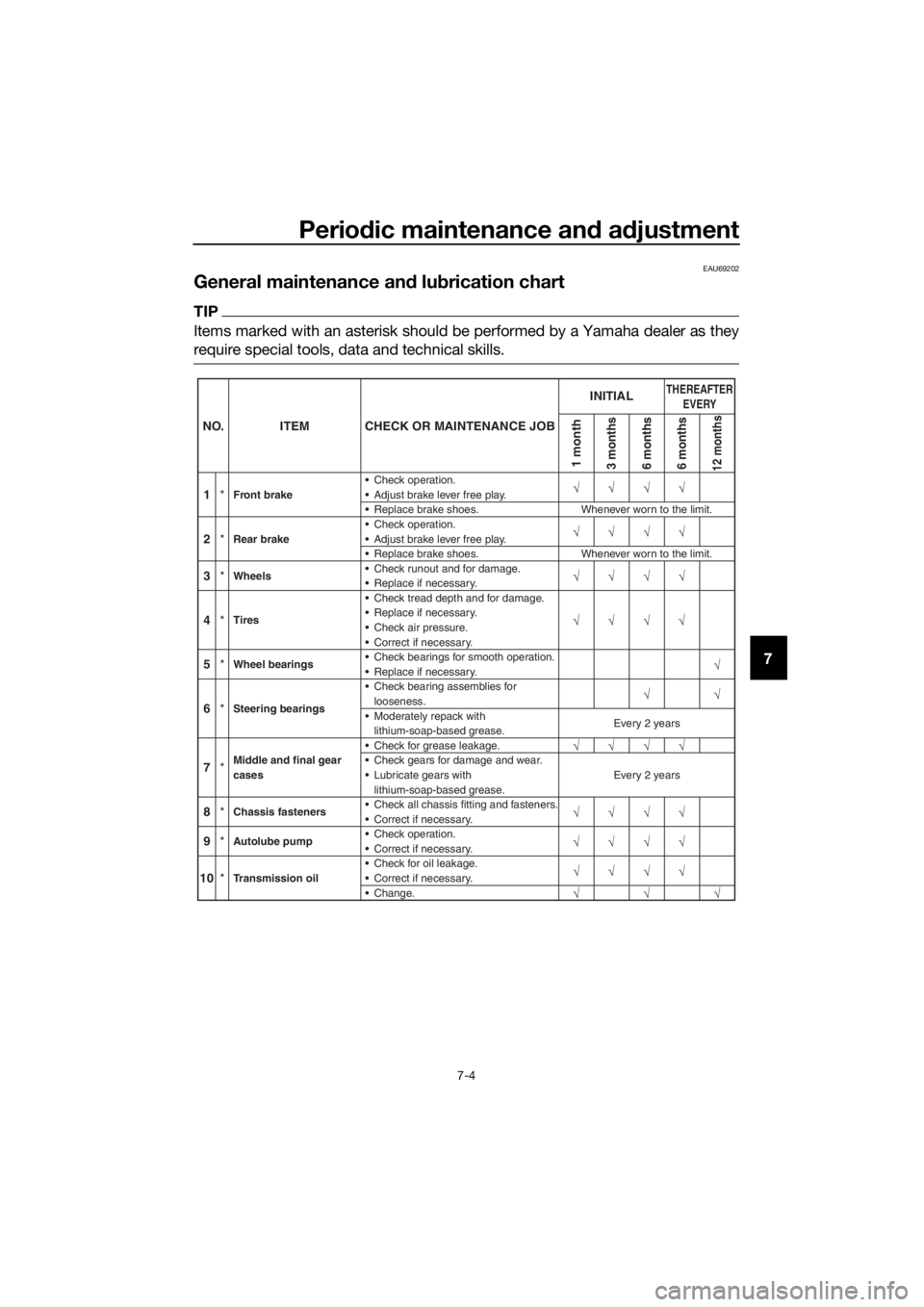

General maintenance an d lu brication chart
TIP
Items marked with an asterisk should be performed by a Yamaha dealer as they
require special tools, data and technical skills.
4 *Tires Check tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.
5
*Wheel bearings Check bearings for smooth operation.
Replace if necessary.
6
*Steering bearings Check bearing assemblies for
looseness.
7 *Middle and final gear
cases Check for grease leakage.
8
*Chassis fasteners Check all chassis fitting and fasteners.
9
*Autolube pump Check operation.
10
*Transmission oil Check for oil leakage.
Correct if necessary.
Change. Correct if necessary. Correct if necessary. Check gears for damage and wear.
Lubricate gears with
lithium-soap-based grease.
Moderately repack with
lithium-soap-based grease.
NO. ITEM CHECK OR MAINTENANCE JOB
1 month3 months
6 months
6 months12 months
1 *
*
*Front brake Check operation.
Adjust brake lever free play.√√√
√
√√√ √
√√√ √
√√√ √
√√√ √
√√√ √
√√√ √
√√√ √ √
√
√√√ √
Replace brake shoes.
Whenever worn to the limit.
2Rear brake Check operation.
Adjust brake lever free play.
Replace brake shoes. Whenever worn to the limit.
Every 2 years
Every 2 years
3Wheels Check runout and for damage.
Replace if necessary.
THEREAFTER
EVERYINITIAL
U2SA83E0.book Page 4 Monday, July 11, 2016 2:35 PM
Page 46 of 80

Periodic maintenance an d a djustment
7-5
7TIP

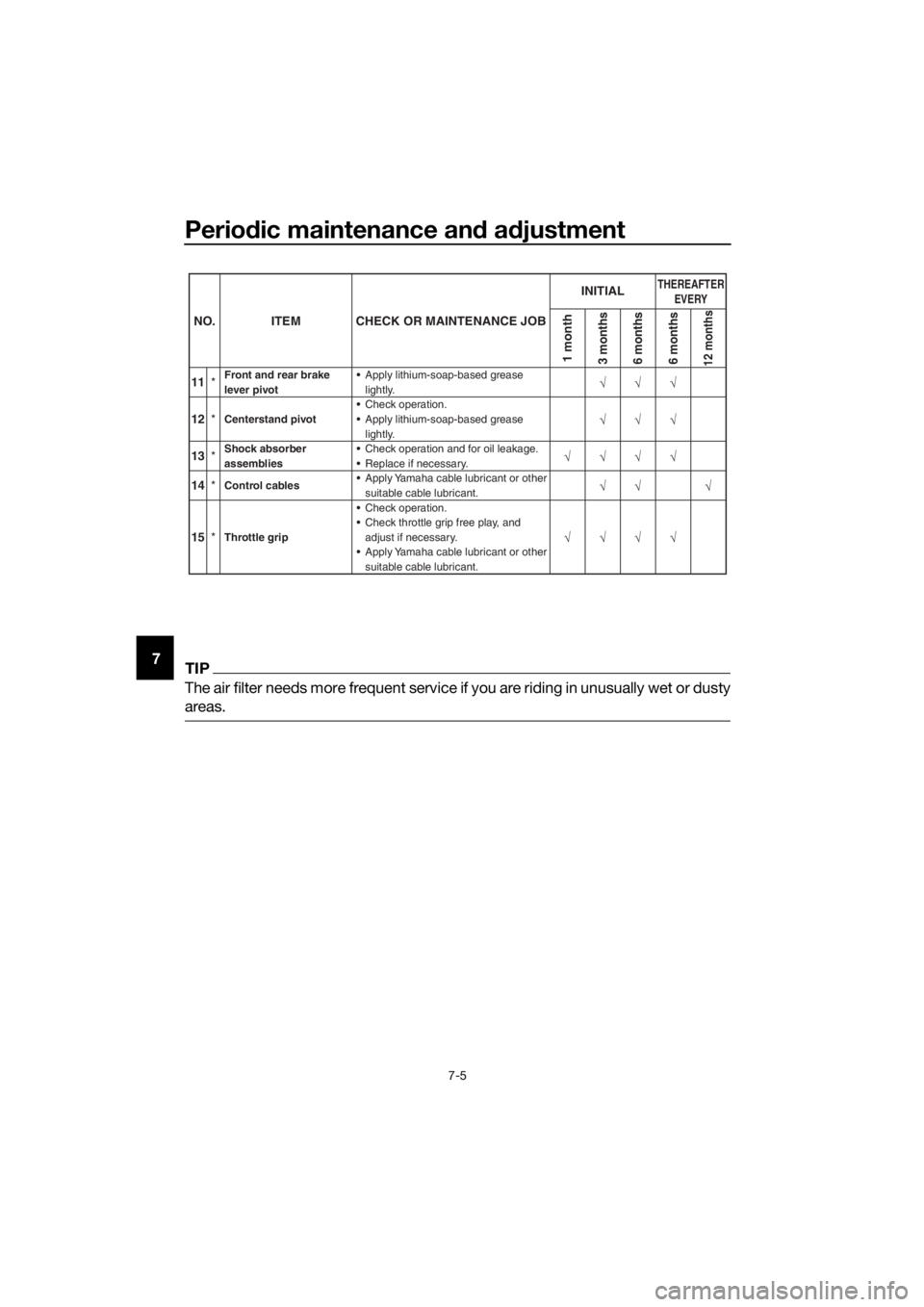

The air filter needs more frequent service if you are riding in unusually wet or dusty
areas.
11 *Front and rear brake
lever pivot Apply lithium-soap-based grease
lightly.
12 *Centerstand pivot Check operation.
13
*Shock absorber
assemblies Check operation and for oil leakage.
14
*Control cables Apply Yamaha cable lubricant or other
suitable cable lubricant.
15 *Throttle grip Check operation.
Check throttle grip free play, and
adjust if necessary.
Apply Yamaha cable lubricant or other suitable cable lubricant.
Replace if necessary. Apply lithium-soap-based grease
lightly.
NO. ITEM CHECK OR MAINTENANCE JOB
1 month3 months
6 months
6 months12 months
√√√ √
√√√ √√√
√
√√
√
√
√√
THEREAFTER
EVERYINITIAL
U2SA83E0.book Page 5 Monday, July 11, 2016 2:35 PM
Page 47 of 80

Periodic maintenance an d a djustment
7-6
7
EAU19607

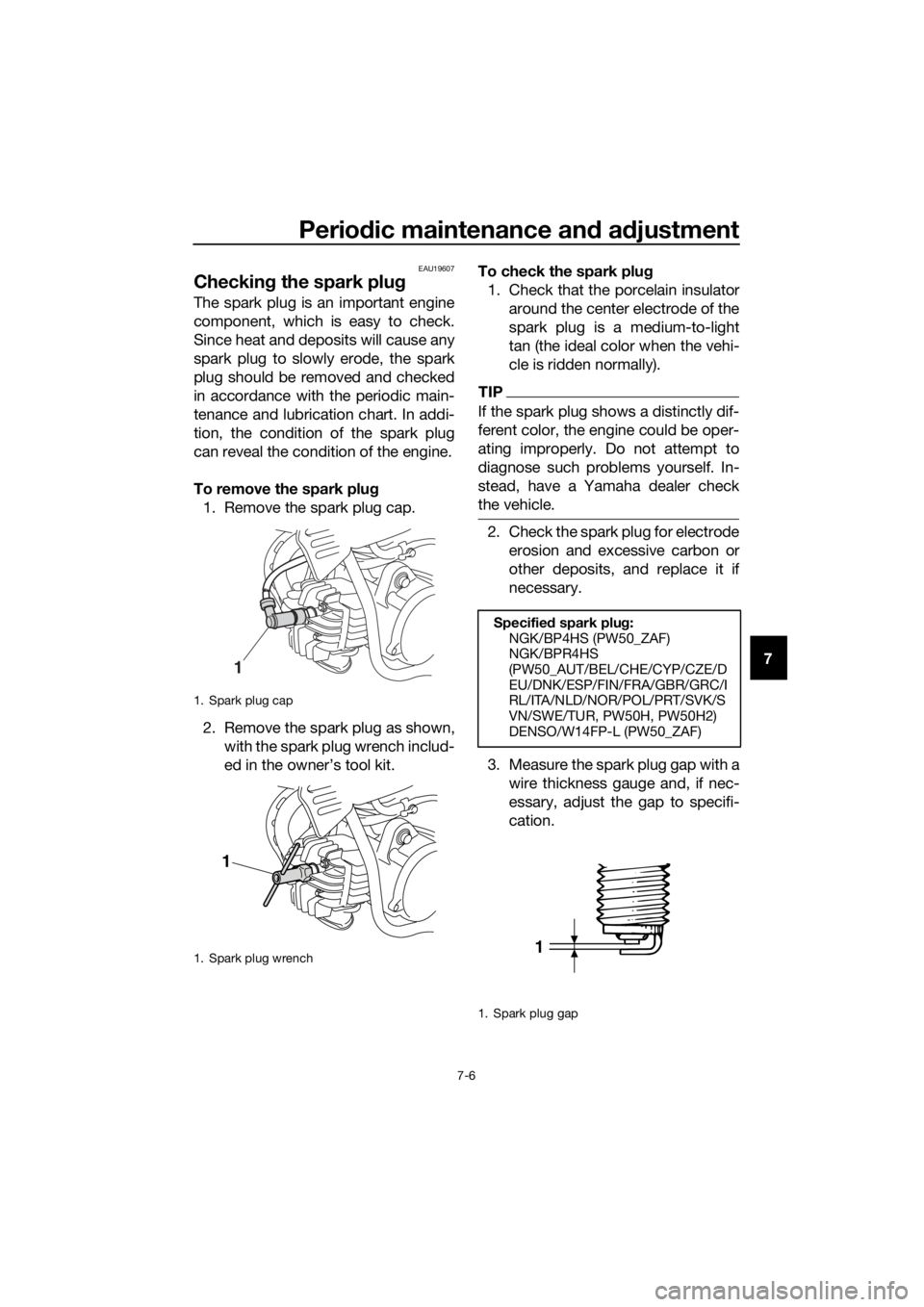

Checkin g the spark plu g
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic main-
tenance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
To remove the spark plu g
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with the spark plug wrench includ-
ed in the owner’s tool kit. To check the spark plu
g
1. Check that the porcelain insulator around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
TIP
If the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrodeerosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a wire thickness gauge and, if nec-
essary, adjust the gap to specifi-
cation.
1. Spark plug cap
1. Spark plug wrench
1
1
Specified spark plu g:
NGK/BP4HS (PW50_ZAF)
NGK/BPR4HS
(PW50_AUT/BEL/CHE/CYP/CZE/D
EU/DNK/ESP/FIN/FRA/GBR/GRC/I
RL/ITA/NLD/NOR/POL/PRT/SVK/S
VN/SWE/TUR, PW50H, PW50H2)
DENSO/W14FP-L (PW50_ZAF)
1. Spark plug gap
1
U2SA83E0.book Page 6 Monday, July 11, 2016 2:35 PM
Page 48 of 80

Periodic maintenance an d a djustment
7-7
7 To install the spark plu
g
1. Clean the surface of the spark plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tight-
en it to the specified torque.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
3. Install the spark plug cap.
EAU41104

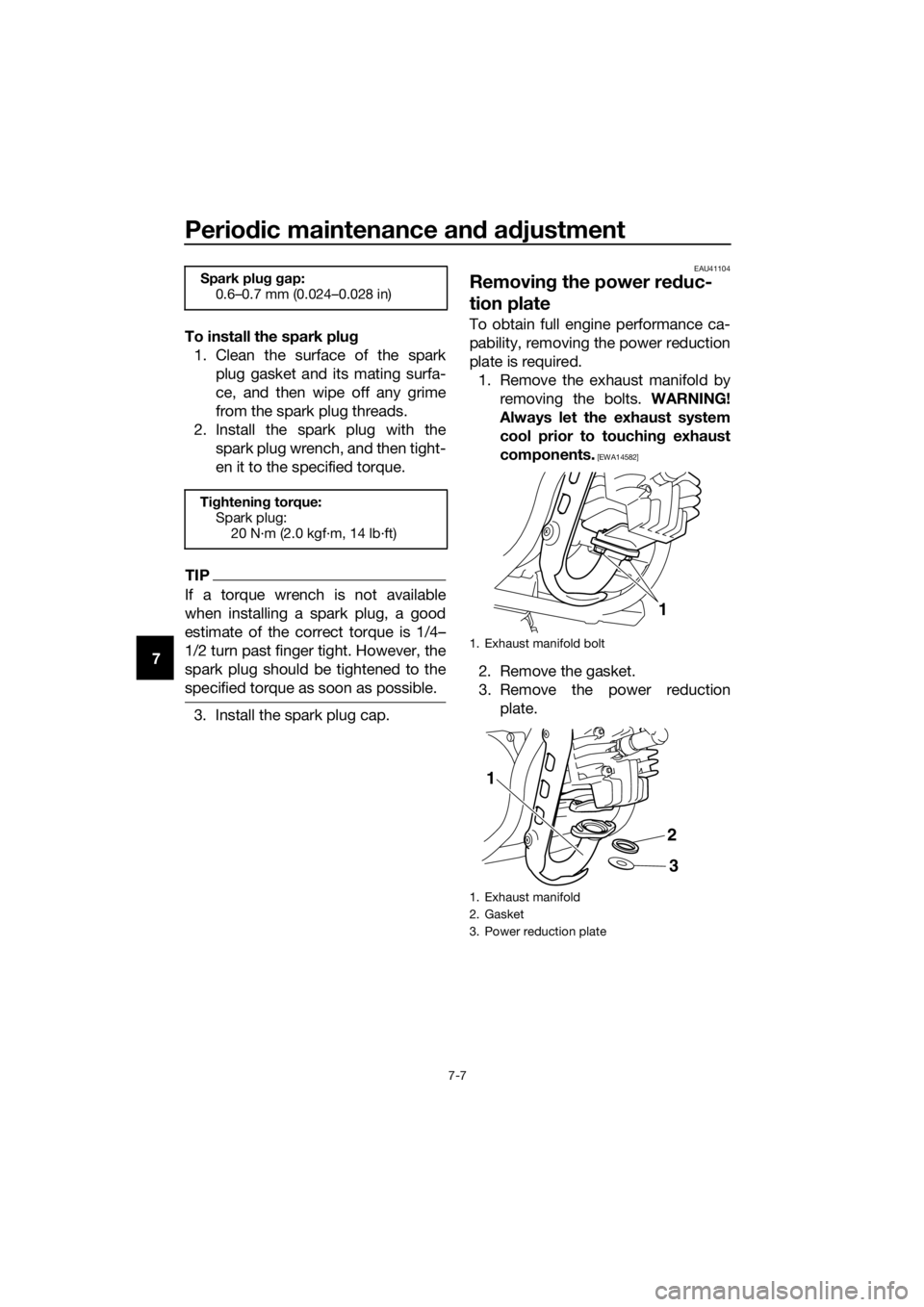

Removin g the power re duc-
tion plate
To obtain full engine performance ca-
pability, removing the power reduction
plate is required.
1. Remove the exhaust manifold by removing the bolts. WARNING!
Always let the exhaust system
cool prior to touchin g exhaust
components.
[EWA14582]
2. Remove the gasket.
3. Remove the power reduction plate.
Spark plu g g ap:
0.6–0.7 mm (0.024–0.028 in)
Ti ghtenin g torque:
Spark plug: 20 N·m (2.0 kgf·m, 14 lb·ft)
1. Exhaust manifold bolt
1. Exhaust manifold
2. Gasket
3. Power reduction plate
1
1
2
3
U2SA83E0.book Page 7 Monday, July 11, 2016 2:35 PM
Page 49 of 80

Periodic maintenance an d a djustment
7-8
7

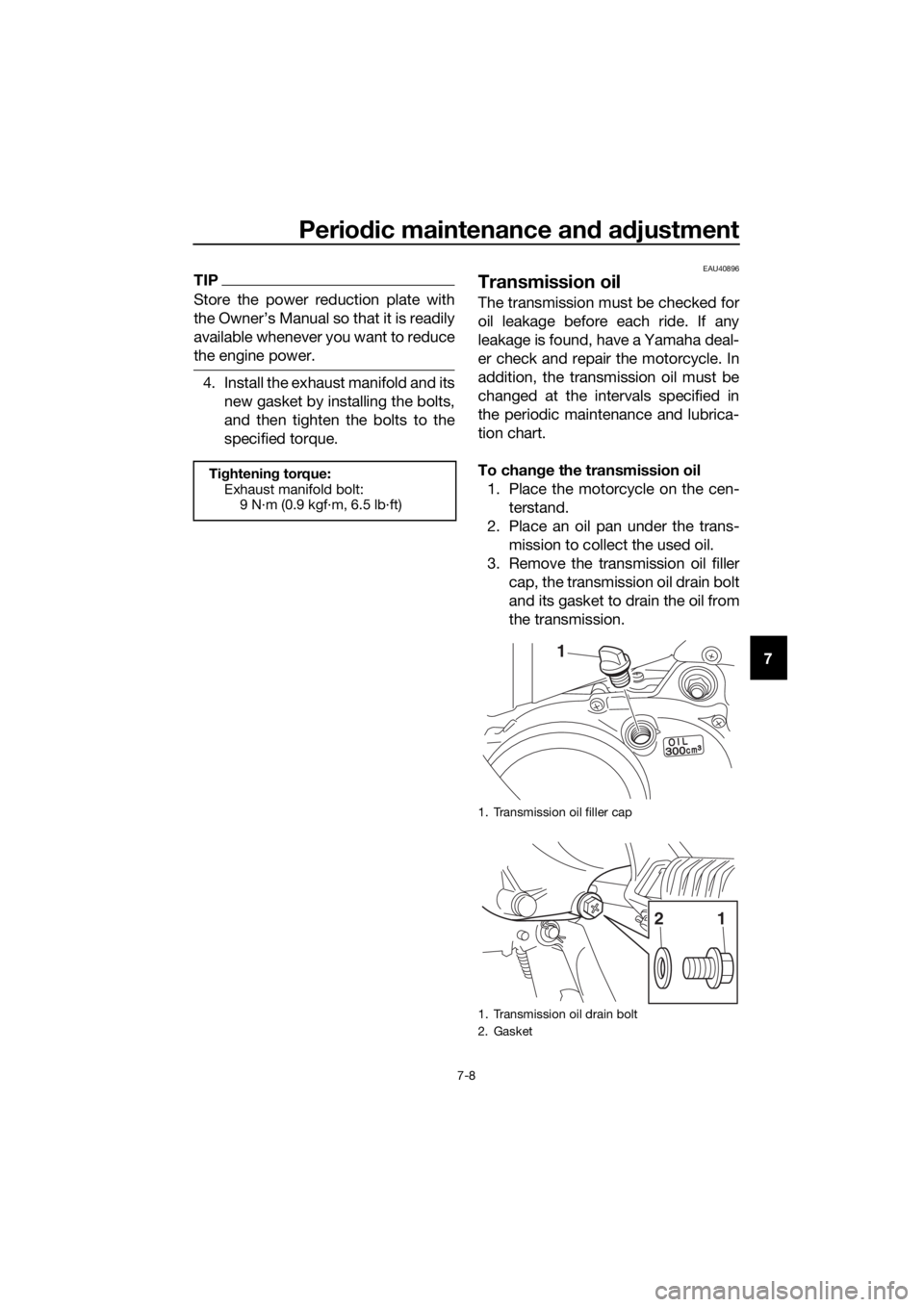

TIP
Store the power reduction plate with
the Owner’s Manual so that it is readily
available whenever you want to reduce
the engine power.
4. Install the exhaust manifold and its
new gasket by installing the bolts,
and then tighten the bolts to the
specified torque.
EAU40896
Transmission oil
The transmission must be checked for
oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the transmission oil must be
changed at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
To chan ge the transmission oil
1. Place the motorcycle on the cen- terstand.
2. Place an oil pan under the trans- mission to collect the used oil.
3. Remove the transmission oil filler cap, the transmission oil drain bolt
and its gasket to drain the oil from
the transmission.
Tightening torque:
Exhaust manifold bolt: 9 N·m (0.9 kgf·m, 6.5 lb·ft)
1. Transmission oil filler cap
1. Transmission oil drain bolt
2. Gasket
1
12
U2SA83E0.book Page 8 Monday, July 11, 2016 2:35 PM
Page 50 of 80

Periodic maintenance an d a djustment
7-9
7 4. Install the transmission oil drain
bolt and its new gasket, and then
tighten the bolt to the specified
torque.
5. Refill with the specified amount of the recommended transmission
oil.
NOTICE
ECA10453
In or der to prevent clutch slip-
pa ge (since the transmission oil
also lu bricates the clutch), d o
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
hi gher quality than specifie d. In
a ddition, do not use oils la bele d
“ENERGY CONSERVING II” or
hi gher.
Make sure that no forei gn mate-
rial enters the transmission.
6. Check the O-ring for damage, and replace it if necessary. 7. Install and tighten the transmis-
sion oil filler cap.
8. Start the engine, and then let it idle for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cau-
se.
Tightenin g torque:
Transmission oil drain bolt: 14 N·m (1.4 kgf·m, 10 lb·ft)
Recommen ded transmission oil:
See page 9-1.
Oil chan ge quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
1. O-ring
1
U2SA83E0.book Page 9 Monday, July 11, 2016 2:35 PM
