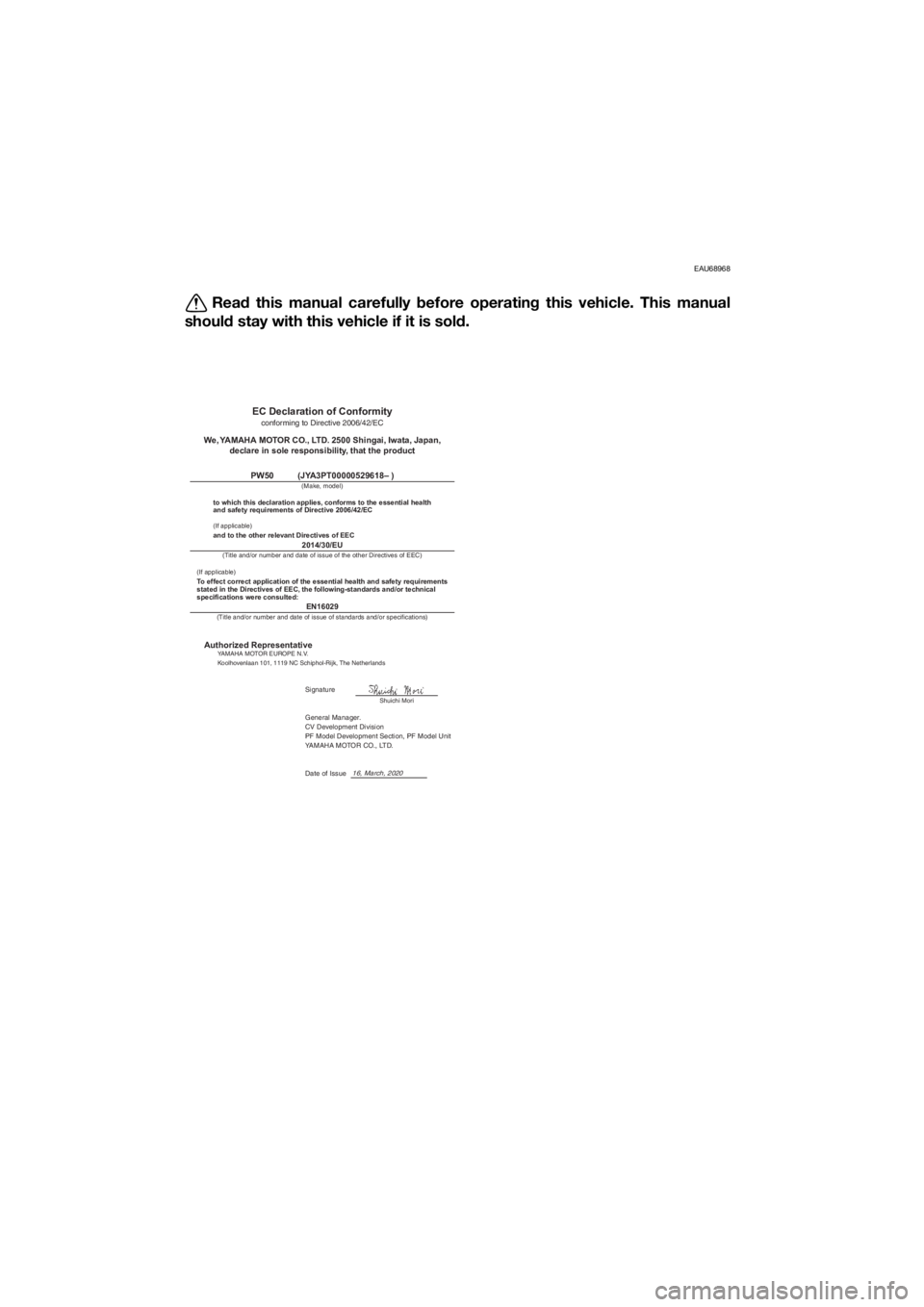

EC Declaration of Conformityconforming to Directive 2006/42/EC
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
PW50 (JYA3PT00000529618– )
(Make, model)
2014/30/EU(Title and/or number and date of issue of the other Directives of EEC)
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 2006/42/EC
(If applicable)and to the other relevant Directives of EEC
(If applicable)To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized RepresentativeYAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
SignatureShuichi Mori
EN16029
Date of Issue16, March, 2020
General Manager.
CV Development Division
PF Model Development Section, PF Model Unit
YAMAHA MOTOR CO., LTD.
U2SA87E0.book Page 1 Monday, April 6, 2020 3:00 PM

Introduction
EAU41075
Congratulations on your purchase of the Yamaha PW50 / PW50M / PW50M2.
This model is the result of Yamaha’s vast experience in the production of fine
sporting, touring, and pacesetting racing machines. It represents the high degree
of craftsmanship and reliability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic
maintenance of this motorcycle. If you have any questions concerning the opera-
tion or maintenance of your motorcycle, please consult a Yamaha dealer.
The design and manufacture of this Yamaha motorcycle fully comply with the
emissions standards for clean air applicable at the date of manufacture. Yamaha
has met these standards without reducing the performance or economy of oper-
ation of the motorcycle. To maintain these high standards, it is important that you
and your Yamaha dealer pay close attention to the recommended maintenance
schedules and operating instructions contained within this manual.
Yamaha continually seeks advancements in product design and quality. There- fore, while this manual contains the most current product information available at
the time of printing, there may be minor discrepancies between your motorcycle
and this manual. If there is any question concerning this manual, please consult a
Yamaha dealer.
WARNING
EWA10032
Please rea d this manual carefully an d completely before operating this mo-
torcycle.
WARNING
EWA14352
This motorcycle is desi gne d an d manufactured for off-road use only. It is il-
le gal to operate this motorcycle on any pu blic street, road or highway. Such
use is prohi bite d b y law. This motorcycle complies with almost all state off-
hi ghway noise level an d spark arrester laws an d re gulations. Please check
your local ri din g laws an d re gulations before operatin g this motorcycle.
AN IMPORTANT SAFETY MESSAGE:
 Read this manual carefully and completely before operating this motorcycle.
Make sure you understand all instructions.
 Pay close attention to the warning and notice labels on the motorcycle.
 Never operate a motorcycle without proper training or instruction.
 Weight of the rider should not exceed 25 kg (55 lb).
AN IMPORTANT NOTE TO PARENTS:
This motorcycle is not a toy. Before you let your child ride this motorcycle, you
should understand the instructions and warnings in this Owner’s Manual. Then be
sure your child understands and will follow them. Children differ in skills, physical
abilities, and judgment. Some children may not be able to operate a motorcycle
U2SA87E0.book Page 1 Monday, April 6, 2020 3:00 PM

Introduction
safely. Parents should supervise their child’s use of the motorcycle at all times.
Parents should permit continued use only if they determine that the child has the
ability to operate the motorcycle safely.
Your motorcycle is equipped with an adjustable speed limiter and a power reduc-
tion plate. Yamaha recommends that all beginners start off with the speed limiter
adjusting screw turned in and the power reduction plate installed in the exhaust
manifold to limit the power available while they learn. The limiter screw may be
gradually turned out to increase maximum speed as the beginner becomes more
familiar with operating the motorcycle. Parents should decide when to adjust the
motorcycle for more power as their youngster’s riding skills improve. Once the rid-
er can operate with skill at the top speed permitted by adjusting the speed limiter
alone, the power reduction plate can be removed. Since removal of this plate will
result in a significant increase in power, turn the speed limiter back in again; adjust
it out in stages as you did before.
Motorcycles are sin gle track vehicles. Their safe use an d operation are d e-
pen dent upon the use of proper rid ing techniques as well as the expertise of
the operator. Every operator shoul d know the followin g requirements before
ri din g this motorcycle.
He or she should:  Obtain thorough instructions from a competent source on all aspects of mo-
torcycle operation.
 Observe the warnings and maintenance requirements in this Owner’s Manu-
al.
 Obtain qualified training in safe and proper riding techniques.
 Obtain professional technical service as indicated in this Owner’s Manual
and/or when made necessary by mechanical conditions.
U2SA87E0.book Page 2 Monday, April 6, 2020 3:00 PM

Important manual information
EAU63350
Particularly important information is distinguished in this manual by the following
notations:
*Product and specifications are subject to change without notice.
EAU10201
This is the safety alert sym bol. It is use d to
alert you to potential personal injury haz-
ar ds. O bey all safety messag es that follow
this sym bol to avoi d possi ble injury or death.
A WARNING in dicates a hazar dous situation
which, if not avoi ded , coul d result in d eath or
serious injury.
A NOTICE in dicates special precautions that
must be taken to avoi d d amag e to the vehi-
cle or other property.
A TIP provides key information to make proce-
dures easier or clearer.
PW50 / PW50M / PW50M2 OWNER’S MANUAL
©2021 by Yamaha Motor Co., Lt d.
1st e dition, March 2020
All ri ghts reserve d.
Any reprintin g or unauthorize d use
without the written permission of
Yamaha Motor Co., Lt d.
is expressly prohi bite d.
Printe d in Japan.
WARNING
NOTICE
TIP
U2SA87E0.book Page 1 Monday, April 6, 2020 3:00 PM

Table of contents
Location of important la bels ........... 1-1
Safety information ............................ 2-1
Description ....................................... 3-1
Left view ......................................... 3-1
Right view ....................................... 3-2
Controls and instruments ............... 3-3
Instrument an d control functions ... 4-1
Handlebar switch............................ 4-1
Speed limiter and power reduction
plate ............................................ 4-1
Front brake lever ............................ 4-2
Rear brake lever ............................. 4-3
Fuel tank cap .................................. 4-3
Fuel ................................................. 4-4
Fuel tank breather hose.................. 4-5
2-stroke engine oil .......................... 4-6
Fuel cock ........................................ 4-6
Starter (choke) lever ...................... 4-7
Kickstarter ...................................... 4-7
Seat ................................................ 4-8
Cable lock (for Europe) ................... 4-9
For your safety – pre-operation
checks ............................................... 5-1
Operation an d important ri din g
points ................................................ 6-1
Starting and warming up a cold engine ......................................... 6-1
Starting a warm engine .................. 6-2
Starting off ...................................... 6-2
Acceleration and deceleration ........ 6-3
Braking ........................................... 6-3
Engine break-in .............................. 6-4
Parking ........................................... 6-4
Perio dic maintenance an d
a d justment ........................................ 7-1
Owner’s tool kit .............................. 7-2
Periodic maintenance chart for the emission control system ............. 7-3
General maintenance and
lubrication chart .......................... 7-4 Checking the spark plug ................. 7-6
Removing the power reduction
plate ............................................. 7-7
Transmission oil .............................. 7-8
Middle and final gear cases .......... 7-10
Cleaning the air filter element ....... 7-10
Cleaning the spark arrester ........... 7-11
Adjusting the carburetor ............... 7-12
Adjusting the engine idling speed ......................................... 7-13
Checking the throttle grip free
play ............................................ 7-14
Tires .............................................. 7-14
Panel wheels ................................. 7-16
Adjusting the front and rear brake lever free play ............................ 7-17
Checking the front and rear brake
shoes ......................................... 7-18
Checking and lubricating the cables ........................................ 7-19
Checking and lubricating the throttle grip and cable ............... 7-19
Adjusting the Autolube pump ....... 7-20
Lubricating the front and rear
brake levers ............................... 7-20
Checking and lubricating the
centerstand ................................ 7-21
Checking the front fork ................. 7-21
Checking the steering ................... 7-22
Checking the wheel bearings ........ 7-22
Front wheel ................................... 7-23
Rear wheel .................................... 7-24
Troubleshooting ............................ 7-27
Troubleshooting chart ................... 7-28
Motorcycle care an d stora ge .......... 8-1
Matte color caution ......................... 8-1
Care................................................. 8-1
Storage............................................ 8-3
Specifications ................................... 9-1
Consumer information ................... 10-1
Identification numbers .................. 10-1 Reporting safety defects (For
CA NADA
c

ustomers) ................. 10-3
U2SA87E0.book Page 1 Monday, April 6, 2020 3:00 PM

Table of contents
In dex ................................................11-1
U2SA87E0.book Page 2 Monday, April 6, 2020 3:00 PM

Location of important labels
1-1
1
EAU68710
Read and understand all of the labels on your vehicle. They contain important in-
formation for safe and proper operation of your vehicle. Never remove any labels
from your vehicle. If a label becomes difficult to read or comes off, a replacement
label is available from your Yamaha dealer.
For Cana da
123,4
5,6
7
U2SA87E0.book Page 1 Monday, April 6, 2020 3:00 PM
