Instrument and control functions
4-2
4
TIP
The adjusting range of the speed limit-
er screw is from the fully turned-in po-
sition to 7 mm (0.28 in) turned out.
When the screw is turned out to 7 mm
(0.28 in), the throttle grip can only be
opened approximately halfway. If more
power is required, please consult a
Yamaha dealer.
WARNING
EWA14632
Improper a djustment of the speed
limiter coul d cause improper throttle
operation. You coul d lose control,
have an acci dent or be injure d. Do
not turn the a djustin g screw out
more than 7 mm (0.28 in) b efore con-
sultin g a Yamaha dealer. Always
make sure the throttle g rip free play
is a djuste d to 1.5–3.5 mm (0.06–0.14
in). (See pag e 7-14.)
Power reduction plate
Once the rider can operate with skill at
the top speed permitted by adjusting
the speed limiter alone, the power re-
duction plate can be removed. (See
page 7-7.)
EAU12902
Front brake lever
The front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.

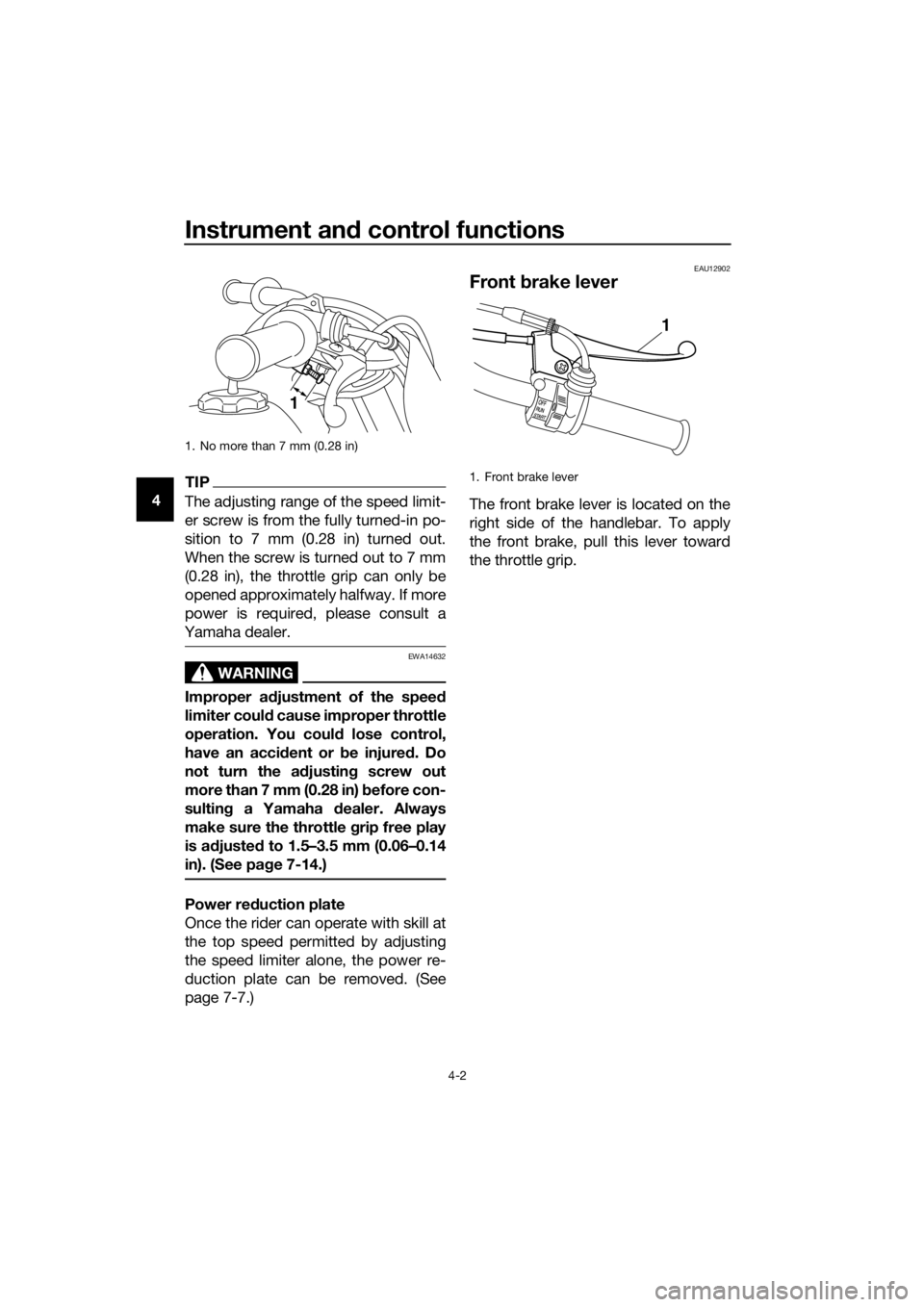

1. No more than 7 mm (0.28 in)
1
1. Front brake lever
1
U2SA88E0.book Page 2 Tuesday, May 11, 2021 3:44 PM
Page 29 of 82
Instrument and control functions
4-3
4
EAU12952
Rear brake lever
The rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
EAU13183
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it
clockwise.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly close d after fillin g fuel.
Leakin g fuel is a fire hazar d.

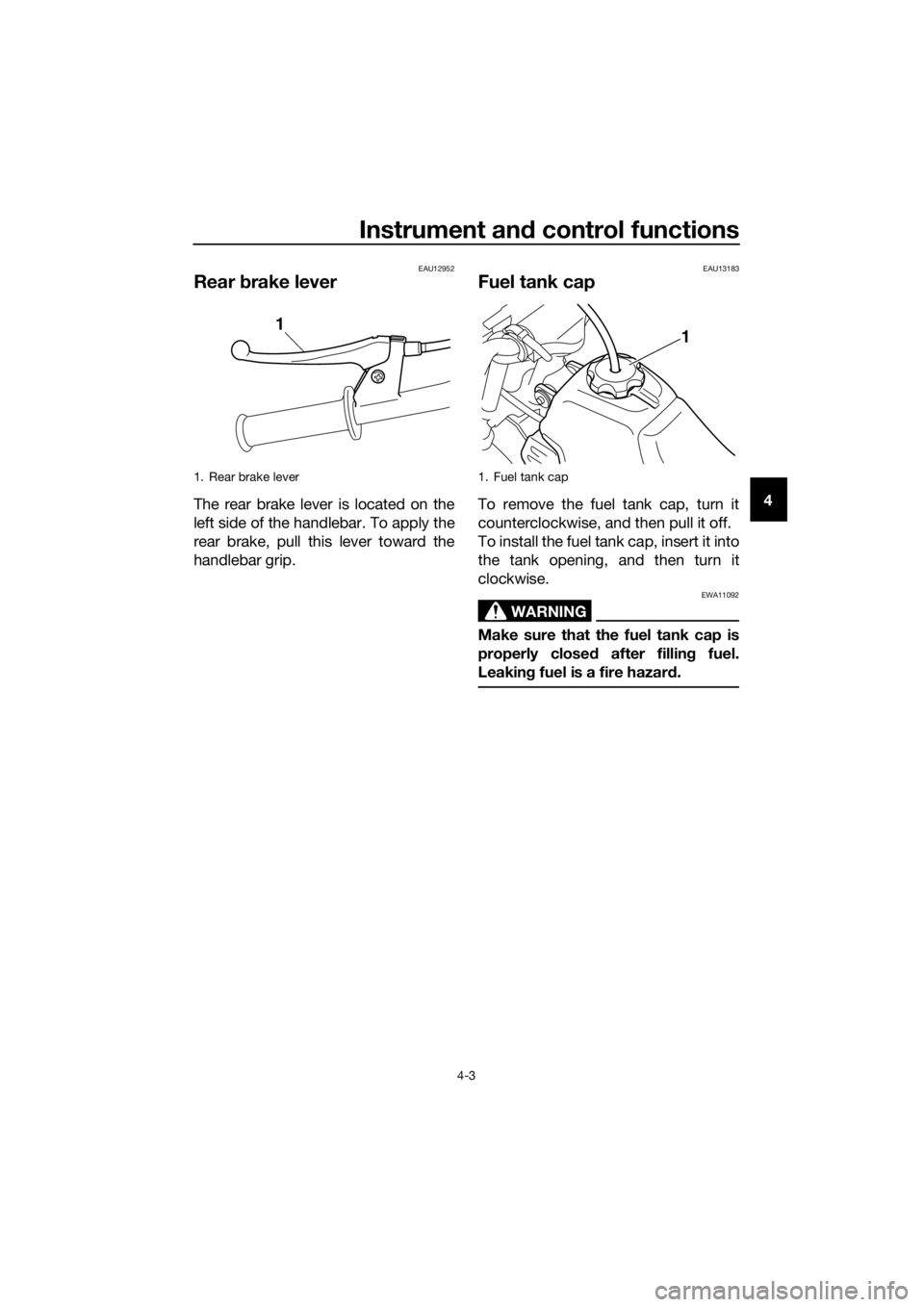

1. Rear brake lever
