INSTRUMENT AND CONTROL FUNCTIONS
EAU40660
Handlebar switch
EAU41130
Engine stop switch “ENGINE STOP”
Set this switch to “RUN” before starting
the engine. Set this switch to “OFF” to
stop the engine.
EAU41590
Power reduction plate
Your motorcycle was delivered with a
power reduction plate. Yamaha recom-
mends that all beginning riders start off
with the power reduction plate installed
to limit the amount of power available
while they learn.
Parents should decide when to adjust
the motorcycle for more power as their
youngster’s riding skills improve. Once
the rider can operate with skill at the top
speed with the power reduction plate
installed, the power reduction plate can
be removed. (See page 6-6.)
EAU39850
Shift pedal
This motorcycle is equipped with a con-
stant-mesh 3-speed transmission. The
shift pedal is located on the left side of
the engine. Neutral is at the bottom po-
sition.
1. Engine stop switch “ENGINE STOP”
1
1. Shift pedal
1
Page 22 of 72
INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9
EAU12890
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13181
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11090
Make sure that the fuel tank cap is
properly closed before riding.
1. Brake lever
1
1. Brake pedal
1
1. Fuel tank cap
1
Page 23 of 72
INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
EAU13220
Fuel
Make sure that there is sufficient fuel in
the tank. When refueling, be sure to in-
sert the pump nozzle into the fuel tank
filler hole and to fill the tank to the bot-
tom of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-
gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts.
EAU41960
CAUTION:
ECA15590
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the piston rings as well as to
the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
1. Fuel tank filler tube
2. Fuel level
2 1
Recommended fuel:
For Europe: REGULAR UNLEADED
GASOLINE ONLY
Except for Europe: UNLEADED
GASOLINE ONLY
Fuel tank capacity:
4.9 L (1.29 US gal) (1.08 Imp.gal)
Fuel reserve amount:
1.0 L (0.26 US gal) (0.22 Imp.gal)
Page 24 of 72
INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9
EAU13412
Fuel tank breather hose
Before operating the motorcycle:
Check the fuel tank breather hose
connection.
Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
EAU41201
2-stroke engine oil
Make sure that there is sufficient oil in
the 2-stroke engine oil tank. If the
2-stroke engine oil is at or below the
minimum level as shown in the illustra-
tion, add a sufficient amount of the rec-
ommended 2-stroke engine oil as
follows.
NOTE:
Make sure that the motorcycle is posi-
tioned straight up when checking the
2-stroke engine oil level. A slight tilt to
the side can result in a false reading.
1. Remove the seat. (See page 3-6.)
2. Remove the 2-stroke engine oiltank cap and add the recommend-
ed oil.
3. Install the 2-stroke engine oil tank
cap.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly closed.
4. Install the seat.
1. Fuel tank breather hose
1
1. Minimum level
1
1. 2-stroke engine oil tank
2. 2-stroke engine oil tank cap
Recommended oil:
See page 8-1.
Oil quantity:
0.95 L (1.00 US qt) (0.84 Imp.qt)
1
2
Page 25 of 72
INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
EAU13561
Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.
ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RES
This indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!
1. Arrow mark positioned over “OFF”
RES
ONFUEL
OFF
1
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
ON
FUEL
RES
OFF
1
ON
OFF
ONFUEL RES
1
RES
Page 26 of 72
INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
EAU13590
Starter (choke) lever “”
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
EAU13680
Kickstarter
To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully.
EAU41140
Seat
To remove the seat
Remove the nuts, and then pull the seat
off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.
1. Starter (choke) lever “”
1
(a)(b)
1. Kickstarter
1
1. Nut
1
Page 27 of 72
INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9

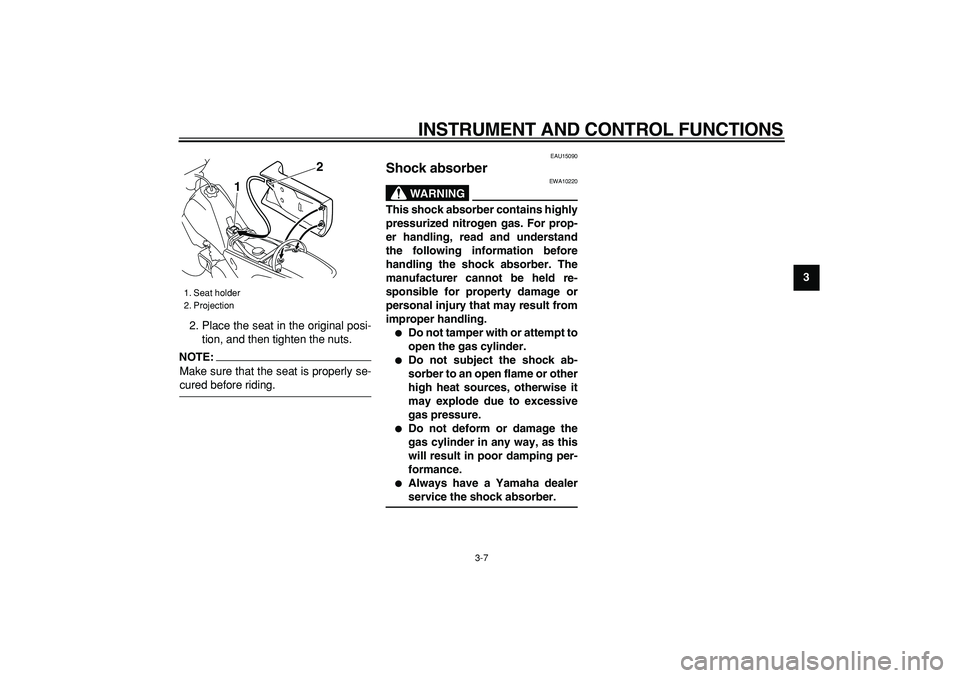

2. Place the seat in the original posi-
tion, and then tighten the nuts.
NOTE:
Make sure that the seat is properly se-
cured before riding.
EAU15090
Shock absorber
WARNING
EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
Do not tamper with or attempt to
open the gas cylinder.
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealer
service the shock absorber.
1. Seat holder
2. Projection
2
1
Page 28 of 72
4-1
1
2
3
4
5
6
7
8
9

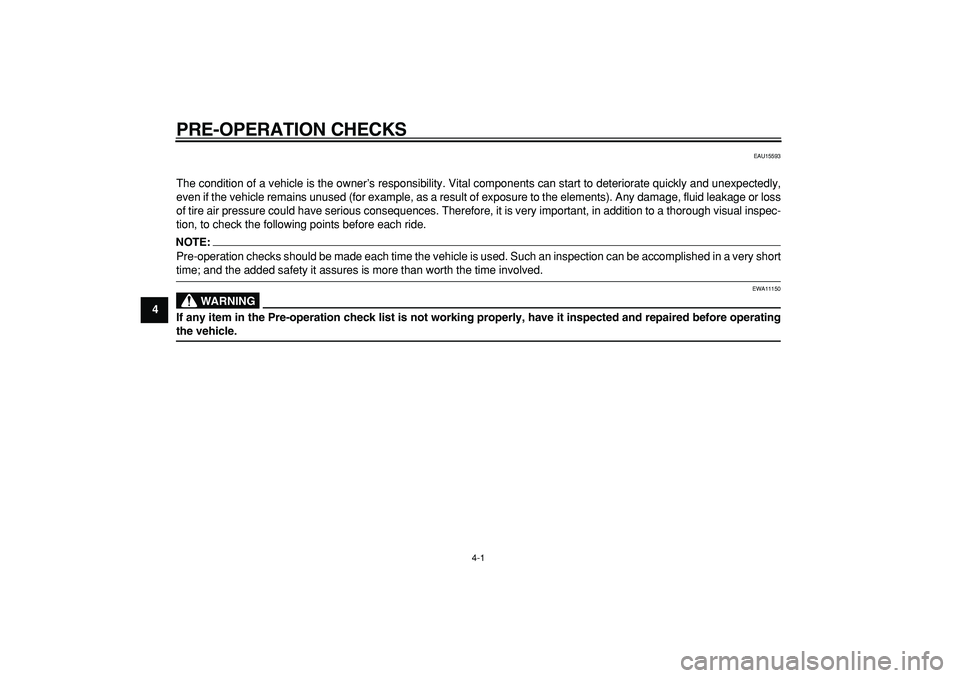

PRE-OPERATION CHECKS
EAU15593
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
NOTE:
Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very short
time; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the vehicle.
Page 29 of 72
PRE-OPERATION CHECKS
4-2
2
3
45
6
7
8
9
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
Fuel
Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-3
2-stroke engine oil
Check oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.3-4
Transmission oil
Check oil level in transmission case.
If necessary, add recommended oil to specified level.6-7
Front brake
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-14, 6-16
Rear brake
Check operation.
Check pedal free play.
Adjust if necessary.6-15, 6-16
Throttle grip
Make sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-11, 6-19
Control cables
Make sure that operation is smooth.
Lubricate if necessary.6-19
Drive chain
Check chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-16, 6-18
Wheels and tires
Check for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-12, 6-13
Page 30 of 72
PRE-OPERATION CHECKS
4-3
1
2
3
4
5
6
7
8
9
Brake and shift pedals
Make sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-20
Brake lever
Make sure that operation is smooth.
Lubricate lever pivoting point if necessary.6-20
Sidestand
Make sure that operation is smooth.
Lubricate pivot if necessary.6-21
Chassis fasteners
Make sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switch
Check operation.3-1
ITEM CHECKS PAGE
