YAMAHA PW80 2008 Service Manual
Manufacturer: YAMAHA, Model Year: 2008, Model line: PW80, Model: YAMAHA PW80 2008Pages: 72, PDF Size: 1.38 MB
Page 41 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
2
3
4
5
67
8
9
EAU19942

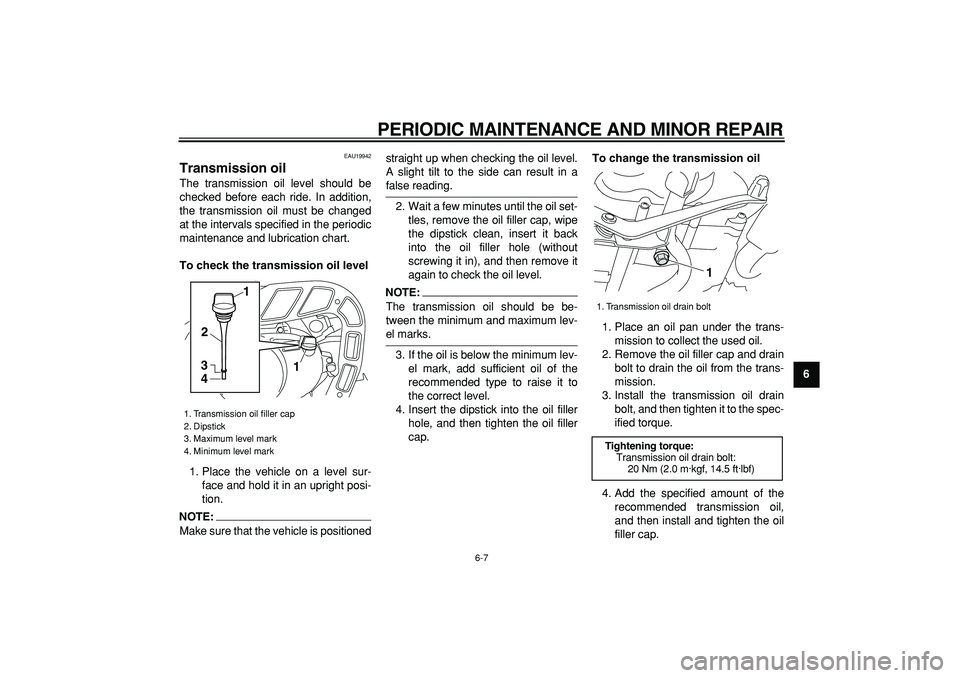

Transmission oil
The transmission oil level should be
checked before each ride. In addition,
the transmission oil must be changed
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the transmission oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:
Make sure that the vehicle is positionedstraight up when checking the oil level.
A slight tilt to the side can result in a
false reading.
2. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
NOTE:
The transmission oil should be be-
tween the minimum and maximum lev-
el marks.
3. If the oil is below the minimum lev-
el mark, add sufficient oil of the
recommended type to raise it to
the correct level.
4. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the transmission oil
1. Place an oil pan under the trans-
mission to collect the used oil.
2. Remove the oil filler cap and drain
bolt to drain the oil from the trans-
mission.
3. Install the transmission oil drain
bolt, and then tighten it to the spec-
ified torque.
4. Add the specified amount of the
recommended transmission oil,
and then install and tighten the oil
filler cap.
1. Transmission oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
2
3
41
1
1. Transmission oil drain bolt
Tightening torque:
Transmission oil drain bolt:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
1
Page 42 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
1
2
3
4
5
6
7
8
9
CAUTION:
ECA10452
In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-
rial enters the transmission.
5. Start the engine, and then let it idle
for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cause.
EAU41161
Cleaning the air filter element
The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out.3. Remove the sponge material from
the air filter case cover, clean it
with solvent, and then squeeze the
remaining solvent out.
Recommended transmission oil:
See page 8-1.
Oil change quantity:
0.65 L (0.69 US qt) (0.57 Imp.qt)
1. Air filter case cover
2. Screw
2
2
1
1. Sponge material
2. Air filter case cover
1
2
Page 43 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
2
3
4
5
67
8
9
4. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
NOTE:
The sponge material should be wet but
not dripping.
5. Install the sponge material onto
the air filter case cover.
6. Insert the air filter element into the
air filter case.
CAUTION:
ECA10480
Make sure that the air filter ele-ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
7. Install the air filter case cover by in-
stalling the screws.
EAU41230
Cleaning the spark arrester
The spark arrester should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
WARNING
EWA10980
Always let the exhaust system
cool prior to touching exhaust
components.
Do not start the engine when
cleaning the exhaust system.
NOTE:
Make sure to select a well-ventilated
area free of combustible materials to
clean the spark arrester.
1. Remove the tailpipe by removing
the bolt, and then pulling it out of
the muffler.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
Page 44 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
1
2
3
4
5
6
7
8
9
2. Tap the tailpipe lightly, and then
use a wire brush to remove any
carbon deposits from the spark ar-
rester portion of the tailpipe and in-
side of the tailpipe housing.3. Insert the tailpipe into the muffler,
and then install and tighten the
bolt.
NOTE:
Make sure to align the bolt hole when
inserting the tailpipe.
EAU39930
Adjusting the carburetor
The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.
CAUTION:
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine.
1. Bolt
1
1. Tailpipe
2. Spark arrester
3. Bolt
23
1
Page 45 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
2
3
4
5
67
8
9
EAU21340
Adjusting the engine idling
speed
The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.
NOTE:
The engine is warm when it quickly
responds to the throttle.
A diagnostic tachometer is needed
to make this adjustment.
1. Attach the tachometer to the spark
plug lead.
2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
EAU21370
Adjusting the throttle cable
free play
The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, adjust it as follows.
NOTE:
The engine idling speed must be cor-
rectly adjusted before checking and ad-
justing the throttle cable free play.
1. Loosen the locknut.
2. To increase the throttle cable free
play, turn the adjusting nut in direc-
tion (a). To decrease the throttle
1. Throttle stop screw
Engine idling speed:
1650–1750 r/min
1
(a) (b)
1. Throttle cable free play
1
Page 46 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
1
2
3
4
5
6
7
8
9

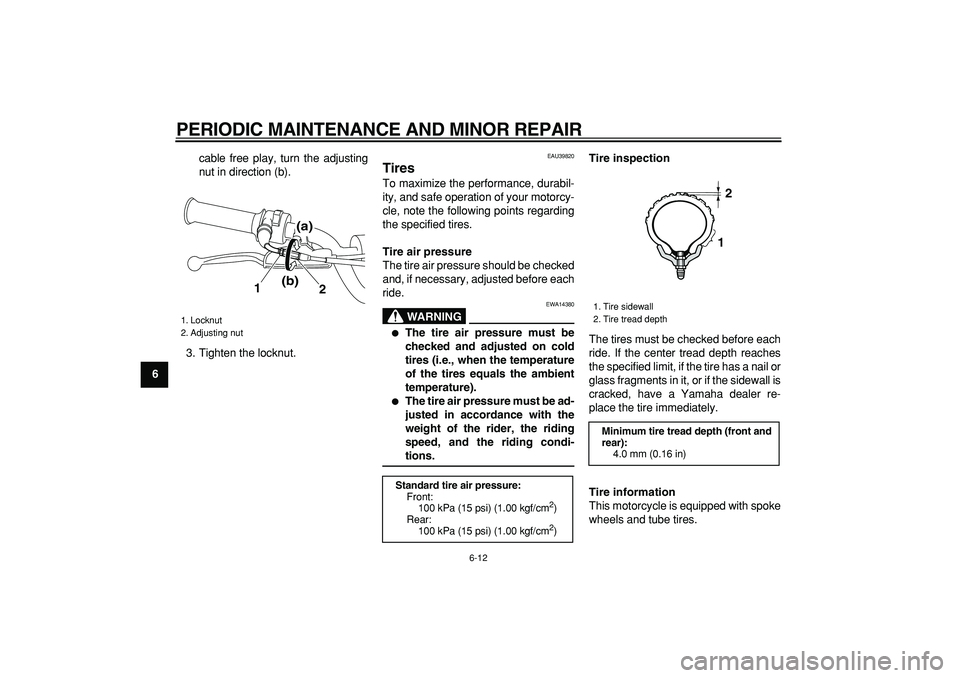

cable free play, turn the adjusting
nut in direction (b).
3. Tighten the locknut.
EAU39820
Tires
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA14380
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
weight of the rider, the riding
speed, and the riding condi-
tions.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
1. Locknut
2. Adjusting nut
1
2
(a)
(b)
Standard tire air pressure:
Front:
100 kPa (15 psi) (1.00 kgf/cm
2
)
Rear:
100 kPa (15 psi) (1.00 kgf/cm
2
)
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
12
Page 47 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
2
3
4
5
67
8
9

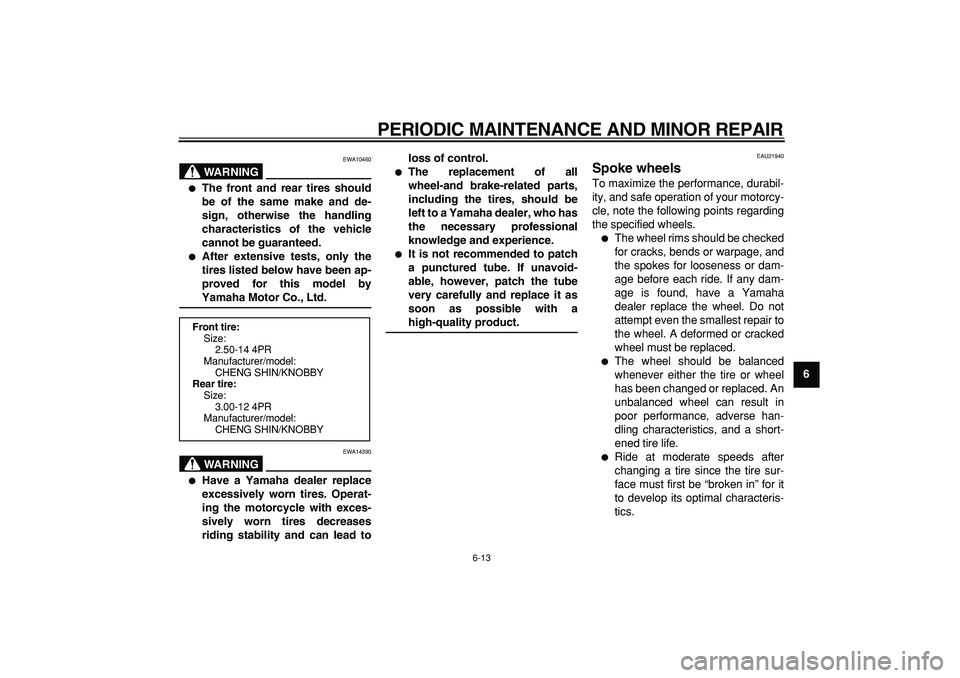

WARNING
EWA10460
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
WARNING
EWA14390
Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-
sively worn tires decreases
riding stability and can lead toloss of control.
The replacement of all
wheel-and brake-related parts,
including the tires, should be
left to a Yamaha dealer, who has
the necessary professional
knowledge and experience.
It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a
high-quality product.
EAU21940
Spoke wheels
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified wheels.
The wheel rims should be checked
for cracks, bends or warpage, and
the spokes for looseness or dam-
age before each ride. If any dam-
age is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
Front tire:
Size:
2.50-14 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Rear tire:
Size:
3.00-12 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Page 48 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
1
2
3
4
5
6
7
8
9
EAU40431

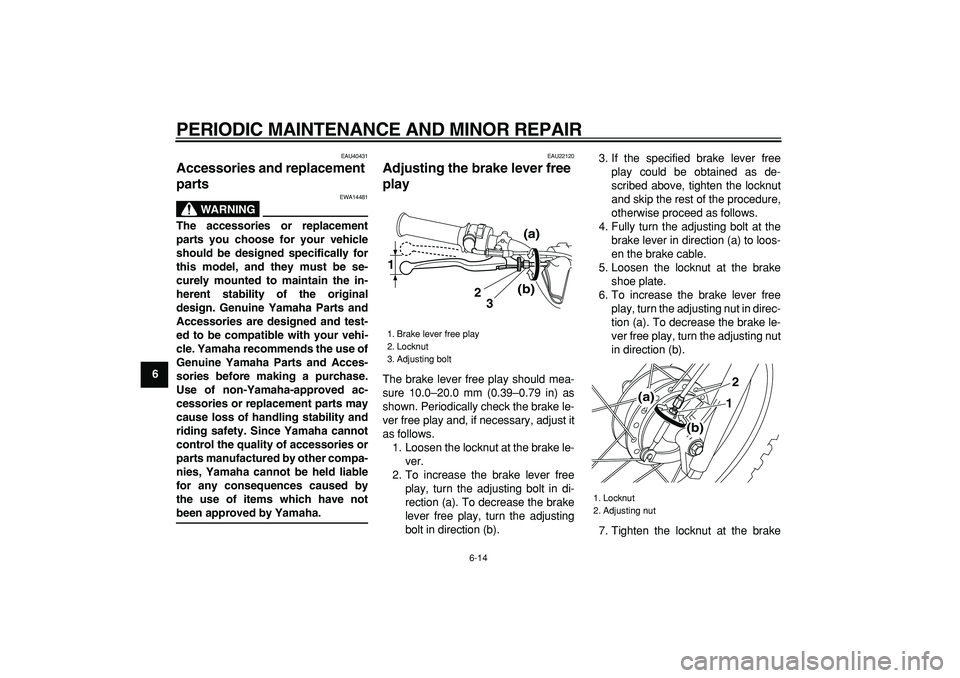

Accessories and replacement
parts
WARNING
EWA14481
The accessories or replacement
parts you choose for your vehicle
should be designed specifically for
this model, and they must be se-
curely mounted to maintain the in-
herent stability of the original
design. Genuine Yamaha Parts and
Accessories are designed and test-
ed to be compatible with your vehi-
cle. Yamaha recommends the use of
Genuine Yamaha Parts and Acces-
sories before making a purchase.
Use of non-Yamaha-approved ac-
cessories or replacement parts may
cause loss of handling stability and
riding safety. Since Yamaha cannot
control the quality of accessories or
parts manufactured by other compa-
nies, Yamaha cannot be held liable
for any consequences caused by
the use of items which have not
been approved by Yamaha.
EAU22120
Adjusting the brake lever free
play
The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the brake le-
ver.
2. To increase the brake lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the brake
lever free play, turn the adjusting
bolt in direction (b).3. If the specified brake lever free
play could be obtained as de-
scribed above, tighten the locknut
and skip the rest of the procedure,
otherwise proceed as follows.
4. Fully turn the adjusting bolt at the
brake lever in direction (a) to loos-
en the brake cable.
5. Loosen the locknut at the brake
shoe plate.
6. To increase the brake lever free
play, turn the adjusting nut in direc-
tion (a). To decrease the brake le-
ver free play, turn the adjusting nut
in direction (b).
7. Tighten the locknut at the brake
1. Brake lever free play
2. Locknut
3. Adjusting bolt
1
2
3
(a)
(b)
1. Locknut
2. Adjusting nut
12
(a)
(b)
Page 49 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
2
3
4
5
67
8
9

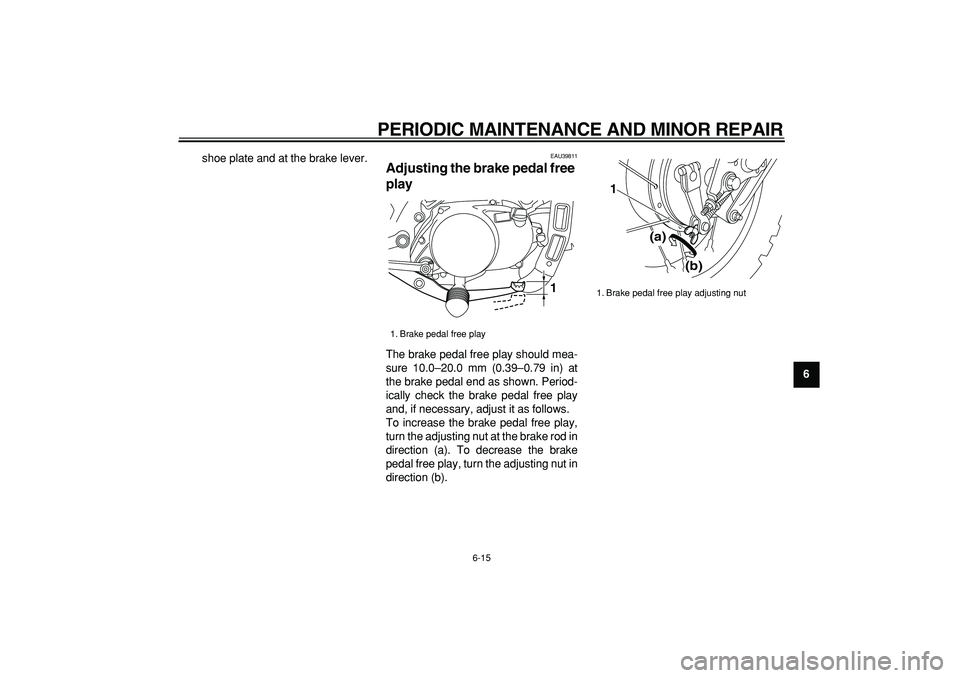

shoe plate and at the brake lever.
EAU39811
Adjusting the brake pedal free
play
The brake pedal free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) at
the brake pedal end as shown. Period-
ically check the brake pedal free play
and, if necessary, adjust it as follows.
To increase the brake pedal free play,
turn the adjusting nut at the brake rod in
direction (a). To decrease the brake
pedal free play, turn the adjusting nut in
direction (b).
1. Brake pedal free play
1
1. Brake pedal free play adjusting nut
1
(a)
(b)
Page 50 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
1
2
3
4
5
6
7
8
9
EAU41052

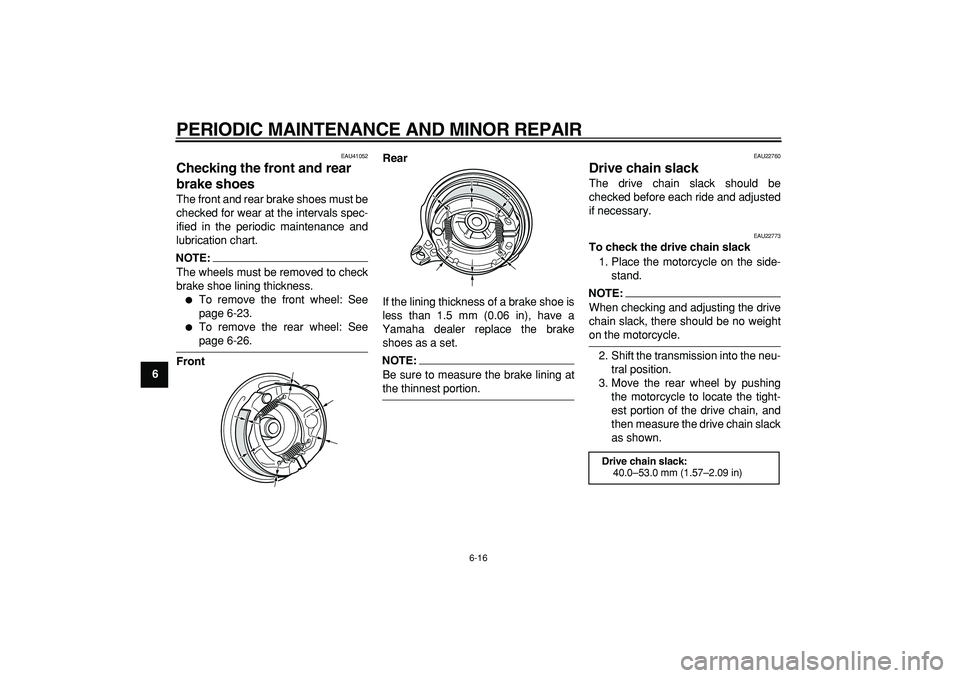

Checking the front and rear
brake shoes
The front and rear brake shoes must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
NOTE:
The wheels must be removed to check
brake shoe lining thickness.
To remove the front wheel: See
page 6-23.
To remove the rear wheel: See
page 6-26.
FrontRear
If the lining thickness of a brake shoe is
less than 1.5 mm (0.06 in), have a
Yamaha dealer replace the brake
shoes as a set.
NOTE:
Be sure to measure the brake lining at
the thinnest portion.
EAU22760
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22773
To check the drive chain slack
1. Place the motorcycle on the side-
stand.
NOTE:
When checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.
2. Shift the transmission into the neu-
tral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.
Drive chain slack:
40.0–53.0 mm (1.57–2.09 in)
