YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
1
2
3
4
5
6
7
8
9

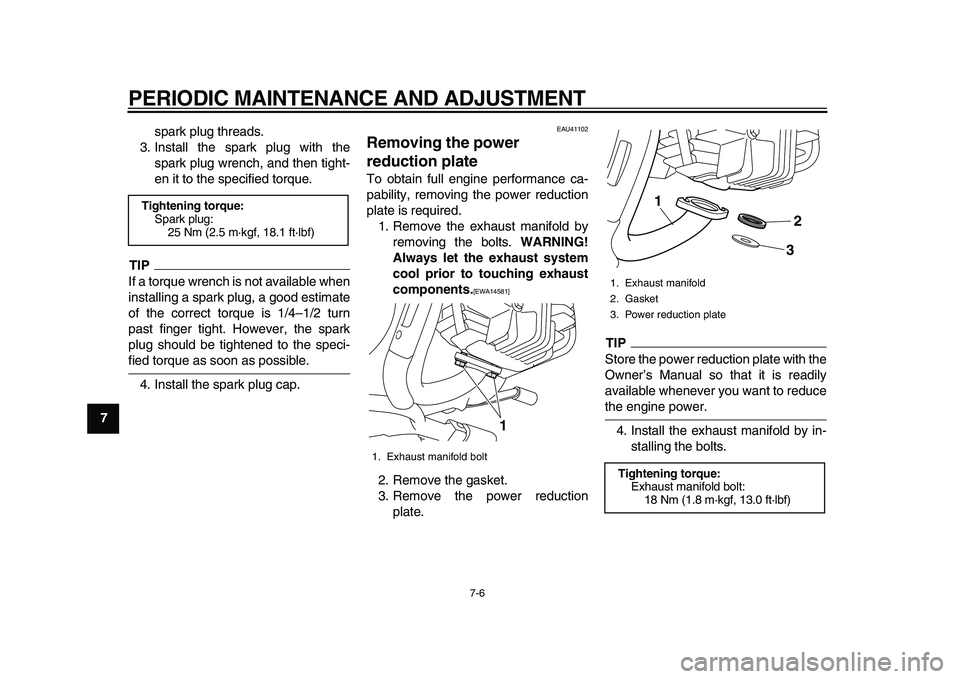

spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIP

If a torqu

Page 44 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
1
2
3
4
5
6
7
8
9
NOTICE

 ECA10452

In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemi

Page 45 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-9
2
3
4
5
6
78
9
4. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
TIP

The sponge

Page 46 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-10
1
2
3
4
5
6
7
8
9
carbon deposits from the spark ar-
rester portion of the tailpipe and in-
side of the tailpipe housing.
3. Insert the tailpipe into the

Page 47 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-11
2
3
4
5
6
78
9
TIP

If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
EAU21370
Adjusting t

Page 54 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-18
1
2
3
4
5
6
7
8
9

EAU41842
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked

Page 56 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-20
1
2
3
4
5
6
7
8
9

EAU23272
Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified

Page 57 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-21
2
3
4
5
6
78
9

EAU23290
Checking the wheel bearings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maint

Page 63 of 72

YAMAHA PW80 2010 Owners Manual
PERIODIC MAINTENANCE AND ADJUSTMENT
7-27
2
3
4
5
6
78
9

EAU25972
Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is
enough fuel.
There is
no fuel.
Supply fuel.
Oper

Page 64 of 72

YAMAHA PW80 2010 Owners Manual
8-1
1
2
3
4
5
6
7
8
9

MOTORCYCLE CARE AND STORAGE
EAU37833
Matte color caution
NOTICE

 ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha deale
