TABLE OF CONTENTS
LOCATION OF IMPORTANT
LABELS
............................................. 1-1
SAFETY INFORMATION
.................. 2-1
DESCRIPTION
.................................. 3-1
Left view .......................................... 3-1
Right view ........................................ 3-2
Controls and instruments ................ 3-3
INSTRUMENT AND CONTROL
FUNCTIONS
....................................... 4-1
Handlebar switch ............................ 4-1
Power reduction plate ..................... 4-1
Shift pedal ...................................... 4-1
Brake lever ..................................... 4-2
Brake pedal .................................... 4-2
Fuel tank cap .................................. 4-2
Fuel ................................................ 4-3
Fuel tank breather hose ................. 4-4
2-stroke engine oil .......................... 4-4
Fuel cock ........................................ 4-5
Starter (choke) lever “ ” ................ 4-6
Kickstarter ...................................... 4-6
Seat ................................................ 4-7
Shock absorber assembly .............. 4-7
Sidestand ....................................... 4-8
FOR YOUR SAFETY –
PRE-OPERATION CHECKS
.............. 5-1
OPERATION AND IMPORTANT
RIDING POINTS
................................. 6-1
Starting and warming up a cold
engine ......................................... 6-1
Starting a warm engine .................. 6-2
Shifting ........................................... 6-2
Engine break-in .............................. 6-3
Parking ........................................... 6-4
PPERIODIC MAINTENANCE AND
ADJUSTMENT
................................... 7-1
Owner’s tool kit ............................... 7-1
Periodic maintenance and
lubrication chart .......................... 7-2
Checking the spark plug ................. 7-5
Removing the power reduction
plate ............................................ 7-6
Transmission oil ............................. 7-7
Cleaning the air filter element ........ 7-8
Cleaning the spark arrester ............ 7-9
Adjusting the carburetor ............... 7-10
Adjusting the engine idling
speed ........................................ 7-10
Adjusting the throttle cable free
play ........................................... 7-11
Tires ............................................. 7-12
Spoke wheels ............................... 7-13
Adjusting the brake lever free
play ........................................... 7-13
Adjusting the brake pedal free
play ........................................... 7-14Checking the front and rear
brake shoes ............................... 7-15
Drive chain slack ........................... 7-16
Cleaning and lubricating the
drive chain ................................. 7-17
Checking and lubricating the
cables ........................................ 7-18
Checking and lubricating the
throttle grip and cable ................ 7-18
Adjusting the Autolube pump ........ 7-18
Checking and lubricating the
brake lever ................................. 7-19
Checking and lubricating the
brake pedal ................................ 7-19
Checking and lubricating the
sidestand ................................... 7-19
Checking the front fork .................. 7-20
Checking the steering ................... 7-20
Checking the wheel bearings ........ 7-21
Supporting the motorcycle ............ 7-21
Front wheel ................................... 7-22
Rear wheel .................................... 7-24
Troubleshooting ............................ 7-26
Troubleshooting chart ................... 7-27
MOTORCYCLE CARE AND
STORAGE
.......................................... 8-1
Matte color caution ......................... 8-1
Care ................................................ 8-1
Storage ........................................... 8-3

LOCATION OF IMPORTANT LABELS
1-3
1
2
3
4
5
6
7
8
9

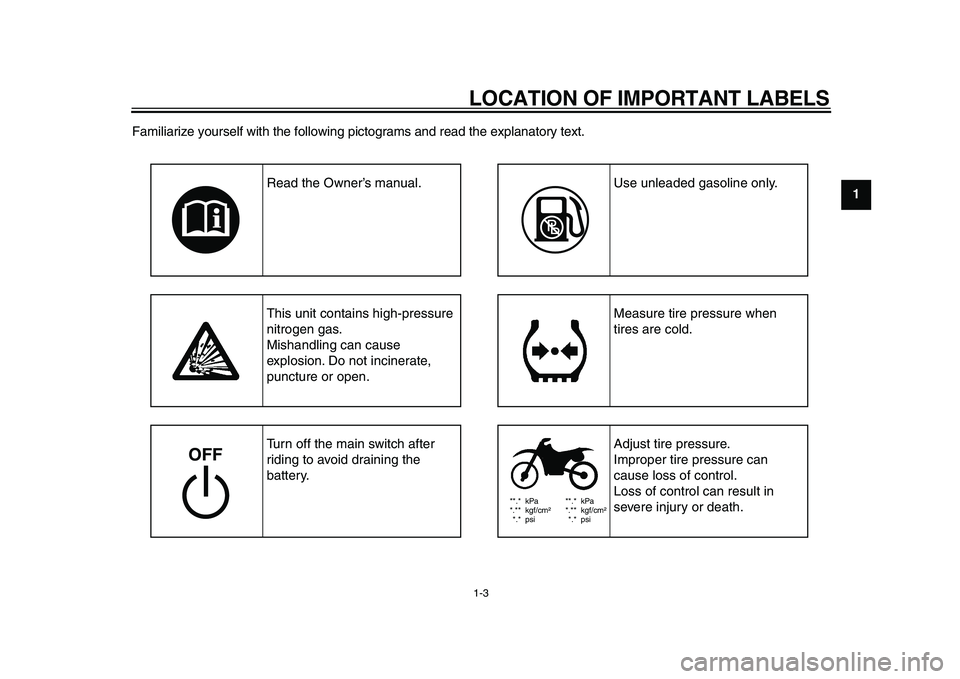

Familiarize yourself with the following pictograms and read the explanatory text.
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi
Read the Owner’s manual.
This unit contains high-pressure
nitrogen gas.
Mishandling can cause
explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery.Use unleaded gasoline only.
Measure tire pressure when
tires are cold.
Adjust tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.

2-3
1
2
3
4
5
6
7
8
9

SAFETY INFORMATION
dling if the weight distribution of the mo-
torcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Operation of an overloaded vehicle
could cause an accident.

The weight of the operator must
not exceed 40.0 kg (88 lb).

Accessory weight should be kept
as low and close to the motorcycle
as possible. Securely pack your
heaviest items as close to the cen-
ter of the vehicle as possible and
make sure to distribute the weight
as evenly as possible on both
sides of the motorcycle to mini-
mize imbalance or instability.

Shifting weights can create a sud-
den imbalance. Make sure that
accessories are securely at-
tached to the motorcycle before
riding. Check accessory mounts
frequently.

Properly adjust the suspension
for your load, and check the con-
dition and pressure of your tires.

Never attach any large or heavy
items to the handlebar, front
fork, or front fender.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.

Accessories fitted to the handle-

2-4
2
3
4
5
6
7
8
9

SAFETY INFORMATION
bar or the front fork area can
create instability due to improper
weight distribution. If accesso-
ries are added to the handlebar
or front fork area, they must be
as lightweight as possible and
should be kept to a minimum.

Bulky or large accessories may
seriously affect the stability of
the motorcycle. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds.

Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 7-12 for tire
specifications and more information on
replacing your tires.

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-2
1
2
3
4
5
6
7
8
9

Drive chain

Check chain slack.

Adjust if necessary.

Check chain condition.

Lubricate if necessary.7-16, 7-17
Wheels and tires

Check for damage.

Check tire condition and tread depth.

Check air pressure.

Correct if necessary.7-12, 7-13
Shift pedal

Make sure that operation is smooth.

Correct if necessary.—
Brake pedal

Make sure that operation is smooth.

Lubricate pedal pivoting point if necessary.7-19
Brake lever

Make sure that operation is smooth.

Lubricate lever pivoting point if necessary.7-19
Sidestand

Make sure that operation is smooth.

Lubricate pivot if necessary.7-19
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened.

Tighten if necessary.—
Engine stop switch

Check operation.4-1
ITEM CHECKS PAGE

PERIODIC MAINTENANCE AND ADJUSTMENT
7-3
2
3
4
5
6
78
9
8*Tires
Check tread depth and for damage.Replace if necessary.Check air pressure.Correct if necessary.
9*Wheel bearingsCheck bearings for smooth operation.Replace if necessary.
10 *Steering bearingsCheck bearing assemblies for looseness.Moderately repack with lithium-soap-based
grease.
11Drive chainCheck chain slack/alignment and condi-
tion.Adjust and lubricate chain with Yamaha
chain and cable lube thoroughly.Every rideRemove and clean.
12 *Chassis fastenersCheck all chassis fitting and fasteners.Replace if necessary.
13
Sidestand pivotCheck operation.Apply lithium-soap-based g
rease lightly.
14 *Front fork
Check operation and for oil leakage.Replace if necessary.
15 *Shock absorber
assemblyCheck operation and for oil leakage.Replace if necessary.
16 *CarburetorCheck engine idling speed and starter
operation.Clean.Replace if necessary. NO. ITEM CHECK OR MAINTENANCE JOBINITIAL THEREAFTER EVERY
10
hours20
hours40
hours80
hours40
hours80
hours160
hours

PERIODIC MAINTENANCE AND ADJUSTMENT
7-12
1
2
3
4
5
6
7
8
9

EAU39821
Tires
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING

EWA14381
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).

The tire air pressure must be ad-
justed in accordance with the
weight of the rider, the riding
speed, and the riding condi-
tions.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
WARNING

EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, which
could lead to an accident.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING

EWA14390

Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-
Standard tire air pressure:
Front:
100 kPa (1.00 kgf/cm 2
, 15 psi)
Rear:
100 kPa (1.00 kgf/cm
2

, 15 psi)
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
12

Front tire:
Size:
2.50-14 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Rear tire:
Size:
3.00-12 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY

PERIODIC MAINTENANCE AND ADJUSTMENT
7-13
2
3
4
5
6
78
9 sively worn tires decreases
riding stability and can lead to
loss of control.


The replacement of all
wheel-and brake-related parts,
including the tires, should be
left to a Yamaha dealer, who has
the necessary professional
knowledge and experience.

It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a
high-quality product.
EAU21940
Spoke wheels
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified wheels.

The wheel rims should be checked
for cracks, bends or warpage, and
the spokes for looseness or dam-
age before each ride. If any dam-
age is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.

The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.

Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU22120
Adjusting the brake lever free
play
The brake lever free play should mea-
sure 10.0–20.0 mm (0.39–0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the brake le-
ver.
2. To increase the brake lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the brake
lever free play, turn the adjusting
bolt in direction (b).
1. Brake lever free play
2. Locknut
3. Adjusting bolt
1
2
3
(a)
(b)

MOTORCYCLE CARE AND STORAGE
8-3
1
2
3
4
5
6
7
8
9

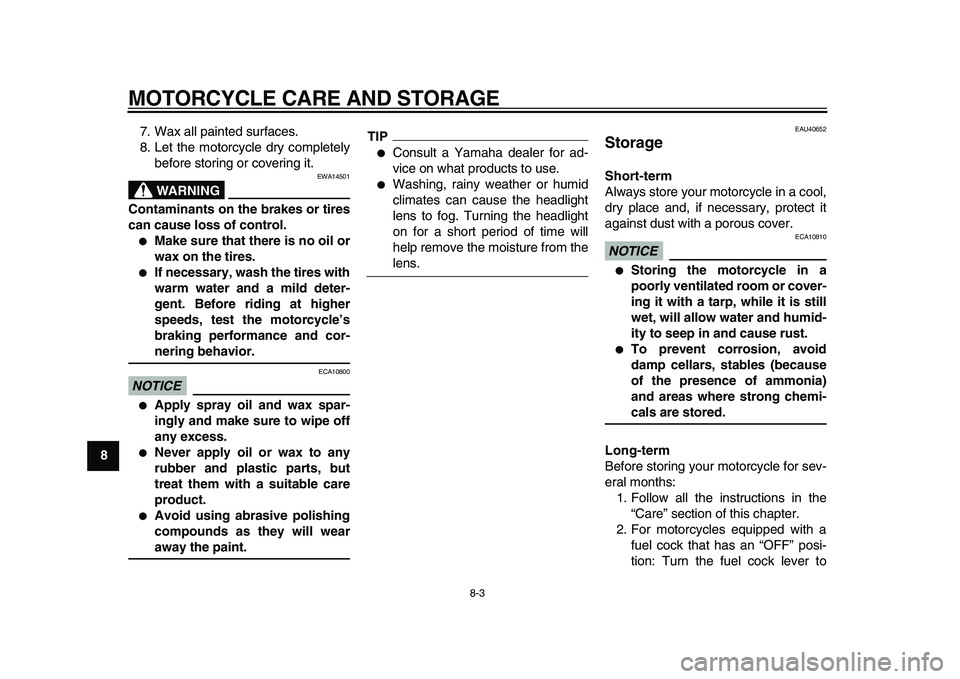

7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING

EWA14501
Contaminants on the brakes or tires
can cause loss of control.

Make sure that there is no oil or
wax on the tires.

If necessary, wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-
nering behavior.
NOTICE

ECA10800

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.

Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP


Consult a Yamaha dealer for ad-
vice on what products to use.

Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU40652
Storage
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
NOTICE

ECA10810

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to

MOTORCYCLE CARE AND STORAGE
8-4
2
3
4
5
6
7
89

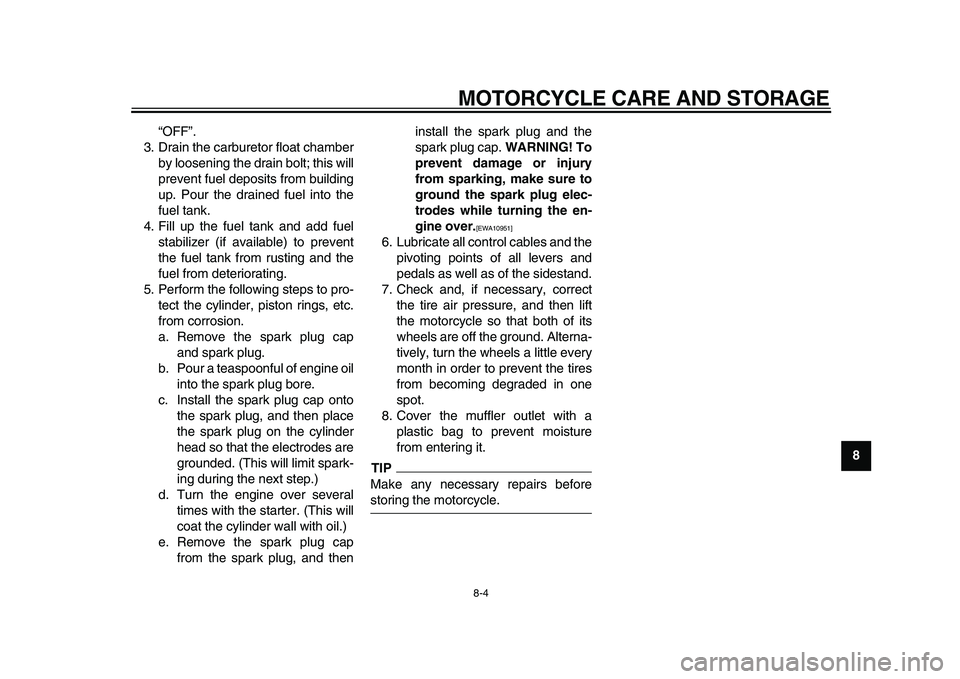

“OFF”.
3. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and theninstall the spark plug and the
spark plug cap.
WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.

[EWA10951]

6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
TIP

Make any necessary repairs before
storing the motorcycle.
