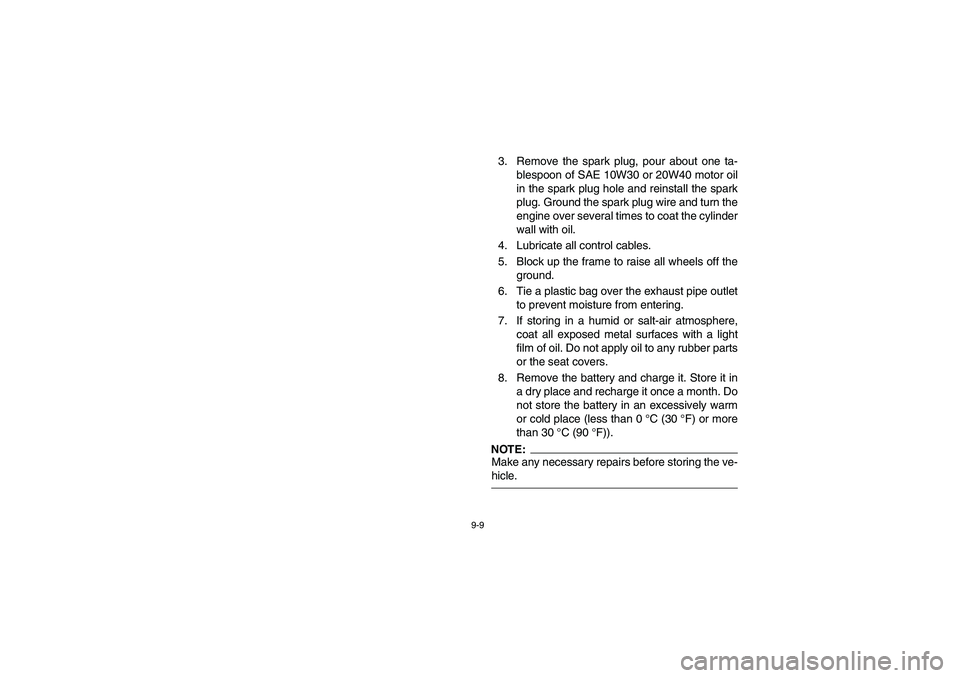

9-9
3. Remove the spark plug, pour about one ta-
blespoon of SAE 10W30 or 20W40 motor oil
in the spark plug hole and reinstall the spark
plug. Ground the spark plug wire and turn the
engine over several times to coat the cylinder
wall with oil.
4. Lubricate all control cables.
5. Block up the frame to raise all wheels off the
ground.
6. Tie a plastic bag over the exhaust pipe outlet
to prevent moisture from entering.
7. If storing in a humid or salt-air atmosphere,
coat all exposed metal surfaces with a light
film of oil. Do not apply oil to any rubber parts
or the seat covers.
8. Remove the battery and charge it. Store it in
a dry place and recharge it once a month. Do
not store the battery in an excessively warm
or cold place (less than 0°C (30°F) or more
than 30°C (90°F)).NOTE:_ Make any necessary repairs before storing the ve-
hicle. _
EE.book Page 9 Monday, July 11, 2005 2:32 PM

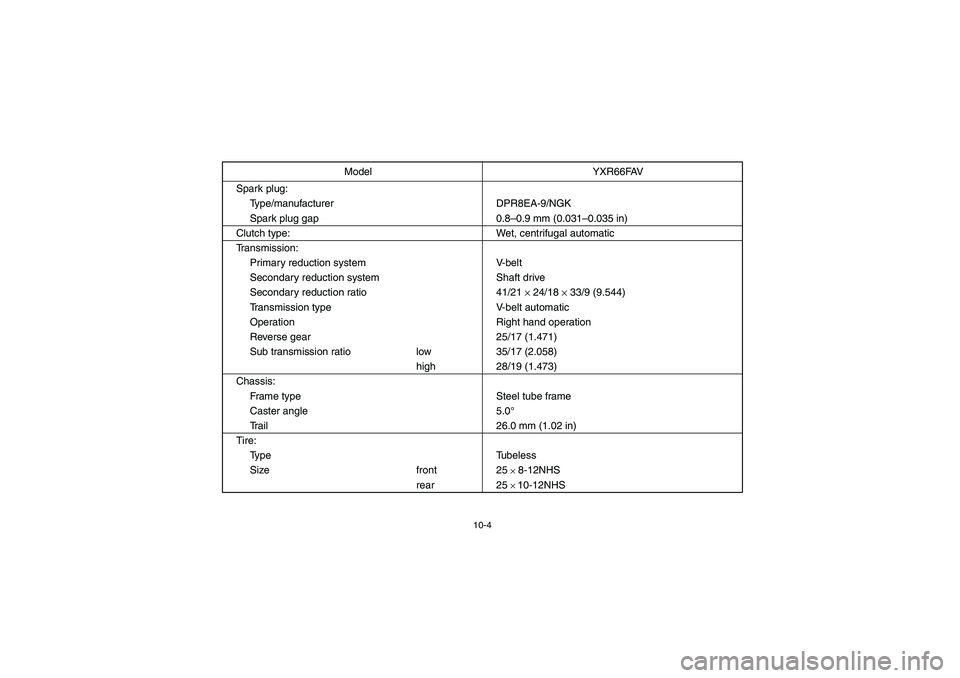

10-4
Spark plug:
Type/manufacturer DPR8EA-9/NGK
Spark plug gap 0.8–0.9 mm (0.031–0.035 in)
Clutch type: Wet, centrifugal automatic
Transmission:
Primary reduction system V-belt
Secondary reduction system Shaft drive
Secondary reduction ratio 41/21
× 24/18
× 33/9 (9.544)
Transmission type V-belt automatic
Operation Right hand operation
Reverse gear 25/17 (1.471)
Sub transmission ratio low 35/17 (2.058)
high 28/19 (1.473)
Chassis:
Frame type Steel tube frame
Caster angle 5.0°
Trail 26.0 mm (1.02 in)
Tire:
Ty p e Tu b e l e s s
Size front 25
× 8-12NHS
rear 25 × 10-12NHS Model YXR66FAV
