YAMAHA SLIDER 50 2013 Repair Manual

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1785 mm (70.3 in)
Overall width:
711 mm (28.0 in)
Overall height:
1077 mm (42.4 in)
Seat height:
787 mm (31.0 in)
Wheelbase:
1202 mm (47.3 in)
Ground clearance:
185 mm (7.28 in)
Minimum turning radius:
1800 mm (70.9 in)Weight:Curb weight:
81 kg (179 lb)Engine:Engine type:
Air cooled 2-stroke
Cylinder arrangement:
Single cylinder
Displacement:
49 cm³
Bore × stroke:
40.0 × 39.2 mm (1.57 × 1.54 in)
Compression ratio:
7.20 : 1
Starting system:
Electric starter and kickstarter
Lubrication system:
Separate lubrication (Yamaha autolube)
Engine oil:Type:
YAMALUBE 2S or 2-stroke engine oil
(JASO FC grade) or (ISO EG-C or EG-D
grade)
Engine oil quantity:
Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.11 L (0.12 US qt, 0.10 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
6.5 L (1.72 US gal, 1.43 Imp.gal)
Fuel reserve amount:
2.9 L (0.77 US gal, 0.64 Imp.gal)Carburetor:Manufacturer:
DELLORTO
Type × quantity:
PHBN12 x 1Spark plug(s):Manufacturer/model:
NGK/BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:Clutch type:
Dry, centrifugal automaticTransmission:Primary reduction ratio:
1.000
Final drive:
Gear
Secondary reduction ratio:
12.923 (52/13 x 42/13)
Transmission type:
V-belt automaticChassis:Frame type:
Underbone
Caster angle:
27.00 °
Trail:
90 mm (3.5 in)Front tire:Type:
Tubeless
Size:
120/70-12
Manufacturer/model:
PIRELLI / EVO21 (51L)Rear tire:Type:
Tubeless
Size:
130/70-12
Manufacturer/model:
PIRELLI / EVO22 (56L)
U1S0E1E0.book Page 1 Wednesday, November 7, 2012 3:32 PM

SPECIFICATIONS
8-2
8
Loading:Maximum load:
184 kg (406 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
150 kPa (1.50 kgf/cm², 22 psi)
Rear:
160 kPa (1.60 kgf/cm², 23 psi)
Loading condition:
90–184 kg (198–406 lb)
Front:
150 kPa (1.50 kgf/cm², 22 psi)
Rear:
160 kPa (1.60 kgf/cm², 23 psi)Front wheel:Wheel type:
Cast wheel
Rim size:
12xMT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
12xMT3.50Front brake:Type:
Single disc brake
Operation:
Right hand operationSpecified brake fluid:
DOT 3 or 4
Rear brake:Type:
Drum brake
Operation:
Left hand operationFront suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
100.0 mm (3.94 in)Electrical system:Ignition system:
DC CDI
Charging system:
AC magnetoBattery:Model:
CB4L-B (GS), YB4L-B (YUASA)
Voltage, capacity:
12 V, 4.0 AhHeadlight:Bulb type:
Incandescence
Bulb voltage, wattage × quantity:Headlight:
12 V, 35.0 W/35.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Meter lighting:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LEDFuses:Main fuse:
7.5 A
U1S0E1E0.book Page 2 Wednesday, November 7, 2012 3:32 PM

CONSUMER INFORMATION
9-1
9
EAU48612

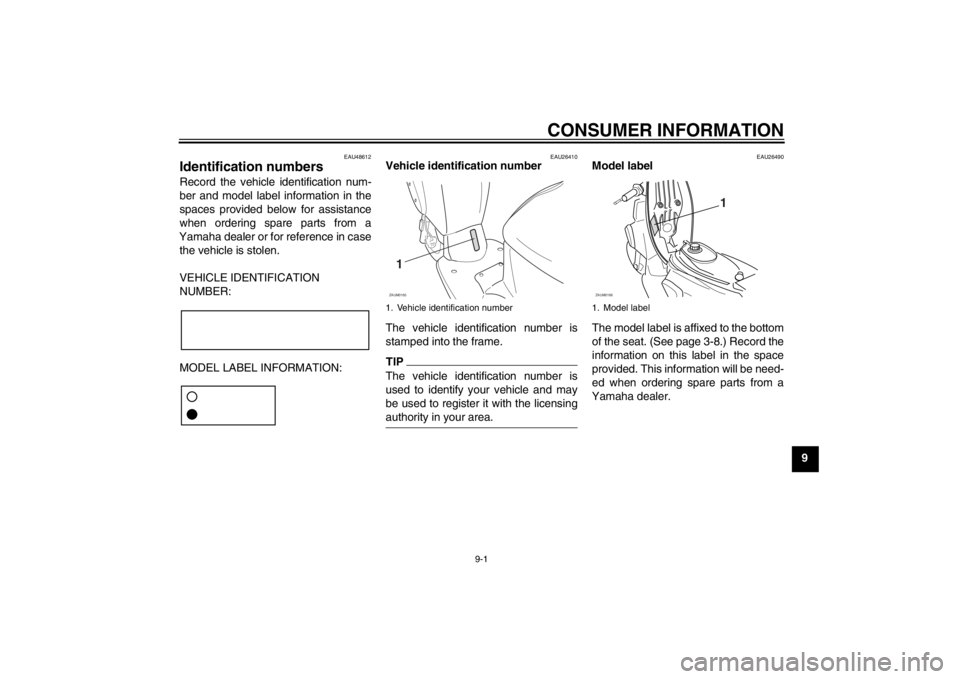

Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26490
Model label
The model label is affixed to the bottom
of the seat. (See page 3-8.) Record the
information on this label in the space
provided. This information will be need-
ed when ordering spare parts from a
Yamaha dealer.
1. Vehicle identification number1ZAUM0165
1. Model label
1
ZAUM0166
U1S0E1E0.book Page 1 Wednesday, November 7, 2012 3:32 PM

INDEXAAcceleration and deceleration................. 5-3
Air filter element, cleaning....................... 6-9
Anti-theft device housing......................... 3-8BBattery................................................... 6-19
Brake fluid, changing ............................ 6-15
Brake fluid level, checking .................... 6-14
Brake lever, front..................................... 3-4
Brake lever, rear ..................................... 3-4
Brake levers, lubricating........................ 6-16
Brake pads and shoes, checking .......... 6-14
Braking .................................................... 5-3CCables, checking and lubricating .......... 6-16
Carburetor,adjusting ............................. 6-10
Care ........................................................ 7-1
Catalytic converter .................................. 3-6
Centerstand, checking and
lubricating ........................................... 6-17
Cowling and panel, removing and
installing................................................ 6-6DDimmer switch ........................................ 3-4EEngine break-in ....................................... 5-4
Engine oil ................................................ 3-7
Engine, starting a warm .......................... 5-2FFinal transmission oil .............................. 6-8
Front brake lever free play, checking .... 6-13
Front fork, checking .............................. 6-18
Fuel ......................................................... 3-5
Fuel and 2-stroke engine oil tank caps ... 3-5Fuel consumption, tips for reducing........ 5-4
Fuel level warning light ........................... 3-2
Fuse, replacing ..................................... 6-21
HHandlebar switches ................................ 3-3
Headlight bulb, replacing ...................... 6-21
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................ 9-1
Indicator lights and warning light ............ 3-2KKickstarter............................................... 3-8LLuggage hook ......................................... 3-9MMain switch/steering lock........................ 3-1
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-1OOil level warning light.............................. 3-2PParking ................................................... 5-5
Part locations .......................................... 2-1RRear brake lever free play, adjusting .... 6-13SSafe-riding points.................................... 1-5
Safety information................................... 1-1
Seat ........................................................ 3-8
Spark plug, checking .............................. 6-7
Specifications ......................................... 8-1Speedometer unit .................................... 3-3
Starter (choke) lever................................ 3-7
Starting a cold engine ............................. 5-1
Starting off ............................................... 5-2
Start switch.............................................. 3-4
Steering, checking................................. 6-18
Storage.................................................... 7-3
TTail/brake light bulb, replacing .............. 6-22
Throttle grip and cable, checking and
lubricating ........................................... 6-16
Throttle grip free play, checking ............ 6-10
Tires ...................................................... 6-10
Troubleshooting .................................... 6-23
Troubleshooting chart ........................... 6-24
Turn signal indicator light ........................ 3-2
Turn signal light bulb, replacing ............ 6-22
Turn signal switch ................................... 3-4VVehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-19
Wheels .................................................. 6-12
