PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAUM1643

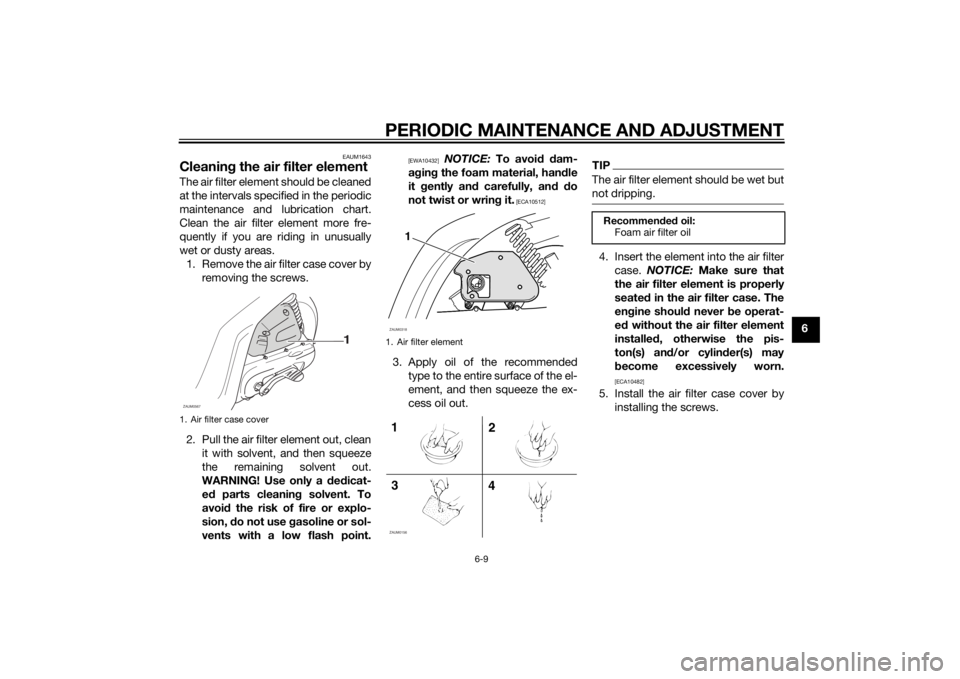

Cleaning the air filter elementThe air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out, clean
it with solvent, and then squeeze
the remaining solvent out.
WARNING! Use only a dedicat-
ed parts cleaning solvent. To
avoid the risk of fire or explo-
sion, do not use gasoline or sol-
vents with a low flash point.
[EWA10432]
NOTICE: To avoid dam-
aging the foam material, handle
it gently and carefully, and do
not twist or wring it.
[ECA10512]
3. Apply oil of the recommended
type to the entire surface of the el-
ement, and then squeeze the ex-
cess oil out.
TIPThe air filter element should be wet but
not dripping.4. Insert the element into the air filter
case. NOTICE: Make sure that
the air filter element is properly
seated in the air filter case. The
engine should never be operat-
ed without the air filter element
installed, otherwise the pis-
ton(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
5. Install the air filter case cover by
installing the screws.
1. Air filter case cover
1
ZAUM0567
1. Air filter element
1
ZAUM03181
4 32ZAUM0156
Recommended oil:
Foam air filter oil
U1S0E2E0.book Page 9 Thursday, July 25, 2013 6:53 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1785 mm (70.3 in)
Overall width:
711 mm (28.0 in)
Overall height:
1077 mm (42.4 in)
Seat height:
787 mm (31.0 in)
Wheelbase:
1202 mm (47.3 in)
Ground clearance:
185 mm (7.28 in)
Minimum turning radius:
1800 mm (70.9 in)Weight:Curb weight:
81 kg (179 lb)Engine:Engine type:
Air cooled 2-stroke
Cylinder arrangement:
Single cylinder
Displacement:
49 cm³
Bore × stroke:
40.0 × 39.2 mm (1.57 × 1.54 in)
Compression ratio:
10.70–11.70 : 1
Starting system:
Electric starter and kickstarter
Lubrication system:
Separate lubrication (Yamaha autolube)
Engine oil:Type:
YAMALUBE 2S or 2-stroke engine oil
(JASO FC grade) or (ISO EG-C or EG-D
grade)
Engine oil quantity:
Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.11 L (0.12 US qt, 0.10 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
6.5 L (1.72 US gal, 1.43 Imp.gal)
Fuel reserve amount:
2.9 L (0.77 US gal, 0.64 Imp.gal)Carburetor:Type × quantity:
PHBN12 x 1Spark plug(s):Manufacturer/model:
NGK/BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Dry, centrifugal automatic
Transmission:Primary reduction ratio:
1.000
Final drive:
Gear
Secondary reduction ratio:
12.923 (52/13 x 42/13)
Transmission type:
V-belt automaticChassis:Frame type:
Underbone
Caster angle:
27.00 °
Trail:
90 mm (3.5 in)Front tire:Type:
Tubeless
Size:
120/70-12
Manufacturer/model:
PIRELLI / EVO21 (51L)Rear tire:Type:
Tubeless
Size:
130/70-12
Manufacturer/model:
PIRELLI / EVO22 (56L)Loading:Maximum load:
184 kg (406 lb)
