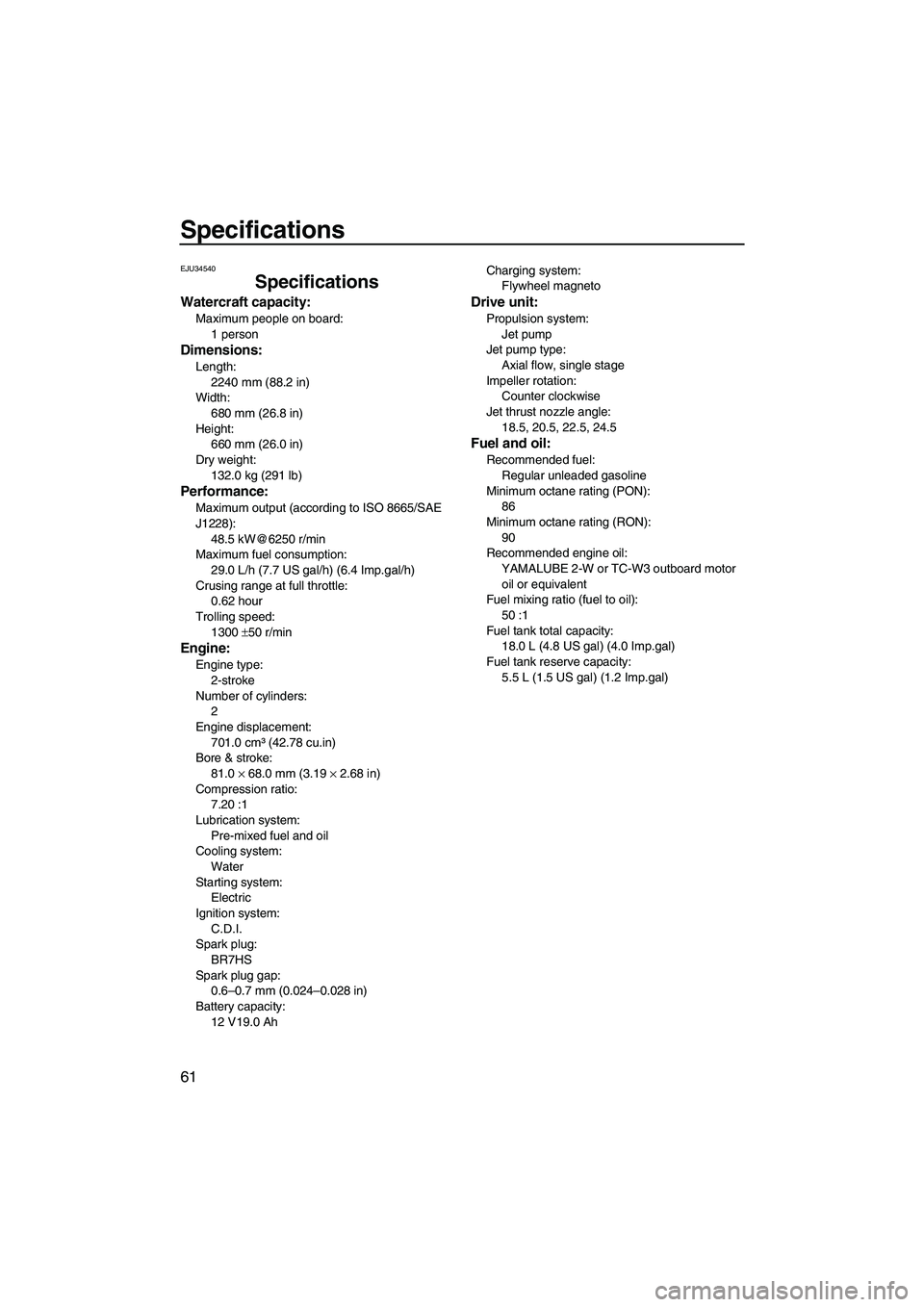

Specifications
61
EJU34540
Specifications
Watercraft capacity:
Maximum people on board:
1 person
Dimensions:
Length:
2240 mm (88.2 in)
Width:
680 mm (26.8 in)
Height:
660 mm (26.0 in)
Dry weight:
132.0 kg (291 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
48.5 kW@6250 r/min
Maximum fuel consumption:
29.0 L/h (7.7 US gal/h) (6.4 Imp.gal/h)
Crusing range at full throttle:
0.62 hour
Trolling speed:
1300 ±50 r/min
Engine:
Engine type:
2-stroke
Number of cylinders:
2
Engine displacement:
701.0 cm³ (42.78 cu.in)
Bore & stroke:
81.0 × 68.0 mm (3.19 × 2.68 in)
Compression ratio:
7.20 :1
Lubrication system:
Pre-mixed fuel and oil
Cooling system:
Water
Starting system:
Electric
Ignition system:
C.D.I.
Spark plug:
BR7HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Battery capacity:
12 V19.0 AhCharging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counter clockwise
Jet thrust nozzle angle:
18.5, 20.5, 22.5, 24.5
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil:
YAMALUBE 2-W or TC-W3 outboard motor
oil or equivalent
Fuel mixing ratio (fuel to oil):
50 :1
Fuel tank total capacity:
18.0 L (4.8 US gal) (4.0 Imp.gal)
Fuel tank reserve capacity:
5.5 L (1.5 US gal) (1.2 Imp.gal)
