Trouble recovery
65
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible29
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Too much oil in fuel
mixing ratio Correct fuel-to-oil ra-
tio to 50:1
28
Choke Knob is left pulled Push fully in 21
Fuel filter Clogged or water pooled Have serviced by
Yamaha dealer
61
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Replace 60 Incorrect heat range Replace 60
Gap incorrect Replace 60
Spark plug
cap Not connected or
loose Connect properly
60
Cracked, torn or
damaged Have serviced by
Yamaha dealer
—
Electrical wir-
ing Loose electrical con-
nections Have serviced by
Yamaha dealer
—
Carburetor Incorrect idle adjust- ment Have serviced by
Yamaha dealer
—
Clogged Have serviced by Yamaha dealer 61
Watercraft slow or
loses power Cavitation Jet intake clogged Clean 66
Impeller damaged or
worn Have serviced by
Yamaha dealer
66
Engine over-
heated Jet intake clogged Clean
66
Fuel filter Clogged Have serviced by Yamaha dealer61
Spark plug Fouled or defective Replace 60 Incorrect heat range Replace 60
Gap incorrect Replace 60
Spark plug
caps Not connected or
loose Connect properly
60
Fuel Stale or contaminat- ed Have serviced by
Yamaha dealer
—
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF4D70E0.book Page 65 Wednesday, May 7, 2014 10:53 AM
Page 72 of 78
Trouble recovery
66
EJU34624
Emergency proceduresEJU34635Cleaning the jet intake and impeller
WARNING
EWJ00783
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the water-
craft above trolling speed until they have
been removed.
[ECJ00654]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al- ways stop the engine before beaching the
watercraft.

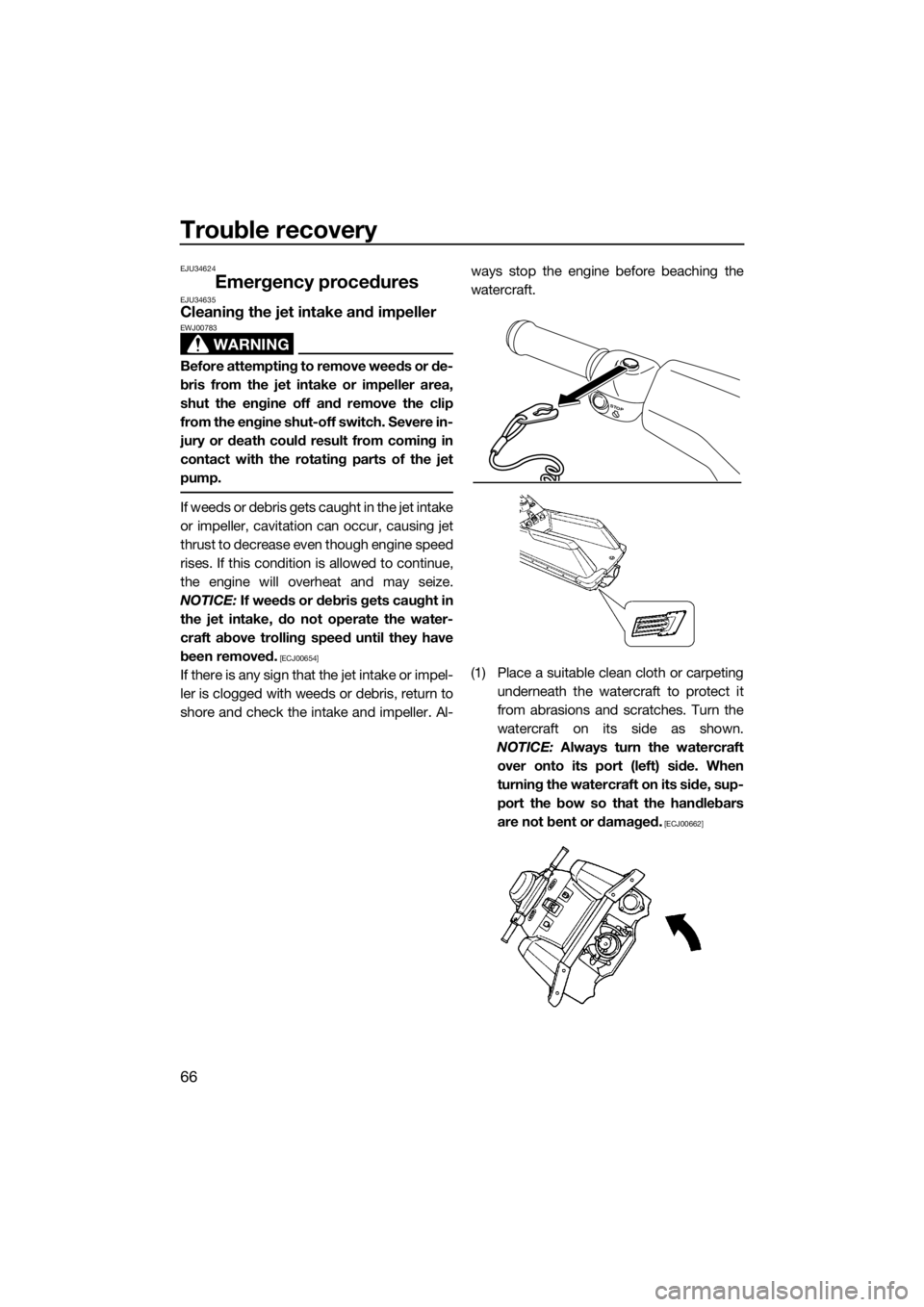

(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown.
NOTICE: Always turn the watercraft
over onto its port (left) side. When
turning the watercraft on its side, sup-
port the bow so that the handlebars
are not bent or damaged.
[ECJ00662]
STOP
UF4D70E0.book Page 66 Wednesday, May 7, 2014 10:53 AM
Page 73 of 78
Trouble recovery
67
(2) Remove any weeds or debris fromaround the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU34642Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34654Connecting the jumper cables
WARNING
EWJ01251
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batter-
ies.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–) jumper cable to the negative (–) battery
terminal of the booster battery. (3) Connect the other end of the negative (–)
jumper cable to an unpainted bolt on the
cylinder head.
(4) Start the engine, and then disconnect the jumper cables by reversing the steps
above. (See page 19 for information on
starting the engine.)
EJU34676Replacing the fuse
If the fuse is blown, replace it with the proper
fuse.
To replace the fuse:
(1) Remove the hood. (See page 24 for hoodremoval and installation procedures.)
(2) Loosen the cap and remove it.
(3) Pull out the red lead to pull out the fuse holder from the electrical box.
1Positive (+) jumper cable
2 Booster battery
3 Negative (–) jumper cable
1 Good fuse
2 Blown fuse
2
1
UF4D70E0.book Page 67 Wednesday, May 7, 2014 10:53 AM
Page 74 of 78
Trouble recovery
68
(4) Open the fuse holder and replace thefuse with one of the correct amperage.
WARNING! Do not use fuses of a dif- ferent amperage than recommended.
Substitution with a fuse that has an
improper rating can cause extensive
electrical system damage and possi-
ble fire.
[EWJ00803]
(5) Insert the fuse holder into the electrical box.
(6) Securely install the cap by tightening it until it stops.
(7) Securely install the hood in its original position.
EJU34705Towing the watercraft
WARNING
EWJ00812
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the bowrope hole of the watercraft being towed.
(2) Ride the watercraft with your body weight supported on the riding tray. Hold
on to the handlebars in order to balance
the watercraft and keep the bow up out
of the water. NOTICE: The bow must be
kept up out of the water during tow-
ing, otherwise water could flood the
engine compartment or water could
flow back into the engine, causing se-
vere engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]

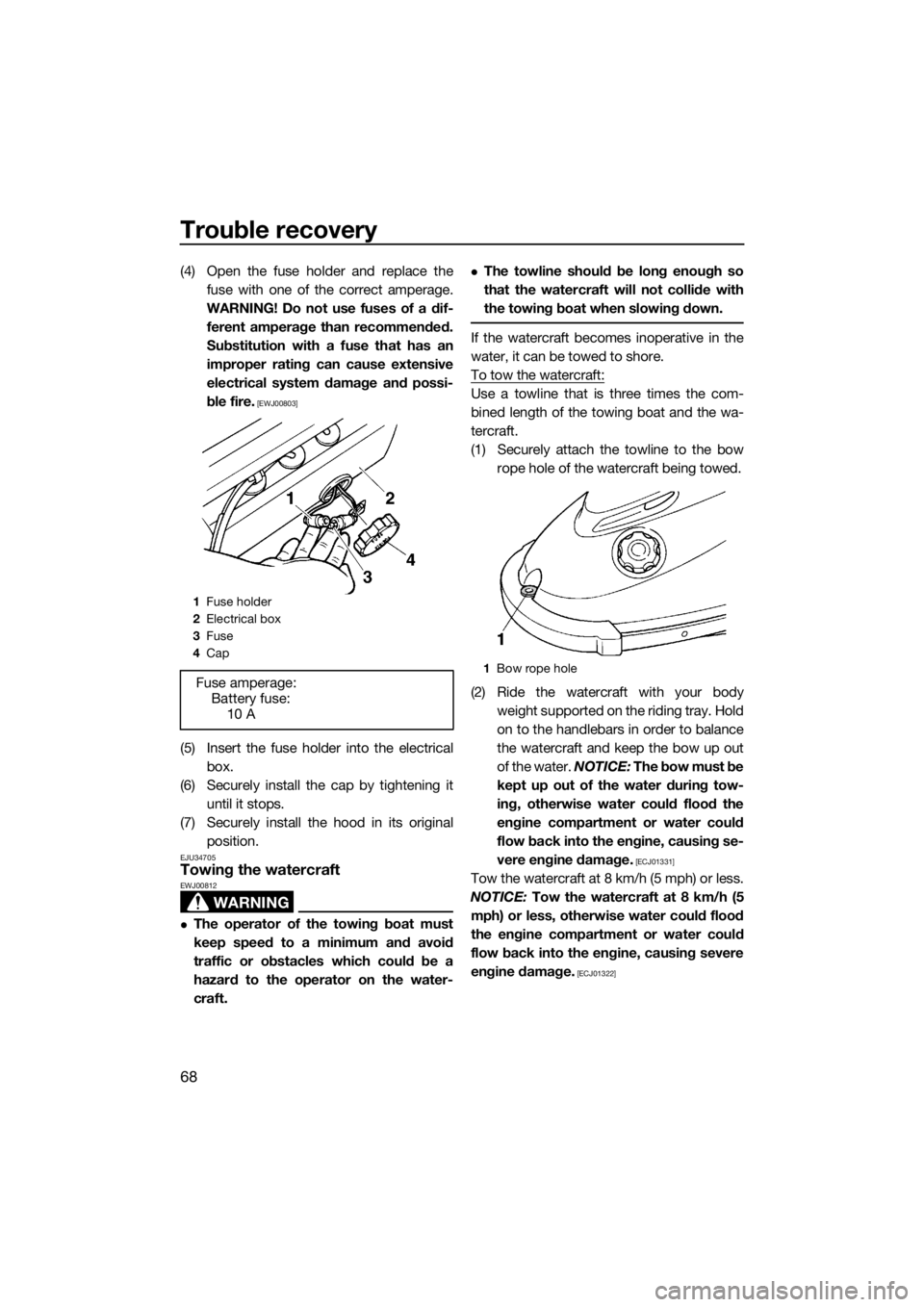

1 Fuse holder
2 Electrical box
3 Fuse
4 Cap
Fuse amperage:
Battery fuse:10 A1Bow rope hole
UF4D70E0.book Page 68 Wednesday, May 7, 2014 10:53 AM
Page 75 of 78
Trouble recovery
69
EJU34735Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
(1) Remove the watercraft from the water,and then remove the hood.
(2) Turn the fuel cock knob to “OFF”.
(3) Turn the watercraft over far enough to drain the bilge water from the engine
compartment. NOTICE: Turning the
watercraft on its side with the hood
removed could cause damage to the
steering pole. Use two people to pro-
vide enough support to make sure
that the steering pole is not damaged.
[ECJ00702]
(4) Turn the watercraft upright again.
(5) Have the watercraft serviced by a Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could
result.
[ECJ00792]
UF4D70E0.book Page 69 Wednesday, May 7, 2014 10:53 AM
Page 76 of 78
70
Index
