fuel tank capacity YAMAHA SUV 1200 2002 Owners Manual

3-3
E
EJU01315

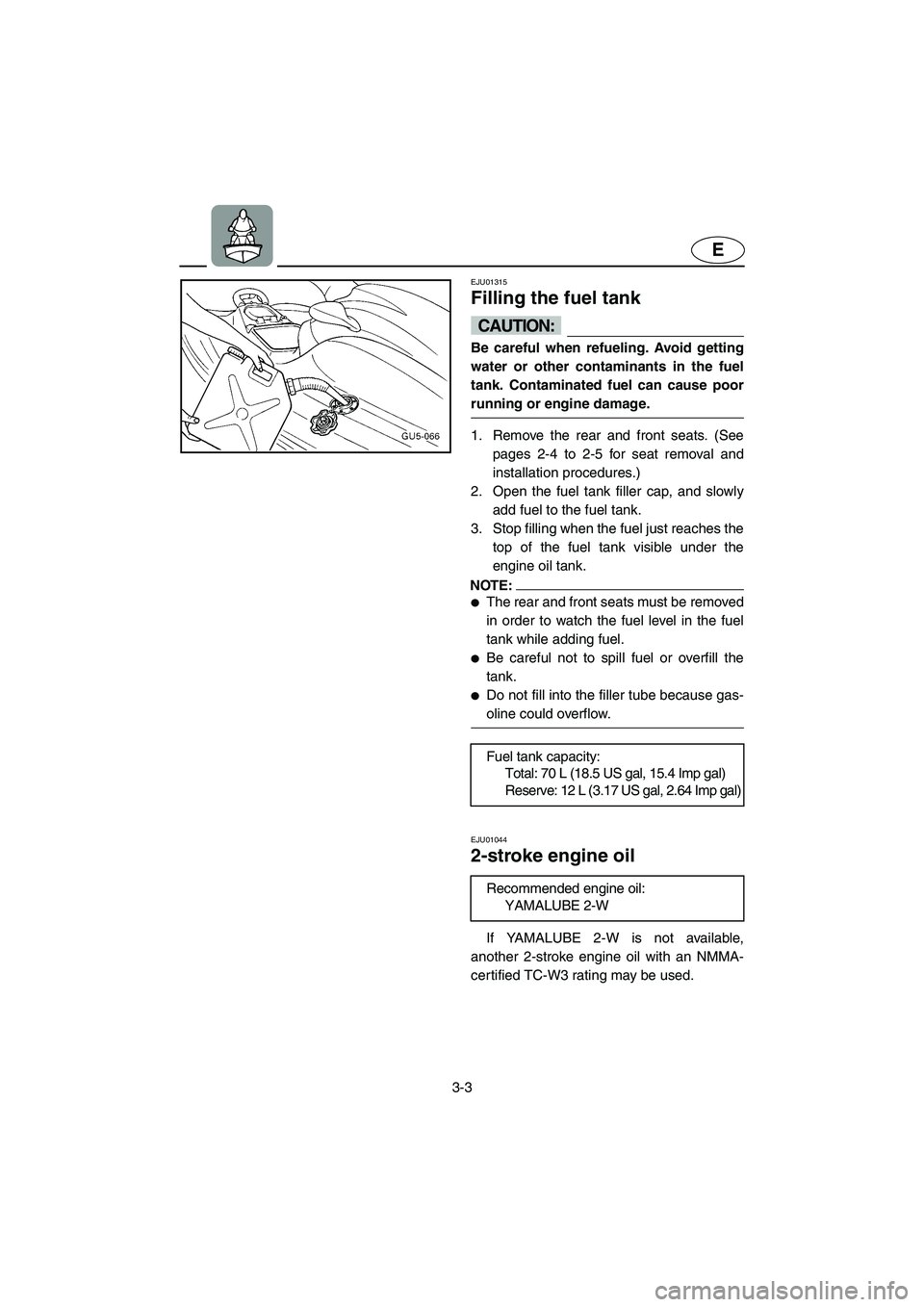

Filling the fuel tank
CAUTION:@ Be careful when refueling. Avoid getting
water or other contaminants in the fuel
tank. Contaminated fuel can cause poor
running or engine damage.
@
1. Remove the rear and front seats. (See
pages 2-4 to 2-5 for seat removal and
installation procedures.)
2. Open the fuel tank filler cap, and slowly
add fuel to the fuel tank.
3. Stop filling when the fuel just reaches the
top of the fuel tank visible under the
engine oil tank.
NOTE:@
The rear and front seats must be removed
in order to watch the fuel level in the fuel
tank while adding fuel.

Be careful not to spill fuel or overfill the
tank.

Do not fill into the filler tube because gas-
oline could overflow.
@
EJU01044
2-stroke engine oil
If YAMALUBE 2-W is not available,
another 2-stroke engine oil with an NMMA-
certified TC-W3 rating may be used.Fuel tank capacity:
Total: 70 L (18.5 US gal, 15.4 Imp gal)
Reserve: 12 L (3.17 US gal, 2.64 Imp gal)
Recommended engine oil:
YAMALUBE 2-W
UGU571.book Page 3 Tuesday, July 10, 2001 2:25 PM

4-9
E
EJU01358

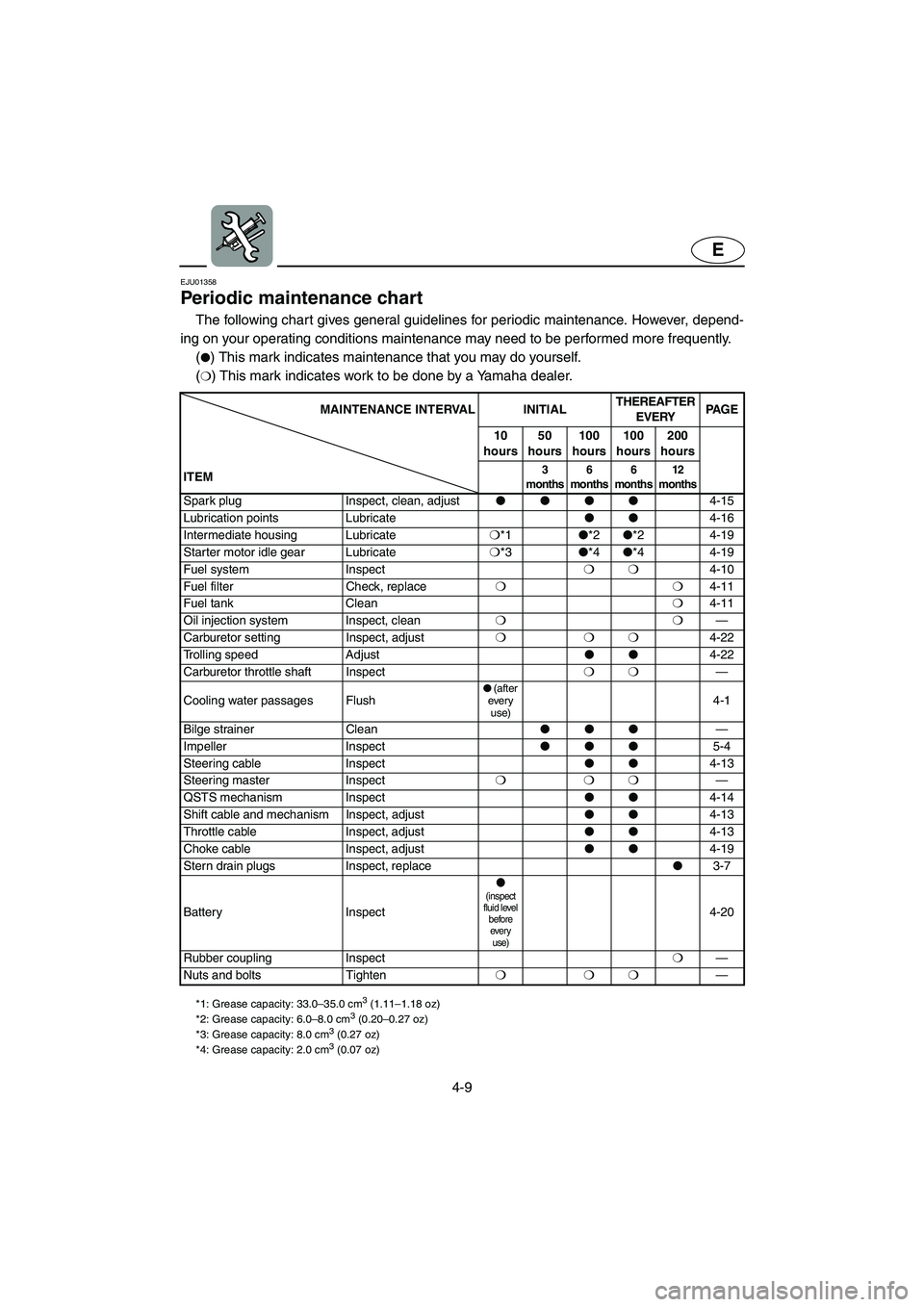

Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
(

) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
*1: Grease capacity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease capacity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: Grease capacity: 8.0 cm3 (0.27 oz)
*4: Grease capacity: 2.0 cm3 (0.07 oz)
MAINTENANCE INTERVAL INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
3
months6
months6
months12
months
Spark plug Inspect, clean, adjust




4-15
Lubrication points Lubricate


4-16
Intermediate housing Lubricate❍
*1

*2

*2 4-19
Starter motor idle gear Lubricate❍
*3

*4

*4 4-19
Fuel system Inspect❍❍
4-10
Fuel filter Check, replace❍❍
4-11
Fuel tank Clean❍
4-11
Oil injection system Inspect, clean❍❍
—
Carburetor setting Inspect, adjust❍❍❍
4-22
Trolling speed Adjust


4-22
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush


(after
ever y
use)4-1
Bilge strainer Clean



—
Impeller Inspect



5-4
Steering cable Inspect


4-13
Steering master Inspect❍❍❍
—
QSTS mechanism Inspect


4-14
Shift cable and mechanism Inspect, adjust


4-13
Throttle cable Inspect, adjust


4-13
Choke cable Inspect, adjust


4-19
Stern drain plugs Inspect, replace

3-7
Battery Inspect


(inspect
fluid level
before
ever y
use)
4-20
Rubber coupling Inspect❍
—
Nuts and bolts Tighten❍❍❍
—
UGU571.book Page 9 Tuesday, July 10, 2001 2:25 PM

4-24
E
EJU01366

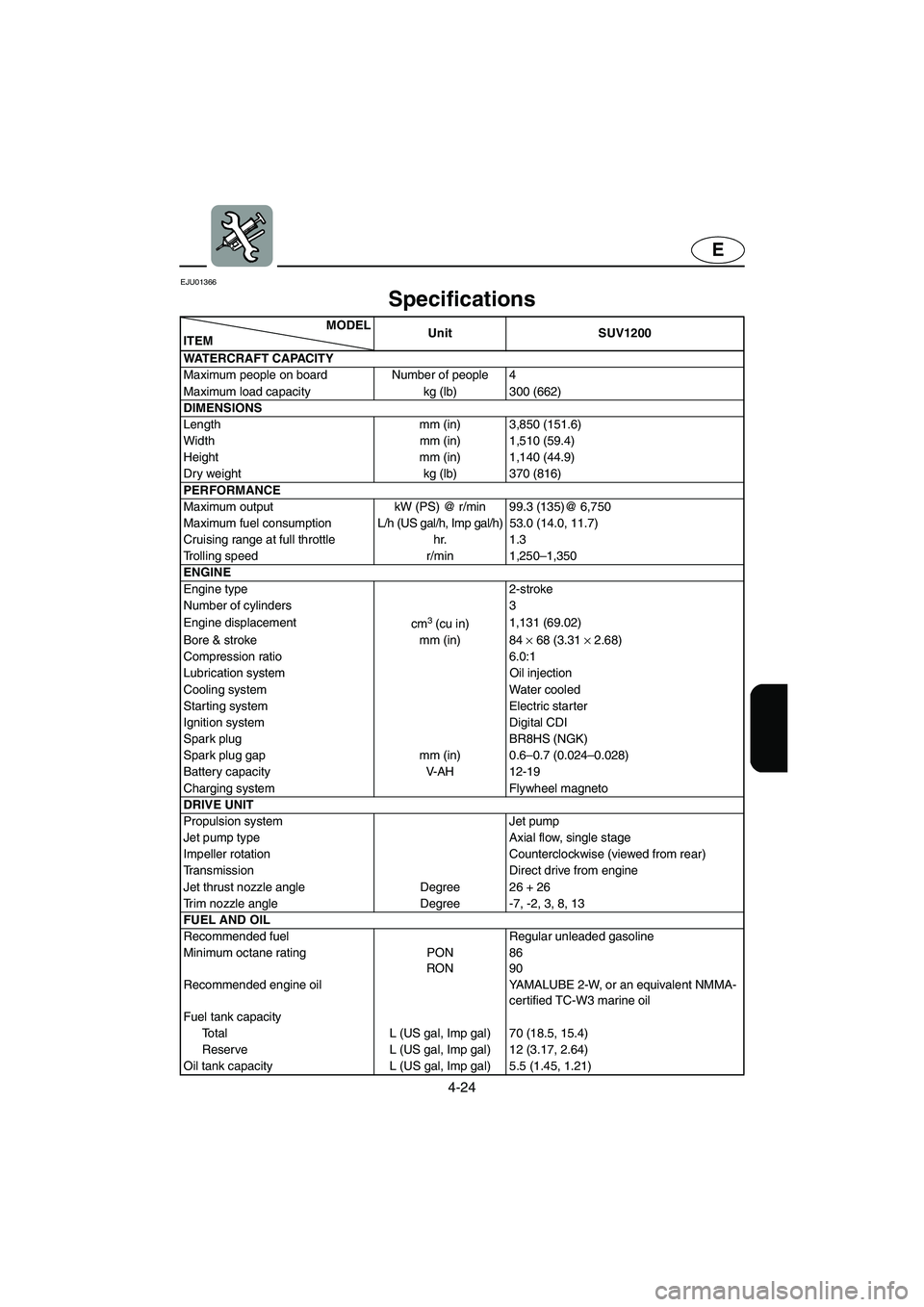

Specifications
