YAMAHA SUV 1200 2002 Owners Manual
Manufacturer: YAMAHA, Model Year: 2002, Model line: SUV 1200, Model: YAMAHA SUV 1200 2002Pages: 136, PDF Size: 15.84 MB
Page 1 of 136
Printed in USA
July 2001 0.5 × 1 CRGU5-F8199-71(SV1200-A)
(E)
Printed on recycled paper
YAMAHA MOTOR CO., LTD.
READ THIS MANUAL
CAREFULLY BEFORE OPERATION!
OWNER’S / OPERATOR’S
MANUAL
GU5-F8199-71
SUV12002002WaveRunner
Page 2 of 136
UGU571.book Page 1 Tuesday, July 10, 2001 2:25 PM
Page 3 of 136
E
EJU00989

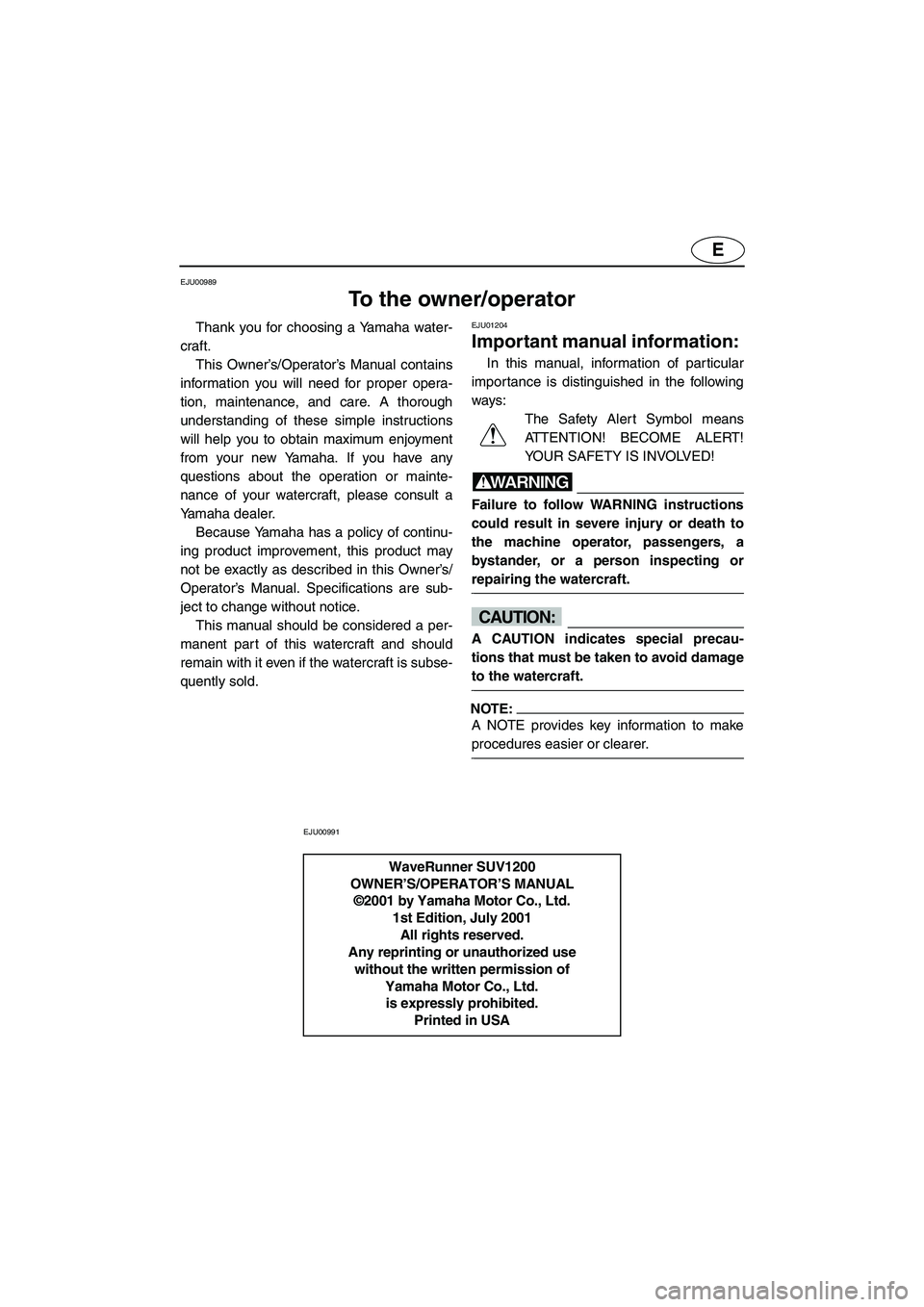

To the owner/operator
Thank you for choosing a Yamaha water-
craft.
This Owner’s/Operator’s Manual contains
information you will need for proper opera-
tion, maintenance, and care. A thorough
understanding of these simple instructions
will help you to obtain maximum enjoyment
from your new Yamaha. If you have any
questions about the operation or mainte-
nance of your watercraft, please consult a
Yamaha dealer.
Because Yamaha has a policy of continu-
ing product improvement, this product may
not be exactly as described in this Owner’s/
Operator’s Manual. Specifications are sub-
ject to change without notice.
This manual should be considered a per-
manent part of this watercraft and should
remain with it even if the watercraft is subse-
quently sold.EJU01204
Important manual information:
In this manual, information of particular
importance is distinguished in the following
ways:
The Safety Alert Symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
WARNING@ Failure to follow WARNING instructions
could result in severe injury or death to
the machine operator, passengers, a
bystander, or a person inspecting or
repairing the watercraft.
@
CAUTION:@ A CAUTION indicates special precau-
tions that must be taken to avoid damage
to the watercraft.
@
NOTE:@ A NOTE provides key information to make
procedures easier or clearer.
@
EJU00991
WaveRunner SUV1200
OWNER’S/OPERATOR’S MANUAL
©2001 by Yamaha Motor Co., Ltd.
1st Edition, July 2001
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in USA
UGU571.book Page 2 Tuesday, July 10, 2001 2:25 PM
Page 4 of 136
UGU571.book Page 3 Tuesday, July 10, 2001 2:25 PM
Page 5 of 136
EEJU00992

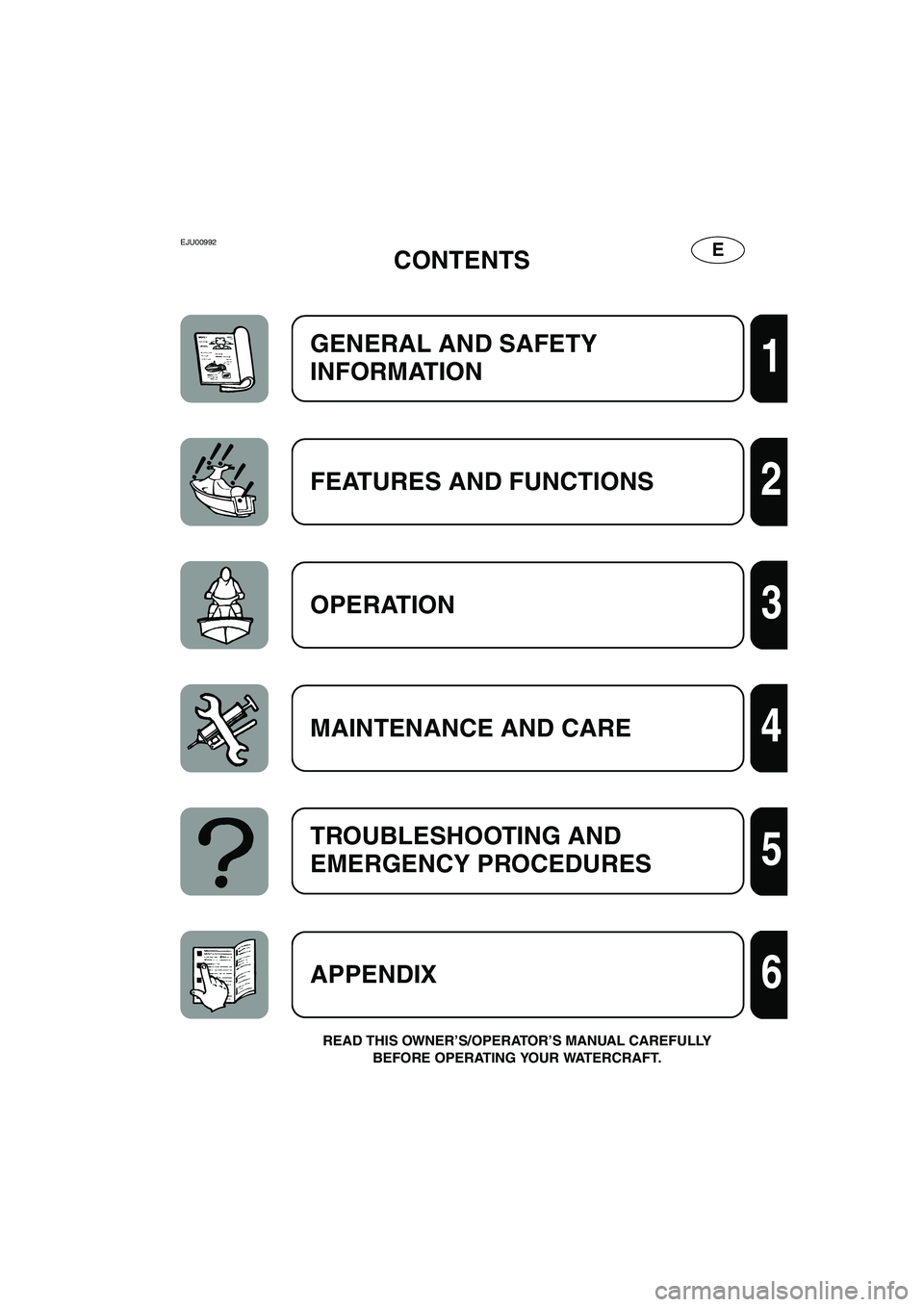

CONTENTS
READ THIS OWNER’S/OPERATOR’S MANUAL CAREFULLY
BEFORE OPERATING YOUR WATERCRAFT.
GENERAL AND SAFETY
INFORMATION
1
FEATURES AND FUNCTIONS 2
OPERATION 3
MAINTENANCE AND CARE 4
TROUBLESHOOTING AND
EMERGENCY PROCEDURES
5
APPENDIX 6
UGU571.book Page 4 Tuesday, July 10, 2001 2:25 PM
Page 6 of 136
UGU571.book Page 5 Tuesday, July 10, 2001 2:25 PM
Page 7 of 136
E
1
EJU00993

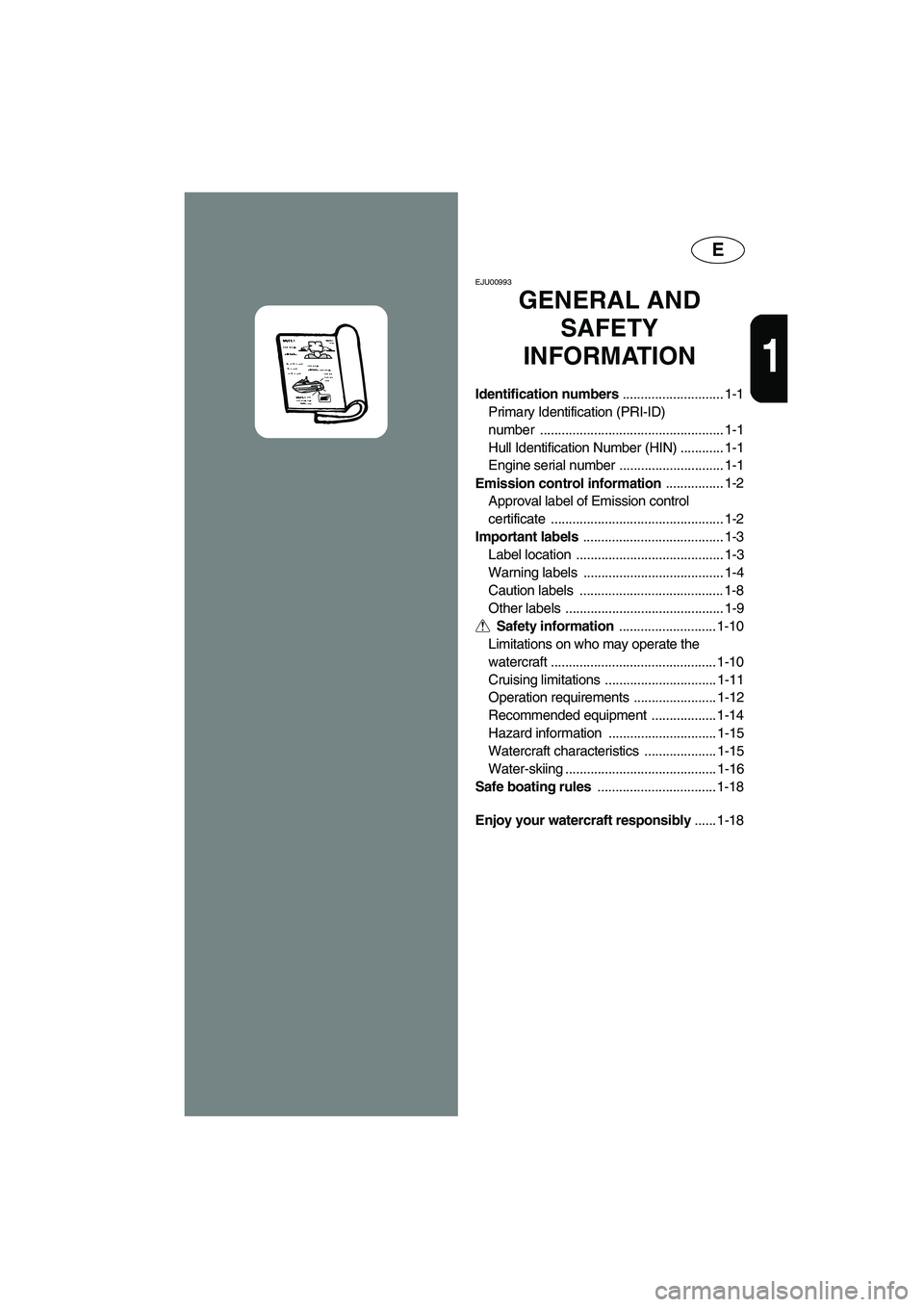

GENERAL AND
SAFETY
INFORMATION
Identification numbers ............................ 1-1
Primary Identification (PRI-ID)
number ................................................... 1-1
Hull Identification Number (HIN) ............ 1-1
Engine serial number ............................. 1-1
Emission control information ................ 1-2
Approval label of Emission control
certificate ................................................ 1-2
Important labels ....................................... 1-3
Label location ......................................... 1-3
Warning labels ....................................... 1-4
Caution labels ........................................ 1-8
Other labels ............................................ 1-9
Safety information ........................... 1-10
Limitations on who may operate the
watercraft .............................................. 1-10
Cruising limitations ............................... 1-11
Operation requirements ....................... 1-12
Recommended equipment .................. 1-14
Hazard information .............................. 1-15
Watercraft characteristics .................... 1-15
Water-skiing .......................................... 1-16
Safe boating rules ................................. 1-18
Enjoy your watercraft responsibly ...... 1-18
UGU571.book Page 1 Tuesday, July 10, 2001 2:25 PM
Page 8 of 136
1-1
E
EJU00994

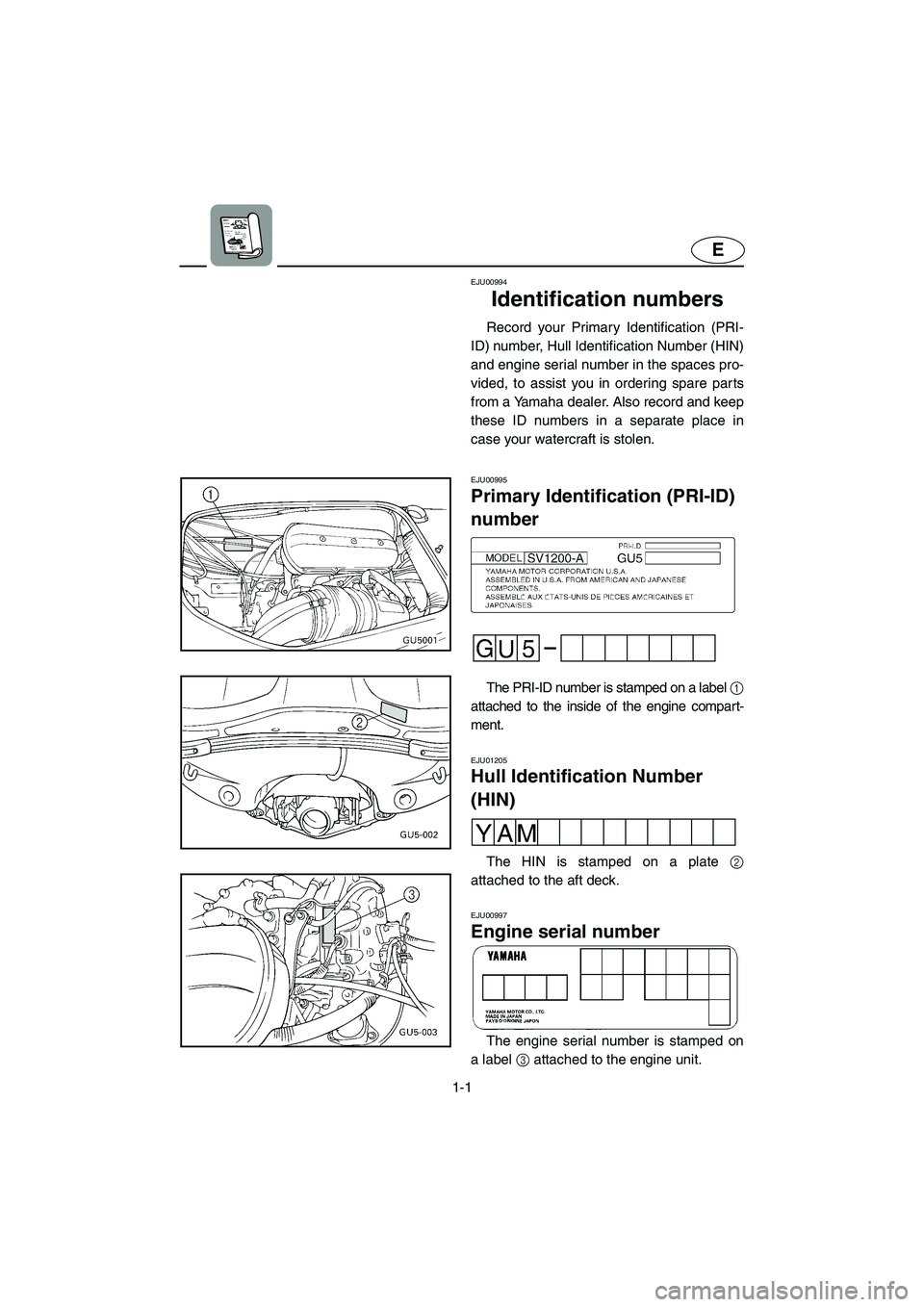

Identification numbers
Record your Primary Identification (PRI-
ID) number, Hull Identification Number (HIN)
and engine serial number in the spaces pro-
vided, to assist you in ordering spare parts
from a Yamaha dealer. Also record and keep
these ID numbers in a separate place in
case your watercraft is stolen.
EJU00995
Primary Identification (PRI-ID)
number
The PRI-ID number is stamped on a label 1
attached to the inside of the engine compart-
ment.
EJU01205
Hull Identification Number
(HIN)
The HIN is stamped on a plate 2
attached to the aft deck.
EJU00997
Engine serial number
The engine serial number is stamped on
a label 3 attached to the engine unit.
UGU571.book Page 1 Tuesday, July 10, 2001 2:25 PM
Page 9 of 136
1-2
E
EJU01174

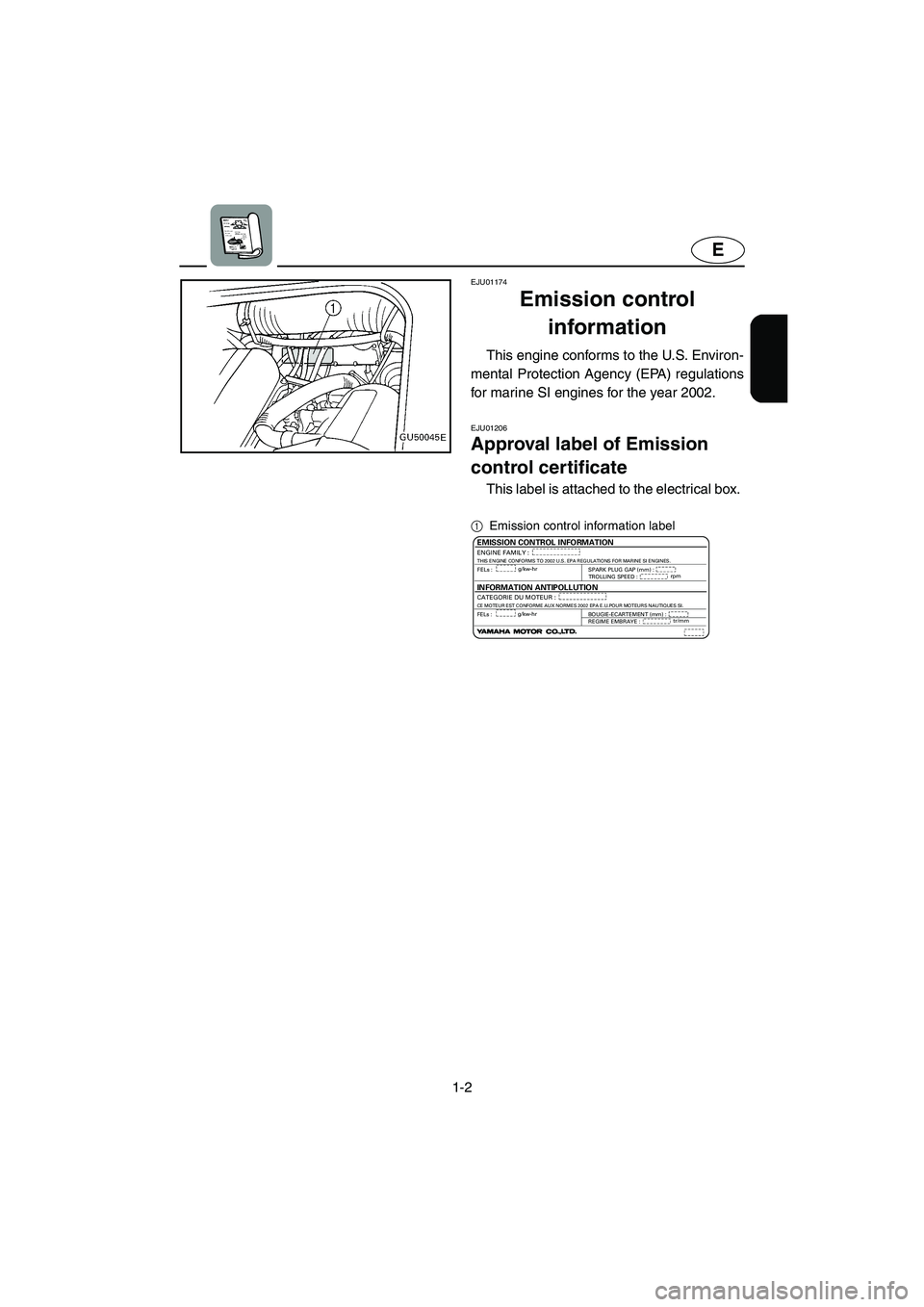

Emission control
information
This engine conforms to the U.S. Environ-
mental Protection Agency (EPA) regulations
for marine SI engines for the year 2002.
EJU01206
Approval label of Emission
control certificate
This label is attached to the electrical box.
1
Emission control information labelEMISSION CONTROL INFORMATIONENGINE FAMILY : THIS ENGINE CONFORMS TO 2002 U.S. EPA REGULATIONS FOR MARINE SI ENGINES.FELs :
TROLLING SPEED :rpm SPARK PLUG GAP (mm) :g/kw-hr
INFORMATION ANTIPOLLUTIONCATEGORIE DU MOTEUR : CE MOTEUR EST CONFORME AUX NORMES 2002 EPA E.U.POUR MOTEURS NAUTIQUES SI.FELs :
REGIME EMBRAYE :tr/mm BOUGIE-ECARTEMENT (mm) :g/kw-hr
UGU571.book Page 2 Tuesday, July 10, 2001 2:25 PM
Page 10 of 136
1-3
E
EJU00998

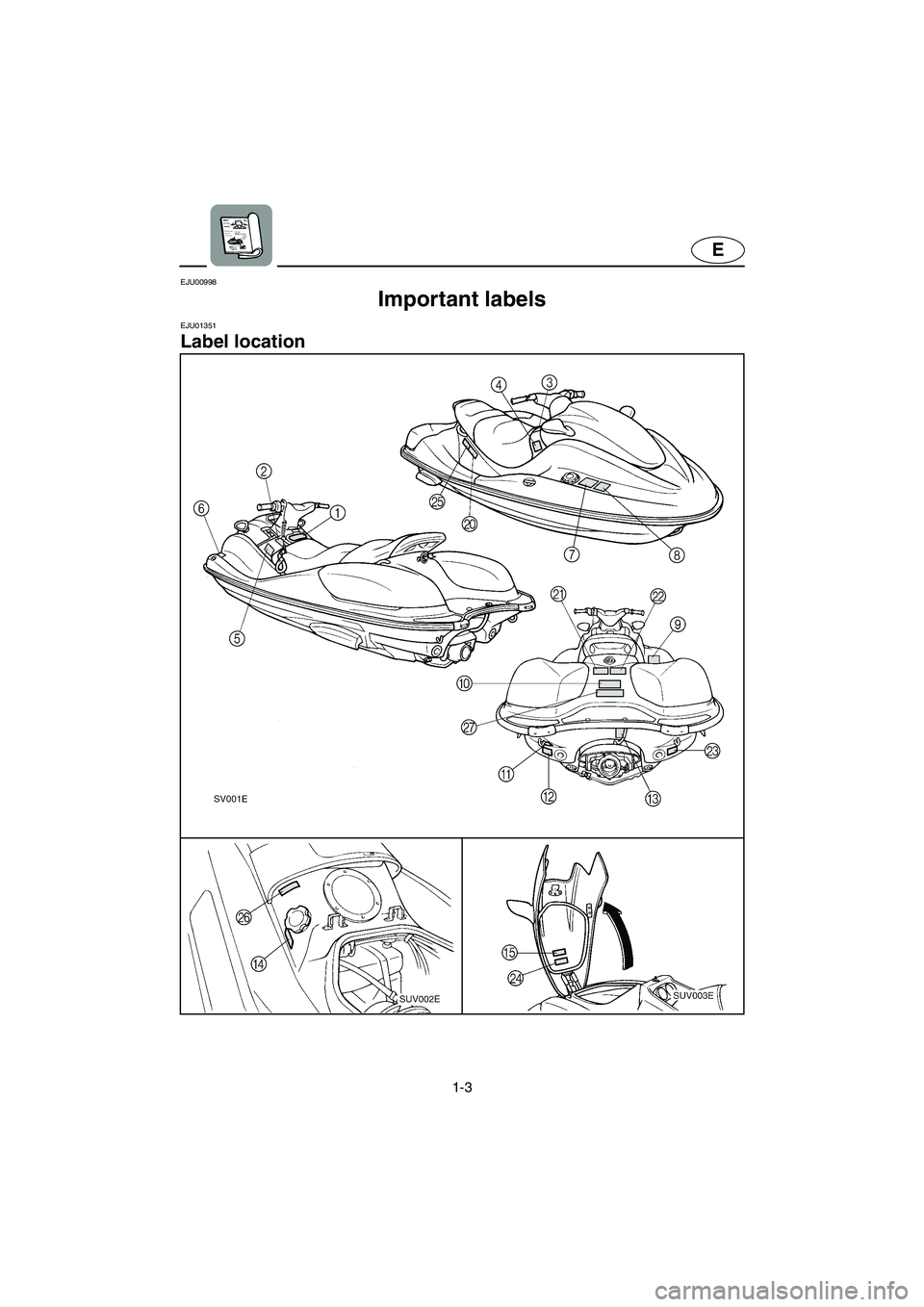

Important labels
EJU01351
Label location
UGU571.book Page 3 Tuesday, July 10, 2001 2:25 PM
