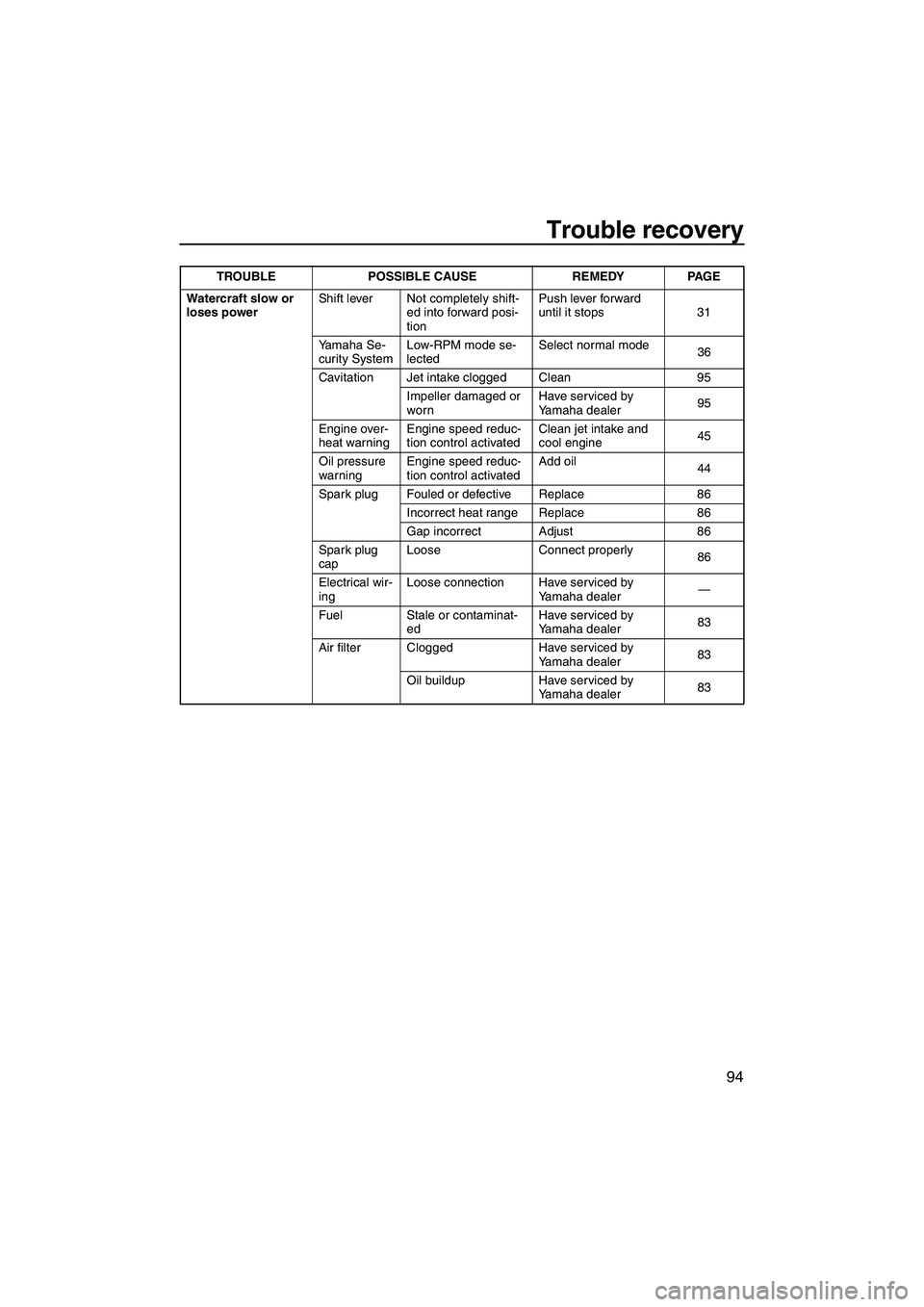

Trouble recovery
94
Watercraft slow or
loses powerShift lever Not completely shift-
ed into forward posi-
tionPush lever forward
until it stops 31
Yamaha Se-
curity SystemLow-RPM mode se-
lectedSelect normal mode
36
Cavitation Jet intake clogged Clean 95
Impeller damaged or
wornHave serviced by
Yamaha dealer95
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine45
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
44
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capLoose Connect properly
86
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer83
Air filter Clogged Have serviced by
Yamaha dealer83
Oil buildup Have serviced by
Yamaha dealer83 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF1W71E0.book Page 94 Tuesday, June 24, 2008 11:46 AM
Page 102 of 108
Trouble recovery
95
EJU34620
Emergency procedures EJU34631Cleaning the jet intake and impeller
WARNING
EWJ00780
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the watercraft
above trolling speed until they have been
removed.
[ECJ00651]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-ways stop the engine before beaching the wa-
tercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown. NOTICE:
Always turn the watercraft over onto
its port (left) side. When turning the
watercraft on its side, support the bow
so that the handlebars are not bent or
damaged.
[ECJ00661]
UF1W71E0.book Page 95 Tuesday, June 24, 2008 11:46 AM
Page 103 of 108
Trouble recovery
96
(2) Remove any weeds or debris from
around the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU34641Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34662Connecting the jumper cables
WARNING
EWJ01250
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batteries.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to
the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–)
jumper cable to the negative (–) battery
terminal of the booster battery.(3) Connect the other end of the negative (–)
jumper cable to an engine hanger.
(4) Start the engine, and then disconnect the
jumper cables by reversing the steps
above. NOTICE: Never push the start
switch while the engine is running. Do
not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not
start in 5 seconds, release the start
switch, wait 15 seconds, and then try
again.
[ECJ00481]
EJU36991
Replacing the fuses
The fuses are located in the electrical box.
To replace a fuse:
(1) Remove the seats. (See page 25 for seat
removal and installation procedures.)
1Positive (+) jumper cable
2Negative (–) jumper cable
3Booster battery
4Engine hanger
21
3
4
UF1W71E0.book Page 96 Tuesday, June 24, 2008 11:46 AM
Page 104 of 108
Trouble recovery
97
(2) Remove the electrical box cover.
(3) Remove the cap on the electrical box.
(4) Replace the blown fuse with the spare
fuse of the correct amperage by using the
fuse puller on the reverse side of the cap.
WARNING! Do not use fuses of higher
amperage than recommended. Substi-
tution with a fuse that has an improper
rating can cause extensive electricalsystem damage and possible fire.
[EWJ00801]
(5) Install the cap.
(6) Install the electrical box cover.
(7) Install the seats.
1Electrical box cover
1
1Electrical box
2Cap
3Fuse
4Spare fuse
1Fuse puller
Fuse amperage:
Battery fuse:
30 A
Main relay drive fuse:
10 A
Electronic throttle valve fuse:
10 A
Security system fuse:
3 A
Main fuse:
20 A
1
23
4
UF1W71E0.book Page 97 Tuesday, June 24, 2008 11:46 AM

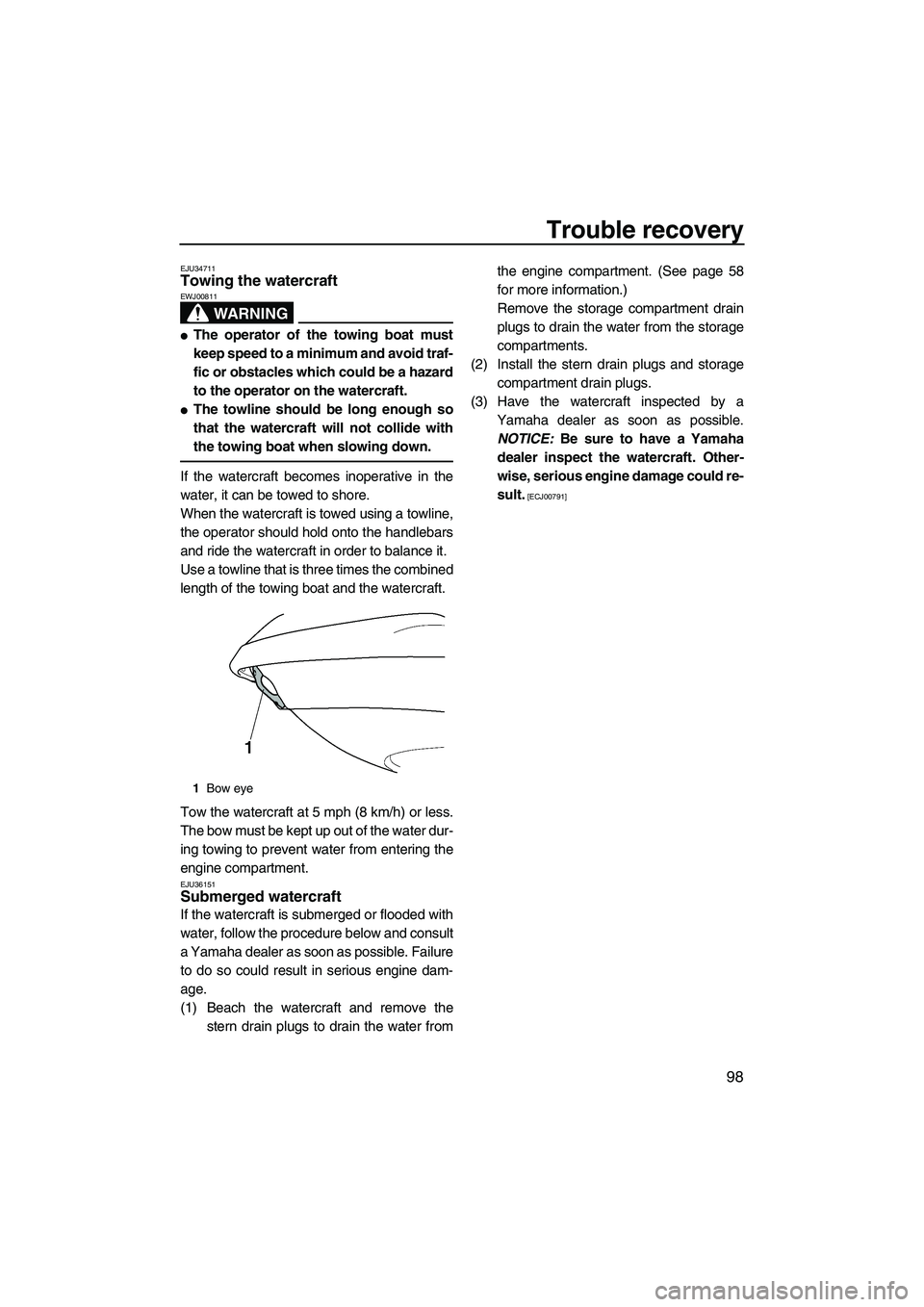

Page 105 of 108
Trouble recovery
98
EJU34711Towing the watercraft
WARNING
EWJ00811
The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the operator on the watercraft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
When the watercraft is towed using a towline,
the operator should hold onto the handlebars
and ride the watercraft in order to balance it.
Use a towline that is three times the combined
length of the towing boat and the watercraft.
Tow the watercraft at 5 mph (8 km/h) or less.
The bow must be kept up out of the water dur-
ing towing to prevent water from entering the
engine compartment.
EJU36151Submerged watercraft
If the watercraft is submerged or flooded with
water, follow the procedure below and consult
a Yamaha dealer as soon as possible. Failure
to do so could result in serious engine dam-
age.
(1) Beach the watercraft and remove the
stern drain plugs to drain the water fromthe engine compartment. (See page 58
for more information.)
Remove the storage compartment drain
plugs to drain the water from the storage
compartments.
(2) Install the stern drain plugs and storage
compartment drain plugs.
(3) Have the watercraft inspected by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could re-
sult.
[ECJ00791]
1Bow eye
UF1W71E0.book Page 98 Tuesday, June 24, 2008 11:46 AM
Page 106 of 108
Index
A
Air filter element ....................................... 83
Analog speedometer/tachometer ............. 40
Analog speedometer/tachometer and
indicator lights ....................................... 40
B
Battery ................................................ 58, 79
Battery, checking...................................... 89
Battery, jumping ....................................... 96
Beaching the watercraft ........................... 75
Beverage holder ....................................... 51
Bilge ......................................................... 58
Boarding alone ......................................... 70
Boarding and starting from a dock ........... 69
Boarding and starting in deep water ........ 69
Boarding and starting in shallow water .... 69
Boarding with passengers ........................ 70
Bow down................................................. 32
Bow eye ................................................... 33
Bow up ..................................................... 32
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 72
Check engine warning indicator ............... 45
Cleaning the watercraft ............................ 79
Cooling water pilot outlets .................. 29, 63
Craft Identification Number (CIN) ............... 1
Cruise assist............................................. 37
Cruising limitations ................................... 11
D
Digital speedometer ................................. 43
Docking the watercraft ............................. 75
E
Emergency procedures ............................ 95
Engine break-in ........................................ 64
Engine compartment ................................ 56
Engine oil ................................................. 53
Engine oil and oil filter .............................. 83
Engine oil level ......................................... 56
Engine overheat warning indicator ........... 45
Engine serial number ................................. 1
Engine shut-off cord (lanyard) .................. 62
Engine shut-off switch .............................. 27
Engine stop switch ................................... 27
Enjoy your watercraft responsibly ............ 19F
Fire extinguisher ....................................... 59
Flushing the cooling system ..................... 78
Front storage compartment ...................... 49
Fuel .......................................................... 52
Fuel and oil............................................... 52
Fuel injection system ................................ 90
Fuel level .................................................. 56
Fuel level meter ........................................ 43
Fuel level warning indicator ...................... 44
Fuel system, checking .............................. 83
Fuel tank .................................................. 83
Fuel tank filler cap .................................... 26
Fuses, replacing ....................................... 96
G
Getting to know your watercraft ............... 67
Glove compartment .................................. 50
H
Handgrip ................................................... 33
Hazard information ................................... 15
Hood ......................................................... 26
Hour meter/voltmeter ............................... 44
Hull and deck ........................................... 56
I
Identification numbers ................................ 1
J
Jet intake .................................................. 62
Jet intake and impeller, cleaning .............. 95
Jet thrust nozzle angle, checking ............. 83
Jumper cables, connecting ...................... 96
L
Labels, important ........................................ 3
Labels, other .............................................. 8
Labels, warning .......................................... 4
Launching the watercraft .......................... 64
Learning to operate your watercraft ......... 67
Leaving the watercraft .............................. 66
Left multifunction display and operation
buttons .................................................. 42
Limitations on who may operate the
watercraft .............................................. 10
“L-MODE” indicator light ........................... 42
Lubrication................................................ 79
Lubrication points ..................................... 87
UF1W71E0.book Page 1 Tuesday, June 24, 2008 11:46 AM
Page 107 of 108
Index
M
Main components, location of .................. 21
Maintenance and adjustments ................. 80
Model information....................................... 2
Multifunction information center ......... 39, 63
N
No-wake mode ......................................... 36
“NO-WAKE MODE” switch ....................... 29
O
Oil pressure warning indicator.................. 44
Operating in weeded areas ...................... 76
Operating your watercraft......................... 67
Operation ................................................. 64
Operation of controls and other
functions ............................................... 25
Operation requirements ........................... 12
Owner’s/operator’s manual and tool kit .... 80
P
Periodic maintenance chart...................... 81
Post-operation care .................................. 76
Pre-operation check list............................ 54
Pre-operation check points ...................... 56
Pre-operation checks ............................... 54
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (for FX Cruiser SHO) ......... 34
Q
Quick Shift Trim System (QSTS) ............. 61
Quick Shift Trim System (QSTS)
selector ................................................. 31
R
Reboarding step ....................................... 33
Recommended equipment ....................... 14
Remote control transmitter ....................... 26
Reverse on waterways ............................. 75
Riding with passengers ............................ 68
Right multifunction display and operation
buttons (for FX Cruiser SHO) ............... 46
“RPM” indicator light................................. 41
S
Safe boating rules .................................... 19
Seat storage compartment ....................... 50
Seats ........................................................ 25
Selecting the operation mode .................. 36
“SET” switch ............................................. 29
Shift cable, checking ................................ 84Shift lever ................................................. 31
Shift lever and reverse gate ..................... 60
Shifting ..................................................... 66
Spark plugs, cleaning and adjusting ........ 86
“SPEED” indicator light ............................ 41
Start switch............................................... 28
Starting the engine ................................... 64
Starting the watercraft .............................. 68
Steering system ................................. 30, 60
Stern drain plugs ...................................... 58
Stern eyes ................................................ 34
Stopping the engine ................................. 65
Stopping the watercraft ............................ 74
Storage..................................................... 78
Storage compartments ............................. 49
Submerged watercraft .............................. 98
Switches ................................................... 62
Switches, right handlebar ......................... 28
T
Throttle cable, checking and adjusting ..... 84
Throttle lever ...................................... 29, 59
Tilt lever .................................................... 30
Towing the watercraft ............................... 98
Transporting ............................................. 77
Trolling speed, checking .......................... 90
Troubleshooting ....................................... 92
Troubleshooting chart .............................. 92
Turning the watercraft .............................. 73
U
“UNLOCK” indicator light .......................... 42
Up and down switches ............................. 29
W
“WARNING” indicator light ....................... 42
Water separator ....................................... 57
Watercraft characteristics ......................... 15
Water-skiing ............................................. 17
Watertight compartment ........................... 51
Y
Yamaha Engine Management System
(YEMS) ................................................. 34
Yamaha Security System ......................... 34
Yamaha Security System settings ........... 35
UF1W71E0.book Page 2 Tuesday, June 24, 2008 11:46 AM
Page 108 of 108
YAMAHA MOTOR CO., LTD.
Printed in U.S.A.
August 2008–0.3 × 1 CR
UF1W71E0.book Page 1 Tuesday, June 24, 2008 11:46 AM
