YAMAHA T105 2009 Owner's Guide
Manufacturer: YAMAHA, Model Year: 2009, Model line: T105, Model: YAMAHA T105 2009Pages: 80, PDF Size: 2.41 MB
Page 31 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
EAU17241
Periodic inspection, adjustment, and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. Safety is an obligation of the vehi-
cle owner/operator. The most important
points of vehicle inspection, adjust-
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, depending on the
weather, terrain, geographical location,
and individual use, the maintenance in-
tervals may need to be shortened.
WARNING
EWA10321
Failure to properly maintain the ve-
hicle or performing maintenance ac-
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle ser-
vice, have a Yamaha dealer performservice.
WARNING
EWA15121
Turn off the engine when performing
maintenance unless otherwise
specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more in-
formation about carbon monox-ide.
EAU39691

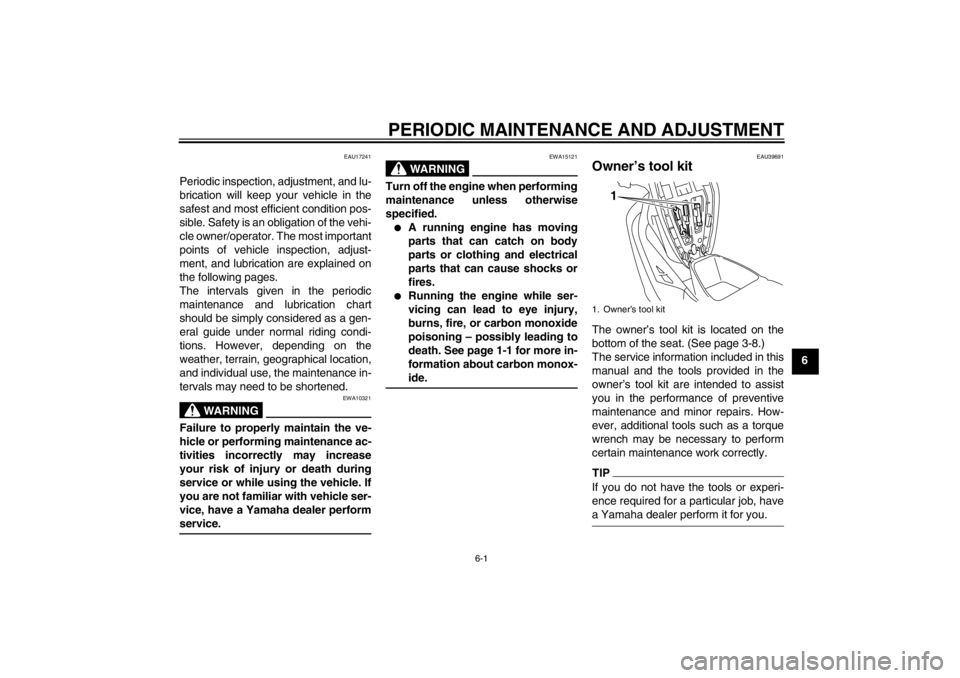

Owner’s tool kit The owner’s tool kit is located on the
bottom of the seat. (See page 3-8.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.TIPIf you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.1. Owner’s tool kit
1
U40BE0E0.book Page 1 Wednesday, January 7, 2009 10:05 AM
Page 32 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU46870
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
EAU46920
Periodic maintenance chart for the emission control system NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Fuel lineCheck fuel and vacuum hoses for
cracks or damage.√√√√√
2 Spark plugCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√√√
4*CarburetorCheck starter (choke) operation.
Adjust engine idling speed.√√√√√√
5*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
U40BE0E0.book Page 2 Wednesday, January 7, 2009 10:05 AM
Page 33 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU17716
General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1 Air filter elementClean.√√
Replace.√√
2*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
3*Rear brakeCheck operation and adjust brake
pedal free play.√√√√√√
Replace brake shoes. Whenever worn to the limit
4*Brake hoseCheck for cracks or damage.√√√√√
Replace. Every 4 years
5*WheelsCheck runout and for damage.√√√√
6*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
7*Wheel bearingsCheck bearing for looseness or
damage.√√√√
8*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 24000 km (14000 mi)
U40BE0E0.book Page 3 Wednesday, January 7, 2009 10:05 AM
Page 34 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
9 Drive chainCheck chain slack, alignment and
condition.
Adjust and thoroughly lubricate
chain with engine oil.Every 500 km (300 mi) and after washing the motorcycle or riding in the rain
10*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 24000 km (14000 mi)
11*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
12Brake lever pivot
shaftLubricate with silicone grease.√√√√√
13Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
14 CenterstandCheck operation.
Lubricate.√√√√√
15*Front forkCheck operation and for oil leak-
age.√√√√
16*Shock absorber as-
sembliesCheck operation and shock ab-
sorbers for oil leakage.√√√√
17 Engine oilChange. (See page 6-8.)
Check oil level and vehicle for oil
leakage.√Every 3000 km (1800 mi)
18*Front and rear brake
switchesCheck operation.√√√√√√
19Moving parts and
cablesLubricate.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U40BE0E0.book Page 4 Wednesday, January 7, 2009 10:05 AM
Page 35 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU18660
TIP
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.Replace the brake hoses every four years and if cracked or damaged.
20*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
21*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U40BE0E0.book Page 5 Wednesday, January 7, 2009 10:05 AM
Page 36 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18740

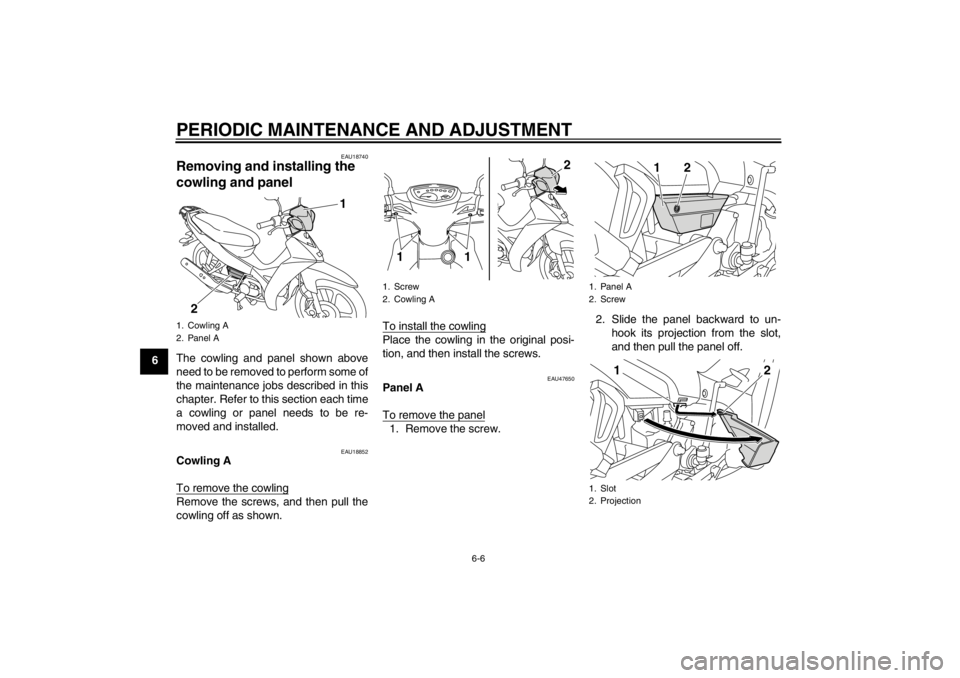

Removing and installing the
cowling and panel The cowling and panel shown above
need to be removed to perform some of
the maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAU18852
Cowling A
To remove the cowlingRemove the screws, and then pull the
cowling off as shown.To install the cowling
Place the cowling in the original posi-
tion, and then install the screws.
EAU47650
Panel A
To remove the panel1. Remove the screw.2. Slide the panel backward to un-
hook its projection from the slot,
and then pull the panel off.
1. Cowling A
2. Panel A
21
1. Screw
2. Cowling A
1 1
2
1. Panel A
2. Screw
1. Slot
2. Projection
1
2
12
U40BE0E0.book Page 6 Wednesday, January 7, 2009 10:05 AM
Page 37 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6 To install the panel
1. Insert the projection into the slot,
and then slide the panel forward.
2. Place the panel in its original posi-
tion, and then install the screw.
EAU19603
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.

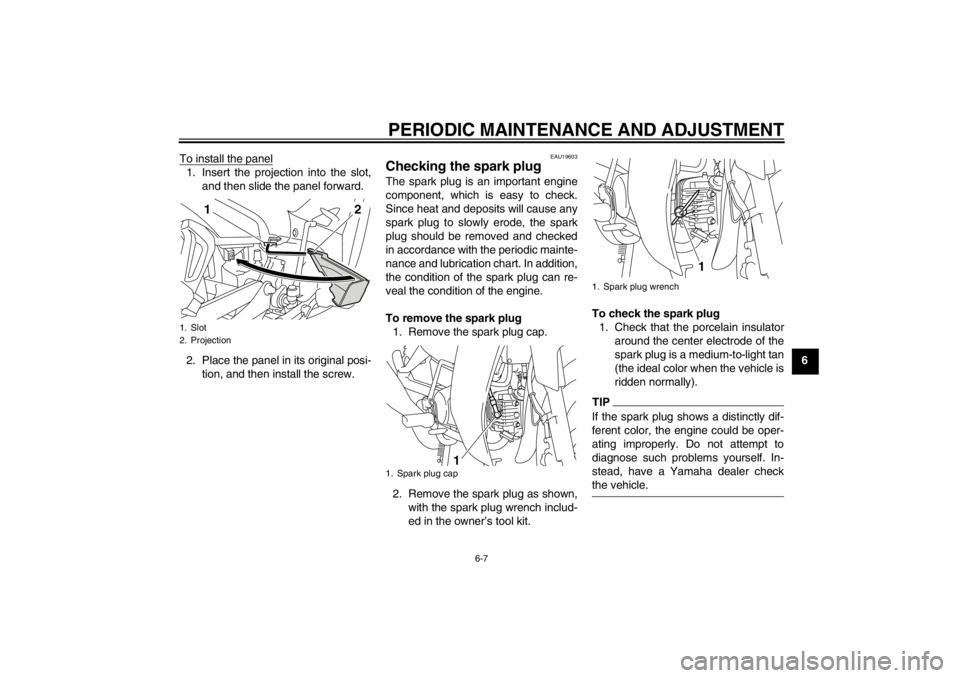

To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer checkthe vehicle.
1. Slot
2. Projection
1
2
1. Spark plug cap
1
1. Spark plug wrench
1
U40BE0E0.book Page 7 Wednesday, January 7, 2009 10:05 AM
Page 38 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
62. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
4. Install the spark plug cap.
EAU47690
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
Specified spark plug:
TORCH/A7RTC
NGK/CR6HSA1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
U40BE0E0.book Page 8 Wednesday, January 7, 2009 10:05 AM
Page 39 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6

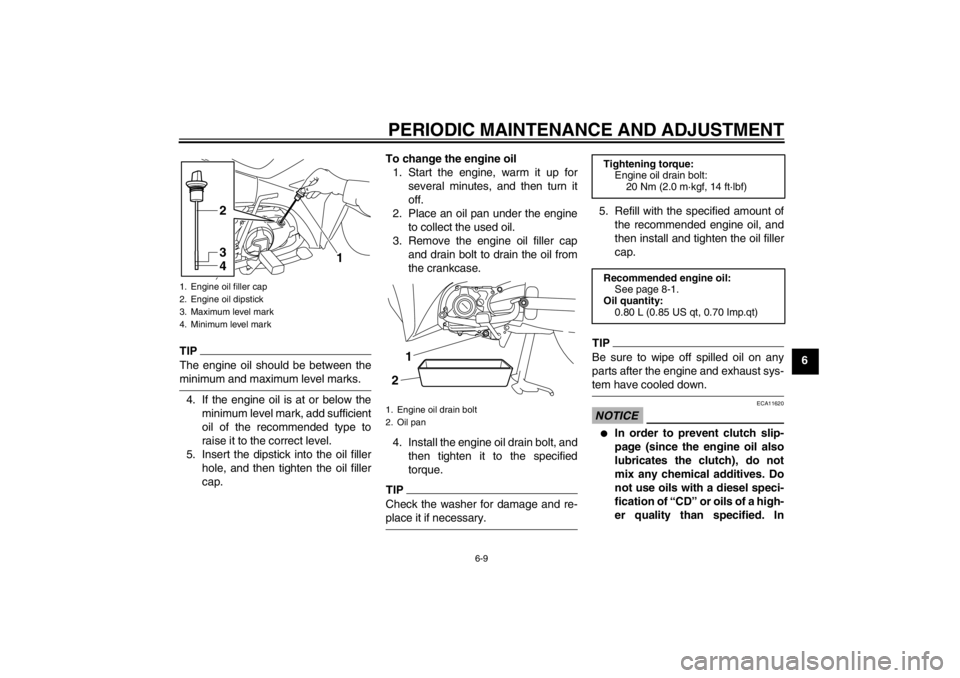

TIPThe engine oil should be between theminimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
4. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
TIPCheck the washer for damage and re-place it if necessary.5. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.NOTICE
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
1. Engine oil filler cap
2. Engine oil dipstick
3. Maximum level mark
4. Minimum level mark
1
2
3
4
1. Engine oil drain bolt
2. Oil pan
1
2
Tightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
0.80 L (0.85 US qt, 0.70 Imp.qt)
U40BE0E0.book Page 9 Wednesday, January 7, 2009 10:05 AM
Page 40 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
6. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
7. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU47770

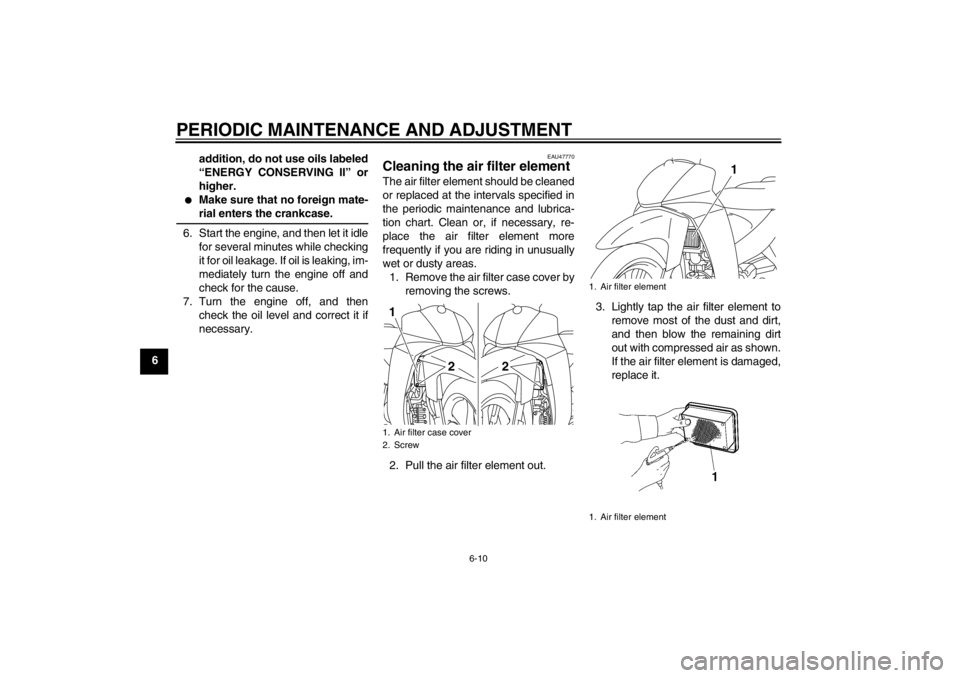

Cleaning the air filter element The air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out.3. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.1. Air filter case cover
2. Screw1
22
1. Air filter element
1. Air filter element
1
U40BE0E0.book Page 10 Wednesday, January 7, 2009 10:05 AM
