SAFETY INFORMATION
1-4
1 tents, can create unstable han-
dling or a slow steering re-
sponse.
●
This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
●
Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
U40BE2E0.book Page 4 Wednesday, October 10, 2012 8:01 AM

SAFETY INFORMATION
1-5
1tor and may limit control ability,
therefore, such accessories are
not recommended.
●
Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-14 for tire
specifications and more information on
replacing your tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.
●
Remove all loose items from the
motorcycle.
●
Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
●
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
●
Shift the transmission in gear (for
models with a manual transmis-
sion).
●
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or parts
that could break). Choose the lo-
cation for the straps carefully so
the straps will not rub against
painted surfaces during transport.
●
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce excessive-
ly during transport.
U40BE2E0.book Page 5 Wednesday, October 10, 2012 8:01 AM

DESCRIPTION
2-1
2
EAU10410

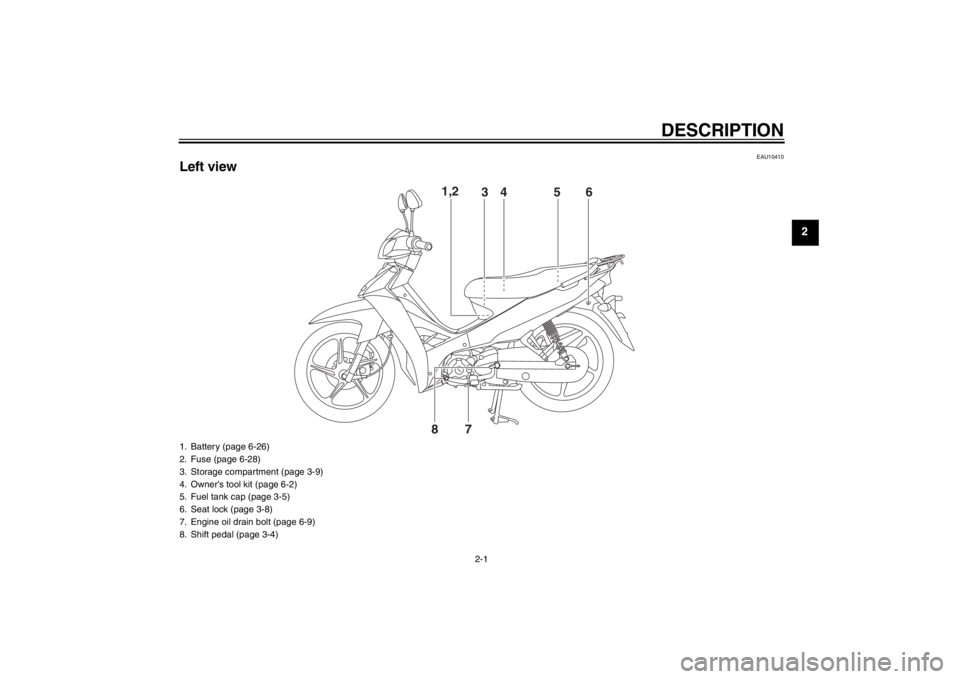

Left view
1,2
3
456
87
1. Battery (page 6-26)
2. Fuse (page 6-28)
3. Storage compartment (page 3-9)
4. Owner’s tool kit (page 6-2)
5. Fuel tank cap (page 3-5)
6. Seat lock (page 3-8)
7. Engine oil drain bolt (page 6-9)
8. Shift pedal (page 3-4)
U40BE2E0.book Page 1 Wednesday, October 10, 2012 8:01 AM

DESCRIPTION
2-2
2
EAU10420
Right view
1234
76 5
1. Carrier (page 3-10)
2. Helmet holder (page 3-8)
3. Kickstarter (page 3-8)
4. Front brake fluid reservoir (page 6-19)
5. Air filter element (page 6-11)
6. Brake pedal (page 3-5)
7. Engine oil filler cap (page 6-9)U40BE2E0.book Page 2 Wednesday, October 10, 2012 8:01 AM

DESCRIPTION
2-3
2
EAU10430
Controls and instruments
123567
4
1. Left handlebar switches (page 3-3)
2. Speedometer unit (page 3-3)
3. Fuel gauge (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Right handlebar switch (page 3-3)
6. Brake lever (page 3-4)
7. Throttle grip (page 6-13)
U40BE2E0.book Page 3 Wednesday, October 10, 2012 8:01 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10461
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU47821
(on)
All electrical circuits are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “ ”.
EAU47791
(off)
All electrical systems are off. The key
can be removed.WARNING
EWA15350
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU47801
(lock)
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ” posi-
tion, release it, and then turn it
to “ ”.
3. Remove the key.1. Push.
2. Release.
3. Turn.
123
U40BE2E0.book Page 1 Wednesday, October 10, 2012 8:01 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3 To unlock the steering
Insert the key and turn it to “ ”.
EAU10981
Indicator lights
EAU11020
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU37611
Gear position indicator lights “1”
“2” “3”, and “4”
The respective indicator light comes on
when the transmission is in the 1st,
2nd, 3rd or 4th gear position.
EAU11080
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Turn signal indicator light “ ”
2. Neutral indicator light “ ”
3. Gear position indicator light “1” “2” “3” “4”
4. High beam indicator light “ ”
12
3
4
U40BE2E0.book Page 2 Wednesday, October 10, 2012 8:01 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAUT1821

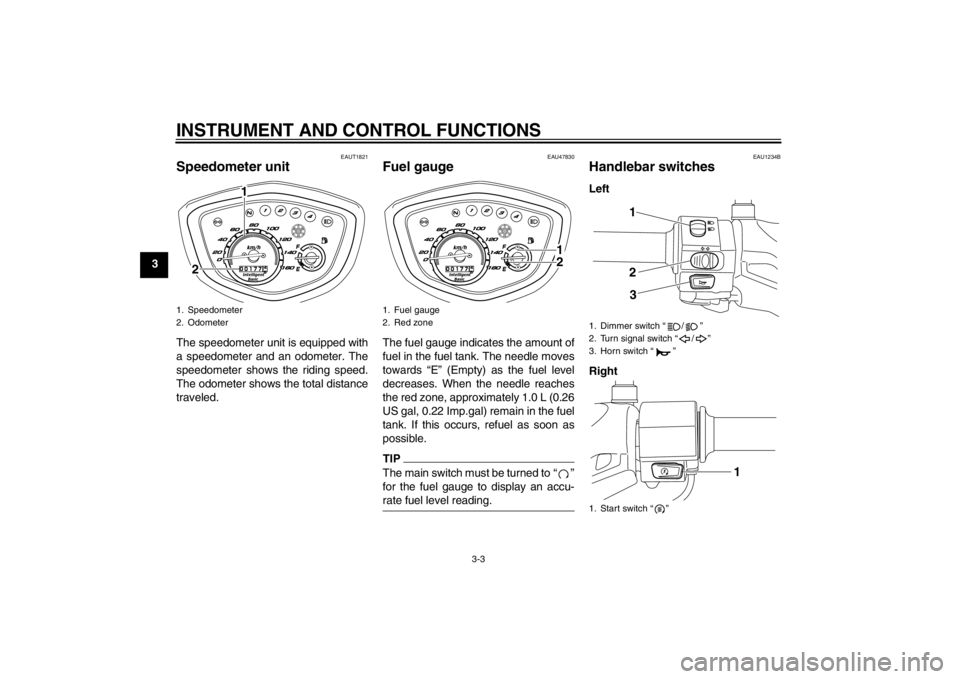

Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
EAU47830
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red zone, approximately 1.0 L (0.26
US gal, 0.22 Imp.gal) remain in the fuel
tank. If this occurs, refuel as soon as
possible.TIPThe main switch must be turned to “ ”
for the fuel gauge to display an accu-
rate fuel level reading.
EAU1234B
Handlebar switches Left
Right
1. Speedometer
2. Odometer
1
2
1. Fuel gauge
2. Red zone
12
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1. Start switch “ ”
1
2
3
1
U40BE2E0.book Page 3 Wednesday, October 10, 2012 8:01 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12711
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU37461

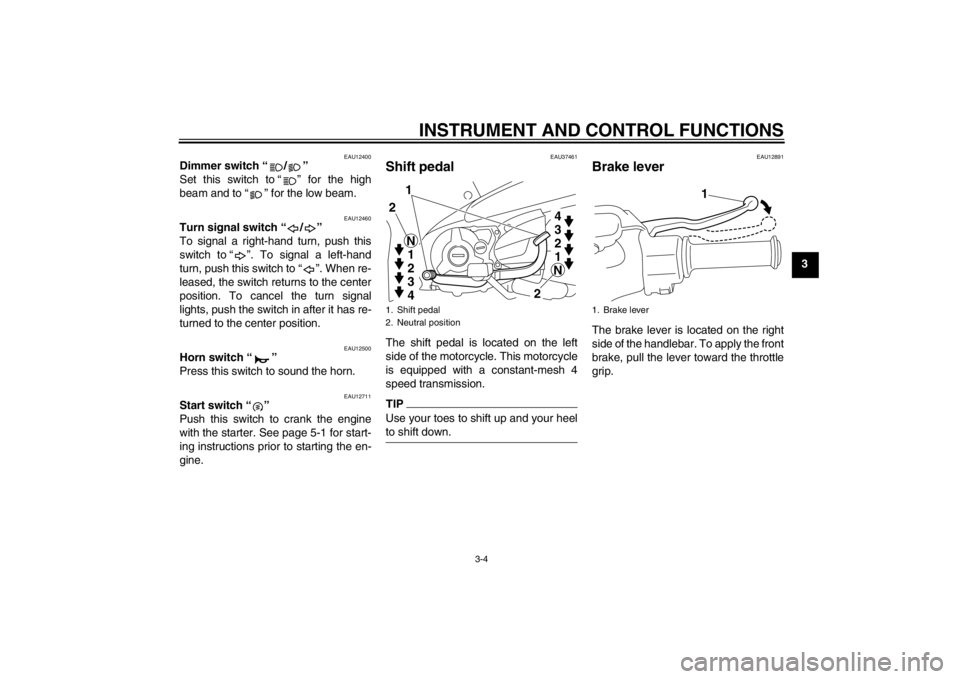

Shift pedal The shift pedal is located on the left
side of the motorcycle. This motorcycle
is equipped with a constant-mesh 4
speed transmission.TIPUse your toes to shift up and your heel
to shift down.
EAU12891
Brake lever The brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
1. Shift pedal
2. Neutral position
1
2
21
2
3
4 N
N3
2
1 4
1. Brake lever
1
U40BE2E0.book Page 4 Wednesday, October 10, 2012 8:01 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU37471

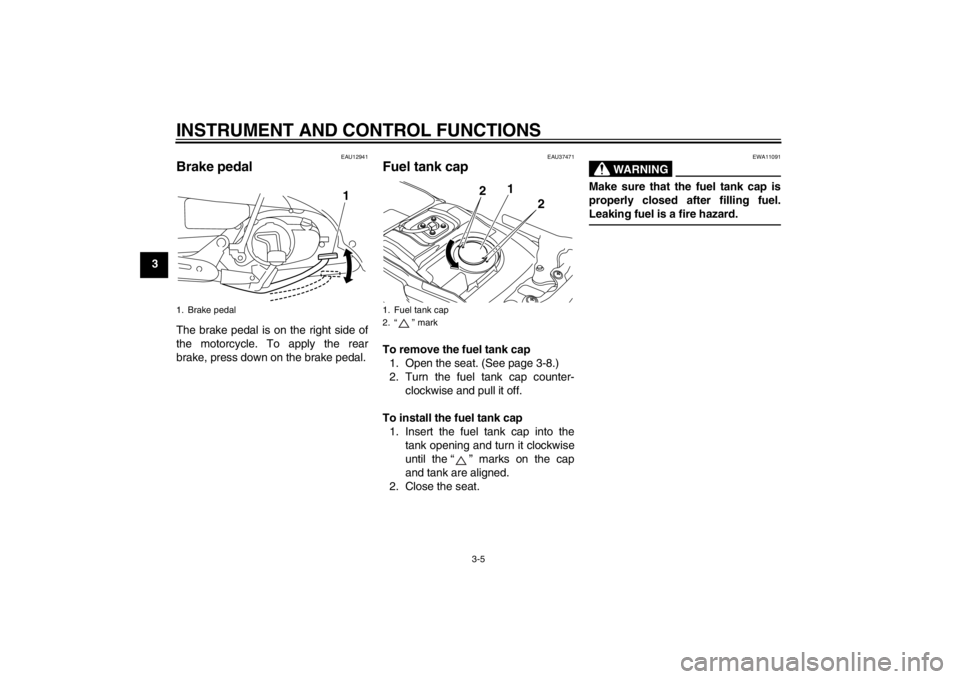

Fuel tank cap To remove the fuel tank cap
1. Open the seat. (See page 3-8.)
2. Turn the fuel tank cap counter-
clockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening and turn it clockwise
until the “ ” marks on the cap
and tank are aligned.
2. Close the seat.
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
1. Brake pedal
1
1. Fuel tank cap
2. “ ” mark
1
2
2
