SAFETY INFORMATION
1-4
1 tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas


GASOLINE IS HIGHLY FLAMMA-
BLE:
Always turn the engine off when
refueling.
Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
Never refuel while smoking or in
the vicinity of an open flame.


Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.


Always turn the engine off before
leaving the motorcycle unattended
and remove the key from the main
switch. When parking the motor-
cycle, note the following:
The engine and exhaust system
may be hot, therefore, park the
motorcycle in a place where pe-
destrians or children are not like-
ly to touch these hot areas.
Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.
Do not park the motorcycle near
a flammable source, (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.


When transporting the motorcycle
in another vehicle, make sure that
it is kept upright. If the motorcycle
should lean over, gasoline may
leak out of the carburetor or fuel
tank.


If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediately.
If any gasoline spills on your skinor clothing, immediately wash the
affected area with soap and water
and change your clothes.
U5YPE0E0.book Page 4 Wednesday, February 23, 2005 4:22 PM

DESCRIPTION
2-1
2
EAU10410
Left view1. Front turn signal/auxiliary lights (page 6-31)
2. Headlight (page 6-30)
3. Battery (page 6-28)
4. Storage compartment (page 3-8)
5. Owner’s tool kit (page 6-1)
6. Seat lock (page 3-7)
7. Tail/brake light (page 6-31)
8. Rear turn signal lights (page 6-31)9. Shift pedal (page 3-4)
10.Coolant reservoir (page 6-11)U5YPE0E0.book Page 1 Wednesday, February 23, 2005 4:22 PM

DESCRIPTION
2-2
2
EAU10420
Right view1. Kickstarter (page 3-7)
2. Fuel tank cap (page 3-5)
3. Fuse (page 6-29)
4. Helmet holder (page 3-8)
5. Air filter element (page 6-13)
6. Front brake fluid reservoir (page 6-21)
7. Engine oil filter element (page 6-9)
8. Brake pedal (page 3-5)9. Engine oil drain bolt (page 6-9)
10.Engine oil filler cap (page 6-9)
U5YPE0E0.book Page 2 Wednesday, February 23, 2005 4:22 PM

DESCRIPTION
2-3
2

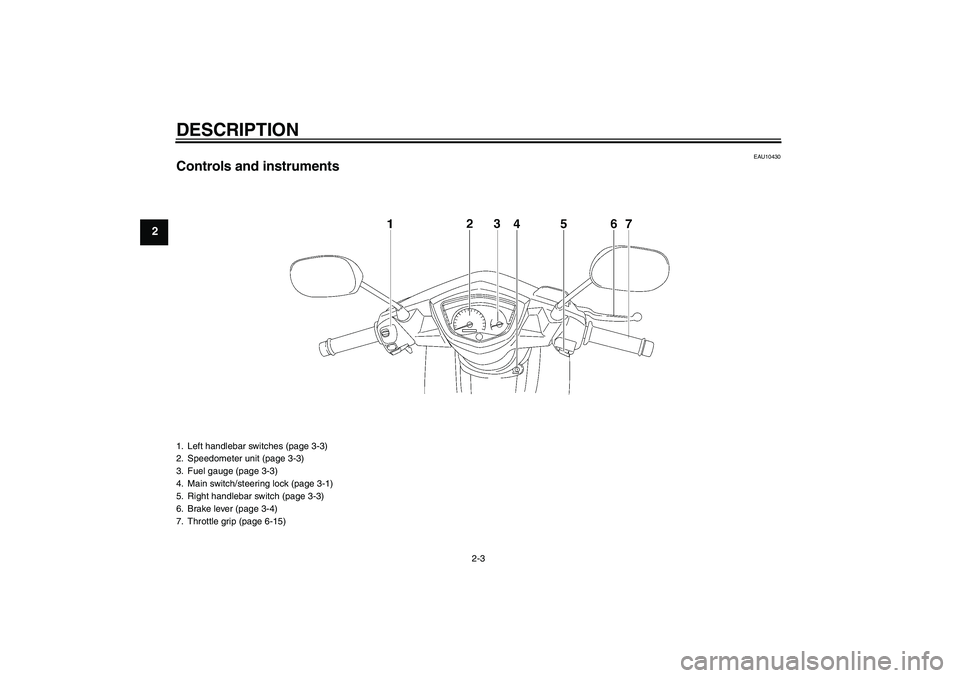

EAU10430
Controls and instruments1. Left handlebar switches (page 3-3)
2. Speedometer unit (page 3-3)
3. Fuel gauge (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Right handlebar switch (page 3-3)
6. Brake lever (page 3-4)
7. Throttle grip (page 6-15)U5YPE0E0.book Page 3 Wednesday, February 23, 2005 4:22 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU37441
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.NOTE:The headlight, auxiliary lights, meter
lighting and taillight come on automati-cally when the engine is started.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10700
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, release it, and then turn it to
“LOCK”.3. Remove the key.
To unlock the steering
Insert the key and turn it to “OFF”.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
1. Push.
2. Release.
3. Turn.
123
U5YPE0E0.book Page 1 Wednesday, February 23, 2005 4:22 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU37611
Gear position indicator lights “1 ”
“ 2 ” “ 3 ”, and “4 ”
The respective indicator light comes on
when the transmission is in the 1st,
2nd, 3rd or 4th gear position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU37631
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
This warning light also has a self-diag-
nosis device function for various electri-
cal circuits.

When the main switch is turned to
“ ON ” and the engine is not run-
ning, the warning light will flash if
an electrical circuit is defective. If
this occurs, have a Yamaha dealer
check the vehicle.


When the engine is running, the
warning light will come on if the en-
gine overheats or if an electrical
circuit is defective.
To determine which of the above is
occurring, stop the vehicle when it
is safe to do so, then turn the main
switch to “OFF ”, and then back to
“ ON ”.
If the warning light stays on, this in-
dicates the engine is overheating.
Keep the engine turned off and al-
low it to cool.
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
If the warning light flashes, this in-
dicates there is a defective electri-
cal circuit. Have a Yamaha dealer
check the vehicle.
The electrical circuit of the warning light
can be checked by turning the key to
“ ON ”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir- cuit.
1. Turn signal indicator light “”
2. Coolant temperature warning light “”
3. Neutral indicator light “”
4. Gear position indicator light “1” “2” “3” “4”
5. High beam indicator light “”U5YPE0E0.book Page 2 Wednesday, February 23, 2005 4:22 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU11621
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows riding speed. The
odometer shows the total distance trav-
eled.
EAU37051
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E ” (Empty) as the fuel level
decreases. When the needle reaches
the red zone, approximately 1.0 L (0.26
US gal) (0.22 Imp.gal) remain in the
fuel tank. If this occurs, refuel as soon
as possible.NOTE:

Do not allow the fuel tank to empty
itself completely.

The main switch must be turned to
“ ON ” for the fu el gauge to display an accurate fuel level reading.
EAU12343
Handlebar switches Left
Right
1. Speedometer
2. Odometer
1. Fuel gauge
2. Red zone
1. Dimmer switch “/”
2. Turn signal switch “/”
3. Horn switch “”
2. Start switch “”

U5YPE0E0.book Page 3 Wednesday, February 23, 2005 4:22 PM
1. Light switch " / "

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12400
Dimmer switch “ / ”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this switch to “” . To signal a le ft-hand
turn, push this swit ch to “”. When re-
leased, the swit ch returns to the center
position. To ca ncel the turn signal
lights, push the swit ch in after it has re-
tu rn ed to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12710
Start switch “” .
Push th is switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for star ting instruc-tions prior to starting the en gine.
EAU37460
Shift pedal The shift pedal is located on the left
side of the engine. This motorcycle is
equipped with a constant-mesh 4
speed transmission.NOTE:Use your toes to shift up and your heelto shift down.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pu ll the lever to wa rd the handle-
bar grip.
1. Shift pedal
1. Brake lever
U5YPE0E0.book Page 4 Wednesday, February 23, 2005 4:22 PM
EAU02948
Light switch " / "Set the switch to " " to turn on the
position light, meter lighting, taillight
an headlight also. Set the switch to " "
to turn off all the light

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3

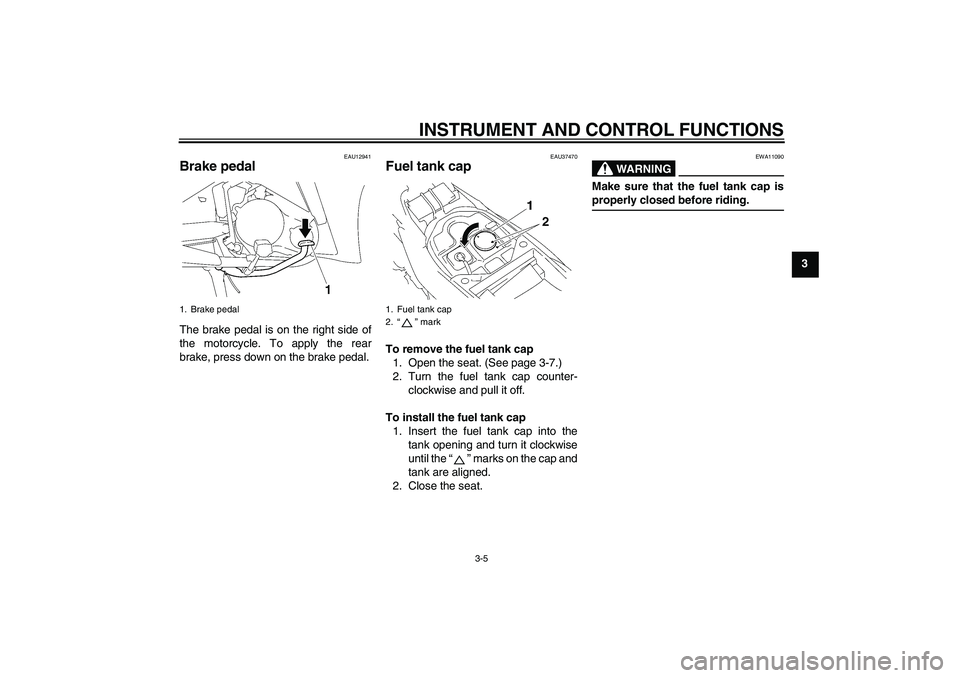

EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU37470
Fuel tank cap To remove the fuel tank cap
1. Open the seat. (See page 3-7.)
2. Turn the fuel tank cap counter-
clockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening and turn it clockwise
until the “” marks on the cap and
tank are aligned.
2. Close the seat.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
1. Brake pedal
1. Fuel tank cap
2.“” mark
U5YPE0E0.book Page 5 Wednesday, February 23, 2005 4:22 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU13210
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880


Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU37880
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
EAU13431
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.


Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.


Do not allow the engine to idletoo long.
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
4.0 L (1.06 US gal) (0.88 Imp.gal)
U5YPE0E0.book Page 6 Wednesday, February 23, 2005 4:22 PM
