PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU37530

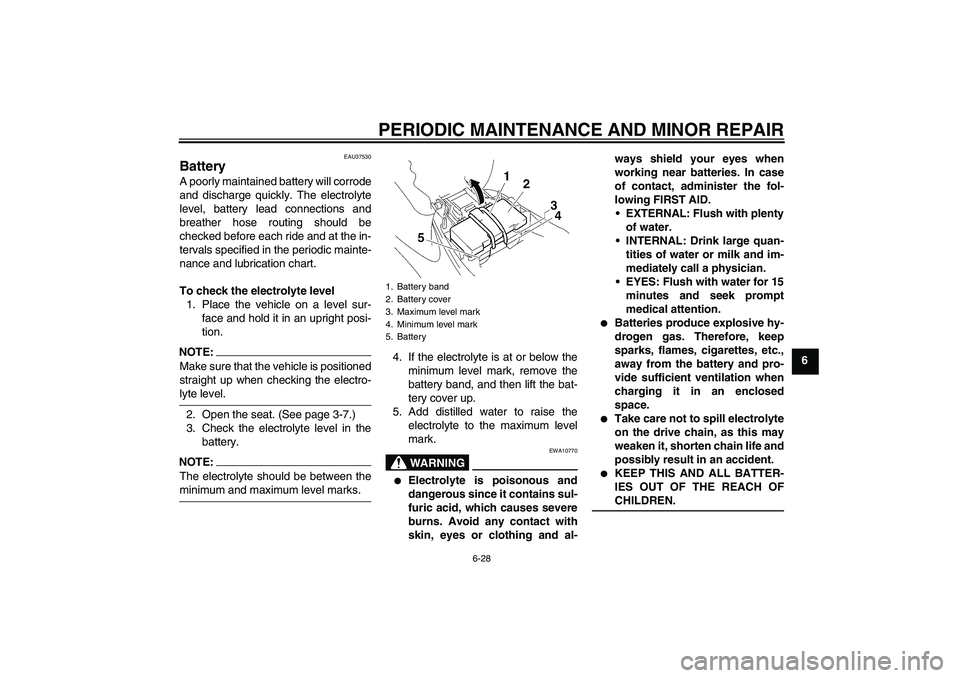

Battery A poorly maintained battery will corrode
and discharge quickly. The electrolyte
level, battery lead connections and
breather hose routing should be
checked before each ride and at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
To check the electrolyte level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:Make sure that the vehicle is positioned
straight up when checking the electro-lyte level.
2. Open the seat. (See page 3-7.)
3. Check the electrolyte level in the
battery.NOTE:The electrolyte should be between theminimum and maximum level marks.4. If the electrolyte is at or below the
minimum level mark, remove the
battery band, and then lift the bat-
tery cover up.
5. Add distilled water to raise the
electrolyte to the maximum level
mark.
WARNING
EWA10770


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


Take care not to spill electrolyte
on the drive chain, as this may
weaken it, shorten chain life and
possibly result in an accident.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
1. Battery band
2. Battery cover
3. Maximum level mark
4. Minimum level mark
5. Battery
U5YPE0E0.book Page 28 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
CAUTION:
ECA10610
Use only distilled water, as tap water
contains minerals that are harmfulto the battery.
6. Check and, if necessary, tighten
the battery lead connections and
correct the breather hose routing.
7. Place the battery cover in the orig-
inal position, and then install the
battery band.
8. Close the seat.To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check the specif-
ic gravity of the electrolyte at least
once a month and fully charge the
battery whenever necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals and
that the breather hose is properly
routed, in good condition, and not
obstructed.
CAUTION:
ECA10600
If the breather hose is positioned in
such a way that the frame is ex-
posed to electrolyte or gas expelled
from the battery, the frame could
suffer structural and external dam-ages.
EAU23481
Replacing the fuse The fuse holder is located under the
seat. (See page 3-7.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
1. Battery breather hose
1. Spare fuse
2. FuseSpecified fuse:
10.0 A
U5YPE0E0.book Page 29 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU37670
Replacing a headlight bulb If a headlight bulb burns out, replace it
as follows.
1. Remove cowling C. (See page
6-5.)
2. Remove the headlight bulb holder
by pushing it inward and turning it
counterclockwise, and then re-
move the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.3. Place a new bulb into position, and
then secure it with the bulb holder.
CAUTION:
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-cohol or thinner.
4. Install the cowling.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U5YPE0E0.book Page 30 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU37680
Replacing a front turn signal
light bulb or an auxiliary light
bulb If a front turn signal light or an auxiliary
light bulb burns out, replace it as fol-
lows.
1. Remove cowlings A, B and D.
(See page 6-5.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the cowlings.
EAU37741
Rear turn signal light and
tail/brake light If a rear turn signal light or the tail/brake
light does not come on, have a Yamaha
dealer check its electrical circuit or re-
place the bulb.
1. Turn signal light bulb socket
2. Auxiliary light bulb socket
1. Bulb
U5YPE0E0.book Page 31 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU24360

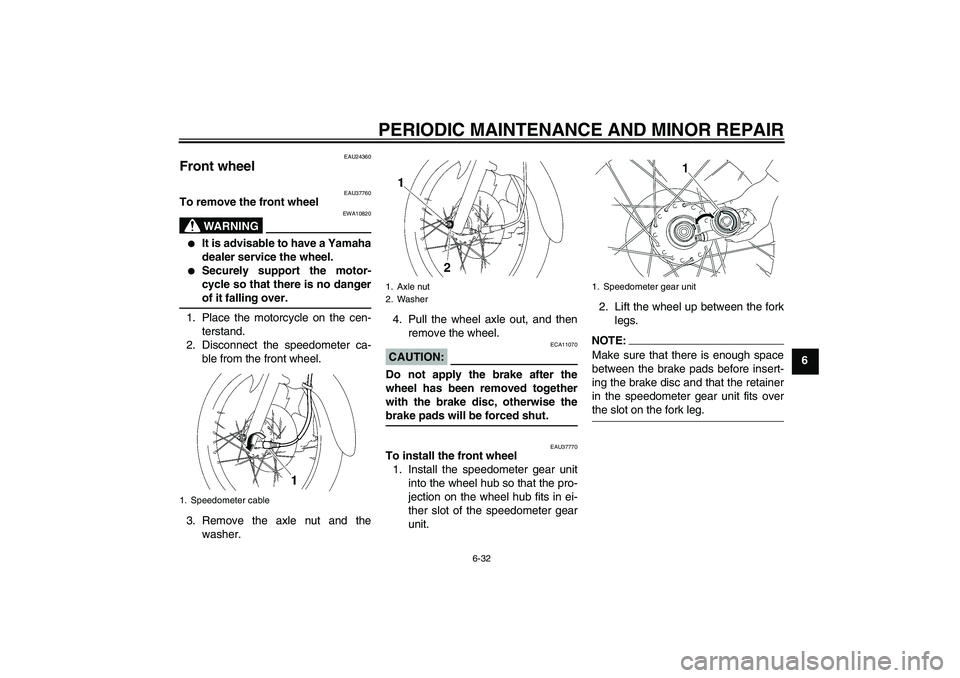

Front wheel
EAU37760
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Disconnect the speedometer ca-
ble from the front wheel.
3. Remove the axle nut and the
washer.4. Pull the wheel axle out, and then
remove the wheel.
CAUTION:
ECA11070
Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise thebrake pads will be forced shut.
EAU37770
To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the pro-
jection on the wheel hub fits in ei-
ther slot of the speedometer gear
unit.2. Lift the wheel up between the fork
legs.
NOTE:
Make sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the retainer
in the speedometer gear unit fits overthe slot on the fork leg.
1. Speedometer cable
1. Axle nut
2. Washer
1. Speedometer gear unit
U5YPE0E0.book Page 32 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33

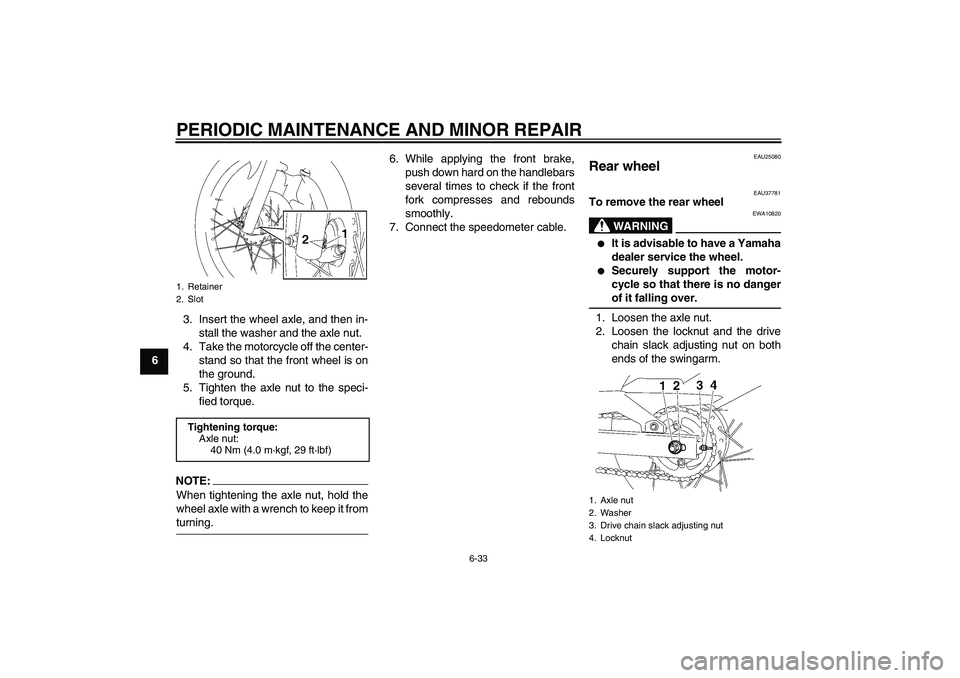

63. Insert the wheel axle, and then in-
stall the washer and the axle nut.
4. Take the motorcycle off the center-
stand so that the front wheel is on
the ground.
5. Tighten the axle nut to the speci-
fied torque.
NOTE:When tightening the axle nut, hold the
wheel axle with a wrench to keep it fromturning.6. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
7. Connect the speedometer cable.
EAU25080
Rear wheel
EAU37781
To remove the rear wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the axle nut.
2. Loosen the locknut and the drive
chain slack adjusting nut on both
ends of the swingarm.
1. Retainer
2. SlotTightening torque:
Axle nut:
40 Nm (4.0 m·kgf, 29 ft·lbf)
1. Axle nut
2. Washer
3. Drive chain slack adjusting nut
4. Locknut
U5YPE0E0.book Page 33 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34

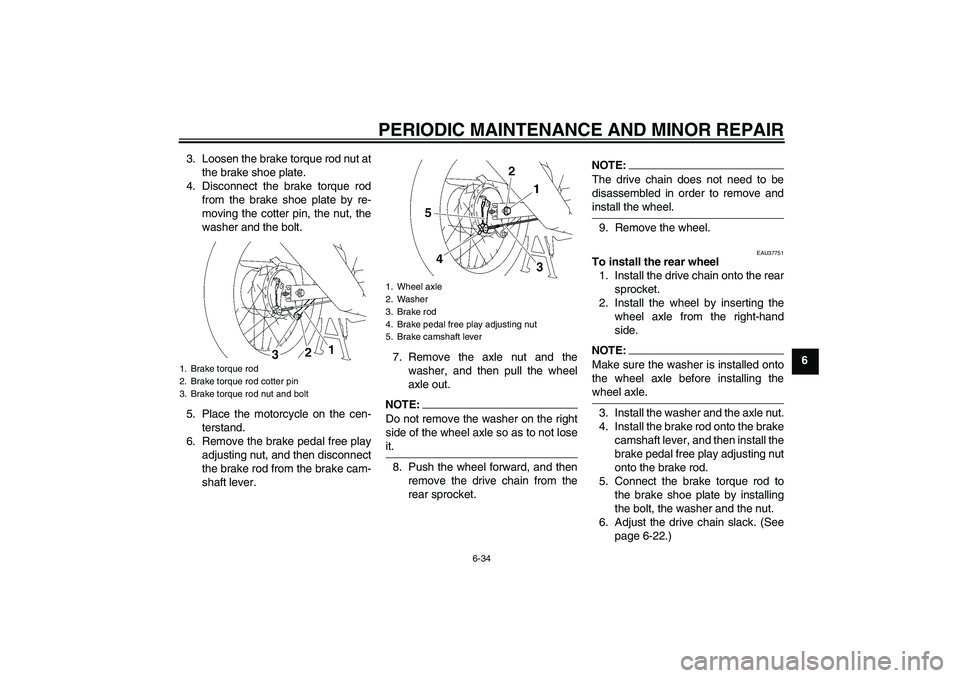

6 3. Loosen the brake torque rod nut at
the brake shoe plate.
4. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut, the
washer and the bolt.
5. Place the motorcycle on the cen-
terstand.
6. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod from the brake cam-
shaft lever.7. Remove the axle nut and the
washer, and then pull the wheel
axle out.
NOTE:Do not remove the washer on the right
side of the wheel axle so as to not loseit.
8. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:The drive chain does not need to be
disassembled in order to remove andinstall the wheel.
9. Remove the wheel.
EAU37751
To install the rear wheel
1. Install the drive chain onto the rear
sprocket.
2. Install the wheel by inserting the
wheel axle from the right-hand
side.NOTE:Make sure the washer is installed onto
the wheel axle before installing thewheel axle.
3. Install the washer and the axle nut.
4. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting nut
onto the brake rod.
5. Connect the brake torque rod to
the brake shoe plate by installing
the bolt, the washer and the nut.
6. Adjust the drive chain slack. (See
page 6-22.)
1. Brake torque rod
2. Brake torque rod cotter pin
3. Brake torque rod nut and bolt
1. Wheel axle
2. Washer
3. Brake rod
4. Brake pedal free play adjusting nut
5. Brake camshaft lever
U5YPE0E0.book Page 34 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
67. Take the motorcycle off the center-
stand so that the rear wheel is on
the ground.
8. Tighten the brake torque rod nut
and axle nut to the specified
torques.
NOTE:When tightening the axle nut, hold the
wheel axle with a wrench to keep it fromturning.
9. Insert a new cotter pin.
10. Adjust the brake pedal free play.
(See page 6-19.)
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of thebrake light.
EAU25870
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
Tightening torques:
Brake torque rod nut:
19 Nm (1.9 m·kgf, 14 ft·lbf)
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)
U5YPE0E0.book Page 35 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU37620
Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is
enough fuel.
There is
no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the
electric starter or the
kickstarter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wet
Dry
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start. Have a
Yamaha dealer check the vehicle.The engine does not start.
Check the battery.Open the throttle halfway and
operate the electric starter.
Operate the
electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the electrolyte and battery
lead connections, and charge the
battery if necessary.
U5YPE0E0.book Page 36 Wednesday, February 23, 2005 4:22 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U5YPE0E0.book Page 37 Wednesday, February 23, 2005 4:22 PM
