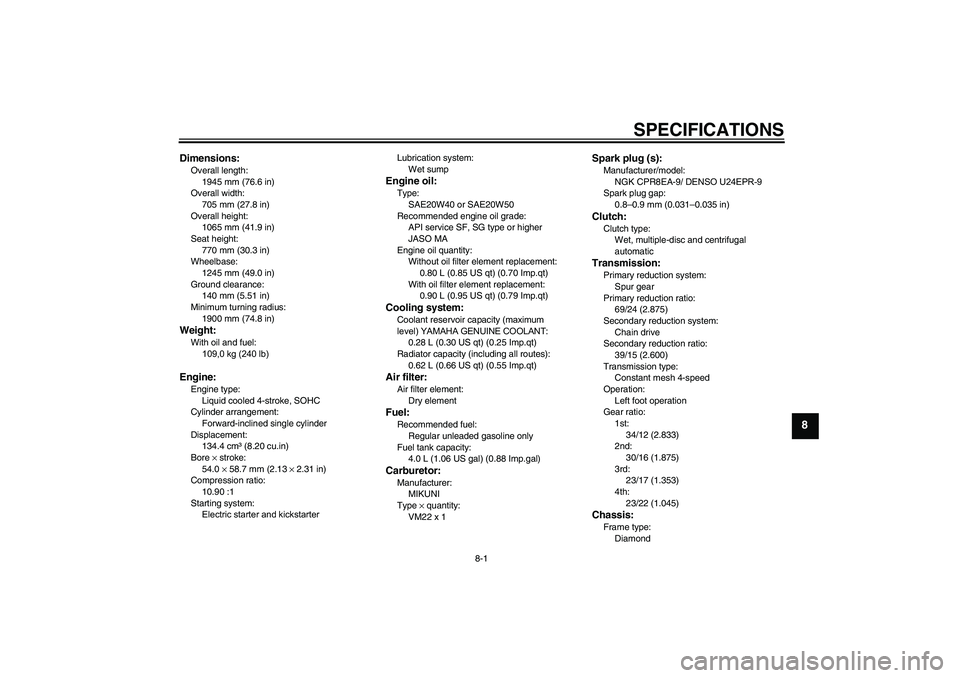

SPECIFICATIONS
8-1
8
Dimensions:Overall length:1945 mm (76.6 in)
Overall width:
705 mm (27.8 in)
Overall height: 1065 mm (41.9 in)
Seat height: 770 mm (30.3 in)
Wheelbase:
1245 mm (49.0 in)
Ground clearance: 140 mm (5.51 in)
Minimum turning radius: 1900 mm (74.8 in)Weight:With oil and fuel:109,0 kg (240 lb)Engine:Engine type:Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement: 134.4 cm ³ (8.20 cu.in)
Bore × stroke:
54.0 × 58.7 mm (2.13 × 2.31 in)
Compression ratio:
10.90 :1
Starting system: Electric starter and kickstarter Lubrication system:
Wet sump
Engine oil:Type:
SAE20W40 or SAE20W50
Recommended engine oil grade: API service SF, SG type or higher
JASO MA
Engine oil quantity: Without oil filter element replacement:
0.80 L (0.85 US qt) (0.70 Imp.qt)
With oil filter element replacement: 0.90 L (0.95 US qt) (0.79 Imp.qt)Cooling system:Coolant reservoir capacity (maximum
level) YAMAHA GENUINE COOLANT: 0.28 L (0.30 US qt) (0.25 Imp.qt)
Radiator capacity (including all routes):
0.62 L (0.66 US qt) (0.55 Imp.qt)Air filter:Air filter element:Dry elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity: 4.0 L (1.06 US gal) (0.88 Imp.gal)Carburetor:Manufacturer:MIKUNI
Type × quantity:
VM22 x 1
Spark plug (s):Manufacturer/model: NGK CPR8EA-9/ DENSO U24EPR-9
Spark plug gap:
0.8 –0.9 mm (0.031 –0.035 in)Clutch:Clutch type:
Wet, multiple-disc and centrifugal
automaticTransmission:Primary reduction system:
Spur gear
Primary reduction ratio: 69/24 (2.875)
Secondary reduction system: Chain drive
Secondary reduction ratio:
39/15 (2.600)
Transmission type: Constant mesh 4-speed
Operation: Left foot operation
Gear ratio:
1st:34/12 (2.833)
2nd:
30/16 (1.875)
3rd: 23/17 (1.353)
4th: 23/22 (1.045)Chassis:Frame type: Diamond
