SPECIFICATIONS
8-4
8
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 31.5 A @ 5,000 r/min
Battery
Model GT12B-4
Voltage, capacity 12 V, 10 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage × quantity
Headlight 12 V, 55 W × 2
Auxiliary light 12 V, 5 W × 1
Tail/brake light 12 V, 5/21 W × 2
Turn signal light 12 V, 10 W × 4
Meter lighting 12 V, 2 W × 2
Neutral indicator light 14 V, 1.2 W × 1
High beam indicator light 14 V, 1.4 W × 1
Turn signal indicator light 14 V, 1.2 W × 2
Oil level warning light L.E.D.
Engine trouble warning light 14 V, 1.4 W × 1Fuses
Main fuse 40 A
Headlight fuse 15 A
Signaling system fuse 7.5 A
Ignition fuse 10 A
Parking lighting fuse 5 A
Turn signal and hazard light
fuse 10 A
Backup fuse (odometer and
clock) 5 A
Radiator fan fuse 20 A
Electronic Fuel Injection
System fuse 10 A
U5PSE0.book Page 4 Thursday, December 13, 2001 4:29 PM

SPECIFICATIONS
8-5
8
EAU03941
Conversion table CS-03EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°
F
U5PSE0.book Page 5 Thursday, December 13, 2001 4:29 PM

CONSUMER INFORMATION
9

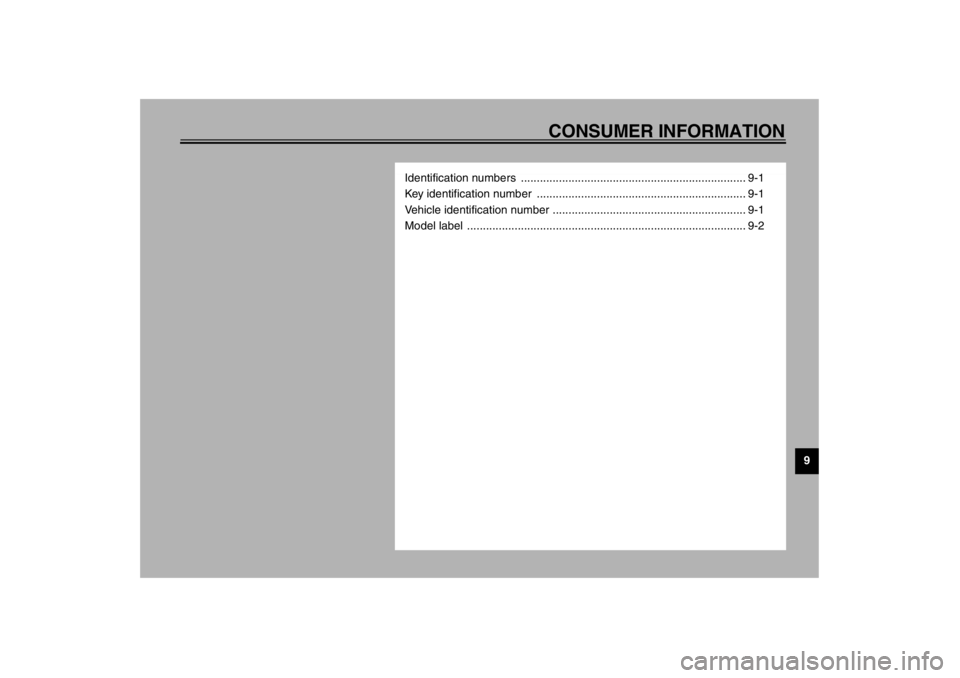

Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. @
1. Key identification number
1. Vehicle identification number
U5PSE0.book Page 1 Thursday, December 13, 2001 4:29 PM

CONSUMER INFORMATION
9-2
9
EAU01050
Model label The model label is affixed to the frame
under the seat. (See page 3-11 for seat
removal and installation procedures.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
U5PSE0.book Page 2 Thursday, December 13, 2001 4:29 PM

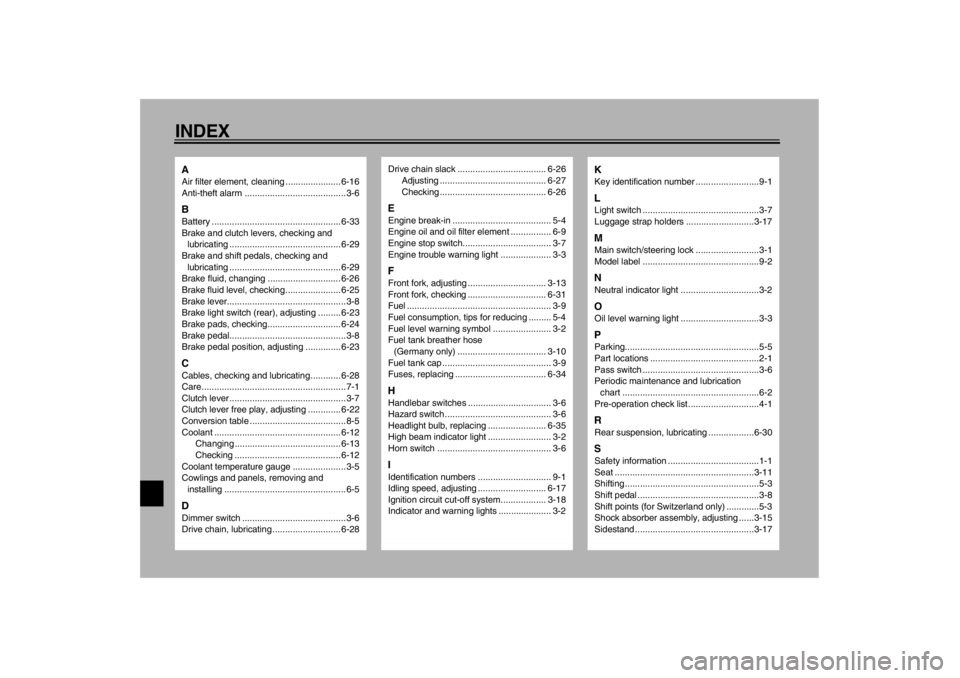

10-INDEXAAir filter element, cleaning ...................... 6-16
