YAMAHA TDM 900 2002 Repair Manual
Manufacturer: YAMAHA, Model Year: 2002, Model line: TDM 900, Model: YAMAHA TDM 900 2002Pages: 110, PDF Size: 4.79 MB
Page 61 of 110

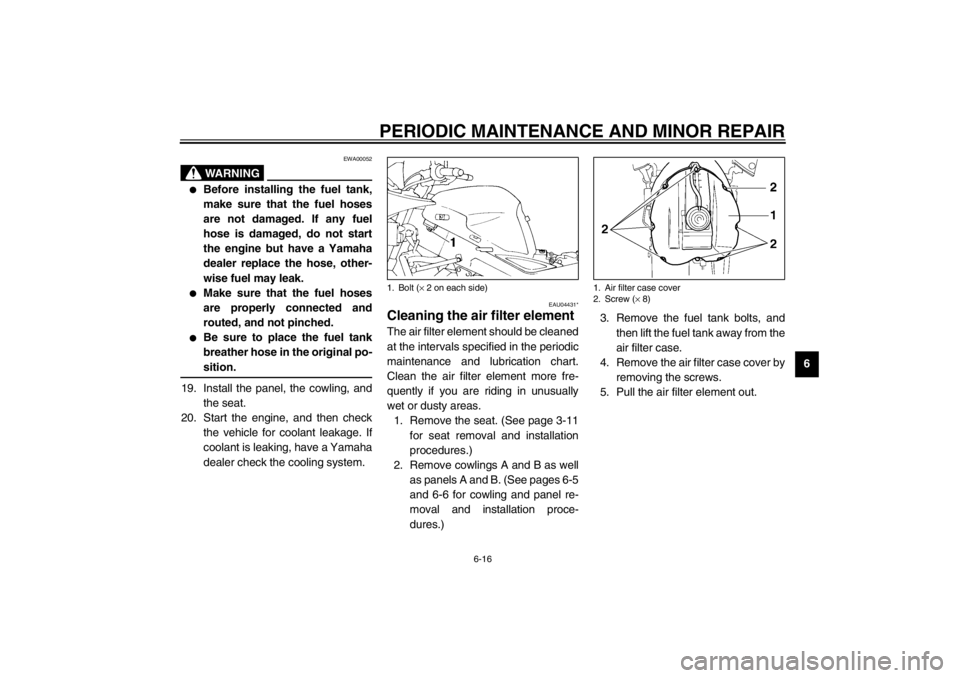

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EWA00052
WARNING
_
Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine but have a Yamaha
dealer replace the hose, other-
wise fuel may leak.
Make sure that the fuel hoses
are properly connected and
routed, and not pinched.
Be sure to place the fuel tank
breather hose in the original po-
sition.
_19. Install the panel, the cowling, and
the seat.
20. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
EAU04431*
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
2. Remove cowlings A and B as well
as panels A and B. (See pages 6-5
and 6-6 for cowling and panel re-
moval and installation proce-
dures.)3. Remove the fuel tank bolts, and
then lift the fuel tank away from the
air filter case.
4. Remove the air filter case cover by
removing the screws.
5. Pull the air filter element out.1. Bolt (× 2 on each side)
1. Air filter case cover
2. Screw (× 8)
U5PSE0.book Page 16 Thursday, December 13, 2001 4:29 PM
Page 62 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
66. Insert a new air filter element into
the air filter case.
EC000082*
CAUTION:_
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
pistons and/or cylinders may
become excessively worn.
_
7. Install the air filter case cover by
installing the screws.
8. Place the fuel tank in the original
position and install the bolts.
EWA00013
WARNING
_ Make sure that the fuel hose and
breather hose are properly connect-
ed and routed, and not pinched. Re-
place any damaged hoses. _9. Install the panels and cowlings.
10. Install the seat.
EAU00632
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine and warm it up for
several minutes at 1,000–
2,000 r/min while occasionally rev-
ving it to 4,000–5,000 r/min.NOTE:@ The engine is warm when it quickly re-
sponds to the throttle. @
1. Air filter elementU5PSE0.book Page 17 Thursday, December 13, 2001 4:29 PM
Page 63 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18

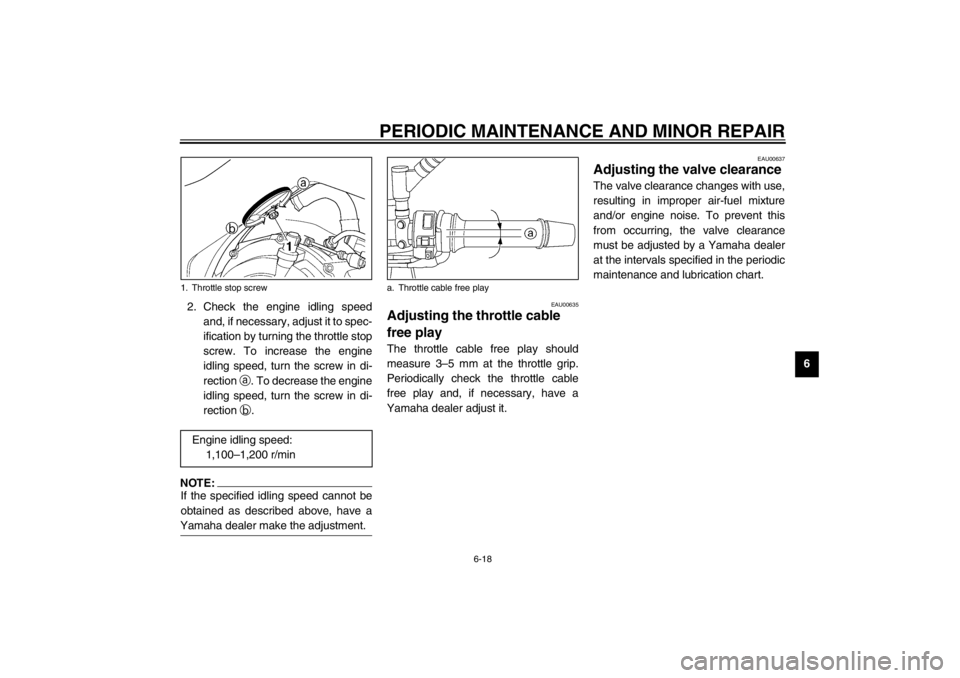

6 2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
rection
a. To decrease the engine
idling speed, turn the screw in di-
rection
b.
NOTE:@ If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment. @
EAU00635
Adjusting the throttle cable
free play The throttle cable free play should
measure 3–5 mm at the throttle grip.
Periodically check the throttle cable
free play and, if necessary, have a
Yamaha dealer adjust it.
EAU00637
Adjusting the valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Throttle stop screw
Engine idling speed:
1,100–1,200 r/min
a. Throttle cable free play
U5PSE0.book Page 18 Thursday, December 13, 2001 4:29 PM
Page 64 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU00658
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
EW000082
WARNING
_
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
_
CE-01E
CE-07EEWA00012
WARNING
_ Because loading has an enormous
impact on the handling, braking, per-
formance and safety characteristics
of your motorcycle, you should keep
the following precautions in mind.
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider, pas-
senger, cargo, and accessories
does not exceed the specified
maximum load for the vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and air
pressure before each ride.
_
Tire air pressure
(measured on cold tires)
Load* Front Rear
Up to 90 kg250 kPa
(2.50 kgf/cm
2,
2.50 bar)250 kPa
(2.50 kgf/cm
2,
2.50 bar)
90 kg–maximum250 kPa
(2.50 kgf/cm
2,
2.50 bar)290 kPa
(2.90 kgf/cm
2,
2.90 bar)
High-speed riding250 kPa
(2.50 kgf/cm
2,
2.50 bar)250 kPa
(2.50 kgf/cm
2,
2.50 bar)
Maximum load* 203 kg
* Total weight of rider, passenger, cargo and
accessories
U5PSE0.book Page 19 Thursday, December 13, 2001 4:29 PM
Page 65 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20

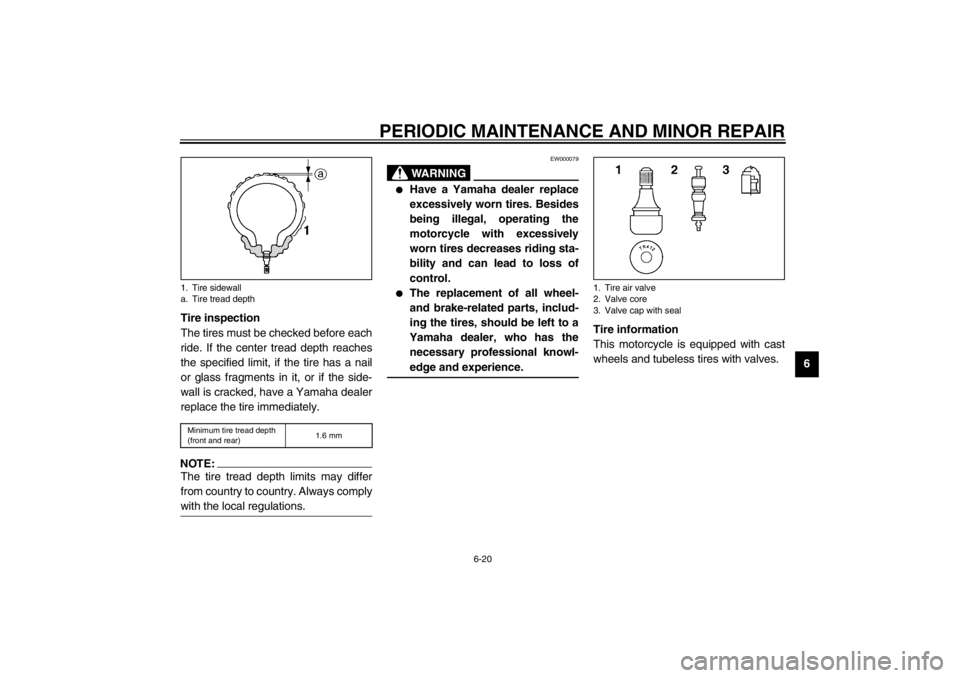

6 Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
CE-08ENOTE:_ The tire tread depth limits may differ
from country to country. Always comply
with the local regulations. _
EW000079
WARNING
_
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
motorcycle with excessively
worn tires decreases riding sta-
bility and can lead to loss of
control.
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
_
Tire information
This motorcycle is equipped with cast
wheels and tubeless tires with valves.
1. Tire sidewall
a. Tire tread depthMinimum tire tread depth
(front and rear)1.6 mm
1. Tire air valve
2. Valve core
3. Valve cap with seal
U5PSE0.book Page 20 Thursday, December 13, 2001 4:29 PM
Page 66 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EW000080
WARNING
_
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during a
high-speed ride.
_
CE-10E
CE-14EEAU00684
WARNING
@ This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
after installing a new tire.
The tires must be warmed up
before a high-speed run.
Always adjust the tire air pres-
sure according to the operating
conditions.
@
FRONT
Manufacturer Size Model
Dunlop
120/70 ZR18 (59W)
D220FSTJ
Metzeler
120/70 ZR18 M/C (59W)
MEZ4J
REAR
Manufacturer Size Model
Dunlop
160/60 ZR17 (69W)
D220STJ
Metzeler
160/60 ZR17 M/C (69W)
MEZ4J
FRONT & REAR
Tire air valve TR412
Valve core #9000A (original)
U5PSE0.book Page 21 Thursday, December 13, 2001 4:29 PM
Page 67 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU00692
Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 10–15 mm as shown. Periodically
check the clutch lever free play and, if
necessary, adjust it as follows.
1. Loosen the locknut at the clutch le-
ver.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection
a. To decrease the clutch
lever free play, turn the adjusting
bolt in direction
b.
3. Tighten the locknut.
NOTE:@ If the specified free play cannot be ob-
tained as described above or if the
clutch does not operate correctly, have
a Yamaha dealer check the internal
clutch mechanism. @
1. Locknut
2. Clutch lever free play adjusting bolt
c. Clutch lever free play
U5PSE0.book Page 22 Thursday, December 13, 2001 4:29 PM
Page 68 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU00712
Adjusting the brake pedal
position The top of the brake pedal should be
positioned approximately 32 mm below
the top of the footrest as shown. Peri-
odically check the brake pedal position
and, if necessary, have a Yamaha
dealer adjust it.
EW000109
WARNING
@ A soft or spongy feeling in the brake
pedal can indicate the presence of
air in the hydraulic system. If there
is air in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the motorcycle. Air in
the hydraulic system will diminish
the braking performance, which
may result in loss of control and an
accident. @
EAU00713
Adjusting the rear brake light
switch The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the adjusting nut while holding the
rear brake light switch in place. To
make the brake light come on earlier,
turn the adjusting nut in direction
a. To
make the brake light come on later,
turn the adjusting nut in direction
b.
a. Distance between brake pedal and footrest
1. Brake light switch
2. Brake light switch adjusting nut
U5PSE0.book Page 23 Thursday, December 13, 2001 4:29 PM
Page 69 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
EAU00715
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake pad is
provided with a wear indicator, which
allows you to check the brake pad wear
without having to disassemble the
brake. To check the brake pad wear, check
the position of the wear indicator while
applying the brake. If a brake pad has
worn to the point that the wear indicator
almost touches the brake disc, have a
Yamaha dealer replace the brake pads
as a set. 1. Brake pad wear indicator grooveFront brake
1. Brake pad wear indicator grooveRear brake
U5PSE0.book Page 24 Thursday, December 13, 2001 4:29 PM
Page 70 of 110
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU03294
Checking the brake fluid level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake flu-
id level may indicate worn brake pads
and/or brake system leakage. If the
brake level is low, be sure to check the
brake pads for wear and the brake sys-
tem for leakage.Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.
Use only the recommended quali-
ty brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
1. Minimum level markFront brake
1. Minimum level mark
Recommended brake fluid: DOT 4Rear brake
U5PSE0.book Page 25 Thursday, December 13, 2001 4:29 PM
